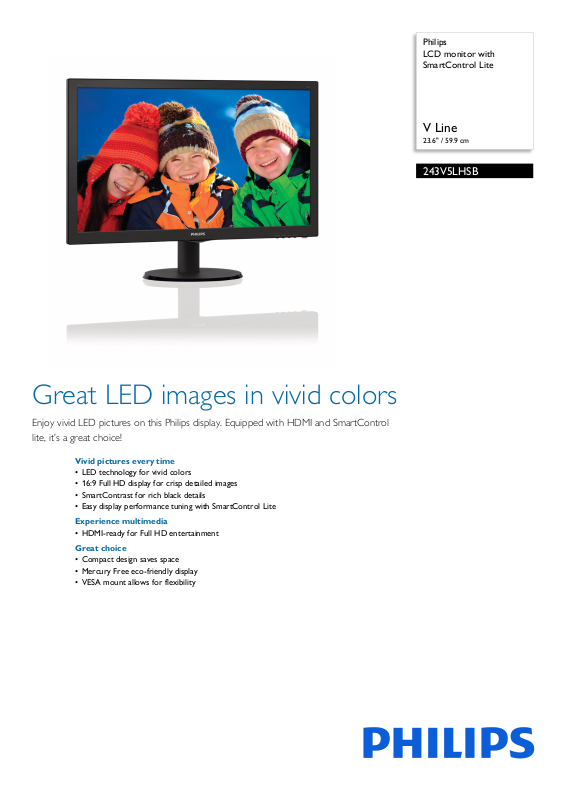

Page 1
Philips
LCD monitor with
SmartControl Lite
V Line
23.6" / 59.9 cm
243V5LHSB
Great LED images in vivid colors
Enjoy vivid LED pictures on this Philips display. Equipped with HDMI and SmartControl
lite, it’s a great choice!
Vivid pictures every time
• LED technology for vivid colors
• 16:9 Full HD display for crisp detailed images
• SmartContrast for rich black details
• Easy display performance tuning with SmartControl Lite
Experience multimedia
• HDMI-ready for Full HD entertainment
Great choice
• Compact design saves space
• Mercury Free eco-friendly display
• VESA mount allows for flexibility
Page 2
243V5LHSB/27
LCD monitor with SmartControl Lite
V Line 23.6" / 59.9 cm
Highlights
LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
16:9 Full HD display
Picture quality matters. Regular displays deliver
quality, but you expect more. This display
features enhanced Full HD 1920 x 1080
resolution. With Full HD for crisp detail paired
with high brightness, incredible contrast and
realistic colors expect a true to life picture.
SmartControl Lite
SmartControl Lite is the next generation 3D
i
con based GUI monitor control software. This
allows user to fine-tune most parameters of
the monitor like Color, Brightness, screen
calibration, Multi-media, ID management, etc
with the mouse.
SmartContrast
SmartContrast is a Philips technology that
analyzes the contents you are displaying,
automatically adjusting colors and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
for just-right display of everyday office
applications and lower power consumption.
HDMI Ready
An HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input. A HDMI
cable enables high-quality digital video and
audio all transmitted over a single cable from a
PC or any number of AV sources (including
set-top boxes, DVD players, A/V receivers and
video cameras).
Mercury Free
Philips monitors with LED backlighting are free
of
Mercury content, one of the most toxic
natural substances, which affects humans and
animals. This reduces the environmental
impact of the display throughout its life-cycle,
from manufacturing to disposal.
Page 3
243V5LHSB/27
LCD monitor with SmartControl Lite
V Line 23.6" / 59.9 cm
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 23.6 inch / 59.9 cm
• Effective viewing area: 521.28 (H) x 293.22 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Response time (typical): 5 ms
• SmartResponse (typical): 1 ms (Gray to Gray)
• Brightness: 250 cd/m²
• SmartContrast:
• Contrast ratio (typical): 1000:1
• Pixel pitch: 0.272 x 0.272 mm
• Viewing angle: 170º (H) / 160º (V), @ C/R > 10
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
•sRGB
10,000,000:1
kHz (H) / 56 -75 Hz (V)
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital,
HDCP), HDMI (digital, HDCP)
• Sync Input: Separate Sync, Sync on Green
Convenience
• User convenience: Auto/Down, 4:3 Wide/Up,
Brightness/Back, Menu/OK, Power On/Off
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Spanish, Simplified Chinese,
Swedish, Turkish, Traditional Chinese, Ukranian
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7, Windows 8
sR
Stand
• Tilt: -5/20 degree
Power
• On mode: 18.59 W (typ.) (EnergyStar 6.0 test
method)
• Standby mode: 0.5 W (typ.)
• Off mode: 0.3 W (typ.)
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand (mm): 551 x 420 x 220 mm
• Product with stand in inch: 21.7 x 16.5 x 8.7 inch
• Product without stand (mm): 551 x 344 x 52 mm
• Product without stand in inc
2.0 inch
• Packaging in mm (WxHxD): 600 x 415 x 118 mm
• Packaging in inch (WxHxD): 23.6 x 16.3 x 4.6 inch
h: 21.7 x 13.5 x
Weight
• Product with stand (kg): 3.66 kg
• Product with stand (lb): 8.05 lb
• Product without stand (kg): 3.22 kg
• Product without stand (lb): 7.08 lb
• Product with packaging (kg): 5.00 kg
• Product with packaging (lb): 11.00 lb
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 50,000 (Excluded backlight) hour(s)
Sustainability
• Environmental and energy: EnergyStar 6.0, EPEAT
Silver, RoHS, Lead-free, Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, cETLus,
FCC Class B, GOST, PSB, SASO, SEMKO, TCO
certified, TUV/ISO9241-307, WEEE
Cabinet
• Color: Black
• Finish: Hairline (front bezel) / Texture (rear cover)
•
Issue date 2019-05-15
Version: 4.0.1
12 NC: 8670 001 25754
UPC: 6 09585 24857 1
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* Smart response time is the optimum value from either GtG or GtG
(BW) tests.
