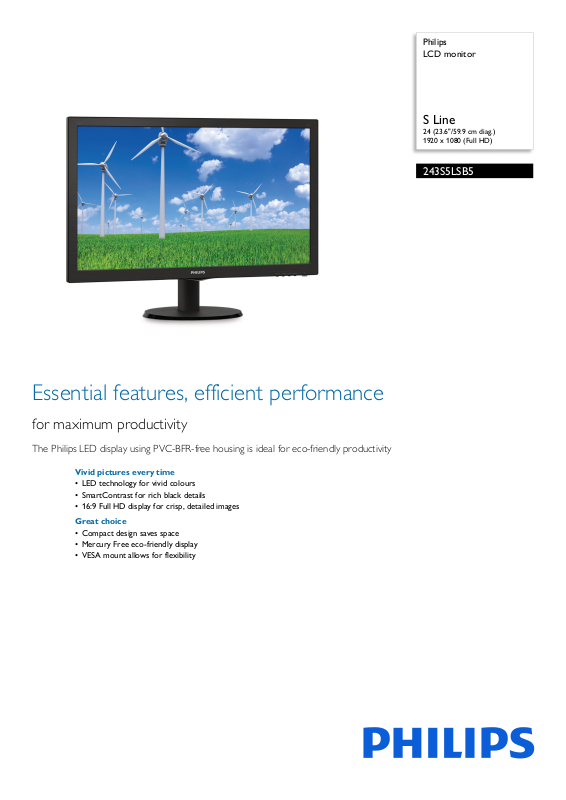

Page 1
Philips
LCD monitor
S Line
24 (23.6"/59.9 cm diag.)
1920 x 1080 (Full HD)
243S5LSB5
Essential features, efficient performance
for maximum productivity
The Philips LED display using PVC-BFR-free housing is ideal for eco-friendly productivity
Vivid pictures every time
• LED technology for vivid colours
• SmartContrast for rich black details
• 16:9 Full HD display for crisp, detailed images
Great choice
• Compact design saves space
• Mercury Free eco-friendly display
• VESA mount allows for flexibility
Page 2
243S5LSB5/00
LCD monitor
S Line 24 (23.6"/59.9 cm diag.), 1920 x 1080 (Full HD)
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
•Panel Size: 23.6 inch/59.9 cm
• Effective viewing area: 521.28 (H) x 293.22 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Pixel Density: 93 PPI
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• SmartContrast:
• Contrast ratio (typical): 1000:1
• Pixel pitch: 0.272 x 0.272 mm
• Viewing angle: 170º (H)/160º (V),
• Display colours: 16.7 M
• Scanning Frequency: 30–83 kHz (H)/56–76 Hz (V)
•sRGB
Connectivity
• Signal Input: VGA (Analogue), DVI-D (digital,
HDCP)
• Sync Input: Separate Sync, Sync on Green
Convenience
• User convenience: Power On/Off, Menu/OK,
Brightness/Back, 4:3 Wide/Up, Auto/Down
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Spanish, Simplified Chinese,
Swedish, Turkish, Traditional Chinese, Ukrainian
• Other convenience: Kensington lock, VESA mount
(100 x 100 mm)
• Plug and Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 10 / 8.1 / 8 / 7
sR
Stand
• Tilt: -5/20 degree
Power
• On mode: 15.7 W (typ.) (EnergyStar 7.0 test
method)
10,000,000:1
@ C/R > 10
• Standby mode: 0.5 W (typ.)
• Off mode: 0.5 W (typ.)
• Power LED indicator: Operation - White, Standby
mode - White (f
• Power supply: Built-in, 100–240 VAC, 50–60 Hz
lashing)
Dimensions
• Product with stand (mm): 560 x 424 x 219 mm
• Product without stand (mm): 560 x 348 x 53 mm
• Packaging in mm (W x H x D): 608 x 419 x 121 mm
Weight
• Product with stand (kg): 3.41 kg
• Product without stand (kg): 3.02 kg
• Product with packaging (kg): 4.69 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000 ft (3658 m), Non-
eration: +40,000 ft (12,192 m)
op
• MTBF: 70,000 hrs (excluded backlight) hour(s)
Sustainability
• Environmental and energy: EnergyStar 7.0, RoHS,
Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: CE Mark, FCC Class B,
TCO Certified, cETLus, TUV/ISO9241-307, BSMI,
PSB, RCM, UKRAINIAN, EPA, CECP, WEEE, CCC
Cabinet
• Colour: Black
• Finish: Hairline (front bezel)/Texture (rear cover)
What's in the box?
• Monitor with stand
• Cables: D-Sub cable, Power cable
•User Documentation
•
Highlights
LED technology
White LED's are solid state devices which light up to
full, consistent brightness faster saving startup time.
LED's are free from mercury content, which allows
for eco-friendly recycling and disposal process. LED's
allow for better dimming control of the LCD
backlight, resulting in a super high contrast ratio. It
also gives superior colour reproduction thanks to
consistent brightness across the screen.
SmartContrast
SmartContrast is a Philips technology that analyses
the contents you are displaying, automatically
adjusting colours and controlling backlight intensity
to dynamically enhance contrast for the best digital
images and videos or when playing games where
dark hues are displayed. When Economy mode is
selected, contrast is adjusted and backlighting finetuned for just-right display of everyday office
applications and lower power consumption.
16:9 Full HD display
Issue date 2022-04-21
Version: 2.0.1
12 NC: 8670 001 44767
EAN: 87 12581 74586 8
Picture quality matters. Regular displays deliver
quality, but you expect more. This display features
enhanced Full HD 1920 x 1080 resolution. With Full
HD for crisp detail paired with high brightness,
incredible contrast and realistic colours, expect a
true-to-life picture.
Mercury Free
Philips monitors with LED backlighting are free from
Mercury, one of the most toxic natural substances,
which affects humans and animals. This reduces the
environmental impact of the display throughout its
lifecycle, from manufacturing to disposal.
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
