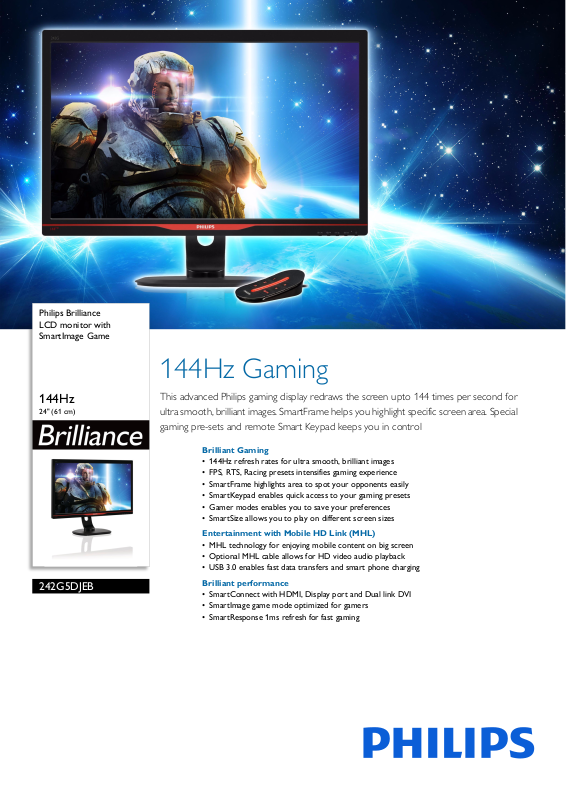

Page 1
Philips Brilliance
LCD monitor with
SmartImage Game
144Hz Gaming
144Hz
24" (61 cm)
242G5DJEB
This advanced Philips gaming display redraws the screen upto 144 times per second for
ultra smooth, brilliant images. SmartFrame helps you highlight specific screen area. Special
gaming pre-sets and remote Smart Keypad keeps you in control
Brilliant Gaming
• 144Hz refresh rates for ultra smooth, brilliant images
• FPS, RTS, Racing presets intensifies gaming experience
• SmartFrame highlights area to spot your opponents easily
• SmartKeypad enables quick access to your gaming presets
• Gamer modes enables you to save your preferences
• SmartSize allows you to play on different screen sizes
Entertainment with Mobile HD Link (MHL)
• MHL technology for enjoying mobile content on big screen
• Optional MHL cable allows for HD video audio playback
• USB 3.0 enables fast data transfers and smart phone charging
Brilliant performance
• SmartConnect with HDMI, Display port and Dual link DVI
• SmartImage game mode optimized for gamers
• SmartResponse 1ms refresh for fast gaming
Page 2
242G5DJEB/75
LCD monitor with SmartImage Game
144Hz 24" (61 cm)
Highlights
144Hz Gaming
You play intense, competitive gaming. You
demand display with lag free, ultra smooth
images. This Philips display redraws the screen
image upto 144 times per second, effectively
2.4x faster than a standard display. A lower
frame rate can make enemies appear to jump
from spot to spot on the screen, making them
difficult targets to hit. With 144Hz frame rate,
you get those critical missing images on the
screen which shows enemy movement in ultra
smooth motion so you can easily target them.
With ultra low input lag and no screen tearing,
this Philips display is your perfect gaming
partner
MHL technology
SmartImage Game mode
The new Philips gaming display has quick access
OSD fine tuned for gamers, offering you
multiple options. "FPS" mode (First person
shooting) improves dark themes in games,
allowing you to see hidden objects in dark
areas. "Racing" mode adapts display with
fastest response time, high color, along with
image adjustments. "RTS" mode (Real time
strategy) has a special SmartFrame mode
which enables highlighting of specific area and
allows for size and image adjustments. Gamer
1 and Gamer 2 enable you to save personal
customized settings based on different games,
ensuring best performance.
SmartFrame
like Dual link DVI, Display Port, universal
HDMI connector, enabling you to enjoy high
resolution uncompressed video and audio
content. USB 3.0 option ensures that you can
have super speed data transfers while having
global connectivity. Regardless of what source
you use, you can rest assured that this Philips
display will ensure your investment is not made
obsolete any time soon!
SmartSize
SmartSize allows you to change the screen
view of this Philips gaming display to suit your
preference. Using the SmartSize function, you
can easily swap to different screen sizes. Now,
you have the flexibility to simulate and practice
gaming in different sizes, while using a single
display.
Mobile High Definition Link (MHL) is a mobile
audio/video interface for directly connecting
mobile phones and other portable devices to
high-definition displays. An optional MHL cable
allows you to simply connect your MHL
capable mobile device to this large Philips MHL
display, and watch your HD videos come to life
with full digital sound. Now not only you can
enjoy your mobile games, photos, movies, or
other apps on its big screen, you can
simultaneously charge your mobile device so
you never run out of power half way.
SmartFrame enables you to spot your
opponents easily by highlighting a specific area
on the screen. By boosting the gain level of
RGB in the selected area, it allows you to give
more attention to that specific part of the
screen where you expect sudden enemy
movement. You can also adjust size and image
to your preference. It is especially suitable for
RTS- Real Time Strategy mode games.
SmartConnect
With a plethora of connectivity, these Philips
disp
lays come equipped with multi connections
SmartKeypad
SmartKeypad is a specially designed remote
controller that connects to this Philips gaming
display. It enables fast and convenient access to
your gaming presets with 2 quick key access
buttons, allowing you to save and activate two
personalized custom settings either for gaming
or other purposes. With additional up and
down function keys, you can now easily
navigate in the OSD menu and settings directly.
Page 3
242G5DJEB/75
LCD monitor with SmartImage Game
144Hz 24" (61 cm)
Specifications
Picture/Display
• LCD panel type: TFT-LCD (TN)
• Backlight type: W-LED system
• Panel Size: 24 inch / 61 cm
• Aspect ratio: 16:9
• Maximum resolution: 1920x1080 @ 144Hz (Dualk DVI/DP)
lin
• Optimum resolution: 1920x1080 @ 120Hz (Dualk DVI/DP)
lin
• Standard resolution: 1920x1080 @ 60Hz (VGA,
, Dual-link DVI, DP)
HDMI
• Response time (typical): 5 ms
• SmartResponse: 1 ms (Gray to Gray)*
• Brightness: 350 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
80,000,000:1
• Pixel pitch: 0.277 x 0.277 mm
• Viewing angle: 170º (H) / 160º (V), @ C/R > 10
• Picture enhancement: SmartImage game
• Display colors: 16.7 M
• Effective viewing area: 531.36 (H) x 298.89 (V) mm
• Scanning Frequency: 30 - 160 kHz (H) / 50 - 146 Hz
(V)
• MHL: 1080p@30Hz
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-Dual Link (digital,
HDCP), HDMI (digital, HDCP), MHL-HDMI
(digital, HDCP), DisplayPort 1.2, USB3.0x4 with 1x
fast charger, Smart keypad x 1
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): HDMI audio out
Stand
• Height adjustment: 130 mm
• Pivot: 90 degree
•Swivel: -65/65 degree
• Tilt: -5/+20 degree
Power
• On mode: 18.58 W (typ.) (EnergyStar 6.0 test
method)
• Standby mode: 0.5 W (typ.)
• Off mode: 0.3 W (typ.)
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: 100-240VAC, 50-60Hz
Dimensions
• Product with stand(max height): 565 x 517 x
220 mm
• Product without stand (mm): 565 x 354 x 63 mm
• Packaging in mm (WxHxD): 631 x 422 x 287 mm
Weight
• Product with stand (kg): 6.27 kg
• Product without stand (kg): 4.13 kg
• Product with packaging (kg): 8.84 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 30,000 hour(s)
Convenience
• User convenience: SmartImage game/Back, Power
On/Off, SmartSize/Up, Menu/OK, Input
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukranian
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7, Windows 8
sR
Issue date 2017-07-28
Version: 7.0.1
12 NC: 8670 001 07952
EAN: 87 12581 70069 0
Sustainability
• Environmental and energy: EPEAT Silver,
EnergyStar 6.0, RoHS, Lead-free, Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC Class
B, GOST, PSB, SASO, SEMKO, TCO certified,
TUV Ergo, TUV/GS, cETLus, WEEE
Cabinet
• Color: Black
• Finish: Texture
•
© 2017 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* This Philips display is capable of achieving upto 144Hz refresh rates
thru its Dual-link DVI and DisplayPort connector. Please ensure
your graphics card is capable of 144Hz refresh rates and updated
with the latest driver.
* For any questions related to 144Hz performance please refer to
your ca
rd vendor directly.
* Requires optional MHL certified mobile device and MHL cable. (not
included) Please check with your MHL device vendor for
compatibility.
* Standby/Off energy saving of ErP is not applicable for the MHL
charging functionality
* This Philips display is MHL certified. However, in case your MHL
device does not connect or work correctly, check with your MHL
device FAQ or vendor directly for direction. The policy of your
device manufacturer may require you to purchase their brand
specific MHL cable or adapter in order to work
