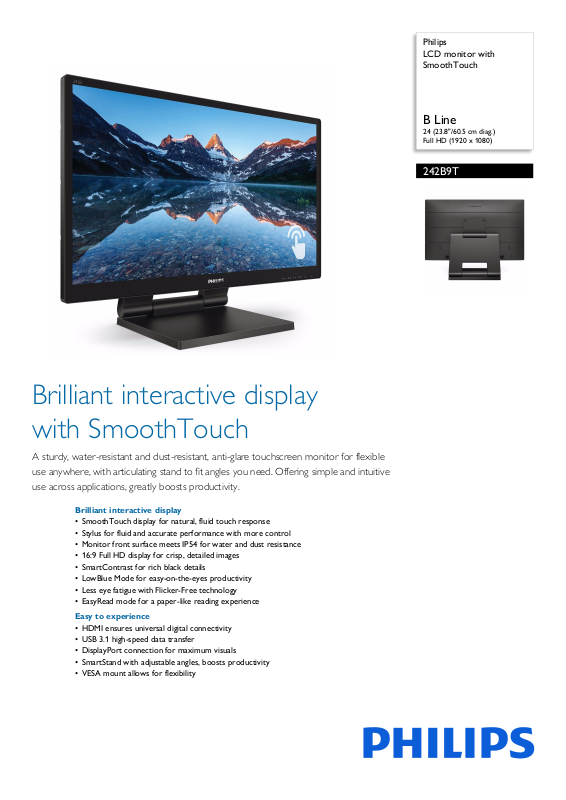

Philips LCD monitor with SmoothTouch
B Line
24 (23.8"/60.5 cm diag.) Full HD (1920 x 1080)
Brilliant interactive display with SmoothTouch
A sturdy, water-resistant and dust-resistant, anti-glare touchscreen monitor for flexible use anywhere, with articulating stand to fit angles you need. Offering simple and intuitive use across applications, greatly boosts productivity.
Brilliant interactive display
• SmoothTouch display for natural, fluid touch response
• Stylus for fluid and accurate performance with more control
• Monitor front surface meets IP54 for water and dust resistance
• 16:9 Full HD display for crisp, detailed images
• SmartContrast for rich black details
• LowBlue Mode for easy-on-the-eyes productivity
• Less eye fatigue with Flicker-Free technology
• EasyRead mode for a paper-like reading experience
Easy to experience
• HDMI ensures universal digital connectivity
• USB 3.1 high-speed data transfer
• DisplayPort connection for maximum visuals
• SmartStand with adjustable angles, boosts productivity
• VESA mount allows for flexibility
242B9T/00
LCD monitor with SmoothTouch
B Line 24 (23.8"/60.5 cm diag.), Full HD (1920 x 1080)
Highlights
SmoothTouch
This Philips display uses Projected capacitive 10-point touch technology for fluid response. You can fully utilise the new capabilities of touch-based applications and bring your older applications to life. Touch-type with 10 fingers o
r play exciting interactive games with your friends. Collaborate with colleagues interactively at work or school environment and increase your productivity and efficiency.
Water- and dust-resistant
16:9 Full HD display
Picture quality matters. Regular displays deliver quality, but you expect more. This display features enhanced Full HD 1920 x 1080 resolution. With Full HD for crisp detail paired with high brightness, incredible contrast and realistic colours, expect a true-to-life picture.
SmartContrast
light rays from LED displays can cause eye damage and affect vision over time. Developed for wellbeing, the Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.
Flicker-Free technology
Due to the way brightness is controlled on LED-backlit screens, some users experience flicker on their screen which causes eye fatigue. Philips Flicker-Free technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing.
EasyRead mode
For less-than-perfect environments, you need a monitor that's designed to hold up to the splashes of water and dust that happen in the everyday world. Ingress Protection (IP) ratings defined in international standard IEC/EN 60529, are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies and moisture. This Philips display meets the international IP rating for water and dust resistance. It will hold up to the water splashes and dust that happen in the everyday world.
SmartContrast is a Philips technology that analyses the contents you are displaying, automatically adjusting colours and controlling backlight intensity to dynamically enhance contrast for the best digital images and videos or when playing games where dark hues are displayed. When Economy mode is selected, contrast is adjusted and backlighting fine-tuned for just-right display of everyday office applications and lower power consumption.
LowBlue Mode
Studies have shown that just as ultra-violet rays can cause eye damage, shortwave-length blue
EasyRead mode for a paper-like reading experience
SmartStand
Philips SmartStand allows for flexible adjus
tment of the screen. Its Z-type structure with smooth tilt, height adjustment and folding capabilities enables you to use it in various ergonomic positions. You can set the stand in upright position for better touch control or recline it backwards, making it easy for you to draw or annotate. It even allows you to put the screen almost flat on the table for some applications when required.
242B9T/00
LCD monitor with SmoothTouch
B Line 24 (23.8"/60.5 cm diag.), Full HD (1920 x 1080)
Specifications
Picture/Display
• LCD panel type: IPS technology
• Backlight type: W-LED system
• Panel Size: 23.8 inch/60.5 cm
• Display Screen Coating: Anti-Glare, 3H, Haze 25%
• Effective viewing area: 527 (H) x 296.5 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Pixel Density: 93 PPI
• Response time (typical): 5 ms (Grey to Grey)*
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
• Pixel pitch: 0.275 x 0.275 mm
• Viewing angle: 178º (H)/178º (V), @
• Flicker-free
• Picture enhancement: SmartImage
• Colour gamut (typical): NTSC 72% (CIE 1931)
• Display colours: 16.7 M
• Scanning Frequency: 30–85 kHz (H) / 48–75 Hz (V)
•sRGB
•EasyRead
•LowBlue Mode
50
,000,000:1
C/R > 10
Touch
• Touch technology: Projected capacitive
• Touch points: 10 points
• Touch method: Stylus, Finger, Glove*
•Touch interface: USB
• Touch glass hardness: 7 H
• Touch active area: 527 mm (H) x 296.5 mm (V)
• Operating system: Windows 10/8.1/8/7; Android
6.0/5.0/4.4*
7.0/
7.1/
• Palm rejection area: >= 30 x 30 mm
• Ingress protection: IP54 - front only
• Sealability: Touchscreen sealed to bezel; uchscr
To
een sealed to LCD
Connectivity
• Signal Input: VGA (Analogue), DVI-D (digital,
HDCP), DisplayPort 1.2, HDMI 1.4
• USB: USB 3.1 x 2 (1 w/fast charging)*
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 2 W x 2
• User convenience: SmartImage, Input, Brightness,
Menu, Power On/Off Control software: SmartControl
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, F
innish, French, German, Greek,
En Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian
• Other convenience: Kensington lock, VESA mount (100 x 100 mm)
• Plug and Play Compatibility: DDC/CI, sRGB, Windo
10 / 8.1 / 8 / 7
ws
Stand
• Tilt: -5–90 degree
• Folding angle: 0–70 degrees
• Height adjustment: 184 (Hor (Vertical) mm
izontal), 75
Power
• ECO mode: 11.5 W (typ.)
• On mode: 16 W (typ.) (EnergyStar 7.0 test
od)
meth
• Standby mode: < 0.5 W (typ.)
• Off mode: < 0.3 W (typ.)
• Energy Label Class: A
• Power LED indicator: Operation - White, Standby mode - White (f
Power supply: External, 100-240 VAC, 50-60 Hz
lashing)
Dimensions
• Product with stand (max height): 554 x 413 x 227 mm
• Product without stand (mm): 554 x 338 x 50 mm
• Packaging in mm (W x H x D): 620 x 433 x 168 mm
Weight
• Product with stand (kg): 8.15 kg
• Product without stand (kg): 4.86 kg
• Product with packaging (kg): 11.06 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%–80% %
• Altitude: Operation: +12,000 operation: +40,000 ft (12,192 m)
• MTBF (demonstrated): 70,000 hrs (excluded backlight
)
ft (3658 m), Non-
Sustainability
• Environmental and energy: EnergyStar 7.0, EPEAT*, TCO edge, RoHS, WEEE
• Recyclable packaging material: 100 %
• Specific Substances: PVC/BFR free housing,
r
y free, Lead free
Mercu
Compliance and standards
• Regulatory Approvals: CE Mark, FCC Class B, SEMKO, EPA, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
What's in the box?
•Monitor with stand
• Cables: D-Sub cable, HDMI cable, DP c to B cable, Audio cable, Power cable
•User Documentation
• Accessory: Stylus touch pen x 1 (black)
able, USB-A
Issue date 2019-05-23
Version: 4.1.1
12 NC: 8670 001 57934 EAN: 87 12581 75680 2
© 2019 Koninklijke Philips N.V. All Rights reserved.
Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
www.philips.com
* "IPS" word mark / trademark and related patents on technologies
belong to their respective owners.
* Glove material and thickness: Nitrile (0.15 mm), Cotton (0.31 mm),
CPE (0.03 mm), PVC (0.12 mm) * Response time value equal to SmartResponse * Please refer to "SmoothTouch" in the user manual for more details
on operating system support when using the touch function. * Fast charging complies with USB BC 1.2 standard * The EPEAT rating is valid only where Philips registers the product.
Please visit www.epeat.net for the registration status in your
country.
* The monitor may look different from feature images.
