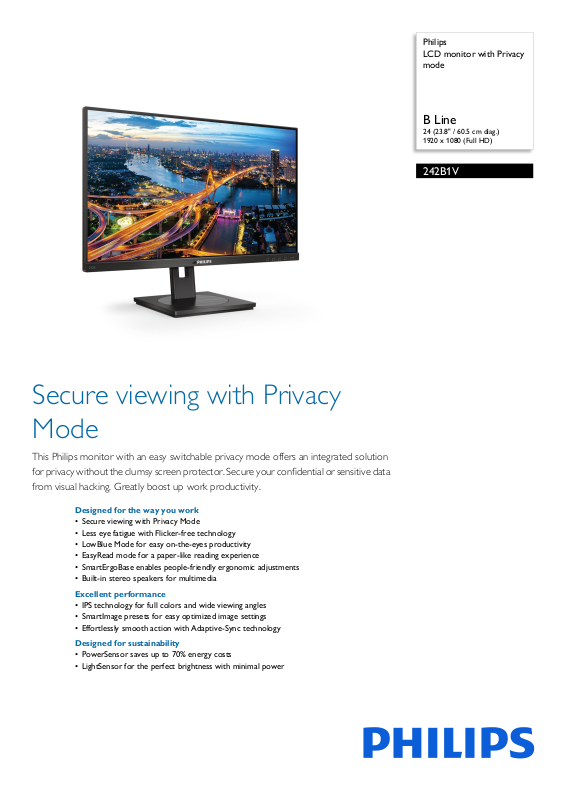

Page 1
Philips
LCD monitor with Privacy
mode
B Line
24 (23.8" / 60.5 cm diag.)
1920 x 1080 (Full HD)
242B1V
Secure viewing with Privacy
Mode
This Philips monitor with an easy switchable privacy mode offers an integrated solution
for privacy without the clumsy screen protector. Secure your confidential or sensitive data
from visual hacking. Greatly boost up work productivity.
Designed for the way you work
• Secure viewing with Privacy Mode
• Less eye fatigue with Flicker-free technology
• LowBlue Mode for easy on-the-eyes productivity
• EasyRead mode for a paper-like reading experience
• SmartErgoBase enables people-friendly ergonomic adjustments
• Built-in stereo speakers for multimedia
Excellent performance
• IPS technology for full colors and wide viewing angles
• SmartImage presets for easy optimized image settings
• Effortlessly smooth action with Adaptive-Sync technology
Designed for sustainability
• PowerSensor saves up to 70% energy costs
• LightSensor for the perfect brightness with minimal power
Page 2
242B1V/75
LCD monitor with Privacy mode
B Line 24 (23.8" / 60.5 cm diag.), 1920 x 1080 (Full HD)
Highlights
Privacy mode
Organizations invest heavily to prevent
in
formation leakage. Visual hacking is low-tech,
but hard to prevent in open spaces. Philips
Privacy Mode offers an integrated solution for
privacy without the hassle of the clumsy screen
protector. Simply press a button to enter
Privacy Mode, your screen appears dark and
barely seen from both sides, but keep clear
visuals at the center. You can secure
confidential, sensitive, or private data from
visual hacking. A convenient switch allows you
to quickly toggle between Privacy Mode and
wide-viewing mode. Greatly boost up work
productivity.
Flicker-free technology
uses a smart software technology to reduce
harmful shortwave blue light.
EasyRead mode
EasyRead mode for a paper-like reading
experience
SmartErgoBase
invisible down firing, top firing, rear firing, etc
depending on model and design.
IPS technology
IPS displays use an advanced technology which
gives you extra wide viewing angles of 178/178
degree, making it possible to view the display
from almost any angle - even in 90 degree Pivot
mode! Unlike standard TN panels, IPS displays
gives you remarkably crisp images with vivid
colors, making it ideal not only for Photos,
movies and web browsing, but also for
professional applications which demand color
accuracy and consistent brightness at all times.
Due to the way brightness is controlled on
LED-backlit screens, some users experience
flicker on their screen which causes eye
fatigue. Philips Flicker-free Technology applies
a new solution to regulate brightness and
reduce flicker for more comfortable viewing.
LowBlue Mode
Studies have shown that just as ultra-violet rays
can cause eye damage, shortwave length blue
light rays from LED displays can cause eye
damage and affect vision over time. Developed
for wellbeing, Philips LowBlue Mode setting
The SmartErgoBase is a monitor base that
delivers ergonomic display comfort and
provides cable management. The base's
people-friendly height, swivel, tilt and rotation
angle adjustments position the monitor for
maximum comfort that can ease the physical
strains of a long workday; cable management
reduces cable clutter and keeps the workspace
neat and professional.
Built-in stereo speakers
A pair of high quality stereo speakers built into
a display device. It can be visible front firing, or
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
Page 3
242B1V/75
LCD monitor with Privacy mode
B Line 24 (23.8" / 60.5 cm diag.), 1920 x 1080 (Full HD)
Specifications
Picture/Display
• LCD panel type: IPS technology
• Backlight type: W-LED system
• Panel Size: 23.8 inch / 60.5 cm
• Display Screen Coating: Anti-Glare, 3H, Haze 25%
• Effective viewing area: 527.04 (H) x 296.46 (V)
• Aspect ratio: 16:9
• Maximum resolution: 1920 x 1080 @ 75Hz*
• Pixel Density: 93 PPI
• Response time (typical): 4 ms (Gray to Gray)*
• Brightness: Sharing mode: 350 cd/m2; Privacy
e*: 180 cd/m²
mod
• Contrast ratio (typical): 1000:1
• SmartContrast:
50,000,000:1
• Pixel pitch: 0.2745 x 0.2745 mm
• Viewing angle: Sharing mode: 178º (H) / 178º (V) C/
R > 10 (ty
p.); Privacy mode: 90º (H) / 178º (V)
(<1.4% of central maximum luminance)
• Picture enhancement: SmartImage
• Color gamut (typical): NTSC
87%*, sRGB 106%*
• Display colors: 16.7M
• Scanning Frequency: 30 - 85 kHz (H) / 48 - 75 Hz
(V)
•sRGB
• Flicker-free
•EasyRead
•LowBlue Mode
• Adaptive sync
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital,
HDCP), DisplayPort 1.2, HDMI 1.4 x 1
• HDCP: HDCP 1.4 (DVI/DP/HDMI)
• Sync Input: Separate Sync, Sync on Green
• USB:: USB-B x 1 (upstream), USB 3.2 x 4
wnstream with 1 fast charge B.C 1.2)
(do
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 2 W x 2
• User convenience: SmartImage, Input,
rSensor, Menu, Power On/Off
Powe
• Control software: SmartControl
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukranian
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 10 / 8.1 / 8 / 7
sR
Stand
• Height adjustment: 150 mm
• Pivot: -/+ 90 degree
•Swivel: -/+ 180 degree
• Tilt: -5 ~ 35 degree
Power
• ECO mode: 13.9 W (typ.)
• On mode: 14.5 W (typ.) (EnergyStar test method)
• Standby mode: < 0.3 W (typ.)
• Off mode: Zero watts with Zero switch
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand(max height): 540 x 501 x
205 mm
• Product without stand (mm): 540 x 323 x 51 mm
• Packaging in mm (WxHxD): 600 x 465 x 198 mm
Weight
• Product with stand (kg): 5.78 kg
• Product without stand (kg): 4.18 kg
• Product with packaging (kg): 7.95 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF (demonstrated): 70,000 hrs (excluded
klight)
bac
Sustainability
• Environmental and energy: PowerSensor,
LightSensor, EnergyStar 8.0, EPEAT*, RoHS
• Recyclable packaging material: 100 %
• Post consumer recycled plastic: 85%
• Specific Substances: PVC / BFR free housing,
ry free
Mercu
Compliance and standards
• Regulatory Approvals: CB, FCC Class B, ICES-003,
CE Mark, TUV/GS, TUV Ergo, SEMKO, CU-EAC,
UKRAINIAN, MEPS, RCM
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
•
Issue date 2022-04-21
Version: 1.0.1
12 NC: 8670 001 77489
EAN: 87 12581 77809 5
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* "IPS" word mark / trademark and related patents on technologies
belong to their respective owners.
* The maximum resolution works for either HDMI input or DP input.
* Response time value equal to SmartResponse
* While switching on privacy mode, the maximum brightness is 180 cd/
m2
* NTSC Area based on CIE1976
* sRGB Area based on CIE1931
* Fast charging complies with USB BC 1.2 standard
* EPEAT rating is valid only where Philips registers the product. Please
visit https://www.epeat.net/ for registration status in your country.
* The monitor may look different from feature images.
