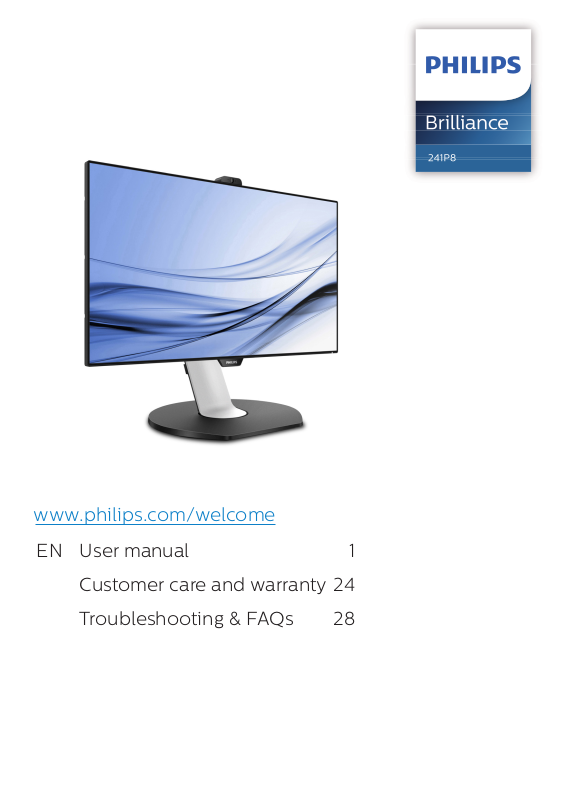

Philips 241P8, 241P8QPTKEB User Manual

www.philips.com/welcome

EN User manual 1

Customer care and warranty 24

Troubleshooting & FAQs 28

Table of Contents

1. Important ...................................... 1

1.1 Safety precautions and

maintenance ................................1

1.2 Notational Descriptions ...........3

1.3 Disposal of product and

packing material ......................... 3

2. Setting up the monitor .............. 5

2.1 Installation ................................... 5

2.2 Operating the monitor .............. 7

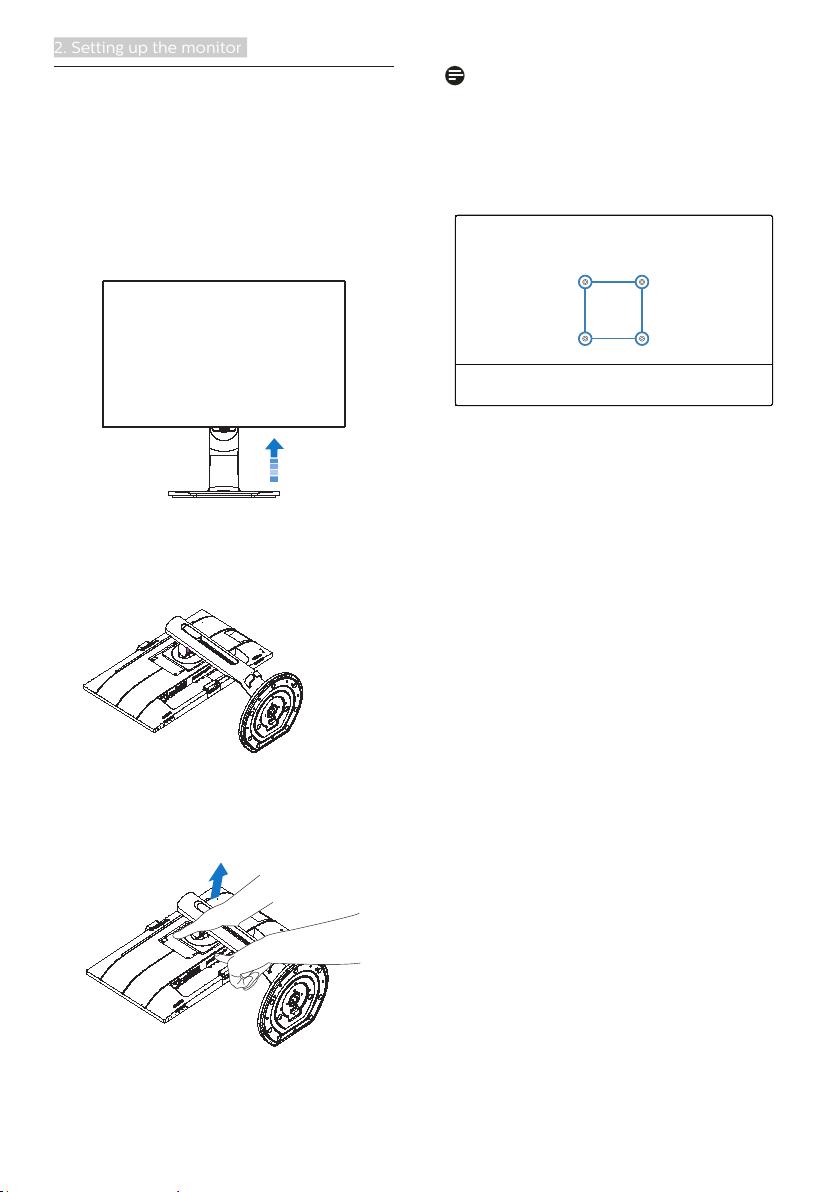

2.3 Remove the Base Assembly for

VESA Mounting ...........................9

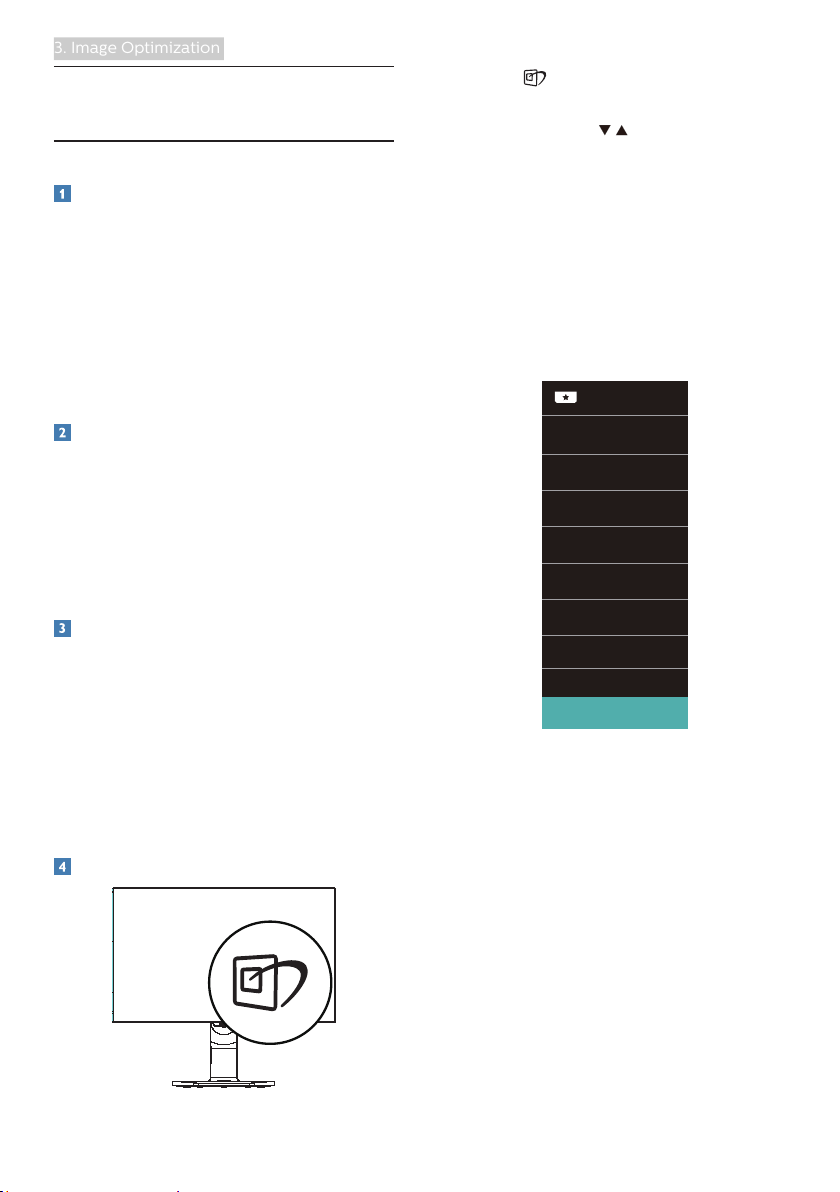

3. Image Optimization ................... 11

3.1 SmartImage .................................11

3.2 SmartContrast ............................12

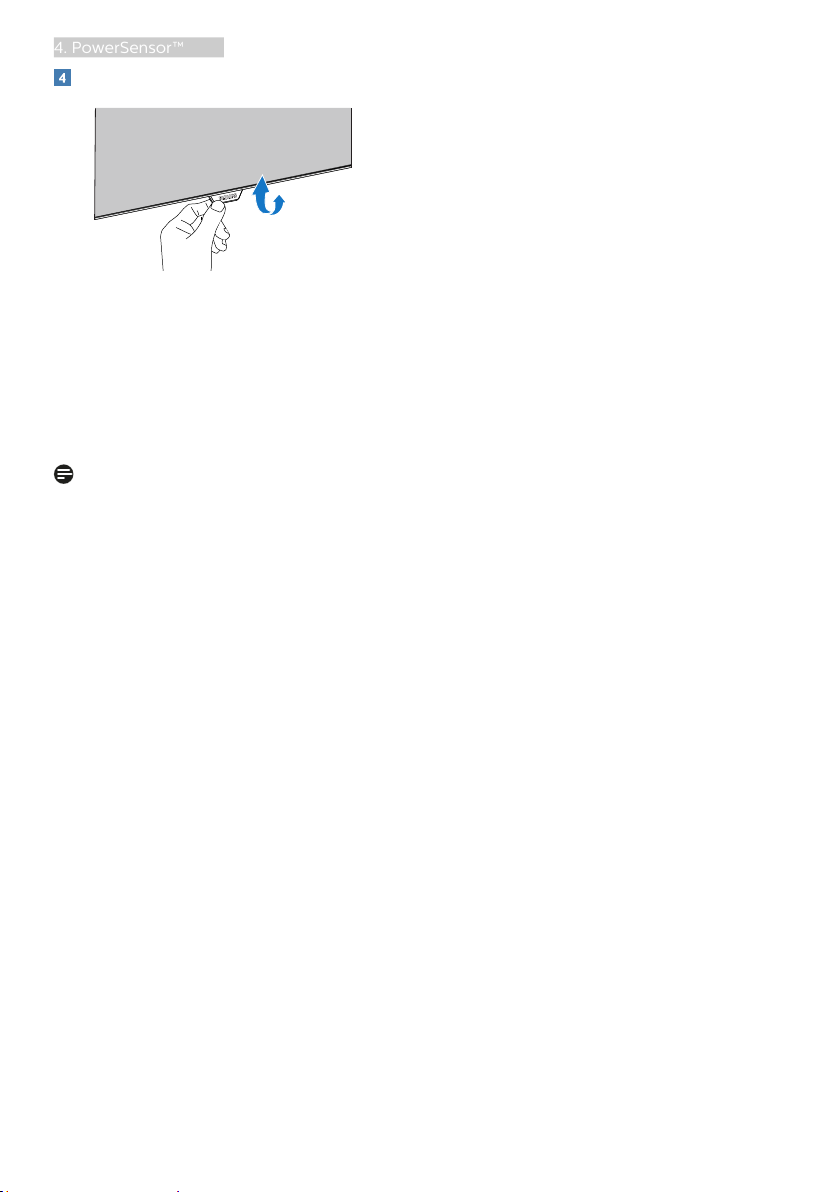

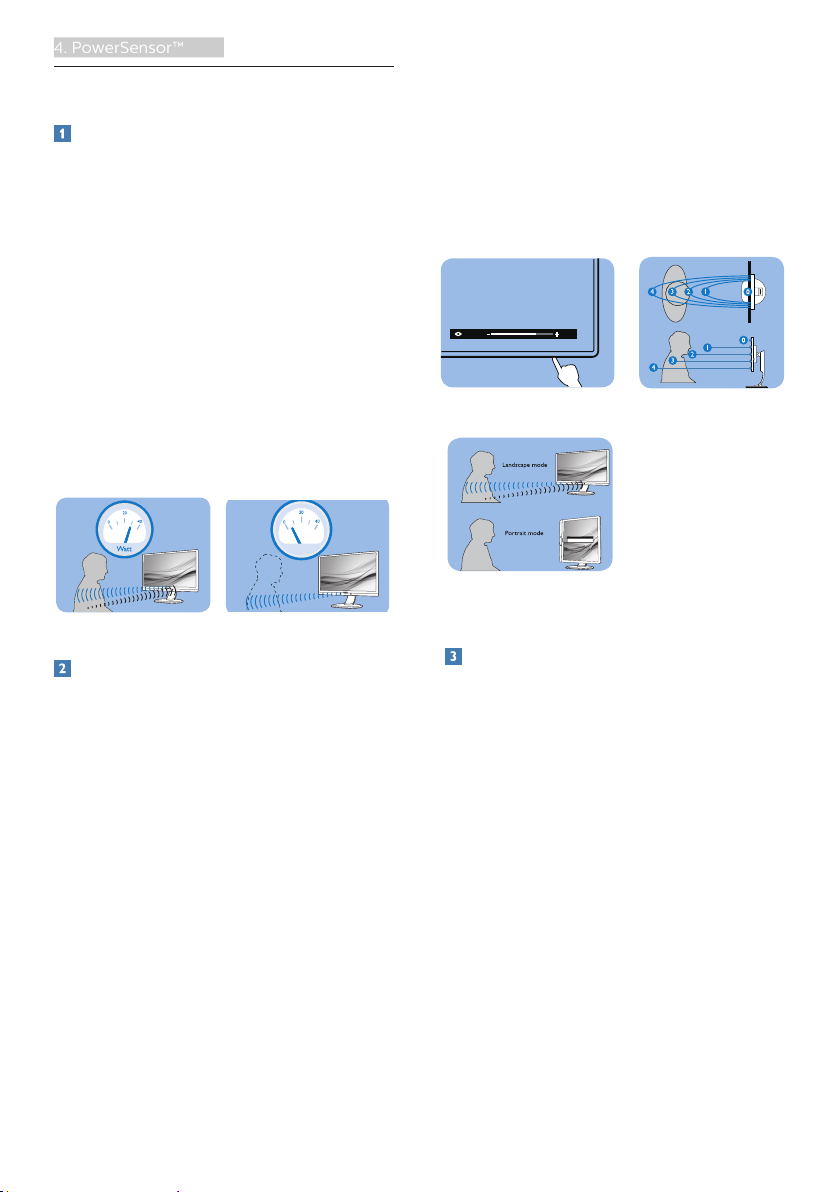

4. PowerSensor™ ........................... 13

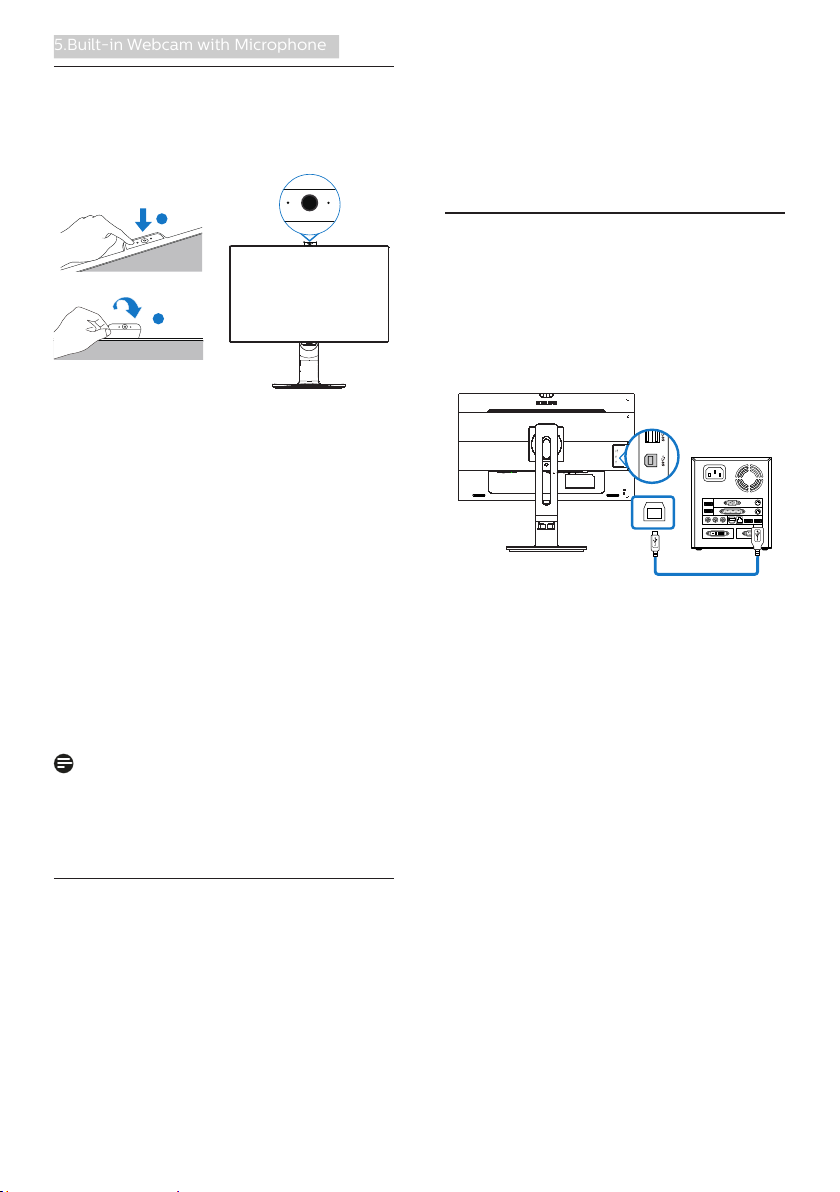

5. Built-in Webcam with

Microphone ................................ 15

5.1 PC system requirements ........15

5.2 Using the device .......................15

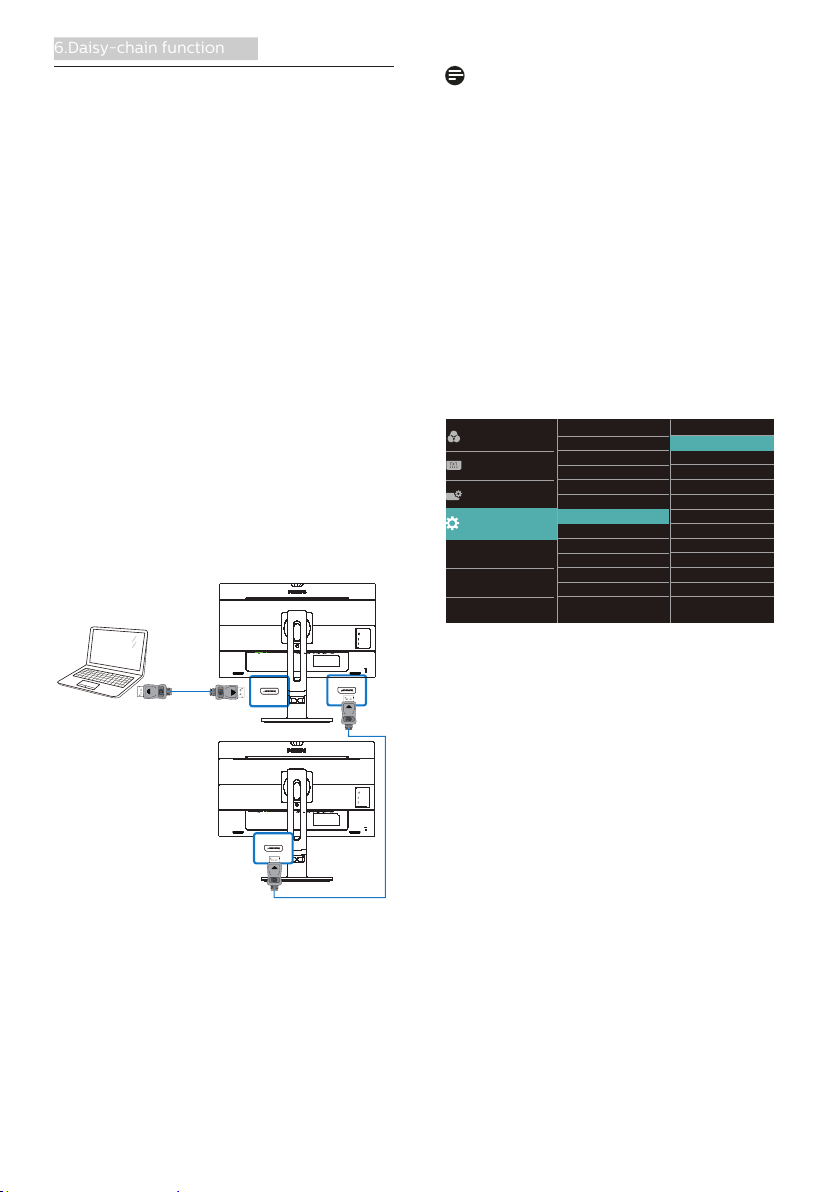

6. Daisy-chain function ................ 17

10.2 General FAQs ............................29

7. Technical Specications ..........19

7.1 Resolution & Preset Modes ...22

8. Power Management ................ 23

9. Customer care and warranty . 24

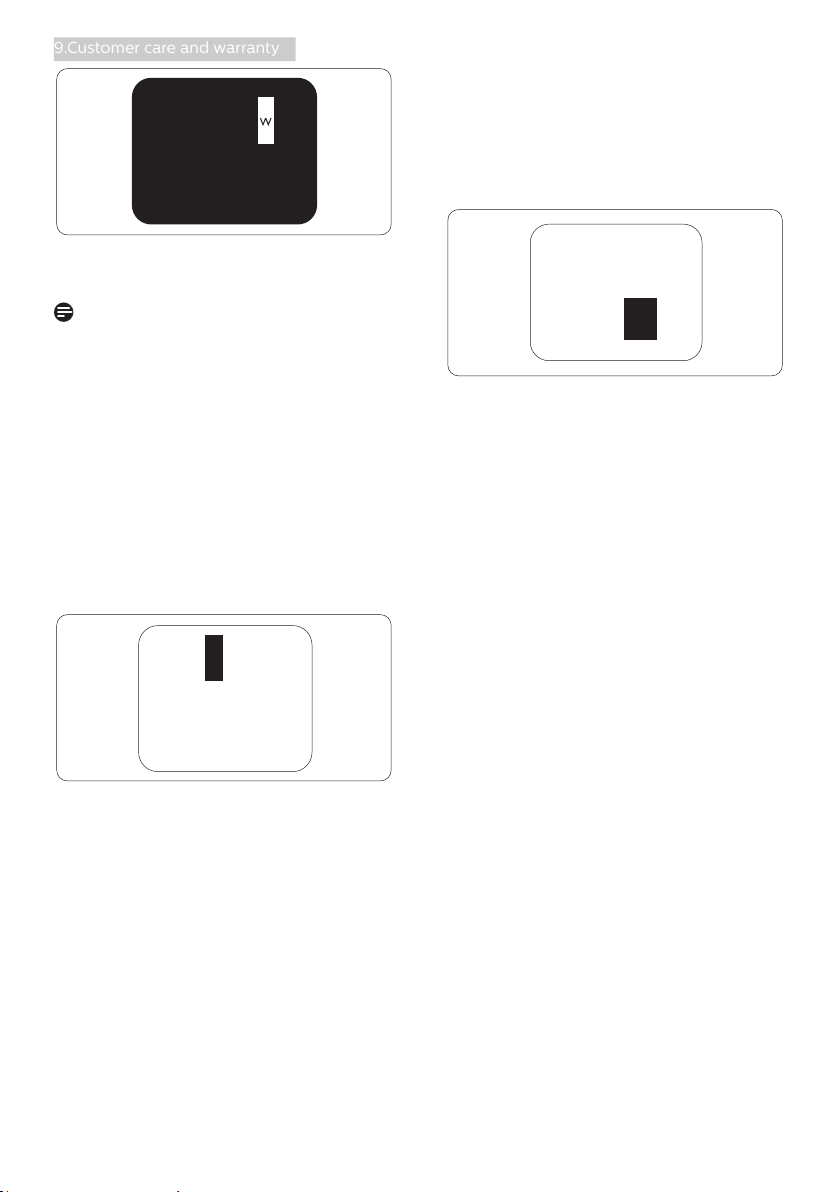

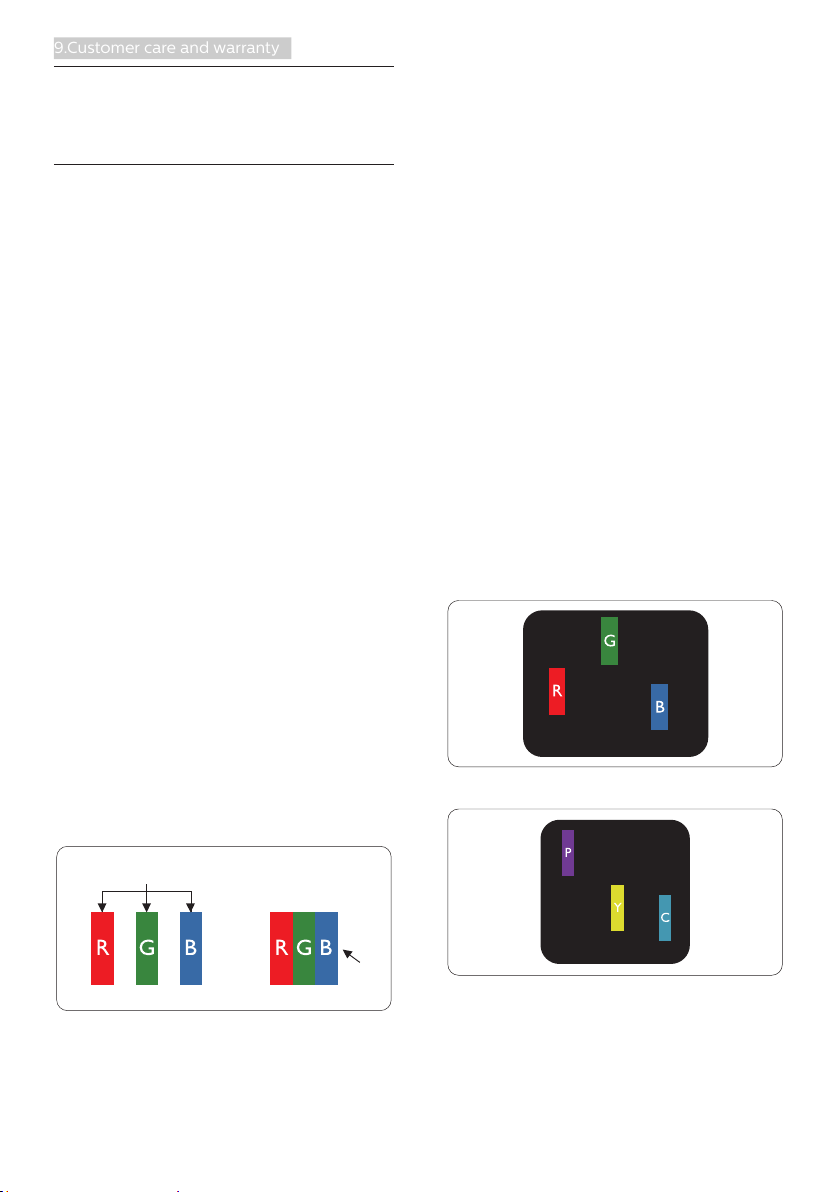

9.1 Philips’ Flat Panel Monitors

Pixel Defect Policy ...................24

9.2 Customer Care & Warranty .....27

10. Troubleshooting & FAQs .........28

10.1 Troubleshooting .......................28

1. Important

This electronic user’s guide is intended for anyone who uses the Philips monitor. Take time to read this user manual before you use your monitor. It contains important information and notes regarding operating your monitor.

The Philips guarantee applies provided the product is handled properly for its intended use, in accordance with its operating instructions and upon presentation of the original invoice or cash receipt, indicating the date of purchase, dealer’s name and model and production number of the product.

1.1 Safety precautions and

maintenance

Warnings Use of controls, adjustments or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor.

Excessive sound pressure from earphones and headphones can cause hearing loss. Adjustment of the

equalizer to maximum increases the earphones and headphones output voltage and therefore the sound

pressure level.

Operation

• Please Keep the monitor out of

direct sunlight, very strong bright lights and away from any other heat source. Lengthy exposure to this type of environment may result in discoloration and damage to the monitor.

• Remove any object that could fall into ventilation holes or prevent proper cooling of the monitor’s electronics.

• Do not block the ventilation holes on the cabinet.

• When positioning the monitor, make sure the power plug and outlet are easily accessible.

• If turning off the monitor by detaching the power cable or DC power cord, wait for 6 seconds before attaching the power cable or DC power cord for normal operation.

• Please use approved power cord provided by Philips all the time. If your power cord is missing, please contact with your local service center. (Please refer to Customer Care Consumer Information Center)

• Do not subject the monitor to severe vibration or high impact conditions during operation.

• Do not knock or drop the monitor during operation or transportation.

Maintenance

• To protect your monitor from possible damage, do not put excessive pressure on the LCD panel. When moving your monitor, grasp the frame to lift; do not lift the monitor by placing your hand or fingers on the LCD panel.

• Unplug the monitor if you are not going to use it for an extensive period of time.

• Unplug the monitor if you need to clean it with a slightly damp cloth. The screen may be wiped with a dry cloth when the power is off. However, never use organic solvent, such as, alcohol, or ammonia-based liquids to clean your monitor.

1. Important

• To avoid the risk of shock or permanent damage to the set, do not expose the monitor to dust, rain, water, or excessive moisture environment.

• If your monitor gets wet, wipe it with dry cloth as soon as possible.

• If foreign substance or water gets in your monitor, please turn the power off immediately and disconnect the power cord. Then, remove the foreign substance or water, and send it to the maintenance center.

• Do not store or use the monitor in locations exposed to heat, direct sunlight or extreme cold.

• In order to maintain the best performance of your monitor and use it for a longer lifetime, please use the monitor in a location that falls within the following temperature and humidity ranges.

• Temperature: 0-40°C 32-104°F

• Humidity: 20-80% RH

Important information for Burn-in/ Ghost image

• Always activate a moving screen saver program when you leave your monitor unattended. Always activate a periodic screen refresh application if your monitor will display unchanging static content. Uninterrupted display of still or static images over an extended period may cause “burn in”, also known as “after-imaging” or “ghost imaging”, on your screen.

• “Burn-in”, “after-imaging”, or “ghost imaging” is a well-known phenomenon in LCD panel technology. In most cases, the “burned in” or “after-imaging” or “ghost imaging” will disappear gradually over a period of time after the power has been switched off.

Warning Failure to activate a screen saver, or a periodic screen refresh application may result in severe “burn-in” or “afterimage” or “ghost image” symptoms that will not disappear and cannot be repaired. The damage mentioned above is not covered under your warranty.

Service

• The casing cover should be opened

only by qualified service personnel.

• If there is any need for any

document for repair or integration, please contact with your local service center. (please refer to the chapter of “Consumer Information Center”)

• For transportation information,

please refer to “Technical Specifications”.

• Do not leave your monitor in a car/

trunk under direct sun light.

Note Consult a service technician if the monitor does not operate normally, or you are not sure what procedure to take when the operating instructions given in this manual have been followed.

1. Important

1.2 Notational Descriptions

The following subsections describe notational conventions used in this document.

Notes, Cautions and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic type. These blocks contain notes, cautions or warnings. They are used as follows:

1.3 Disposal of product and

packing material

Waste Electrical and Electronic Equipment-WEEE

Note This icon indicates important information and tips that help you make better use of your computer system.

Caution This icon indicates information that tells you how to avoid either potential damage to hardware or loss of data.

Warning This icon indicates the potential for bodily harm and tells you how to avoid the problem.

Some warnings may appear in alternate formats and may not be accompanied by an icon. In such cases, the specific presentation of the warning is mandated by the relevant regulatory authority.

This marking on the product or on its packaging illustrates that, under European Directive 2012/19/EU governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection. To determine the locations for dropping off such waste electrical and electronic, contact your local government office, the waste disposal organization that serves your household or the store at which you purchased the product.

Your new monitor contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of.

All redundant packing material has been omitted. We have done our utmost to make the packaging easily separable into mono materials.

Please find out about the local regulations on how to dispose of your old monitor and packing from your sales representative.

Taking back/Recycling Information for

1. Important

Customers

Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization's product, service and activities.

From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, endof-life management primarily entails participation in national take-back initiatives and recycling programs whenever possible, preferably in cooperation with competitors, which recycle all materials (products and related packaging material) in accordance with all Environmental Laws and taking back program with the contractor company.

Your display is manufactured with high quality materials and components which can be recycled and reused.

To learn more about our recycling program please visit

http://www.philips.com/a-w/about/ sustainability.html

2. Setting up the monitor

2.1 Installation

Package contents

Brilliance

241P8

Quick

Start

www.philips.com/welcome

前请阅读使用说明

使用

User’s Manual

Monitor drivers

保留备用

Philips and the Philips’ Shield Emblem are registered trademarks of

Koninklijke Philips N.V. and are used under license from Koninklijke

Philips N.V.

c i

* CD

Power * VGA

Install the base

1. Place the monitor face down on a smooth surface. Pay attention not to scratch or damage the screen.

2. Hold the stand with both hands.

(1) Gently attach the stand to the

VESA mount area until the latch locks the stand.

(2) Gently attach the base to the

stand.

(3) Use your fingers to tighten the

screw located at the bottom of the base, and secure the base to the stand tightly.

* DP

* Audio

*Different according to region

* HDMI

Warnings

2. Setting up the monitor

Connecting to your PC

Fast Charger

9 10

2 3 7 84 5 6

Kensington anti-theft lock

Audio input

Earphone jack

HDMI input

DisplayPort input

mini DisplayPort input

VGA input

DisplayPort output

AC power input

Power Switch

USB upstream

USB downstream

USB fast charger/USB downstream

Connect to PC

1. Connect the power cord to the back of the monitor firmly.

2. Turn off your computer and unplug its power cable.

3. Connect the monitor signal cable to the video connector on the back of your computer.

4. Plug the power cord of your computer and your monitor into a nearby outlet.

5. Turn on your computer and monitor. If the monitor displays an image, installation is complete.

2. Setting up the monitor

2.2 Operating the monitor

Operating the control symbols

SmartImage. There are multiple selections: Office, Photo, Movie,

Game, Economy, LowBlue Mode, SmartUniformity and Off.

Change the signal input source.

PowerSensor

To power on the monitor, gently press the 1st button on the extreme right side under the chin area. To access more display settings, press any other button under the chin. A display showing the first layer of the “Quick control symbols” will pop up on the screen. Now select the desired function to be adjusted by pressing the button exactly under the visible symbol. The monitor will now enter and show the second layer adjustment symbols. You can now adjust the function to your desired level by again pressing the button under the function. You can confirm your preference setting by selecting OK.

Access the OSD menu

Switch monitor’s power ON and OFF.

Return to previous OSD level.

Adjust the OSD menu.

Confirm the OSD adjustment.

Description of the On Screen Display

What is On-Screen Display (OSD)?

On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window. A user friendly on screen display interface is shown as below:





 











Basic and simple instruction on the control keys

In the OSD shown above, you can press

buttons at the front bezel of the monitor to move the cursor, and press OK button to confirm the choice or change.

2. Setting up the monitor

The OSD Menu

Main menu Sub menu


Input

OSD Settings

Setup

Language

Color

Audio

Audio In, HDMI, DisplayPort, Mini DP

PowerSensor

Picture Format

Brightness

Contrast

Transparency

OSD Time Out

Auto

V.Position

Phase

Clock

Resolution Notification

Reset

Information

English, Deutsch, Español, Ελληνική, Français, Italiano, Maryar, Nederlands, Português, Português do Brazil, Polski , Русский, Svenska, Suomi, Türkçe, Čeština,

Українська, 简体中文, 繁體中文,日本語,한국어

Color Temperature

sRGB

User Define

VGA

HDMI 1.4

Mini DP

SmartResponse

SmartContrast

Gamma

Over Scan

Pixel Orbiting

H.Position

DisplayPort

Off

Stand-Alone

Wide Screen, 4:3, 1:1

0~100

Off, 1, 2, 3, 4

5s, 10s, 20s, 30s, 60s

On, Off

Yes, No

0~100

Native, 5000K, 6500K, 7500K, 8200K, 9300K, 11500K

Red: 0~100

Green: 0~100

Blue: 0~100

Off, Fast, Faster, Fastest

Off, On

1.8, 2.0, 2.2, 2.4, 2.6

0, 1, 2, 3, 4

Off, On

0~100

On, Off

Volume

Audio Source

Mute

Off, On

DP Out Multi-Stream

Clone, Extend

Sharpness

0~100

LowBlue Mode

Off

1, 2, 3, 4

LightSensor

Off

Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on.

Resolution notification

This monitor is designed for optimal performance at its native resolution, 1920 × 1080 @ 60 Hz. When the monitor is powered on at a different resolution, an alert is displayed on screen: Use 1920 × 1080 @ 60 Hz for best results.

Display of the native resolution alert can be switched off from Setup in the OSD (On Screen Display) menu.

Physical Function

Unfold

Webcam

Unfold

PowerSensor

2. Setting up the monitor

Tilt

-5

+175°

Swivel

-175°

Height adjustment

150mm

Pivot

-90
