Safety and Troubleshooting Information

• Safety Precautions and
Maintenance

• FAQs

• Troubleshooting

• Regulatory Information

Safety and Troubleshooting Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments or procedures other than
those specified in this documentation may result in exposure to shock,
electrical hazards and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:
Operation:

● Keep the monitor out of direct sunlight and away from stoves or any other heat source.

● Remove any object that could fall into ventilation holes or prevent proper cooling of the

monitor’s electronics.

● Do not block the ventilation holes on the cabinet.

● When positioning the monitor, make sure the power plug and outlet are easily accessible.

● If turning off the monitor by detaching the power cable or DC power cord, wait for 6

seconds before attaching the power cable or DC power cord for normal operation.

● Please use approved power cord provided by Philips all the time. If your power cord is

missing, please contact with your local service center. (Please refer to Customer Care
Consumer Information Center)

● Do not subject the LCD monitor to severe vibration or high impact conditions during

operation.

● Do not knock or drop the monitor during operation or transportation.

Maintenance:

● To protect your display from possible damage, do not put excessive pressure on the LCD

panel. When moving your monitor, grasp the frame to lift; do not lift the monitor by
placing your hand or fingers on the LCD panel.

● Unplug the monitor if you are not going to use it for an extensive period of time.

● Unplug the monitor if you need to clean it with a slightly damp cloth. The screen may be

wiped with a dry cloth when the power is off. However, never use organic solvent, such
as, alcohol, or ammonia-based liquids to clean your monitor.

● To avoid the risk of shock or permanent damage to the set, do not expose the monitor to

dust, rain, water, or excessive moisture environment.

● If your monitor gets wet, wipe it with dry cloth as soon as possible.

● If foreign substance or water gets in your monitor, please turn the power off immediately

and disconnect the power cord. Then, remove the foreign substance or water, and send
it to the maintenance center.

● Do not store or use the LCD monitor in locations exposed to heat, direct sunlight or

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/safety.htm（第 1／2 页）7/10/2009 11:20:49 AM

Safety and Troubleshooting Information

extreme cold.

● In order to maintain the best performance of your monitor and use it for a longer lifetime,

please use the monitor in a location that falls within the following temperature and
humidity ranges.

❍ Temperature: 0-40°C 32-95°F
❍ Humidity: 20-80% RH

● IMPORTANT: Always activate a moving screen saver program when you leave your

monitor unattended. Always activate a periodic screen refresh application if your LCD
monitor will display unchanging static content. Uninterrupted display of still or static
images over an extended period may cause “burn in”, also known as “after-imaging” or
“ghost imaging”, on your screen. "Burn-in", "after-imaging", or "ghost imaging" is a well­known phenomenon in LCD panel technology. In most cases, the “burned in” or “after­imaging” or “ghost imaging” will disappear gradually over a period of time after the power
has been switched off.

WARNING: Severe” burn-in” or “after-image” or “ghost image” symptoms will not

disappear and cannot be repaired. The damage mentioned above is not covered under
your warranty.

Service:

● The casing cover should be opened only by qualified service personnel.

● If there is any need for any document for repair or integration, please contact with your

local service center. (please refer to the chapter of "Consumer Information Center")

● For transportation information, please refer to "Physical Specifications".

● Do not leave your monitor in a car/trunk under direct sun light.

Consult a service technician if the monitor does not operate normally, or you are
not sure what procedure to take when the operating instructions given in this
manual have been followed.

RETURN TO TOP OF THE PAGE

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/safety.htm（第 2／2 页）7/10/2009 11:20:49 AM

FAQs (Frequently Asked Questions)

• Safety and Troubleshooting

• General FAQs

• Compatibility with Other

Peripherals

• LCD Panel Technology

• Ergonomics, Ecology and

Safety Standards

• Troubleshooting

• Regulatory Information

FAQs (Frequently Asked Questions)

General FAQs

Q1:

When I install my monitor what should I do if the screen shows 'Cannot display this

video mode'?

A: Recommended resolution for Philips 23.6 ": 1920x1080 @60Hz.

1. Unplug all cables, then connect your PC to the monitor that you used

previously.

2. In the Windows Start Menu, select Settings/Control Panel. In the Control Panel

Window, select the Display icon. Inside the Display Control Panel, select the
'Settings' tab. Under the setting tab, in box labeled 'desktop area', move the
slidebar to 1920x1080 pixels (23.6").

3. Open 'Advanced Properties' and set the Refresh Rate to 60Hz, then click OK.

4. Restart your computer and repeat step 2 and 3 to verify that your PC is set at

1920x1080@60Hz (23.6").

5. Shut down your computer, disconnect your old monitor and reconnect your

Philips LCD monitor.

6. Turn on your monitor and then turn on your PC.

Q2: What does the recommended refresh rate for LCD monitor?

A:Recommended refresh rate in LCD monitors is 60Hz, In case of any disturbance

on screen, you can set it up to 75Hz to see if that removes the disturbance.

Q3: What are the .inf and .icm files on the CD-ROM? How do I install the drivers (.inf and .

icm)?

A: These are the driver files for your monitor. Follow the instructions in your user

manual to install the drivers. Your computer may ask you for monitor drivers (.inf and .
icm files) or a driver disk when you first install your monitor. Follow the instructions to
insert the ( companion CD-ROM) included in this package. Monitor drivers (.inf and .
icm files) will be installed automatically.

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/saf_faq.htm（第 1／5 页）7/10/2009 11:20:52 AM

FAQs (Frequently Asked Questions)

Q4: How do I adjust the resolution?

A: Your video card/graphic driver and monitor together determine the available

resolutions. You can select the desired resolution under Windows® Control Panel
with the "Display properties"

.

Q5: What if I get lost when I am making monitor adjustments?

A: Simply press the OK button, then select 'Reset' to recall all of the original factory

settings.

Q6: Will the LCD screen be resistant to scratches?

A: In general it is recommended that the panel surface is not subjected to excessive

shocks and is protected from sharp or blunt objects. When handling the monitor,
make sure that there is no pressure or force applied to the panel surface side. This
may affect your warranty conditions.

Q7: How should I clean the LCD surface?

A: For normal cleaning, use a clean, soft cloth. For extensive cleaning, please use

isopropyl alcohol. Do not use other solvents such as ethyl alcohol, ethanol, acetone,
hexane, etc.

Q8:Can I change the color setting of my monitor?

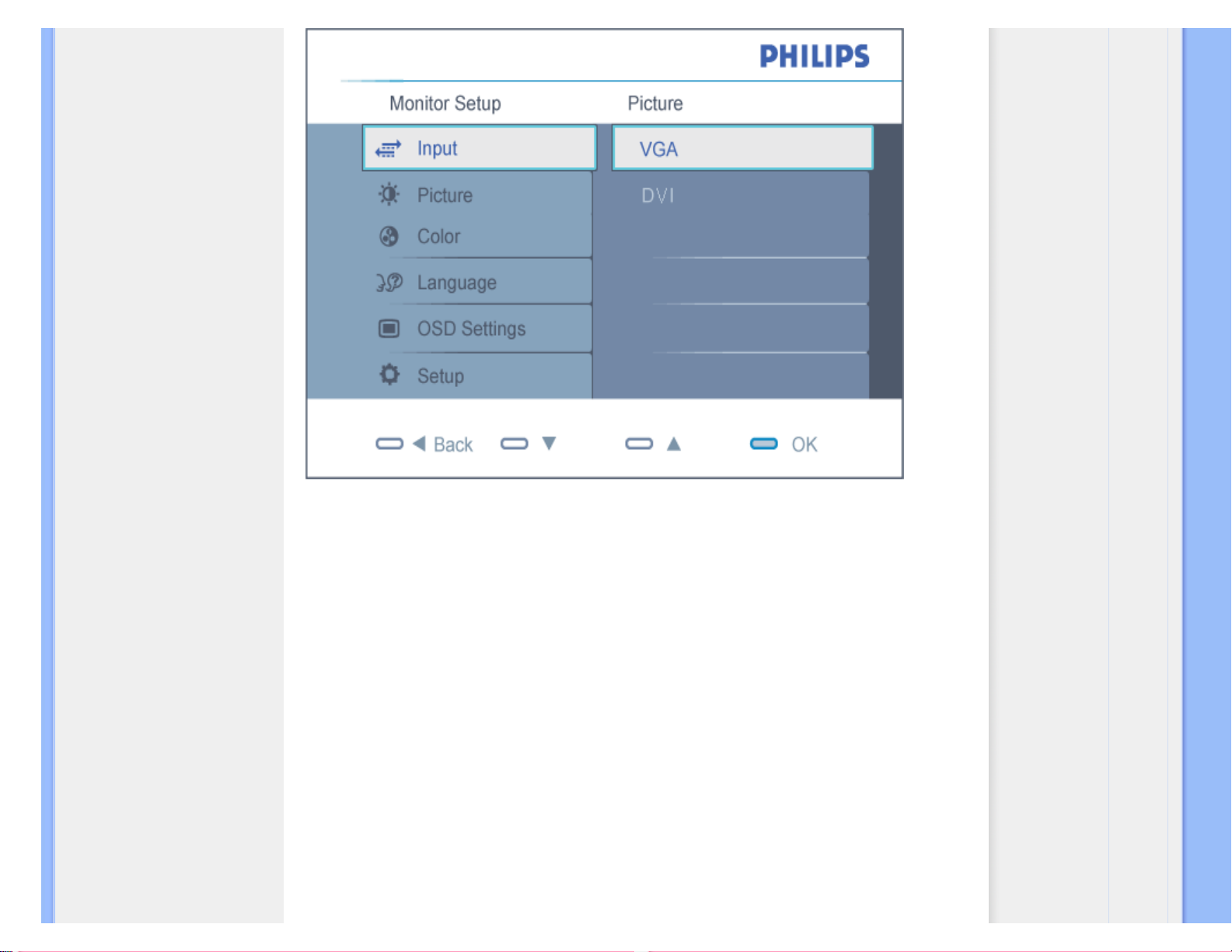

A:Yes, you can change your color setting through OSD control as the following

procedures,

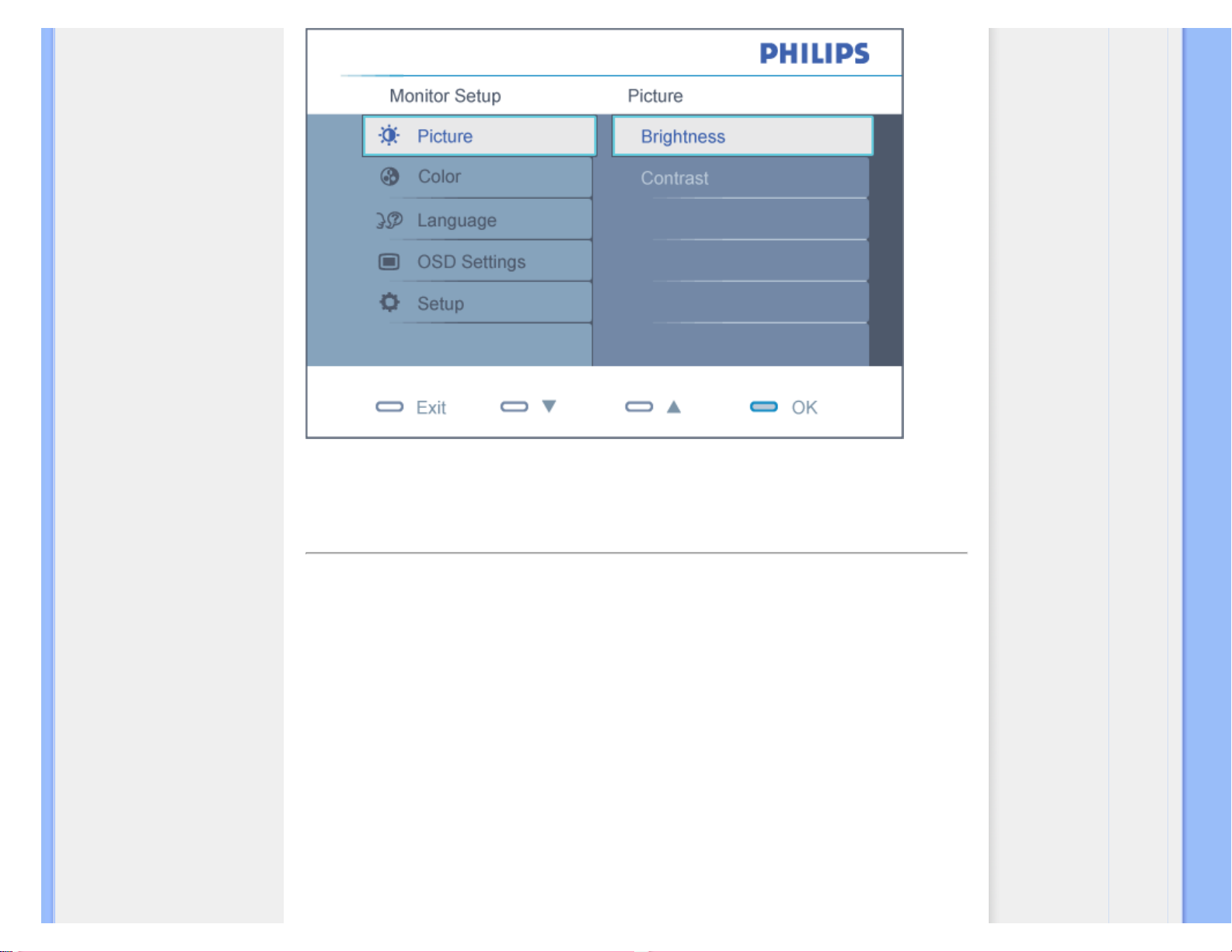

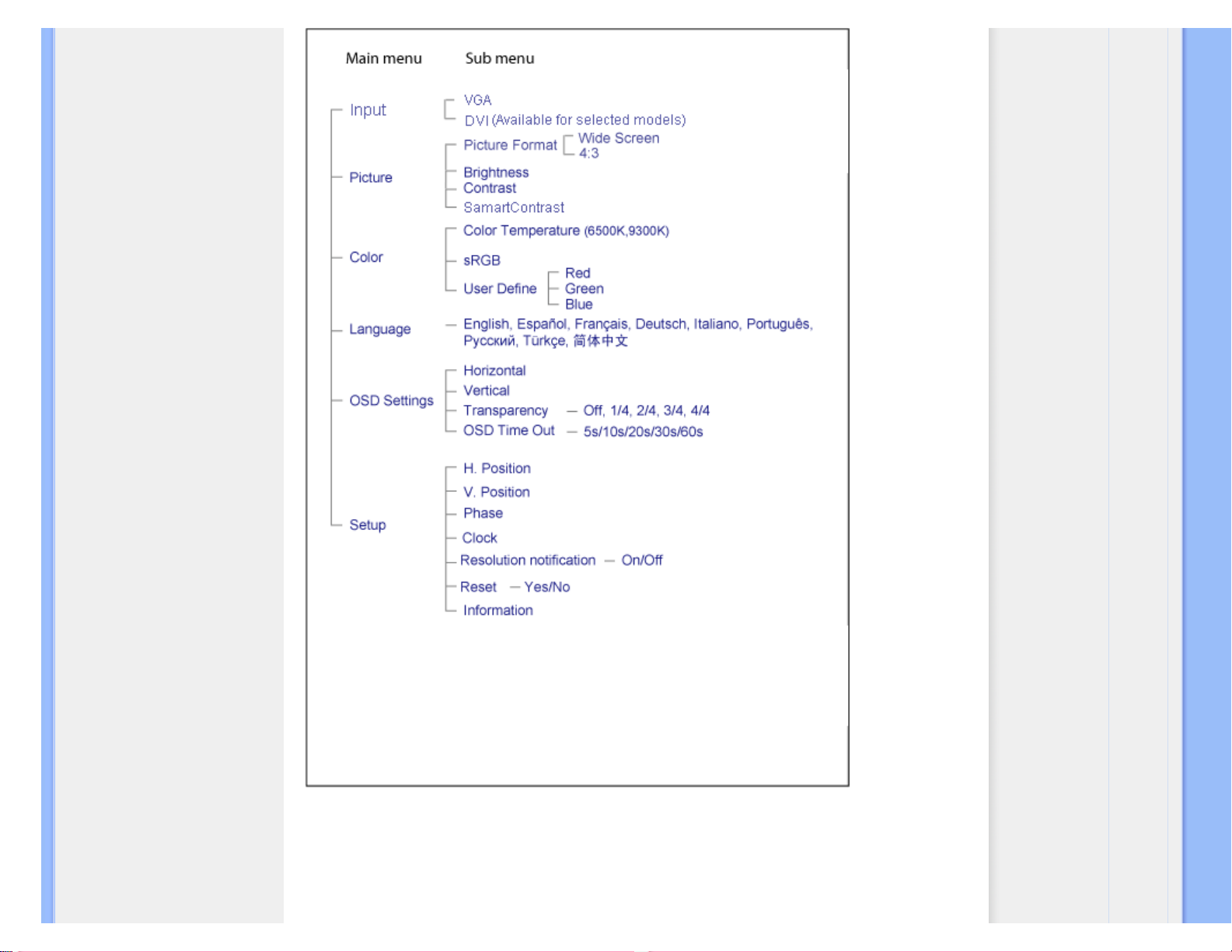

1. Press "OK" to show the OSD (On Screen Display) menu

2. Press "Down Arrow" to select the option "Color" then press "OK" to enter color
setting, there are three settings as below.

a. Color Temperature; The six settings are 6500K, 9300K 11500K.

b. sRGB; this is a standard setting for ensuring correct exchange of colors

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/saf_faq.htm（第 2／5 页）7/10/2009 11:20:52 AM

FAQs (Frequently Asked Questions)

between different device (e.g. digital cameras, monitors, printers, scanners,
etc)

c. User Define; the user can choose his/her preference color setting by
adjusting red, green blue color.

*A measurement of the color of light radiated by an object while it is being heated.
This measurement is expressed in terms of absolute scale, (degrees Kelvin). Lower
Kevin temperatures such as 2004K are red; higher temperatures such as 9300K are
blue. Neutral temperature is white, at 6504K.

Q9: Can the Philips LCD Monitor be mounted on the wall?

A: Yes. Philips LCD monitors have this optional feature. For standard VESA mount

holes on the rear cover allows the user to mount the Philips monitor on most of the
VESA standard arms or accessories. We recommend to contact your Philips sales
representative for more information.

RETURN TO TOP OF THE PAGE

Compatibility with other Peripherals

Q10:

Can I connect my LCD monitor to any PC, workstation or Mac?

A: Yes. All Philips LCD monitors are fully compatible with standard PCs, Macs and

workstations. You may need a cable adapter to connect the monitor to your Mac
system. Please contact your Philips sales representative for more information.

Q11: Are Philips LCD monitors Plug-and-Play?

A: Yes, the monitors are Plug-and-Play compatible with Windows® 95, 98, 2000, XP,

Vista and Linux.

RETURN TO TOP OF THE PAGE

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/saf_faq.htm（第 3／5 页）7/10/2009 11:20:52 AM

FAQs (Frequently Asked Questions)

LCD Panel Technology

Q12:

What kind of wide-angle technology is available?

A: Currently, the IPS type panels offer the best Contrast Ratio, compared to MVA, or

PVA technologies. TN panels have improved over the years, but still cannot match
the Contrast Ratio offered by IPS panel.

RETURN TO TOP OF THE PAGE

Ergonomics, Ecology and Safety Standards

Q13:

What is Image Sticking, or Image Burn-in, or After Image, or Ghost Image in LCD

panels?

A: Uninterrupted display of still or static images over an extended period may cause

"burn in", also known as "after-imaging" or "ghost imaging", on your screen. "Burn-in",
"after-imaging", or "ghost imaging" is a well-known phenomenon in LCD panel
technology. In most cases, the "burned in" or "atter-imaging" or "ghost imaging" will
disappear gradually over a period of time after the power has been switched off.

Always activate a moving screen saver program when you leave your monitor
unattended.

Always activate a periodic screen refresh application if your LCD monitor will display
unchanging static content.

WARNING: Severe"burn-in" or "after-image" or "ghost image" symptoms will not
disappear and cannot be repaired. The damage mentioned above is not covered
under your warranty.

Q14:

Why is my Display not showing sharp text, and is displaying jagged characters?

A: Your LCD monitor works best at its native resolution of 1920x1080@60Hz. For

best display please use this resolution.

RETURN TO TOP OF THE PAGE

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/saf_faq.htm（第 4／5 页）7/10/2009 11:20:52 AM

FAQs (Frequently Asked Questions)

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/saf_faq.htm（第 5／5 页）7/10/2009 11:20:53 AM

Troubleshooting

• Safety and
Troubleshooting

• FAQs

• Common Problems

• Imaging Problems

• Regulatory Information

Troubleshooting

This page deals with problems that can be corrected by a user. If the problem still persists after you have tried these
solutions, contact Philips customer service representative.

Common Problems

Having this problem Check these items

No Picture
(Power LED not lit)

● Make sure the power cord is plugged into the power outlet

and into the back of the monitor.

● First, ensure that the power button on the front of the monitor

is in the OFF position, then press it to the ON position.

No Picture

(Power LED is White)

● Make sure the computer is turned on.

● Make sure the signal cable is properly connected to your

computer.

● make sure the monitor cable has no bent pins on the connect

side. If yes, repair or replace the cable.

● The Energy Saving feature may be activated

Screen says

● Make sure the monitor cable is properly connected to your

computer. (Also refer to the Quick Set-Up Guide).

● Check to see if the monitor cable has bent pins.

● Make sure the computer is turned on.

AUTO button doesn't function in VGA
mode

● The auto function is applicable only in VGA-Analog mode. If

the result is not satisfactory, you can do manual adjustments
via the OSD menu. Note that the Auto Function is not
applicable in DVI-Digital mode as it is not necessary.

Imaging Problems

Image is not centered

● Press the Auto button.

● Adjust the image position using the Phase/Clock of Setup in

OSD Main Controls.

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/saf_troub.htm（第 1／3 页）7/10/2009 11:21:01 AM

Troubleshooting

Image vibrates on the screen

● Check that the signal cable is properly securely connected to

the graphics board or PC.

Vertical flicker appears

● Press the Auto button.

● Eliminate the vertical bars using the Phase/Clock of Setup in

OSD Main Controls.

Horizontal flicker appears

● Press the Auto button.

● Eliminate the vertical bars using the Phase/Clock of Setup in

OSD Main Controls.

image appears blurred, indistinct or too
dark

● Adjust the contrast and brightness on On-Screen Display.

An "after-image", "burn-in" or "ghost
image" remains after the power has
been turned off.

● Uninterrupted display of still or static images over an

extended period may cause " burn in", also known as "after­imaging " or "ghost imaging", on your screen. "Burn-in", "after­imaging", or "ghost imaging" is a well-known phenomenon in
LCD panel technology. In most cases, the "burned in" or
"after-imaging" or "ghost imaging" will disappear gradually
over a period of time after the power has been switched off.

● Always activate a moving screen saver program when you

leave your monitor unattended.

● Always activate a periodic screen refresh application if your

LCD monitor will display unchanging static content.

Image appears distorted. Text is fuzzy
or blurred.

● Set the PC’s display resolution to the same mode as

monitor’s recommended screen native resolution.

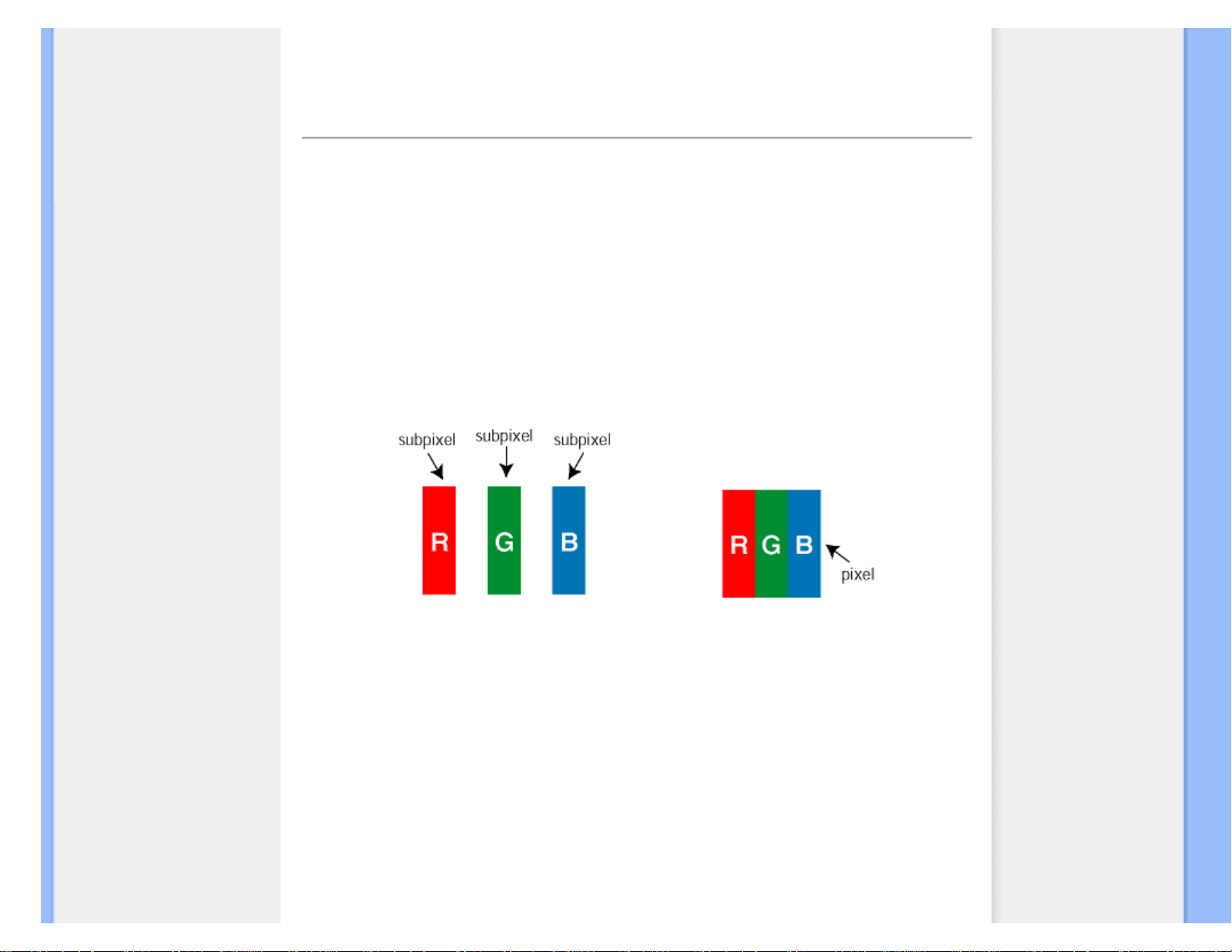

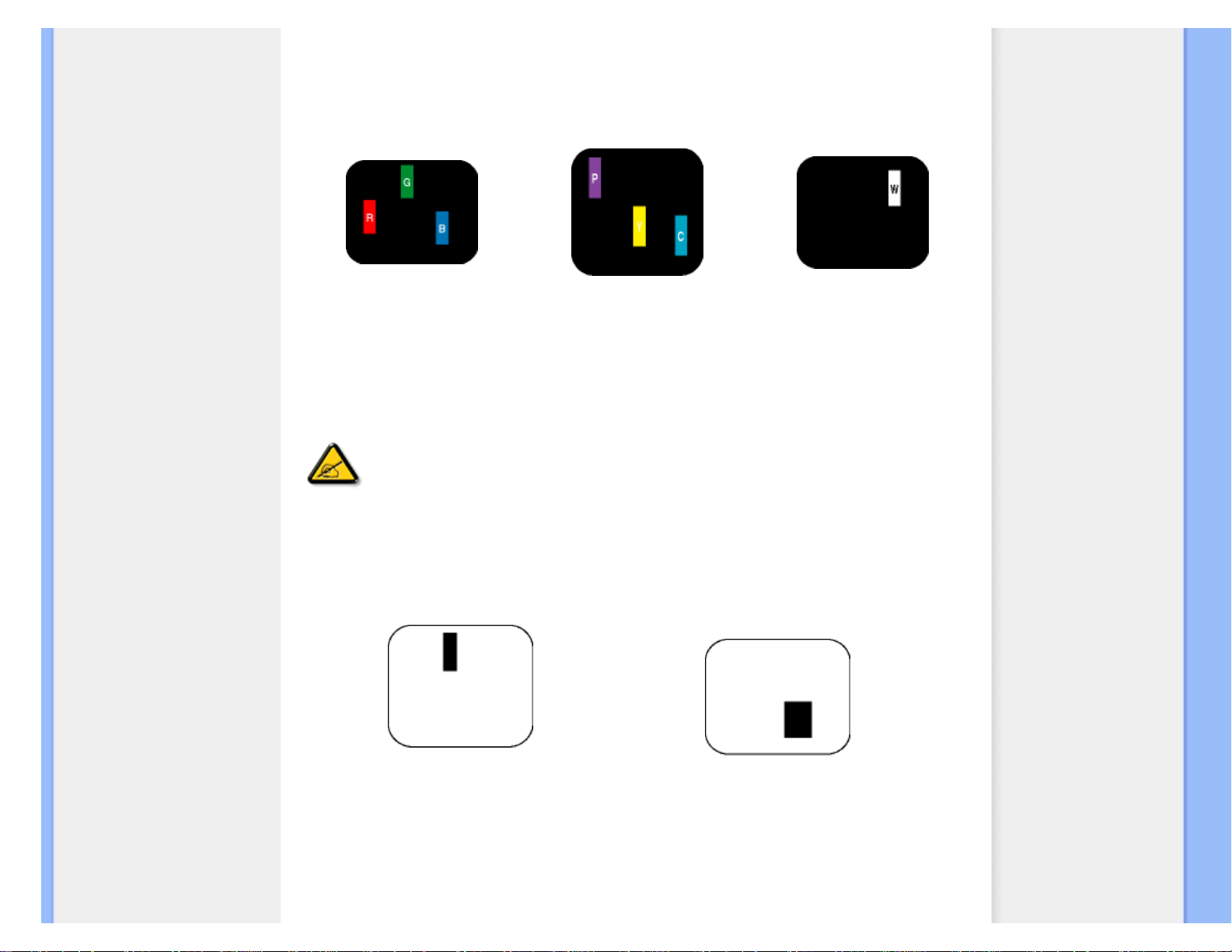

Green, red, blue, dark, and white dots
appears on the screen

● The remaining dots are normal characteristic of the liquid

crystal used in today’s technology, Pls refer the pixel policy

for more detail.

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/saf_troub.htm（第 2／3 页）7/10/2009 11:21:01 AM

Troubleshooting

The "power on" light is too strong to
disturb me.

● You can adjust “power on” light using the power LED of Setup

in OSD main Controls.

For further assistance, refer to the Consumer Information Centers list and contact Philips customer service
representative.

RETURN TO TOP OF THE PAGE

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/saf_troub.htm（第 3／3 页）7/10/2009 11:21:01 AM

Regulatory Information

•

Recycling Information for Customers

•

Waste Electrical and Electronic
Equipment-WEEE

•

CE Declaration of Conformity

•

Energy Star Declaration

• Federal Communications
Commission (FCC) Notice (U.S.
Only)

•

FCC Declaration of Conformity

c Commission Federale de la

Communication (FCC Declaration)

• EN 55022 Compliance (Czech
Republic Only)

• Polish Center for Testing and
Certification Notice

• North Europe (Nordic Countries)
Information

• BSMI Notice (Taiwan Only)

•

Ergonomie Hinweis (nur
Deutschland)

• Philips End-of-Life Disposal

•

China RoHS

• Lead-free Product

• Troubleshooting

• Other Related Information

•

Frequently Asked Questions (FAQs)

Regulatory Information

*available for selective models

Recycling Information for Customers

There is currently a system of recycling up and running in the European countries, such as The
Netherlands, Belgium, Norway, Sweden and Denmark.

In Asia Pacific, Taiwan, the products can be taken back by Environment Protection Administration (EPA)
to follow the IT product recycling management process, detail can be found in web site www.epa.gov.tw

The monitor contains parts that could cause damage to the nature environment. Therefore, it is vital that the
monitor is recycled at the end of its life cycle.

For help and service, please contact Consumers Information Center or F1rst Choice Contact Information

Center in each country.

RETURN TO TOP OF THE PAGE

Waste Electrical and Electronic Equipment-WEEE

Attention users in European Union private households

This marking on the product or on its packaging illustrates that, under European Directive
2002/96/EC governing used electrical and electronic appliances, this product may not be disposed of
with normal household waste. You are responsible for disposal of this equipment through a designated
waste electrical and electronic equipment collection. To determine the locations for dropping off such
waste electrical and electronic, contact your local government office, the waste disposal organization that
serves your household or the store at which you purchased the product.

Attention users in United States:

Like all LCD products, this set contains a lamp with Mercury. Please dispose of according to all Local,
State and Federal laws. For the disposal or recyciing information, contact www.mygreenelectronics.com

or www.eiae.org.

RETURN TO TOP OF THE PAGE

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/regs/regulat.htm（第 1／9 页）7/10/2009 11:21:05 AM

Regulatory Information

EPEAT
“The EPEAT (Electronic Product Environmental Assessment Tool) program evaluates computer
desktops, laptops, and monitors based on 51 environmental criteria developed through an extensive
stakeholder consensus process supported by US EPA.
EPEAT system helps purchasers in the public and private sectors evaluate, compare and select desktop
computers, notebooks and monitors based on their environmental attributes. EPEAT also provides a
clear and consistent set of performance criteria for the design of products, and provides an opportunity
for manufacturers to secure market recognition for efforts to reduce the environmental impact of its
products.”

Benefits of EPEAT
Reduce use of primary materials
Reduce use of toxic materials
Avoid the disposal of hazardous waste
EPEAT’S requirement that all registered products meet ENERGY STAR’s energy efficiency
specifications, means that these products will consume less energy throughout their life.

RETURN TO TOP OF THE PAGE

ROHS is a European Directive aiming to control the use of certain hazardous substances in the
production of new electrical and electronic equipment. Philips has completely eliminated four of six
RoHS-banned substances form its products by 1998-eight full years before compliance was required and
has lowered usage of the remaining substances significantly below the mandated levels.

RETURN TO TOP OF THE PAGE

CE Declaration of Conformity

This product is in conformity with the following standards

- EN60950-1:2001 (Safety requirement of Information Technology Equipment)

- EN55022:2006 (Radio Disturbance requirement of Information Technology Equipment)

- EN55024:1998 (Immunity requirement of Information Technology Equipment)

- EN61000-3-2:2006 (Limits for Harmonic Current Emission)

- EN61000-3-3:1995 (Limitation of Voltage Fluctuation and Flicker)
following provisions of directives applicable

- 2006/95/EC (Low Voltage Directive)

- 2004/108/EC (EMC Directive)
and is produced by a manufacturing organization on ISO9000 level.

The product also comply with the following standards

- ISO13406-2 (Ergonomic requirement for Flat Panel Display)

- GS EK1-2000 (GS specification)

- prEN50279:1998 (Low Frequency Electric and Magnetic fields for Visual Display)

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/regs/regulat.htm（第 2／9 页）7/10/2009 11:21:05 AM

Regulatory Information

- MPR-II (MPR:1990:8/1990:10 Low Frequency Electric and Magnetic fields)

- TCO'03, TCO Displays 5.0 (Requirement for Environment Labelling of Ergonomics, Energy, Ecology
and Emission, TCO: TCO: TCO: Swedish Confederation of Professional Employees) for TCO versions

RETURN TO TOP OF THE PAGE

Energy Star Declaration

This monitor is equipped with a function for saving energy which supports the VESA DPM
standard. This means that the monitor must be connected to a computer which supports VESA
DPM. Time settings are adjusted from the system unit by software.

VESA State LED Indicator Power Consumption
Normal operation ON (Active) White < 33.5 W (typ.)
Power Saving

Alternative 2
One step

Sleep White < 0.8 W (typ.)

Switch Off Off < 0.5 W (typ.)

As an ENERGY STAR® Partner, we have determined that this product meets the
ENERGY STAR® guidelines for energy efficiency.

We recommend you switch off the monitor when it is not in use for a long time.

RETURN TO TOP OF THE PAGE

Federal Communications Commission (FCC) Notice (U.S. Only)

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

● Consult the dealer or an experienced radio/TV technician for help.

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/regs/regulat.htm（第 3／9 页）7/10/2009 11:21:05 AM

Regulatory Information

Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.

Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a
computer device.

To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or
excessive moisture.

THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN
INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.

RETURN TO TOP OF THE PAGE

FCC Declaration of Conformity

Declaration of Conformity for Products Marked with FCC Logo,
United States Only

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.

RETURN TO TOP OF THE PAGE

Commission Federale de la Communication (FCC Declaration)

Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de
class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon
à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une
installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences
qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer
des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir
l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la
cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce
qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur
pourrait essayer de corriger la situation en prenant les mesures suivantes:

● Réorienter ou déplacer l'antenne de réception.

● Augmenter la distance entre l'équipement et le récepteur.

● Brancher l'équipement sur un autre circuit que celui utilisé par le récepteur.

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/regs/regulat.htm（第 4／9 页）7/10/2009 11:21:05 AM

Regulatory Information

● Demander l'aide du marchand ou d'un technicien chevronné en radio/télévision.

Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de
conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.

N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques.

CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU
REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA.

RETURN TO TOP OF THE PAGE

EN 55022 Compliance (Czech Republic Only)

RETURN TO TOP OF THE PAGE

Polish Center for Testing and Certification Notice

The equipment should draw power from a socket with an attached protection circuit (a three-prong
socket). All equipment that works together (computer, monitor, printer, and so on) should have the same
power supply source.

The phasing conductor of the room's electrical installation should have a reserve short-circuit protection
device in the form of a fuse with a nominal value no larger than 16 amperes (A).

To completely switch off the equipment, the power supply cable must be removed from the power supply
socket, which should be located near the equipment and easily accessible.

A protection mark "B" confirms that the equipment is in compliance with the protection usage
requirements of standards PN-93/T-42107 and PN-89/E-06251.

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/regs/regulat.htm（第 5／9 页）7/10/2009 11:21:05 AM

Regulatory Information

RETURN TO TOP OF THE PAGE

North Europe (Nordic Countries) Information

Placering/Ventilation

VARNING:

FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR
DU STÄLLER DIN UTRUSTNING PÅPLATS.

Placering/Ventilation

ADVARSEL:

SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT
ER NEMT TILGÆNGELIGE.

Paikka/Ilmankierto

VAROITUS:

SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI
IRROTTAA PISTORASIASTA.

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/regs/regulat.htm（第 6／9 页）7/10/2009 11:21:05 AM

Regulatory Information

Plassering/Ventilasjon

ADVARSEL:

NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE FOR
STØMTILFØRSEL ER LETTE Å NÅ.

RETURN TO TOP OF THE PAGE

BSMI Notice (Taiwan Only)

RETURN TO TOP OF THE PAGE

Ergonomie Hinweis (nur Deutschland)

Der von uns gelieferte Farbmonitor entspricht den in der "Verordnung über den Schutz vor Schäden
durch Röntgenstrahlen" festgelegten Vorschriften.

Auf der Rückwand des Gerätes befindet sich ein Aufkleber, der auf die Unbedenklichkeit der
Inbetriebnahme hinweist, da die Vorschriften über die Bauart von Störstrahlern nach Anlage III ¤ 5 Abs.
4 der Röntgenverordnung erfüllt sind.

Damit Ihr Monitor immer den in der Zulassung geforderten Werten entspricht, ist darauf zu achten, daß

1. Reparaturen nur durch Fachpersonal durchgeführt werden.

2. nur original-Ersatzteile verwendet werden.

3. bei Ersatz der Bildröhre nur eine bauartgleiche eingebaut wird.

Aus ergonomischen Gründen wird empfohlen, die Grundfarben Blau und Rot nicht auf dunklem
Untergrund zu verwenden (schlechte Lesbarkeit und erhöhte Augenbelastung bei zu geringem
Zeichenkontrast wären die Folge).

Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 beträgt 70dB (A) oder weniger.

ACHTUNG: BEIM AUFSTELLEN DIESES GERÄTES DARAUF ACHTEN, DAß
NETZSTECKER UND NETZKABELANSCHLUß LEICHT ZUGÄNGLICH SIND.

RETURN TO TOP OF THE PAGE

End-of-Life Disposal

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/regs/regulat.htm（第 7／9 页）7/10/2009 11:21:05 AM

Regulatory Information

Your new monitor contains materials that can be recycled and reused. Specialized companies can
recycle your product to increase the amount of reusable materials and to minimize the amount to be
disposed of.

Please find out about the local regulations on how to dispose of your old monitor from your sales
representative.

(For customers in Canada and U.S.A.)

This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal
regulations.
For additional information on recycling contact www.eia.org (Consumer Education Initiative)

RETURN TO TOP OF THE PAGE

China RoHS

The People's Republic of China released a regulation called "Management Methods for Controlling
Pollution by Electronic Information Products" or commonly referred to as China RoHS. All products
including CRT and LCD monitor which are produced and sold for China market have to meet China
RoHS request.

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/regs/regulat.htm（第 8／9 页）7/10/2009 11:21:05 AM

Regulatory Information

环保使用期限

此标识指期限(十年),电子信息产品中含有的有毒有害物质或元素在正常使用的条件下不会发生外泄
或突变, 电子信息产品用户使用该电子信息产品不会对环境造成严重污染或对其人身

、 财产造成严

重损害的期限．

RETURN TO TOP OF THE PAGE

Lead-free Product

Lead free display promotes environmentally sound recovery and disposal of waste from
electrical and electronic equipment. Toxic substances like Lead has been eliminated and
compliance with European community’s stringent RoHs directive mandating restrictions on
hazardous substances in electrical and electronic equipment have been adhered to in
order to make Philips monitors safe to use throughout its life cycle.

RETURN TO TOP OF THE PAGE

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/safety/regs/regulat.htm（第 9／9 页）7/10/2009 11:21:05 AM

About This Manual

• About This Guide

• Notational Descriptions

About This Manual

About This Guide

This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It
describes the LCD monitor's features, setup, operation and other important information. Its
contents are identical to the information in our printed version.

It includes the following sections:

● Safety and Troubleshooting Information provides tips and solutions for common problems

as well as other related information you may need.

● About This Electronic User's Manual gives an overview of information included, along with

notation icon descriptions and other documentation for your reference.

● Product Information gives an overview of the monitor's features as well as the technical

specifications for this monitor.

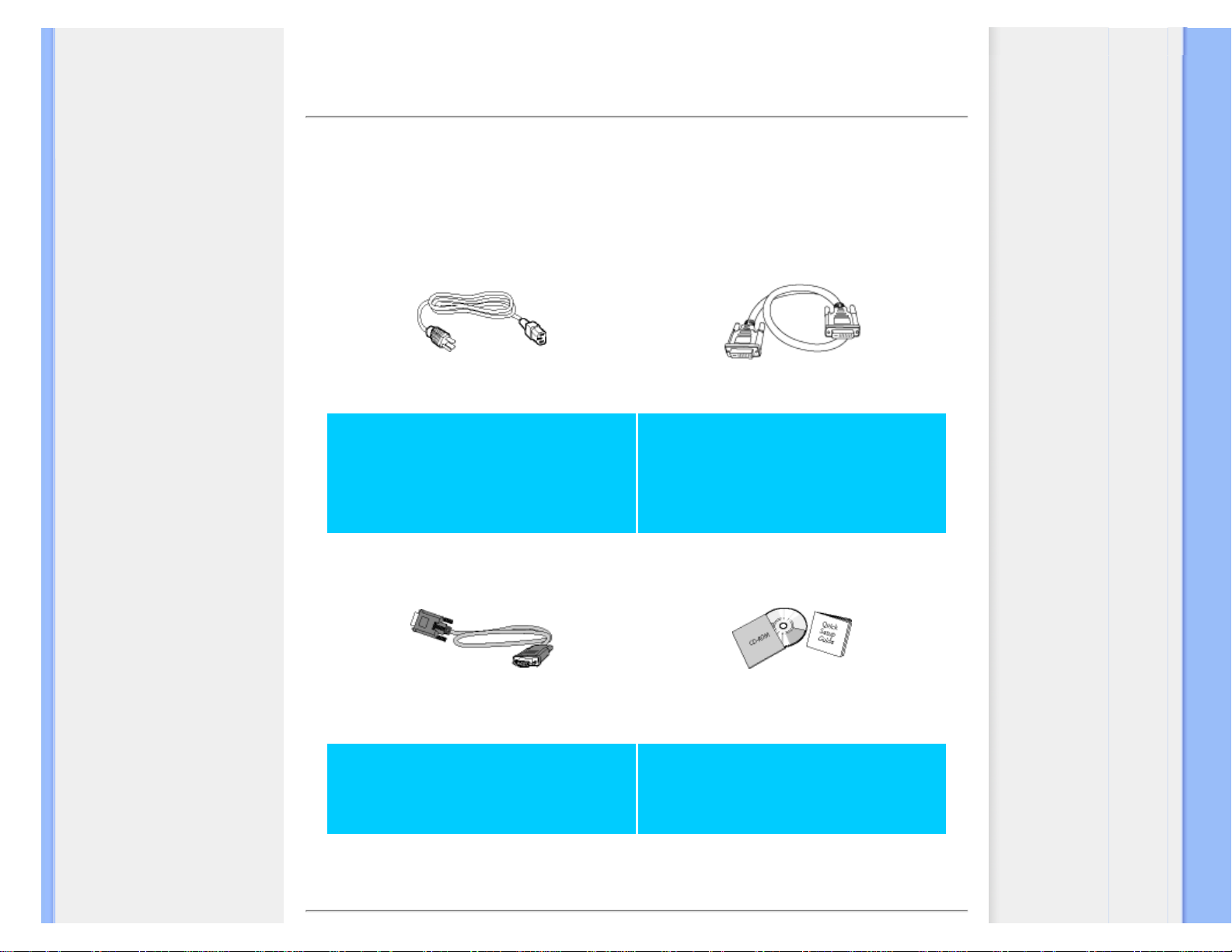

● Installing Your Monitor describes the initial setup process and gives an overview of how to

use the monitor.

● On-Screen Display provides information on adjusting the settings on your monitor.

● Customer Care and Warranty contains a list of worldwide Philips Consumer Information

Centers along with help desk phone numbers and information on the warranty applicable
to your product.

● Glossary defines technical terms.

● Download and Print Option transfers this entire manual to your hard drive for easy

reference.

RETURN TO TOP OF THE PAGE

Notational Descriptions

The following subsections describe notational conventions used in this document.

Notes, Cautions and Warnings

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/about/about.htm（第 1／2 页）7/10/2009 11:21:15 AM

About This Manual

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic
type. These blocks contain notes, cautions or warnings. They are used as follows:

NOTE: This icon indicates important information and tips that help you make
better use of your computer system.

CAUTION: This icon indicates information that tells you how to avoid either
potential damage to hardware or loss of data.

WARNING: This icon indicates the potential for bodily harm and tells you how
to avoid the problem.

Some warnings may appear in alternate formats and may not be accompanied by an icon. In
such cases, the specific presentation of the warning is mandated by the relevant regulatory
authority.

RETURN TO TOP OF THE PAGE

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/about/about.htm（第 2／2 页）7/10/2009 11:21:15 AM

Product Information

• Your LCD Monitor

• Smartimage

• SmartContrast

• SmartSaturate

• SmartSharpness

• Technical Specifications

• Resolution & Preset Modes

• Philips Pixel Defect Policy

• Automatic Power Saving

• Product Views

• Physical Function

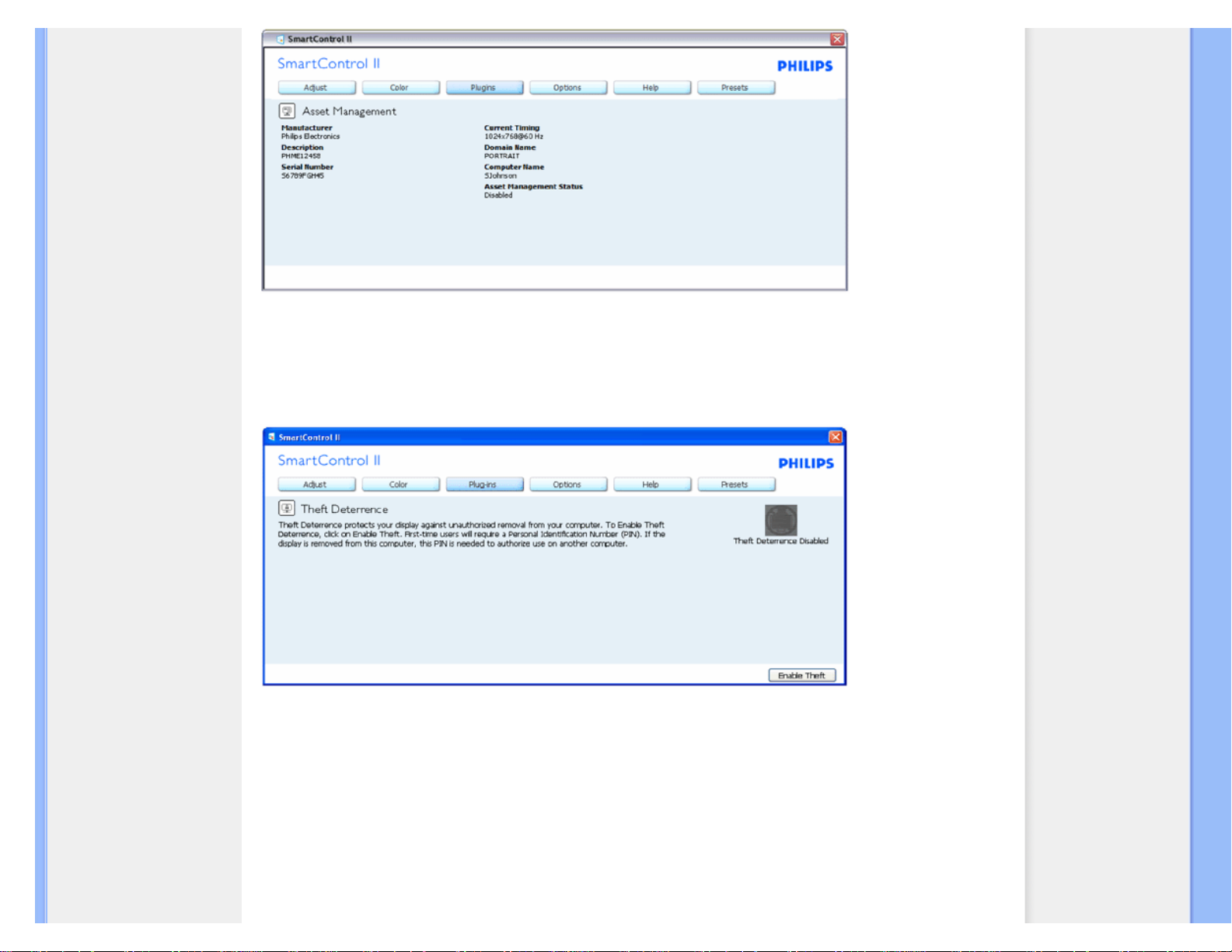

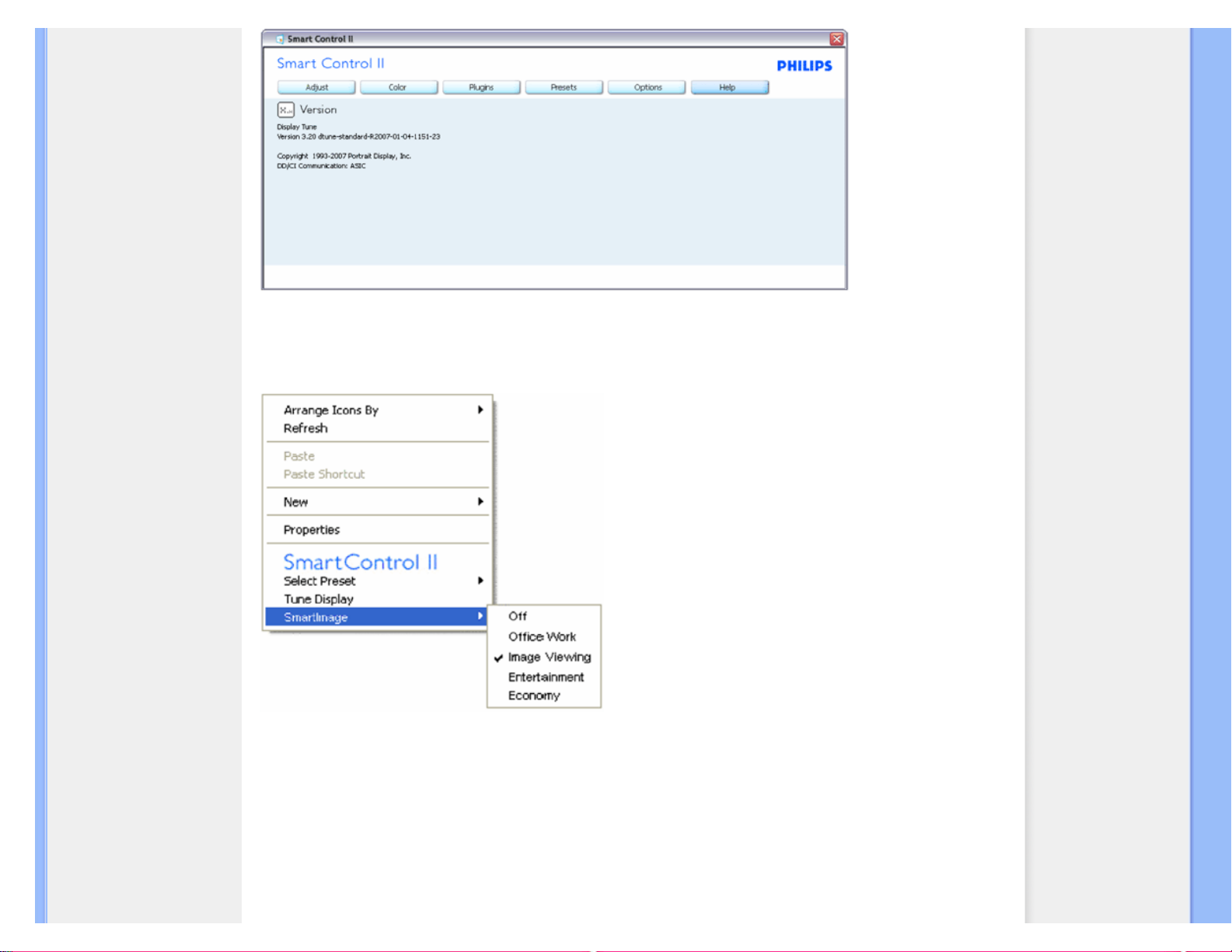

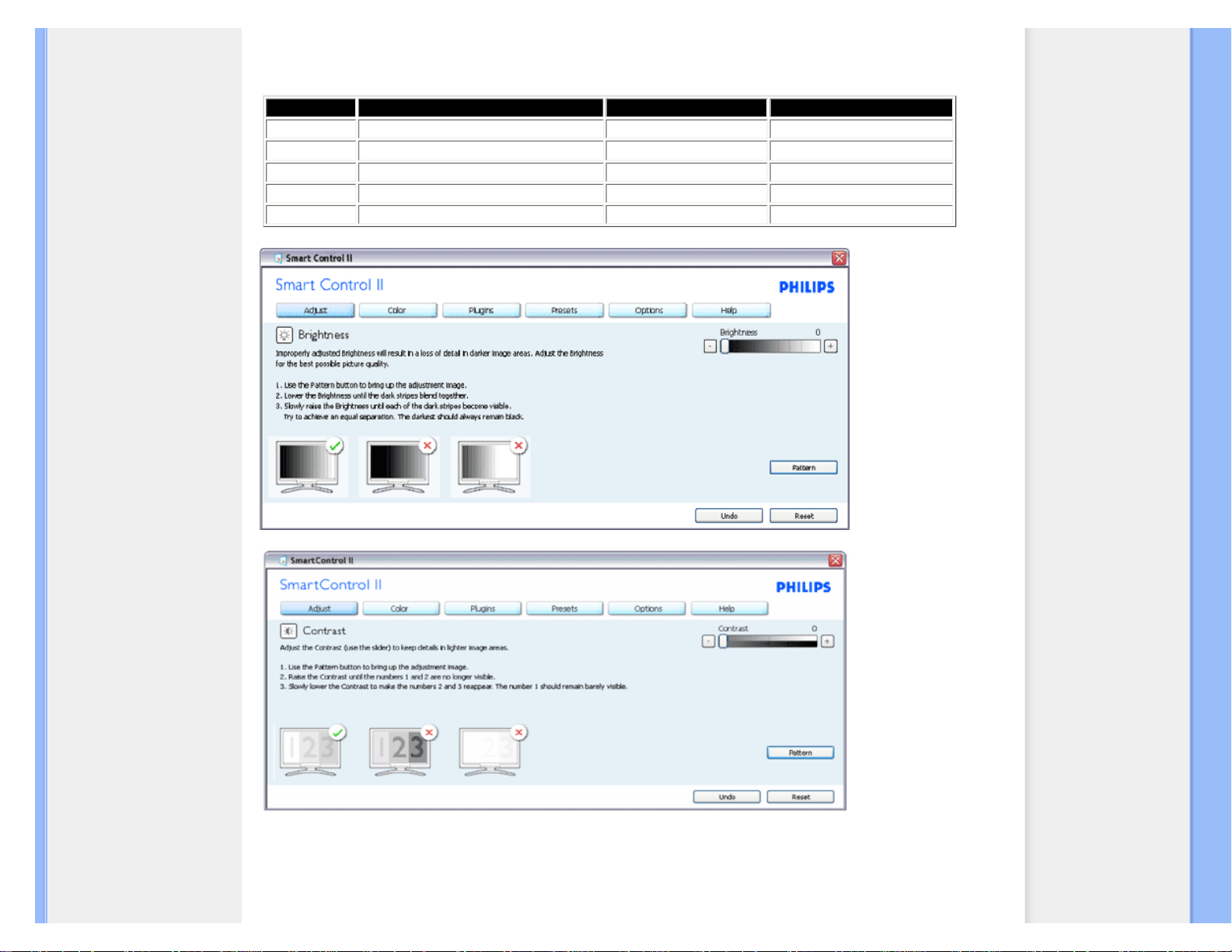

• SmartControl II

Product Information

Your LCD monitor

Congratulations on your purchase and welcome to Philips. To fully benefit from the support that Philips offers, register
your product at. www.philips.com/welcome

SmartContrast

What is it?

Unique technology that dynamically analyzes displayed content and automatically optimizes a LCD monitor's contrast
ratio for maximum visual clarity and viewing enjoyment, stepping up backlighting for clearer, crisper and brighter
images or dimming backlighting for clear display of images on dark backgrounds.

Why do I need it?

You want the very best visual clarity and viewing comfort for every type of content. SmartContrast dynamically controls
contrast and adjusts backlighting for clear, crisp, bright gaming and video images or displays clear, readable text for
office work. By reducing your monitor's power consumption, you save on energy costs and extend the lifetime of your
monitor.

How does it work?

When you active SmartContrast which will analysis the content you are displaying in real time to adjust colors and
control backlight intensity. This function can obviously enhance contrast in dynamic for more entertainment fun when
viewing videos or playing games.

RETURN TO TOP OF THE PAGE

Technical Specifications*

Picture/Display

• LCD panel type TFT-LCD

• Panel size 23.6"

• Aspect ratio 16:9

• Pixel Pitch 0.2715x0.2715 mm

• Brightness

300 cd/m²

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/product/product.htm（第 1／6 页）7/10/2009 11:21:19 AM

Product Information

•SmartContrast 25000:1

•Contrast ratio(typ.) 1000:1

• Response time (typical) 5 ms

• Optimum Resolution 1920x1080 @ 60Hz

• Viewing angle 170° (H) / 160° (V) @ C/R > 10

• Display colors 16.7 M

• Scanning Frequency 30 - 83 kHz (H)/56 -75Hz (V)

• sRGB YES

Connectivity

• Signal input DVI-D (digital, HDCP), VGA (Analog)

• Input Signal Separate Sync, Sync on Green

Convenience

• User Convenience Auto(Back), 4:3/Wide(Down), Brightness(Up), Menu(OK), Power On/Off

• OSD Languages

English, French, German, Italian, Russian, Spanish, Simplified Chinese,
Portuguese, Turkish

• Other convenience VESA mount ( 100 x 100mm), Kensington lock

• Plug & Play Compatibility DDC/CI, sRGB, Windows 98/2000/XP/Vista, Mac OS X

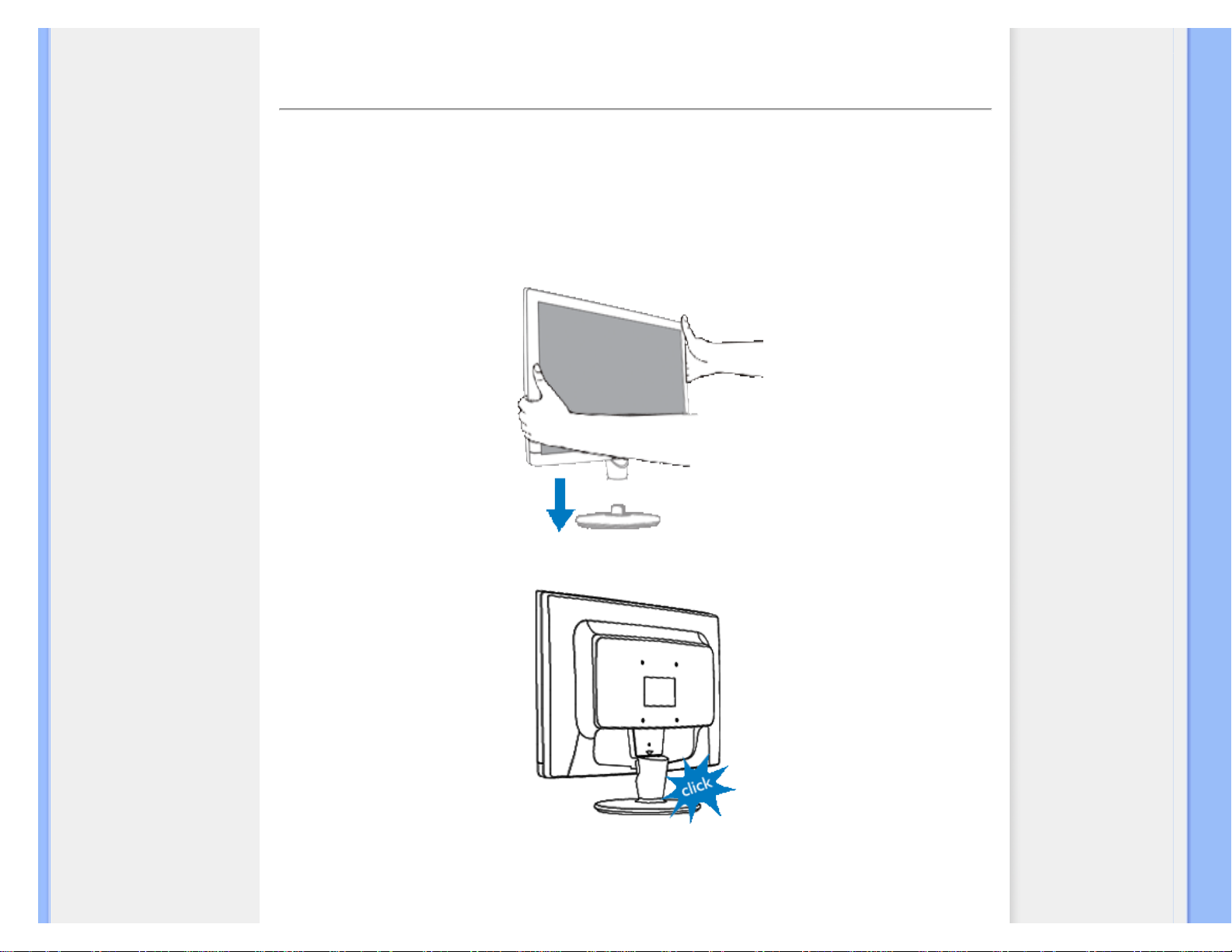

Stand

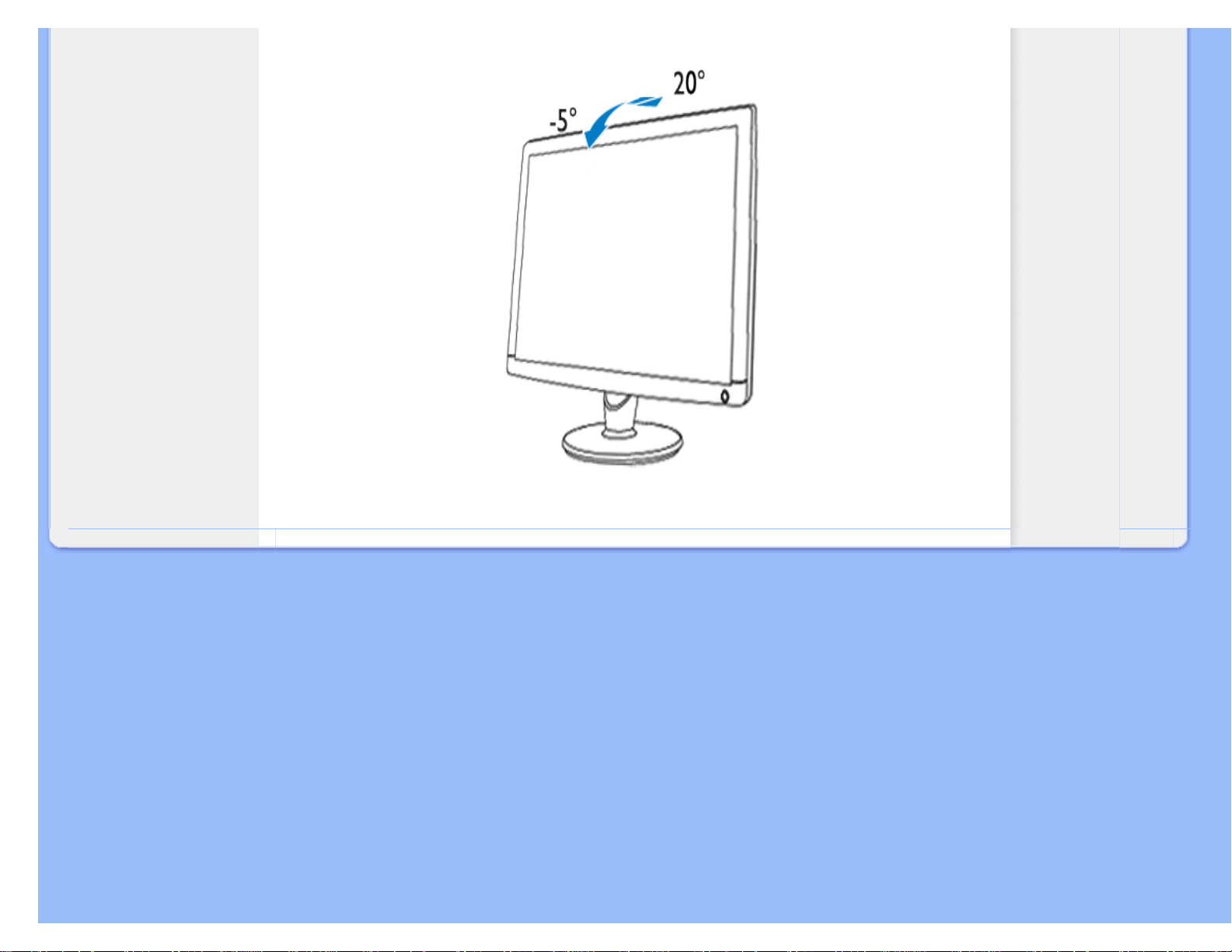

• Tilt -5/+20

Power

• On mode (typcial) < 50 W
Energy Consumption

(EnergyStar 5.0 test method)

AC Input Voltage at
100VAC +/-5VAC,

50Hz +/- 3Hz
Normal Operation 29.1 W 29.6 W 29.6 W
Sleep 0.8 W 0.8 W 0.8 W
Off 0.5 W 0.5 W 0.5 W

AC Input Voltage at
Heat Dissipation*

100VAC +/-5VAC,

50Hz +/ -3Hz
Normal Operation 99.3BTU/hr 101.0BTU/hr 101.0BTU/hr
Sleep 2.7BTU/hr 2.7BTU/hr 2.7BTU/hr
Off 1.7BTU/hr 1.7BTU/hr 1.7BTU/hr

• Power LED indicator On mode:

White, Standby/Sleep mode: White

• Power Supply Build-in, 100-240VAC, 50/60Hz

Dimension

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/product/product.htm（第 2／6 页）7/10/2009 11:21:19 AM

AC Input Voltage at
115VAC +/-5VAC,
60Hz +/- 3Hz

AC Input Voltage at
115VAC +/-5VAC,
60Hz +/ -3Hz

AC Input Voltage at
230VAC +/-5VAC, 50Hz
+/ -3Hz

AC Input Voltage at
230VAC +/-5VAC, 50Hz
+/ -3Hz

Product Information

• Product with stand ( WxHxD) 561x400x210mm

• Product without stand
( WxHxD)

561x336x68mm

• Box dimension ( WxHxD) 620x440x168mm

Weight

• Product with stand 5.65kg

• Product without stand 4.95kg

• Product with packaging 7.14kg

Operating Condition

• Temperature range (operation) 0° C to 40 ° C

• Temperature range (operation) -20° C to 60° C

• Relative humidity 20% to 80%

• Altitude

Non-operation: + 12,000 ft ( 3,658 m)

operation: + 40,000 ft ( 12,192 m),

• MTBF 50000 hrs

Environmental

• ROHS YES

• EPEAT sliver

• EnergyStar 5.0

• Packaging 100% recyclable

Compliance and standards

• Regulatory Approvals CE Mark, Energy Star 5.0, FCC Class B, SEMKO

Cabinet

• Color Black/Black

• Finish Glossy

* This data is subject to change without notice.

RETURN TO TOP OF THE PAGE

Resolution & Preset Modes

A.

Maximum Resolution

- For 241E1
1920 x 1080 at

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/product/product.htm（第 3／6 页）7/10/2009 11:21:19 AM

60 Hz (analog input)

Product Information

Automatic Power Saving

If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce
its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the
monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic
power saving feature:

Power Management Definition

1920 x 1080 at 60 Hz (digital input)

B. Recommended Resolution

- For 241E1
1920 x 1080 at 60 Hz (digital input)
1920 x 1080 at 60 Hz (analog input)

15 factory preset modes:

H. freq (kHz) Resolution V. freq (Hz)

31.469 720*400 70.087

31.469 640*480 59.940

35.000 640*480 67.000

37.500 640*480 75.000

35.156 800*600 56.250

37.879 800*600 60.317

46.875 800*600 75.00

48.363 1024*768 60.004

60.023 1024*768 75.029

63.981 1280*1024 60.020

79.976 1280*1024 75.025

66.587 1920*1080 60.000

67.500 1920*1080 60.000

65.290 1680*1050 60.000

64.674 1680*1050 60.000

RETURN TO TOP OF THE PAGE

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/product/product.htm（第 4／6 页）7/10/2009 11:21:19 AM

Product Information

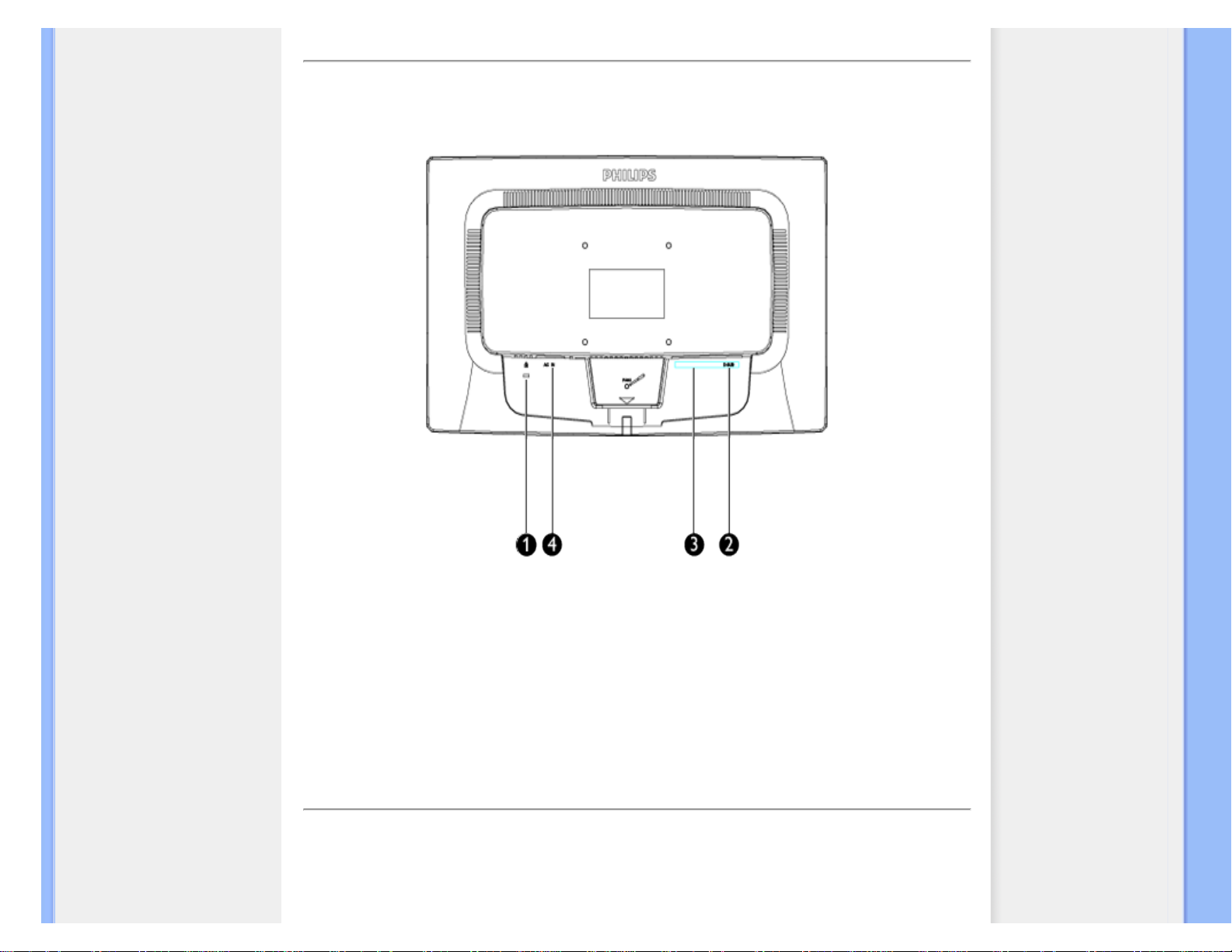

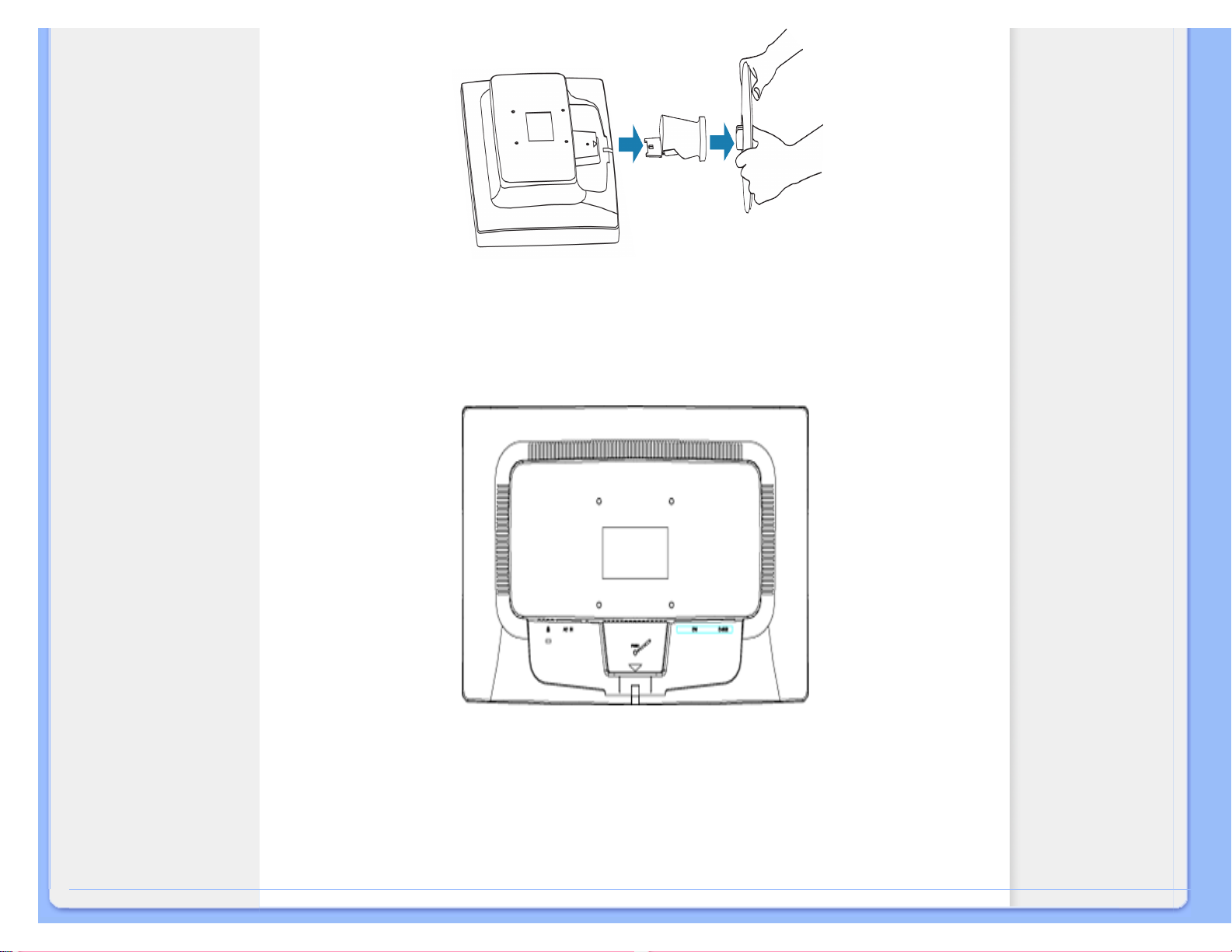

Product Views

Follow the links to see various views of the monitor and its components.

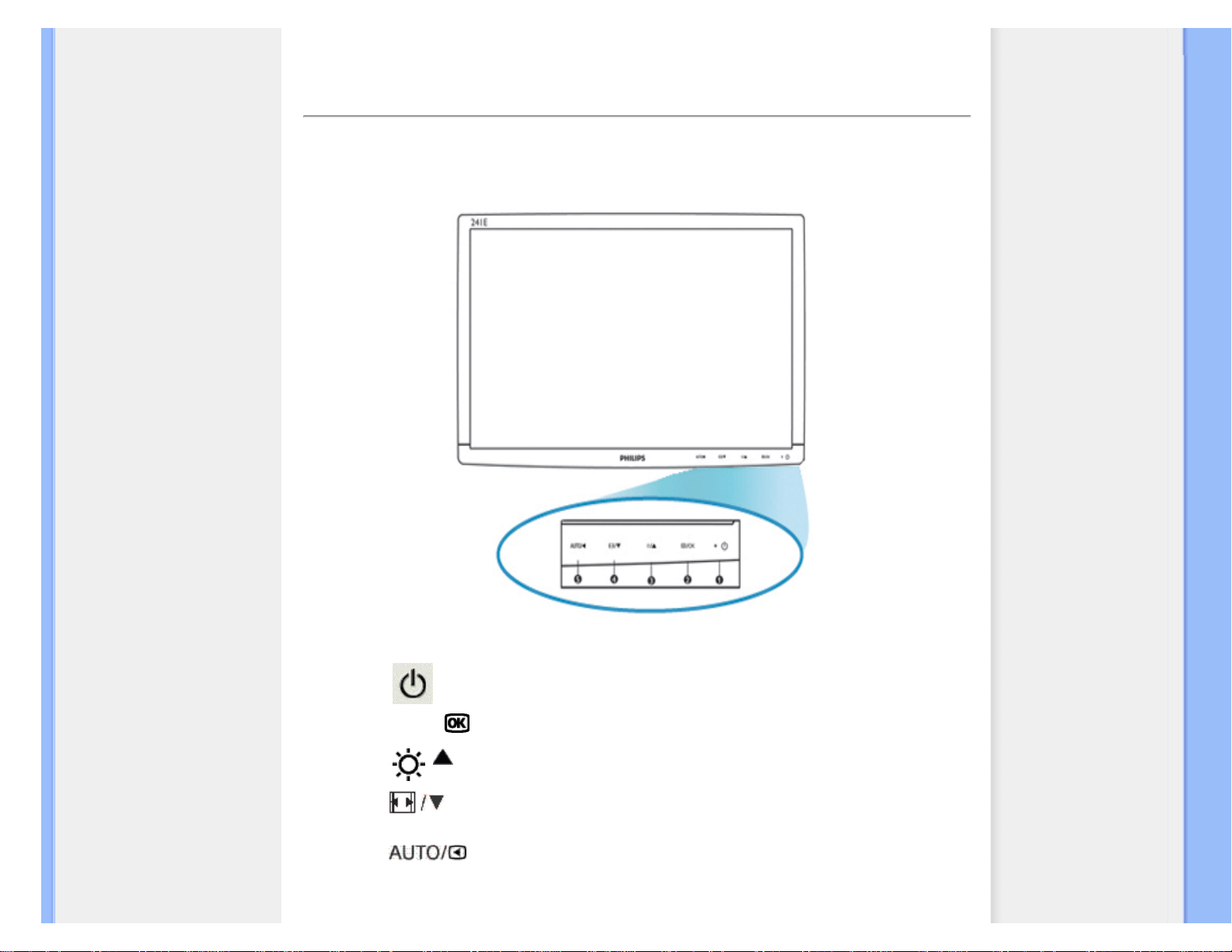

Front View Product Description

RETURN TO TOP OF THE PAGE

Physical Function

VESA Mode Video H-sync V-sync Power Used

LED
color

Active ON Yes Yes < 50 W (typ.) White
Sleep OFF No No < 0.8 W (typ.) White

Switch Off OFF - -

This monitor is

ENERGY STAR

®

compliant. As an ENERGY STAR® Partner, we have

determined that this product meets the ENERGY STAR

< 0.5W

®

guidelines for energy efficiency.

(typ.)

Off

*This data is subject to change without notice.

The native resolution of the monitor is 1920 x 1080, By default, your monitor has 100% (max.) 50% contrast, and

6500K color temperature, with full white pattern, without audio/USB.

RETURN TO TOP OF THE PAGE

file:///D|/cd manual/philips/Q70G900281312A 20090613/Q70G900281312A 20090611/lcd/manual/ENGLISH/241E1/product/product.htm（第 5／6 页）7/10/2009 11:21:19 AM
