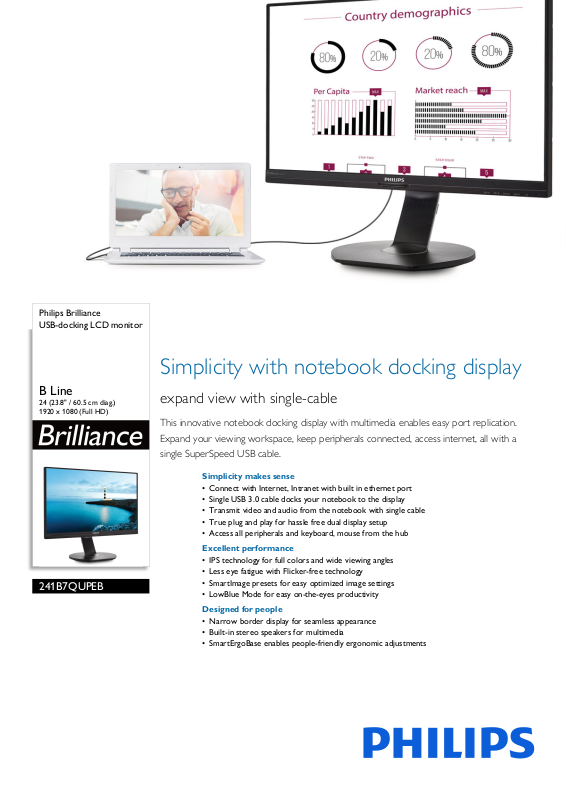

Philips Brilliance
USB-docking LCD monitor
Simplicity with notebook docking display
B Line
24 (23.8" / 60.5 cm diag.)
1920 x 1080 (Full HD)
241B7QUPEB
expand view with single-cable
This innovative notebook docking display with multimedia enables easy port replication.
Expand your viewing workspace, keep peripherals connected, access internet, all with a
single SuperSpeed USB cable.
Simplicity makes sense
• Connect with Internet, Intranet with built in ethernet port
• Single USB 3.0 cable docks your notebook to the display
• Transmit video and audio from the notebook with single cable
• True plug and play for hassle free dual display setup
• Access all peripherals and keyboard, mouse from the hub
Excellent performance
• IPS technology for full colors and wide viewing angles
• Less eye fatigue with Flicker-free technology
• SmartImage presets for easy optimized image settings
• LowBlue Mode for easy on-the-eyes productivity
Designed for people
• Narrow border display for seamless appearance
• Built-in stereo speakers for multimedia
• SmartErgoBase enables people-friendly ergonomic adjustments
241B7QUPEB/01
USB-docking LCD monitor
B Line 24 (23.8" / 60.5 cm diag.), 1920 x 1080 (Full HD)
Highlights
Expand view with single cable
This innovative large Philips display enables
easy port replication for any notebook.
Especially suitable for latest Ultra book type
devices with limited connectors, this display
with built-in USB 3.0 hub, Ethernet, and stereo
speakers enables you to transmit video, audio,
and connect to internet or intranet directly
with a single cable USB connection. By this
advanced USB 3.0 or USB 2.0 plug and play
connection, you can now expand your desktop
using both your NBPC and Philips display's
real-estate without having to worry about
cumbersome resolution adjustments or mess
around with cables.
USB hub for peripherals
IPS technology
IPS displays use an advanced technology which
gives you extra wide viewing angles of 178/178
degree, making it possible to view the display
from almost any angle - even in 90 degree Pivot
mode! Unlike standard TN panels, IPS displays
gives you remarkably crisp images with vivid
colors, making it ideal not only for Photos,
movies and web browsing, but also for
professional applications which demand color
accuracy and consistent brightness at all times.
Flicker-free technology
and maximum viewing size. Especially suited
for multi-display or tiling setup like gaming,
graphic design and professional applications,
the ultra-narrow border display gives you the
feeling of using one large display.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
You can now connect optional full sized
Keyboard and mouse to this innovative Philips
display's USB hub to improve your
productivity. Simply connect your Notebook
to this display with a single USB cable, and you
are ready to utilize the attached additional
peripherals like external HDD, camera, USB
drive along with Full HD video, Audio, and
Internet functions. Should you prefer, you can
of course still utilize your NBPC's keyboard
and track pad as usual.
Due to the way brightness is controlled on
LowBlue Mode
LED-backlit screens, some users experience
flicker on their screen which causes eye
fatigue. Philips Flicker-free Technology applies
a new solution to regulate brightness and
reduce flicker for more comfortable viewing.
UltraNarrow Border
Studies have shown that just as ultra-violet rays
can cause eye damage, shortwave length blue
light rays from LED displays can cause eye
damage and affect vision over time. Developed
for wellbeing, Philips LowBlue Mode setting
uses a smart software technology to reduce
harmful shortwave blue light.
The new Philips displays feature ultra-narrow
borders which allow for minimal distractions
241B7QUPEB/01
USB-docking LCD monitor
B Line 24 (23.8" / 60.5 cm diag.), 1920 x 1080 (Full HD)
Specifications
Picture/Display
• LCD panel type: IPS technology
• Backlight type: W-LED system
• Panel Size: 23.8 inch / 60.5 cm
• Effective viewing area: 527 x 296.5 mm
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• Pixel Density: 93 PPI
• Response time (typical): 5 ms (Gray to Gray)*
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1,000:1
20
• SmartContrast:
,000,000:1
• Pixel pitch: 0.275 x 0.275 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Flicker-free
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 75 Hz
(V)
•sRGB
•LowBlue Mode
Connectivity
• Signal Input: VGA (Analog ), USB 3.0 upstream
• Sync Input: Separate Sync, Sync on Green
USB Connectivity
• USB: USB3.0x3
• Signal Input: USB 3.0 upstream
• Audio In/Out: through USB
• RJ45: through USB
• Microphone in: through USB
• Headphone out: through USB
Convenience
• Built-in Speakers: 2 W x 2
• User convenience: SmartImage, Input,
PowerSens
• Control software: SmartControl
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish,
Korean, Brazil Portuguese, Czech, Dutch, Finnish,
Greek, Hungarian, Japanese, Polish, Swedish,
Traditional Chinese, Turkish, Ukranian
• Other convenience: Kensington lock, VESA mount
(100
• Plug & Play Compatibility: DDC/CI (VGA only),
Mac
or, Menu, Power On/Off
enc
h, German, Italian,
x1
00mm)
OS X, sRGB, Windows 10 / 8.1 / 8 / 7
Stand
• Height adjustment: 150 mm
• Pivot: 90 degree
• Swivel: -175/175 degree
• Tilt: -5/30 degree
Power
• ECO mode: 11.1 W (typ.)
• Energy Label Class: D
• On mode: 13.14 W (typ.) (EnergyStar test method)
• Standby mode: <0.3 W (typ.)
• Off mode: Zero watts with AC switch
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: 100-240VAC, 50-60Hz, Built-in
Dimensions
• Product with stand(max height): 541 x 527 x
257 mm
• Product without stand (mm): 541 x 332 x 57 mm
• Packaging in mm (WxHxD): 603 x 492 x 224 mm
Weight
• Product with stand (kg): 5.95 kg
• Product without stand (kg): 3.52 kg
• Product with packaging (kg): 8.33 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
erat
ion: +40,000ft (12,192m)
op
• MTBF (demonstrated): 70,000 hrs (excluded
)
backlight
Sustainability
• Environmental and energy: EnergyStar 8.0,
PowerSensor, EPEAT*, TCO Certified Edge, RoHS
• Recyclable packaging material: 100 %
• Post consumer recycled plastic: 85%
• Specific Substances: PVC / BFR free housing,
r
y free
Mercu
Compliance and standards
• Regulatory Approvals: CE Mark, FCC Class B,
SEMKO, cETLus, CU-EAC, TUV Ergo, TUV/GS,
EPA, WEEE, UKRAINIAN, ICES-003, SASO,
KUCAS
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
What's in the box?
•Monitor with stand
• Cables: D-Sub cable, USB cable, Power cable
•User Documentation
•
Issue date 2021-05-19
Version: 5.0.1
12 NC: 8670 001 42296
EAN: 87 12581 74353 6
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* We recommend to use USB 3.0 connection between your
Notebook PC and the Philips display to ensure smooth images, video
and audio.
* Activities such as screen sharing, on-line streaming video and audio
over the Internet can impact your network performance. Your
hardware, network bandwidth and its performance will determine
overall audio and video quality.
* The notebook, keyboard, mouse as shown are for illustration
purpose only, not included in the product.
* "IPS" word mark / trademark and related patents on technologies
belong to their respective owners.
* EPEAT rating is valid only where Philips registers the product. Please
visit https://www.epeat.net/ for registration status in your country.
* Response time value equal to SmartResponse
