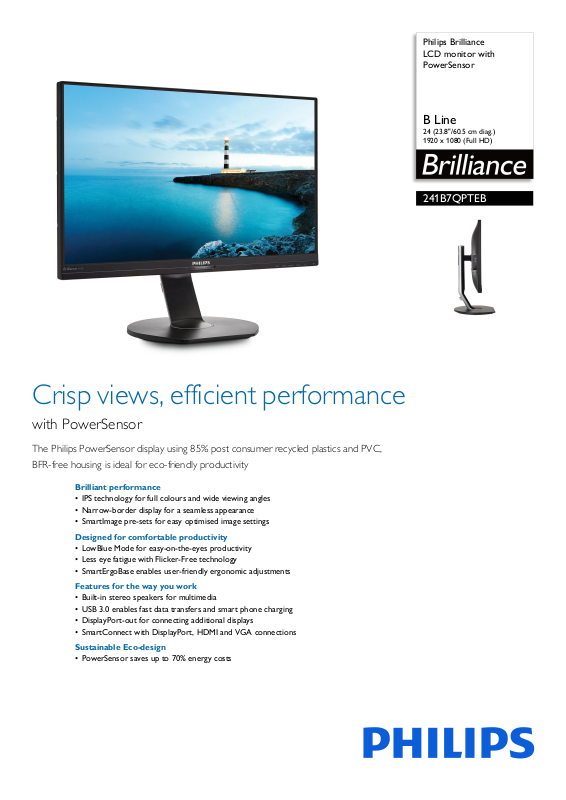

Philips Brilliance
LCD monitor with
PowerSensor
B Line
24 (23.8"/60.5 cm diag.)
1920 x 1080 (Full HD)
241B7QPTEB
Crisp views, efficient performance
with PowerSensor
The Philips PowerSensor display using 85% post consumer recycled plastics and PVC,
BFR-free housing is ideal for eco-friendly productivity
Brilliant performance
• IPS technology for full colours and wide viewing angles
• Narrow-border display for a seamless appearance
• SmartImage pre-sets for easy optimised image settings
Designed for comfortable productivity
• LowBlue Mode for easy-on-the-eyes productivity
• Less eye fatigue with Flicker-Free technology
• SmartErgoBase enables user-friendly ergonomic adjustments
Features for the way you work
• Built-in stereo speakers for multimedia
• USB 3.0 enables fast data transfers and smart phone charging
• DisplayPort-out for connecting additional displays
• SmartConnect with DisplayPort, HDMI and VGA connections
Sustainable Eco-design
• PowerSensor saves up to 70% energy costs
241B7QPTEB/01
LCD monitor with PowerSensor
B Line 24 (23.8"/60.5 cm diag.), 1920 x 1080 (Full HD)
Highlights
IPS technology
IPS displays use advanced technology that gives
you extra-wide viewing angles of 178/178
degrees, making it possible to view the display
from almost any angle — even in 90-degree
Pivot mode! Unlike standard TN panels, IPS
displays gives you remarkably crisp images with
vivid colours, making it ideal not only for
Photos, films and web browsing, but also for
professional applications that demand colour
accuracy and consistent brightness at all times.
Ultra-narrow Border
The new Philips displays feature ultra-narrow
borders which allow for minimal distractions
and maximum viewing size. Especially suited
for multi-display or tiling setups like gaming,
graphic design and professional applications,
the ultra-narrow border display gives you the
feeling of using one large display.
SmartImage
on your screen and optimises your display
performance. This user-friendly interface
allows you to select various modes, like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimises the
contrast, colour saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
at the touch of a single button!
LowBlue Mode
Studies have shown that just as ultra-violet rays
can cause eye damage, shortwave-length blue
light rays from LED displays can cause eye
damage and affect vision over time. Developed
for wellbeing, the Philips LowBlue Mode
setting uses a smart software technology to
reduce harmful shortwave blue light.
Flicker-Free technology
Due to the way brightness is controlled on
LED-backlit screens, some users experience
flicker on their screen which causes eye
fatigue. Philips Flicker-Free technology applies
a new solution to regulate brightness and
reduce flicker for more comfortable viewing.
SmartErgoBase
The SmartErgoBase is a monitor base that
delivers ergonomic display comfort and
provides cable management. The user-friendly
height, swivel, tilt and rotation angle
adjustments of the base allow the monitor to
be positioned for maximum comfort to help
ease the physical strains of a long workday. In
addition, cable management reduces cable
clutter and keeps the workspace neat and
professional.
Built-in stereo speakers
A pair of high-quality stereo speakers built into
a
display device. They may be visible front
firing, or invisible down firing, top firing, rear
firing etc. depending on model and design.
USB 3.0 super speed
Super Speed USB 3.0 deploys a 5.0 Gbit/s
t
ransfer rate, which is about 10 times faster
than USB 2.0 standard, significantly reducing
data transfer time and saving you time and
money. With more bandwidth, super-speed
transfer rates, better power management and
superior overall performance, USB 3.0 sets the
global standard, allowing you to use largecapacity storage devices. Sync-N-Go
technology ensures that you no longer have to
wait for bandwidth to be freed up. Your
investment in USB 2.0 devices is protected as
it is backwards compatible.
DisplayPort-out
With DisplayPort-out you can connect
m
ultiple high-resolution displays with just one
cable from your first display to the PC. The
ability to daisy chain multiple displays enables
you to maintain a clean desktop without the
hassle of too many wires.
SmartImage is an exclusive leading edge Philips
technology that analyses the content displayed
241B7QPTEB/01
LCD monitor with PowerSensor
B Line 24 (23.8"/60.5 cm diag.), 1920 x 1080 (Full HD)
Specifications
Picture/Display
• LCD panel type: IPS technology
• Backlight type: W-LED system
• Panel Size: 23.8 inch/60.5 cm
• Effective viewing area: 527 (H) x 296.5 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Response time (typical): 5 ms (Grey to Grey)*
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
• Pixel pitch: 0.275 x 0.275 mm
• Viewing angle: 178º (H)/178º (V),
• Flicker-free
• Picture enhancement: SmartImage
• Display colours: 16.7 M
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 76 Hz
(V)
•sRGB
20,000,000:1
@ C/R > 10
Connectivity
• Signal Input: VGA (Analogue), DisplayPort 1.2, mini
DisplayPort 1.2 x 1, HDMI 1.4
• Signal Output: DisplayPort out
• Sync Input: Separate Sync, Sync on Green
• USB: USB 3.0x4 (1 w/fast charging)*
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 2 W x 2
• User convenience: SmartImage, Input,
rSensor, Menu, Power On/Off, LowBlue
Powe
Mode
• Control software: SmartControl
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukrainian
• Other convenience: Kensington lock, VESA mount
(100 x 100 mm)
• Plug and Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 10 / 8.1 / 8 / 7
sR
Stand
• Height adjustment: 150 mm
• Pivot: 90 degree
• Swivel: -175/175 degree
• Tilt: -5/30 degree
Power
• ECO mode: 10.2 W (typ.)
• On mode: 13.14 W (typ.) (EnergyStar test method)
• Standby mode: <0.3 W (typ.)
• Off mode: Zero watts with Zero switch
• Power LED indicator: Operation - White, Standby
mode - White (f
• Power supply: Built-in, 100–240 VAC, 50–60 Hz
lashing)
Dimensions
• Product with stand (max height): 541 x 527 x
257 mm
• Product without stand (mm): 541 x 332 x 57 mm
• Packaging in mm (W x H x D): 603 x 492 x 224 mm
Weight
• Product with stand (kg): 6.07 kg
• Product without stand (kg): 3.64 kg
• Product with packaging (kg): 8.69 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000 ft (3658 m), Non-
eration: +40,000 ft (12,192 m)
op
• MTBF (demonstrated): 70,000 hrs (excluded
klight)
bac
Sustainability
• Environmental and energy: EnergyStar 8.0,
PowerSensor, EPEAT*, TCO Certified Edge, RoHS
• Recyclable packaging material: 100 %
• Post-consumer recycled plastic: 85%
• Specific Substances: PVC/BFR free housing,
ry free, Lead free
Mercu
Compliance and standards
• Regulatory Approvals: CE Mark, FCC Class B,
SEMKO, cETLus, CU-EAC, TUV Ergo, TUV/GS,
EPA, WEEE, ICES-003, UKRAINIAN
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
•
Issue date 2020-04-26
Version: 6.0.3
12 NC: 8670 001 38464
EAN: 87 12581 74058 0
© 2020 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* "IPS" word mark / trademark and related patents on technologies
belong to their respective owners.
* EPEAT rating is valid only where Philips registers the product. Please
visit https://www.epeat.net/ for registration status in your country.
* Fast charging complies with USB BC 1.2 standard
* Response time value equal to SmartResponse
