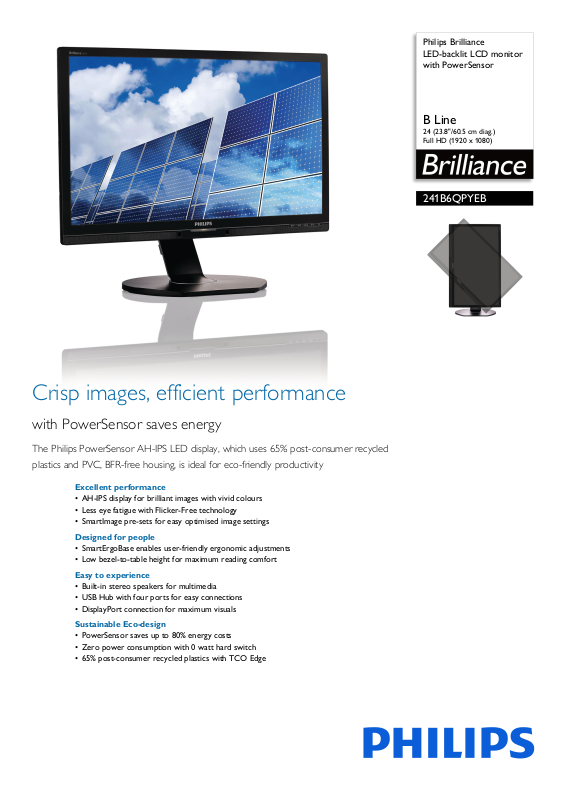

Page 1
Philips Brilliance
LED-backlit LCD monitor
with PowerSensor
B Line
24 (23.8"/60.5 cm diag.)
Full HD (1920 x 1080)
241B6QPYEB
Crisp images, efficient performance
with PowerSensor saves energy
The Philips PowerSensor AH-IPS LED display, which uses 65% post-consumer recycled
plastics and PVC, BFR-free housing, is ideal for eco-friendly productivity
Excellent performance
• AH-IPS display for brilliant images with vivid colours
• Less eye fatigue with Flicker-Free technology
• SmartImage pre-sets for easy optimised image settings
Designed for people
• SmartErgoBase enables user-friendly ergonomic adjustments
• Low bezel-to-table height for maximum reading comfort
Easy to experience
• Built-in stereo speakers for multimedia
• USB Hub with four ports for easy connections
• DisplayPort connection for maximum visuals
Sustainable Eco-design
• PowerSensor saves up to 80% energy costs
• Zero power consumption with 0 watt hard switch
• 65% post-consumer recycled plastics with TCO Edge
Page 2
241B6QPYEB/00
LED-backlit LCD monitor
B Line 24 (23.8"/60.5 cm diag.), Full HD (1920 x 1080)
Highlights
AH-IPS technology
This latest Philips display uses advanced AHIPS panels, resulting in superior colour
reproduction, response time and power
consumption. Unlike standard TN panels, AHIPS panels show consistent colour even at 178degree wide angles and in pivot mode. With
remarkable performance, AH-IPS is best suited
for applications demanding colour accuracy
and consistent brightness at all times, such as
photo retouching, graphics applications and
web browsing.
Flicker-Free technology
performance. This user-friendly interface
allows you to select various modes, like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimises the
contrast, colour saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
at the touch of a single button!
SmartErgoBase
The SmartErgoBase is a monitor base that
delivers ergonomic display comfort and
provides cable management. The user-friendly
height, swivel, tilt and rotation angle
adjustments of the base allow the monitor to
be positioned for maximum comfort to help
ease the physical strains of a long workday. In
addition, cable management reduces cable
clutter and keeps the workspace neat and
professional.
Built-in stereo speakers
A pair of high-quality stereo speakers built into
a display device. They may be visible front
firing, or invisible down firing, top firing, rear
firing etc. depending on model and design.
Four Ports USB 2.0 HUB
USB Hub allows user to conveniently connect
t
heir plug and play multimedia devices such as
USB memory devices, camera, portable HDD,
Web camera, PDA, Printer and many other
devices which have USB connection available.
The conveniently located USB 2.0 Hub on the
monitor allows USB 2.0 signals to pass through
to the computer. Note that many devices like
cameras and HDD may need to be powered
On independently, as they have higher power
requirements than the monitor USB Hub can
provide.
DisplayPort connection
Due to the way brightness is controlled on
LED-backlit screens, some users experience
flicker on their screen which causes eye
fatigue. Philips Flicker-Free technology applies
a new solution to regulate brightness and
reduce flicker for more comfortable viewing.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyses the content displayed
on your screen and optimises your display
Low bezel-to-table height
Thanks to its advanced SmartErgoBase, the
Philips monitor can be lowered down almost
to desk level for a comfortable viewing angle.
Low bezel-to-table height is the perfect
solution if you use bifocals, trifocals or
progressive lens glasses for your computing
work. Additionally, it allows users of different
heights to use the monitor at their preferred
angle and height settings, helping them to
reduce fatigue and strain.
DisplayPort is a digital link from PC to monitor
without any conversion. With higher
capabilities than DVI standard, it is fully capable
to support up to 15 metre cables and 10.8
Gbps/sec data transfer. With this high
performance and zero latency, you get the
fastest imaging and refresh rates — making
DisplayPort the best choice for not only
general office or home use, but also for the
more demanding gaming and films, video
editing and more. It also keeps interoperability
in mind via the use of various adapters.
Page 3
241B6QPYEB/00
LED-backlit LCD monitor
B Line 24 (23.8"/60.5 cm diag.), Full HD (1920 x 1080)
Specifications
Picture/Display
• LCD panel type: AH-IPS LCD
• Backlight type: W-LED system
• Panel Size: 23.8 inch/60.5 cm
• Effective viewing area: 527.04 (H) x 296.46 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Response time (typical): 5 ms (Grey to Grey)*
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
• Pixel pitch: 0.2745 x 0.2745 mm
• Viewing angle: 178º (H)/178º (V),
• Picture enhancement: SmartImage
• Display colours: 16.7 M
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 76 Hz
(V)
•sRGB
20,000,000:1
@ C/R > 10
Connectivity
• Signal Input: DisplayPort, DVI-D (digital, HDCP),
VGA (Analogue)
• USB: USB 2.0 x 4
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 2 W x 2
• User convenience: Smart
PowerSensor, Menu, Power On/Off
• Control software: SmartControl Premium
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukrainian
• Other convenience: Kensington lock, VESA mount
(100 x 100 mm)
• Plug and Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 8.1 / 8 / 7
sR
Image, Volume,
Stand
• Height adjustment: 130 mm
• Pivot: 90 degree
•Swivel: -175/+175 degree
• Tilt: -5/20 degree
Power
• ECO mode: 14 W (typ.)
• On mode: 16.73 W (typ.) (EnergyStar 6.0 test
hod)
met
• Standby mode: < 0.3 W (typ.)
• Off mode: Zero watts with Zero switch
• Power LED indicator: Operation - White, Standby
mode - White (f
• Power supply: Built-in, 100-240 VAC, 50-60 Hz
lashing)
Dimensions
• Product with stand (max height): 563 x 511 x
257 mm
• Product without stand (mm): 563 x 351 x 53 mm
• Packaging in mm (W x H x D): 619 x 525 x 184 mm
Weight
• Product with stand (kg): 6.47 kg
• Product without stand (kg): 3.98 kg
• Product with packaging (kg): 9.13 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%–80% %
• Altitude: Operation: +12,000 ft (3658 m), Non-
eration: +40,000 ft (12,192 m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 6.0,
PowerSensor, EPEAT Gold*, TCO edge, RoHS
• Recyclable packaging material: 100 %
• Post-consumer recycled plastic: 65%
• Specific Substances: PVC/BFR free housing,
ry free, Lead free
Mercu
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, cETLus,
FCC Class B, GOST, SASO, SEMKO, TCO 6.0,
TUV Ergo, TUV/GS, WEEE
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
What's in the box?
• Monitor with stand
• Cables: VGA, DVI, Audio, Power
•User Documentation
•
Issue date 2022-04-21
Version: 4.0.1
12 NC: 8670 001 16317
EAN: 87 12581 72479 5
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* "AH-IPS" word mark/trademark and related patents on technologies
belong to their respective owners.
* EPEAT Gold or Silver is valid only where Philips registers the
product. Please visit www.epeat.net for registration status in your
country.
* Response time value equal to SmartResponse
