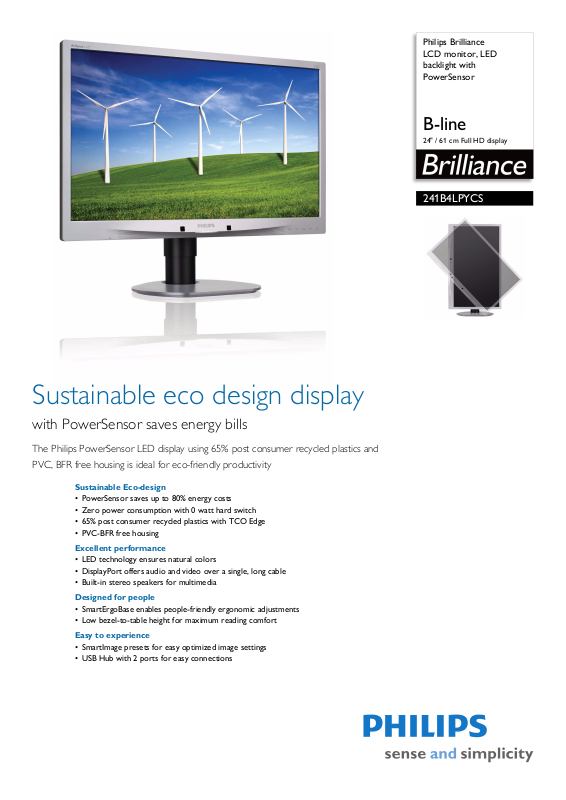

Page 1
Philips Brilliance
LCD monitor, LED
backlight with
PowerSensor
B-line
24" / 61 cm Full HD display
241B4LPYCS
Sustainable eco design display
with PowerSensor saves energy bills
The Philips PowerSensor LED display using 65% post consumer recycled plastics and
PVC, BFR free housing is ideal for eco-friendly productivity
Sustainable Eco-design
• PowerSensor saves up to 80% energy costs
• Zero power consumption with 0 watt hard switch
• 65% post consumer recycled plastics with TCO Edge
• PVC-BFR free housing
Excellent performance
• LED technology ensures natural colors
• DisplayPort offers audio and video over a single, long cable
• Built-in stereo speakers for multimedia
Designed for people
• SmartErgoBase enables people-friendly ergonomic adjustments
• Low bezel-to-table height for maximum reading comfort
Easy to experience
• SmartImage presets for easy optimized image settings
• USB Hub with 2 ports for easy connections
Page 2
LCD monitor, LED backlight with PowerSensor
B-line 24" / 61 cm Full HD display
Highlights
241B4LPYCS/00
LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
PowerSensor
PowerSensor is a built-in 'people sensor' that
transmits and receives harmless infrared
signals to determine if user is present and
automatically reduces monitor brightness
when user steps away from the desk, cutting
energy costs by up to 80 percent and
prolonging monitor life
DisplayPort
DisplayPort is a digital link from PC to Monitor
w
ithout any conversion. With higher
capabilities than DVI standard, it is fully capable
to support up to 15meter cables and 10.8
Gbps/sec data transfer. With this high
performance and zero latency, you get the
fastest imaging and refresh rates - making
DisplayPort the best choice for not only
general office or home use, but also for the
demanding gaming and movies, video editing
and more. It also keeps interoperability in mind
via use of various adapters.
maximum comfort that can ease the physical
strains of a long workday; cable management
reduces cable clutter and keeps the workspace
neat and professional.
Low bezel-to-table height
The Philips monitor, thanks to its advanced
SmartErgoBase,
to desk level for a comfortable viewing angle.
Low bezel-to-table height is the perfect
solution if you use bifocals, trifocals or
progressive lens glasses for your computing
work. Additionally, it allows for users with
greatly different heights to use the monitor in
their preferred angle and height settings,
helping them reduce fatigue and strain.
Built-in stereo speakers
A pair of high quality stereo speakers built into
a display
invisible down firing, top firing, rear firing, etc
depending on model and design.
2 Ports USB 2.0 HUB
USB Hub allows user to conveniently connect
th
eir plug and play multimedia devices such as
USB memory devices, camera, portable HDD,
Web camera, PDA, Printer and many other
devices which has USB connection available.
The conveniently located USB 2.0 Hub on the
monitor allows USB 2.0 signals to pass thru to
the computer. Note that many devices like
cameras and HDD may need to be powered
On independently, as they have higher power
requirements than the monitor USB Hub can
provide.
SmartImage
can be lowered down almost
device. It can be visible front firing, or
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
TCO Edge
TCO Edge certification is given to products
w
hich go beyond existing eco-labeling
programs. Over and above standard TCO
requirements, it further mandates that the
product uses minimum 65% of post consumer
recycled plastics, is energy efficient, uses
minimal hazardous materials, has 100%
recyclable packaging, and is designed for easy
recycling amongst other requirements. You
can rest assured that this Philips monitor is a
cutting edge technology product which is best
in class ICT, benefitting you and the planet
while helping you make a responsible green IT
purchase!
PVC-BFR free housing
This Philips monitor housing is free from
b
rominated flame retardant and polyvinyl
chloride (PVC-BFR free)
Zero power consumption
At the flick of the 0 watt hard switch which is
convenient
completely cut-off your monitor from AC
power. This results in zero power
consumption reducing your carbon footprint
even further
ly located at the back, you can
SmartErgoBase
The SmartErgoBase is a monitor base that
d
elivers ergonomic display comfort and
provides cable management. The base's
people-friendly height, swivel, tilt and rotation
angle adjustments position the monitor for
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
Page 3
LCD monitor, LED backlight with PowerSensor
B-line 24" / 61 cm Full HD display
Specifications
241B4LPYCS/00
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 24 inch / 61 cm
• Effective viewing area: 531.4 (H) x 298.9 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1,000:1
• SmartContrast: 20
• Pixel pitch: 0.276 x 0.276 mm
• Viewing angle: 170º (H) / 160º (V), @ C/R > 10
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 75 Hz
(V)
•sRGB
,000,000 :1
Connectivity
• Signal Input: DisplayPort, DVI-D (digital, HDCP),
VGA (Analog )
• USB: USB 2.0 x 2
• Sync Input: Separate Sync, Sync on Green
• Audio In/Out: PC audio-in, Headphone out
Convenience
• Built-in Speaker: 1.5Wx2
• User convenience: Smart
PowerSensor, Menu, Power On/Off
• Control software: SmartControl Premium
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7/Vista/XP
sR
Image, Volume,
ench, German, Italian,
Stand
• Height adjustment: 100 mm
• Pivot: 90 degree
•Swivel: -65/+65 degree
• Tilt: -5/20 degree
Power
• ECO mode: 12W (typ.)
• On mode: 21.44W (typ.) (EnergyStar 5.0 test
hod)
met
• Standby mode: 0.1W
• Off mode: Zero watts with Zero switch
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: 100-240VAC, 50/60Hz, Built-in
Dimensions
• Product with stand (mm): 565 x 403 x 227 mm
• Product without stand (mm): 565 x 352 x 55 mm
• Packaging in mm (WxHxD): 624 x 405 x 172 mm
Weight
• Product with stand (kg): 6.3 kg
• Product without stand (kg): 4.3 kg
• Product with packaging (kg): 8.3 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature Range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: PowerSensor,
EnergyStar 5.0, EPEAT Gold*, TCO edge, RoHS
• Recyclable packaging material: 100 %
• Post consumer recycled plastic: 65%
• Specific Substances: PVC / BFR free housing,
ry free, Lead free
Mercu
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC Class
B, GOST, SASO, SEMKO, TCO 5.2, TUV Ergo,
TUV/GS, UL/cUL, WEEE
Cabinet
• Front bezel: Silver
• Rear cover: Black
•Foot: Silver
• Finish: Texture
•
Issue date 2012-10-05
Version: 3.1.2
12 NC: 8670 000 80787
EAN: 87 12581 61771 4
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
* EPEAT Gold is valid only where Philips registers the product. Please
visit www.epeat.net for registration status in your country.
