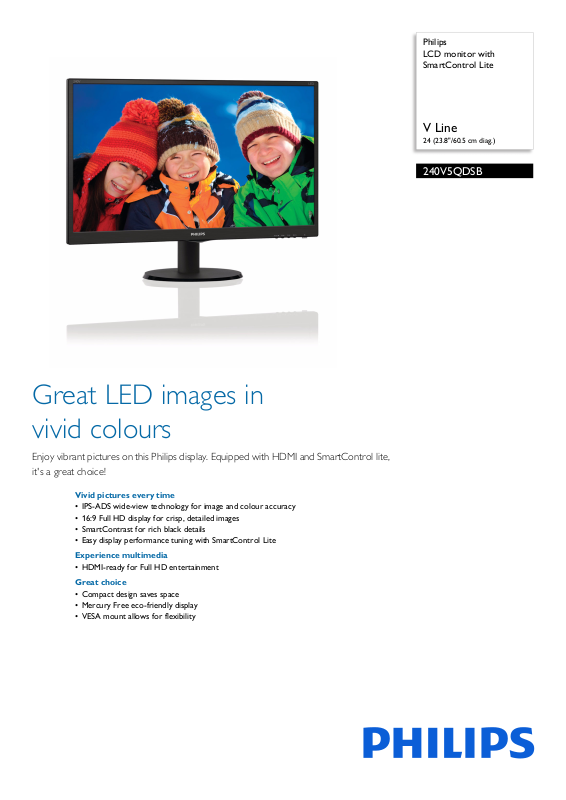

Page 1
Philips
LCD monitor with
SmartControl Lite
V Line
24 (23.8"/60.5 cm diag.)
240V5QDSB
Great LED images in
vivid colours
Enjoy vibrant pictures on this Philips display. Equipped with HDMI and SmartControl lite,
it's a great choice!
Vivid pictures every time
• IPS-ADS wide-view technology for image and colour accuracy
• 16:9 Full HD display for crisp, detailed images
• SmartContrast for rich black details
• Easy display performance tuning with SmartControl Lite
Experience multimedia
• HDMI-ready for Full HD entertainment
Great choice
• Compact design saves space
• Mercury Free eco-friendly display
• VESA mount allows for flexibility
Page 2
240V5QDSB/01
LCD monitor with SmartControl Lite
V Line 24 (23.8"/60.5 cm diag.)
Highlights
IPS-ADS technology
IPS-ADS displays use an advanced technology
that gives you extra-wide viewing angles of
178/178 degrees, making it possible to view
th
e display from almost any angle. Unlike
standard TN panels, IPS-ADS displays give you
remarkably crisp images with vivid colours,
making them ideal not only for Photos, movies
and web browsing, but also for professional
applications that demand colour accuracy and
consistent brightness at all times.
16:9 Full HD display
Picture quality matters. Regular displays deliver
quality, but you expect more. This display
features enhanced Full HD 1920 x 1080
resolution. With Full HD for crisp detail paired
with high brightness, incredible contrast and
realistic colours, expect a true-to-life picture.
SmartContrast
SmartContrast is a Philips technology that
analyses the contents you are displaying,
automatically adjusting colours and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
for just-right display of everyday office
applications and lower power consumption.
SmartControl Lite
SmartControl Lite is the next generation 3D
ic
on-based GUI monitor control software.
This allows the user to fine-tune most
parameters of the monitor like Colour,
Brightness, screen calibration, Multimedia, ID
management etc. with the mouse.
HDMI Ready
An HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input. An HDMI
cable enables high-quality digital video and
audio to be transmitted over a single cable
from a PC or any number of AV sources
(including set-top boxes, DVD players, A/V
receivers and video cameras).
Mercury Free
Philips monitors with LED backlighting are free
from
Mercury, one of the most toxic natural
substances, which affects humans and animals.
This reduces the environmental impact of the
display throughout its lifecycle, from
manufacturing to disposal.
Page 3
240V5QDSB/01
LCD monitor with SmartControl Lite
V Line 24 (23.8"/60.5 cm diag.)
Specifications
Picture/Display
• LCD panel type: IPS-ADS LCD
• Backlight type: W-LED system
• Panel Size: 23.8 inch/60.5 cm
• Effective viewing area: 527.04 (H) x 296.46 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 250 cd/m²
• Response time (typical): 5 ms (GtG)*
• SmartContrast:
• Contrast ratio (typical): 1000:1
• Pixel pitch: 0.275 x 0.275 mm
• Viewing angle: 178º (H)/178º (V),
• Display colours: 16.7 M
• Scanning Frequency: 30–83 kHz (H)/56–76 Hz (V)
•sRGB
10,000,000:1
@ C/R > 10
Connectivity
• Signal Input: VGA (Analogue), DVI-D (digital,
HDCP), HDMI (digital, HDCP)
• Sync Input: Separate Sync, Sync on Green
Convenience
• User convenience: Power On/Off, Menu/OK,
Brightness/Back, 4:3 Wide/Up, Auto/Down
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Spanish, Simplified Chinese,
Swedish, Turkish, Traditional Chinese, Ukrainian
• Other convenience: Kensington lock, VESA mount
(100 x 100 mm)
• Plug and Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7, Windows 8.1
sR
Stand
• Tilt: -5/20 degree
Power
• On mode: 19.23 W (typ.) (EnergyStar 6.0 test
method)
• Standby mode: 0.5 W (typ.)
• Off mode: 0.5 W (typ.)
• Power LED indicator: Operation - White, Standby
mode - White (f
• Power supply: Built-in, 100–240 VAC, 50–60 Hz
lashing)
Dimensions
• Product with stand (mm): 553 x 420 x 219 mm
• Product without stand (mm): 553 x 343 x 55 mm
• Packaging in mm (W x H x D): 600 x 415 x 118 mm
Weight
• Product with stand (kg): 4.09 kg
• Product without stand (kg): 3.69 kg
• Product with packaging (kg): 5.36 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20–80% %
• Altitude: Operation: +12,000 ft (3658 m), Non-
eration: +40,000 ft (12,192 m)
op
• MTBF: 50 000 (Excluded backlight) hour(s)
Sustainability
• Environmental and energy: EnergyStar 6.0, RoHS,
Lead-free, Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: CE Mark, FCC Class B,
TCO Certified, cETLus, TUV/ISO9241-307, BSMI,
PSB, C-tick, UKRAINIAN, EPA
Cabinet
• Colour: Black
• Finish: Hairline (front bezel)/Texture (rear cover)
What's in the box?
• Monitor with stand
•Cables: VGA, Power
•User Documentation
•
Issue date 2019-11-29
Version: 5.0.1
12 NC: 8670 001 25181
EAN: 87 12581 73242 4
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* "IPS" word mark / trademark and related patents on technologies
belong to their respective owners.
* HDMI cables vary depending on region and models.
* Response time value equal to SmartResponse
