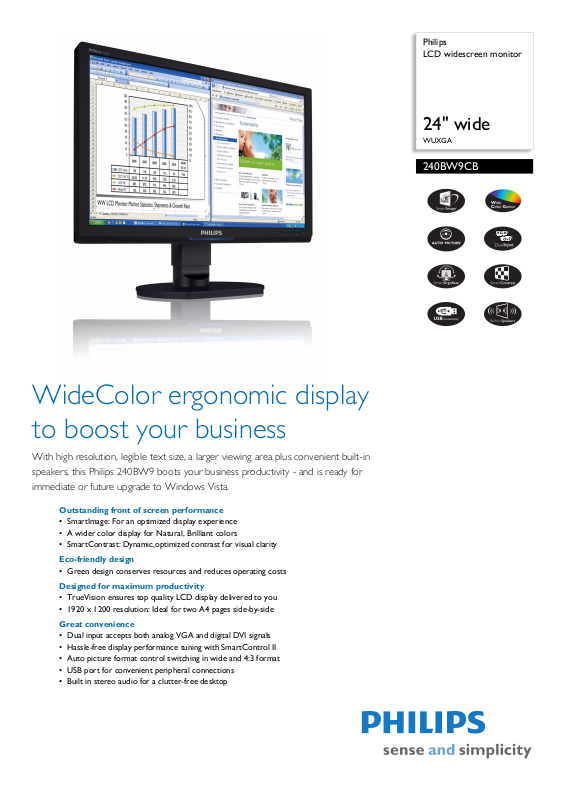

Philips
LCD widescreen monitor
24" wide
WUXGA
240BW9CB
WideColor ergonomic display
to boost your business
With high resolution, legible text size, a larger viewing area plus convenient built-in
speakers, this Philips 240BW9 boots your business productivity - and is ready for
immediate or future upgrade to Windows Vista.
Outstanding front of screen performance
• SmartImage: For an optimized display experience
• A wider color display for Natural, Brilliant colors
• SmartContrast: Dynamic,optimized contrast for visual clarity
Eco-friendly design
• Green design conserves resources and reduces operating costs
Designed for maximum productivity
• TrueVision ensures top quality LCD display delivered to you
• 1920 x 1200 resolution: Ideal for two A4 pages side-by-side
Great convenience
• Dual input accepts both analog VGA and digital DVI signals
• Hassle-free display performance tuning with SmartControl II
• Auto picture format control switching in wide and 4:3 format
• USB port for convenient peripheral connections
• Built in stereo audio for a clutter-free desktop
LCD widescreen monitor
240BW9CB/69
24" wide WUXGA
Specifications Product highlights
Picture/Display
• Panel Size: 24" / 61.1 cm
• LCD panel type: 1920 x 1200 pixels, Anti-glare
polarizer, RGB vertical stripe
• Recommended Resolution: 1920 x 1200 @ 60Hz
• Maximum Resolution: 1920 x 1200 @ 60Hz
• Display colors: 16.7 M
• Aspect ratio: 16:10
• Brightness: 400 cd/m²
• Contrast ratio (typical): 1000 : 1
• SmartContrast ratio (dynamic): 10000:1
• Wide Color Gamut display: 92% NTSC Color
Gamut
• Viewing angle: 160º (H) / 160º (V), @ C/R > 10
• Response time (typical): 5 ms
• Effective viewing area: 518.4 mm x 324 mm
• Horizontal Scanning Frequency: 24 -94 KHz
• Vertical Scanning Frequency: 48 - 85 Hz
• Pixel pitch: 0.270 x 0.270 mm
•sRGB
Connectivity
• Signal Input: Analog (VGA), DVI-D, PC Audio in
• USB: 1 x USB 2.0
• Audio output: Stereo Audio (3.5 mm jack) 1x
• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on Green
Convenience
• Convenience Enhancements: SmartControl II,
SmartManage enabled, Picture format selection,
On-screen Display
• Built-in Audio: 1.5 W x 2
• Monitor Controls: Auto (Back), Brightness (Up),
Menu (OK), Power On/Off, SmartImage, Volume
control (Down)
• OSD Languages: English, French, German, Italian,
Russian, Simplified Chinese, Spanish, Portuguese
• Plug & Play Compatibility: DDC/CI, Mac OS X,
sRGB, Windows 98, Windows 2000, Windows
XP, Windows Vista
• Regulatory Approvals: CE Mark, Energy Star, FCC
Class B, SEMKO, TCO '03, TÜV/GS, TÜV Ergo,
UL/cUL
• Height Adjustment: 70 mm
• Swivel: +/- 45°
• Tilt: -5° to 20°
• Other convenience: Kensington lock compatible
• VESA Mount: 100 x 100 mm
Dimensions
• Set dimensions with stand (W x H x D):
559
x 494 x 220 mm
• Set dimensions with stand in inch (W x H x D):
22.0
x 19.45 x 8.66 inch
• Relative humidity: 20% - 80%
• MTBF: 50,000 hrs
• Set dimensions (W x H x D): 559 x 381 x 75 mm
• Set dimensions in inch (W x H x D):
22.0
x 15.0 x 2.95 inch
• Temperature range (operation): 0°C to 40°C
• Temperature range (storage): -20°C to 60°C
• Box dimensions (W x H x D):
638
x 563 x 195 mm
• Box dimensions in inch (W x H x D):
25.12
x 22.17 x 7.68 inch
• Product weight (+stand): 6.4 kg
• Product weight (+stand) (lb): 14.1 lb
• Weight incl. Packaging: 8.4 kg
• Weight incl. Packaging (lb): 18.52
Power
• Consumption: < 85 W (typical)
• Consumption (economy mode): 41 W
• Complies with: Energy Star
• Off Mode: < 1 W
• Power LED indicator: Operation - Blue, Stand by/
sleep -blue(blinking)
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
SmartImage
SmartImage is an exclusive, leading edge Philips
technology that analyzes the content displayed on your
screen. Based on a scenario you select, SmartImage
dynamically enhances the contrast, color saturation and
sharpness of images and videos for ultimate display
performance - all in real time with the press on a single
button.
WideColor(92%)
WideColor is an LCD monitor that puts powerful,
enhanced wide color gamut cold cathode florescent lamp
back lighting and superior processing to work to expand
the color range from the 72% of the NTSC color gamut
reproduced by standard LCD panels to 92% or above,
dramatically improving color purity and saturation to
display natural, brilliant color.
TrueVision
TrueVision is industry-leading, proprietary Philips testing
and algorithm technology for monitor adjustment and
fine tuning, an extensive process that ensures ultimate
display performance in compliance with a standard fourtimes more stringent than Microsoft's Vista requirements
from each and every monitor that leaves the factory - not
just a few review samples. Only Philips goes to these
lengths to deliver this exacting level of color accuracy and
display quality in every new monitor.
SmartContrast
SmartContrast is Philips technology that analyzes the
contents you are displaying, automatically adjusting colors
and controlling backlight intensity to dynamically enhance
contrast for the best digital images and optimum contrast
for more entertainment fun when viewing videos or
playing games where dark hues are displayed; when you
select the Economy mode, contrast is adjusted and
backlighting fine-tuned for just-right display of everyday
office applications and lower power consumption.
SmartControl II
SmartControl II is monitor-based software with an easyto-use on-screen graphic interface that guides you
through fine-tuning resolution, color calibration and other
display settings including brightness, contrast, clock &
phase, position, RGB, white point and - on models with
onboard speakers - volume adjustments.
Auto picture format control
Philips auto picture format control on OSD is to switch
from the 4:3 aspect ratio to the widescreen mode and
back again to match the display's aspect ratio with your
content for working with wide documents without
scrolling or viewing widescreen media in the widescreen
mode and distortion-free, native mode display of 4:3 ratio
content.
Eco-friendly design
Green design is based on environmentally conscious
engineering of a display device to minimize power
consumption, reduce packing materials and eliminate
environmentally sensitive materials.
Issue date 2008-11-15
Version: 4.0.5
12 NC: 8670 000 38776
EAN: 87 12581 41067 4
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
