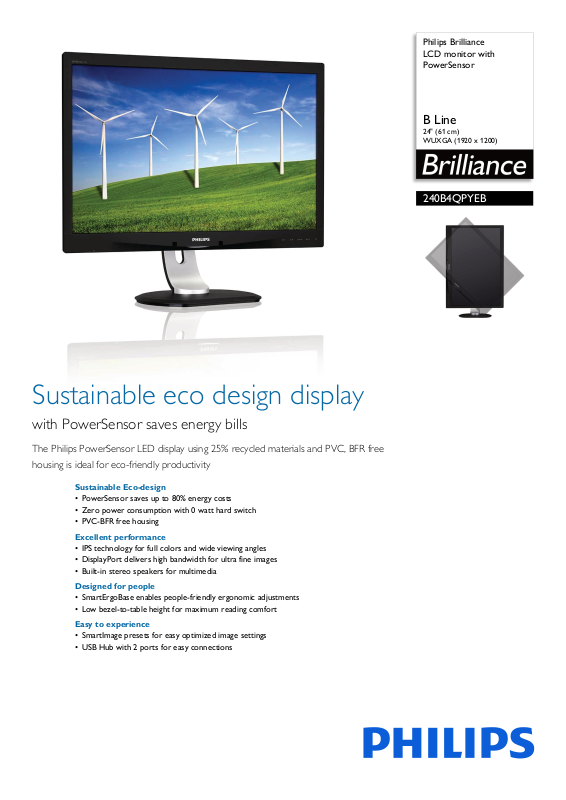

Page 1
Philips Brilliance
LCD monitor with
PowerSensor
B Line
24" (61 cm)
WUXGA (1920 x 1200)
240B4QPYEB
Sustainable eco design display
with PowerSensor saves energy bills
The Philips PowerSensor LED display using 25% recycled materials and PVC, BFR free
housing is ideal for eco-friendly productivity
Sustainable Eco-design
• PowerSensor saves up to 80% energy costs
• Zero power consumption with 0 watt hard switch
• PVC-BFR free housing
Excellent performance
• IPS technology for full colors and wide viewing angles
• DisplayPort delivers high bandwidth for ultra fine images
• Built-in stereo speakers for multimedia
Designed for people
• SmartErgoBase enables people-friendly ergonomic adjustments
• Low bezel-to-table height for maximum reading comfort
Easy to experience
• SmartImage presets for easy optimized image settings
• USB Hub with 2 ports for easy connections
Page 2
240B4QPYEB/75
LCD monitor with PowerSensor
B Line 24" (61 cm), WUXGA (1920 x 1200)
Highlights
PowerSensor
PowerSensor is a built-in 'people sensor' that
transmits and receives harmless infrared
signals to determine if user is present and
automatically reduces monitor brightness
when user steps away from the desk, cutting
energy costs by up to 80 percent and
prolonging monitor life
Zero power consumption
At the flick of the 0 watt hard switch which is
conve
niently located at the back, you can
completely cut-off your monitor from AC
power. This results in zero power
consumption reducing your carbon footprint
even further
PVC-BFR free housing
This Philips monitor housing is free from
brominate
chloride (PVC-BFR free)
IPS technology
d flame retardant and polyvinyl
movies and web browsing, but also for
professional applications which demand color
accuracy and consistent brightness at all times.
DisplayPort
DisplayPort is a digital link from PC to Monitor
w
ithout any conversion. With higher
capabilities than DVI standard, it is fully capable
to support up to 15meter cables and 10.8
Gbps/sec data transfer. With this high
performance and zero latency, you get the
fastest imaging and refresh rates - making
DisplayPort the best choice for not only
general office or home use, but also for the
demanding gaming and movies, video editing
and more. It also keeps interoperability in mind
via use of various adapters.
Built-in stereo speakers
A pair of high quality stereo speakers built into
a display device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
maximum comfort that can ease the physical
strains of a long workday; cable management
reduces cable clutter and keeps the workspace
neat and professional.
Low bezel-to-table height
The Philips monitor, thanks to its advanced
SmartErgoBase, can be lowered down almost
to desk level for a comfortable viewing angle.
Low bezel-to-table height is the perfect
solution if you use bifocals, trifocals or
progressive lens glasses for your computing
work. Additionally, it allows for users with
greatly different heights to use the monitor in
their preferred angle and height settings,
helping them reduce fatigue and strain.
SmartImage
IPS displays use an advanced technology which
gives you extra wide viewing angles of 178/178
degree, making it possible to view the display
from almost any angle - even in 90 degree Pivot
mode! Unlike standard TN panels, IPS displays
gives you remarkably crisp images with vivid
colors, making it ideal not only for Photos,
SmartErgoBase
The SmartErgoBase is a monitor base that
delivers ergonomic display comfort and
provides cable management. The base's
people-friendly height, swivel, tilt and rotation
angle adjustments position the monitor for
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
Page 3
240B4QPYEB/75
LCD monitor with PowerSensor
B Line 24" (61 cm), WUXGA (1920 x 1200)
Specifications
Picture/Display
• LCD panel type: IPS technology
• Backlight type: W-LED system
• Panel Size: 24 inch / 61 cm
• Effective viewing area: 518.4 (H) x 324 (V)
• Display Screen Coating: Anti-Glare, 3H, Haze 25%
• Aspect ratio: 16:10
• Optimum resolution: 1920 x 1200 @ 60Hz
• Response time (typical): 5 ms (Gray to Gray)*
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1,000:1
• SmartContrast: 20
• Pixel pitch: 0.270 x 0.270 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 76 Hz
(V)
•sRGB
,000,000 :1
Connectivity
• Signal Input: DisplayPort 1.2, DVI-D (digital,
HDCP), VGA (Analog )
• USB: USB 2.0 x 2
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 1.5 W x 2 (above)
• User convenience: Smart
PowerSensor, Menu, Power On/Off
• Control software: PowerSensor, SmartControl
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukranian
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7, Windows 8
sR
Image, Volume,
Power
• ECO mode: 12.3 W (typ.)
• On mode: 18.3 W (typ.) (EnergyStar 7.0 test
hod)
met
• Standby mode: < 0.3 W (typ.)
• Off mode: Zero watts with Zero switch
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand(max height): 555 x 550 x
244 mm
• Product without stand (mm): 555 x 388 x 65 mm
• Packaging in mm (WxHxD): 632 x 457 x 286 mm
Weight
• Product with stand (kg): 6.90 kg
• Product without stand (kg): 4.57 kg
• Product with packaging (kg): 9.49 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 40,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 7.0, TCO
Certified, PowerSensor, RoHS
• Recyclable packaging material: 100 %
• Recycled material: 25%
• Specific Substances: PVC / BFR free housing,
ry free, Lead free
Mercu
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, cETLus,
FCC Class B, GOST, SEMKO, TUV Ergo, TUV/GS,
WEEE
Stand
• Height adjustment: 130 mm
• Pivot: 90 degree
• Swivel: -65/65 degree
• Tilt: -5/20 degree
Issue date 2022-04-21
Version: 6.1.1
12 NC: 8670 001 36426
EAN: 87 12581 73858 7
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
•
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* "IPS" word mark / trademark and related patents on technologies
belong to their respective owners.
* Response time value equal to SmartResponse
