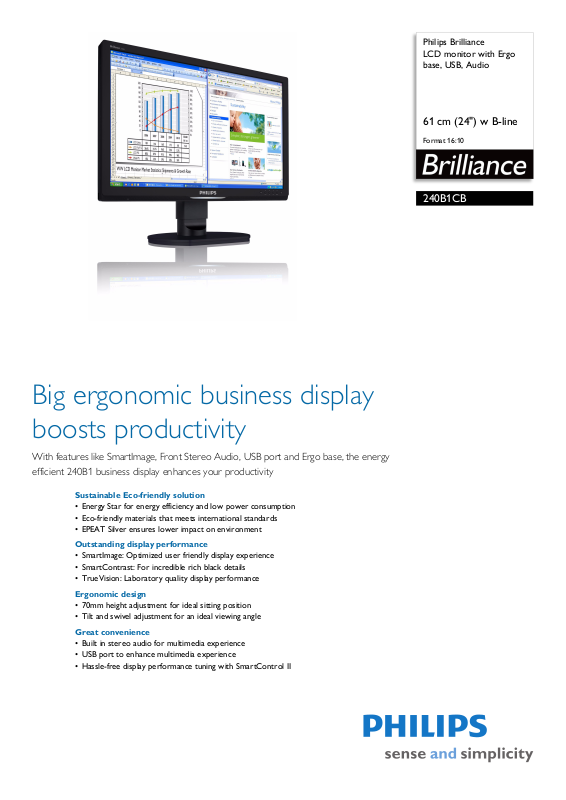

Philips Brilliance
LCD monitor with Ergo
base, USB, Audio
61 cm (24") w B-line
Format 16:10
240B1CB
Big ergonomic business display
boosts productivity
With features like SmartImage, Front Stereo Audio, USB port and Ergo base, the energy
efficient 240B1 business display enhances your productivity
Sustainable Eco-friendly solution
• Energy Star for energy efficiency and low power consumption
• Eco-friendly materials that meets international standards
• EPEAT Silver ensures lower impact on environment
Outstanding display performance
• SmartImage: Optimized user friendly display experience
• SmartContrast: For incredible rich black details
• TrueVision: Laboratory quality display performance
Ergonomic design
• 70mm height adjustment for ideal sitting position
• Tilt and swivel adjustment for an ideal viewing angle
Great convenience
• Built in stereo audio for multimedia experience
• USB port to enhance multimedia experience
• Hassle-free display performance tuning with SmartControl II
LCD monitor with Ergo base, USB, Audio
Built-in Audio
61 cm (24") w B-line Format 16:10
Highlights
240B1CB/27
Built-in stereo audio
A pair of high quality stereo speakers built into
a display
invisible down firing, top firing, rear firing, etc
depending on model and design.
70mm height adjustment
The Super Ergo Base is a 'people friendly'
Phili
swivels, but is also height adjustable and pivots
to 90 degree, so that each user can adjust the
monitor to their personal preference for
maximum viewing comfort and efficiency.
Screen tilt and swivel
Screen tilt and swivel is a mechanism built into
th
backward or forward.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Image, Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
device. It can be visible front firing, or
ps monitor base that not only tilts and
e base permits the monitor to swivel and tilt
offers you major power savings. All in real time
with the press of a single button!
SmartControl II
SmartControl II is monitor-based software
w
ith an easy-to-use on-screen graphic
interface that guides you through fine-tuning
resolution, color calibration and other display
settings including brightness, contrast, clock &
phase, position, RGB, white point and - on
models with onboard speakers - volume
adjustments.
TrueVision
TrueVision is industry-leading, proprietary
Philips testing and algorithm technology for
monitor adjustment and fine tuning, an
extensive process that ensures ultimate display
performance in compliance with a standard
four-times more stringent than Microsoft's
Vista requirements from each and every
monitor that leaves the factory - not just a few
review samples. Only Philips goes to these
lengths to deliver this exacting level of color
accuracy and display quality in every new
monitor.
EPEAT Silver
Philips EPEAT Silver certified monitors ensure
prot
ection for human health and environment,
and are highly energy efficient ensuring low
emissions of climate changing green house
gases. EPEAT program helps purchasers
evaluate, compare and select Monitors based
on 51 environmental criteria supported by US
EPA. EPEAT Silver is valid only where Philips
registers the product. Please visit
www.epeat.net for registration status in your
country.
Eco-friendly materials
With sustainability as a strategic driver of its
b
usiness, Philips is committed to use ecofriendly materials across its new product
range. Lead-free materials are used across the
range. All body plastic parts, metal chassis
parts and packing material uses 100%
recyclable material. Substantial reduction in
mercury content in lamps has been achieved.
We strictly adhere to RoHs standards which
ensure that all hazardous material is removed.
You can read more about sustainability and
Philips @ http://www.asimpleswitch.com/
global/
Energy Star 5.0
Energy Star is a US EPA sponsored energy
e
fficiency program also adopted by many other
countries. Energy Star certification ensures
that you are buying a product which meets the
latest power efficiency standards which
operates with maximum power efficiency at all
operational levels. New Philips monitors are
certified for Energy Star 5.0 specifications and
meet or exceed the standard. For example, in
sleep mode Energy Star 5.0 requires less than
1watt power consumption, whereas Philips
monitors consume less than 0.5watts. Further
details can be obtained from
www.energystar.gov
LCD monitor with Ergo base, USB, Audio
61 cm (24") w B-line Format 16:10
Specifications
240B1CB/27
Picture/Display
• LCD panel type: TFT-LCD
• Aspect ratio: 16:10
• Panel Size: 24 inch / 61.1 cm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 5
• Pixel pitch: 0.270 x 0.270 mm
• Picture enhancement: SmartImage
• Brightness: 300 cd/m²
• SmartContrast: 25000:1
• Response time (typical): 5 ms
• Optimum resolution: 1920 x 1200 @ 60Hz
• Display colors: 16.7 M
• Scanning Frequency: 24 - 94 kHz (H) / 48 - 85 Hz
(V)
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital, HDCP)
• USB: USB 2.0 x 1
• Sync Input: Separate Sync, Sync on Green
• Audio In/Out: Stereo Audio
Convenience
• Built-in Audio: 1.5 W x 2
• User convenience: SmartImage, Aut
Menu, Power On/Off, Audio
• OSD Languages: English, F
Italian, Russian, Simplified Chinese, Portuguese
• Other convenience: VESA mount (100x100mm),
nsington lock
Ke
• Plug & Play Compatibility: DDC/CI, Mac OS X,
ws 7/Vista/XP/2000/98, sRGB
Windo
rench, German, Spanish,
o, Brightness,
• Power supply: Built-in, 100-240VAC, 50/60Hz
• On mode: <34.8W (EnergyStar 5.0 test method)
• Standby mode: <0.8W
• Off mode: < 0.5 W
Dimensions
• Product with stand (mm): 494 x 559 x 220 mm
• Product with stand in inch: 19.3 x 21.9 x 8.6 inch
• Product without stand (mm): 381 x 559 x 75 mm
• Product without stand in inc
2.9 inch
• Packaging in mm (WxHxD): 563 x 638 x 195 mm
• Packaging in inch (WxHxD): 22 x 24.9 x 7.6 inch
h: 14.9 x 21.9 x
Weight
• Product with stand (kg): 6.8 kg
• Product with stand (lb): 15 lb
• Product without stand (kg): 5.5 kg
• Product without stand (lb): 12.1 lb
• Product with packaging (kg): 9.2 kg
• Product with packaging (lb): 20.3 lb
Operating conditions
• Temperature range (operation): 0 to 40 °C
• Temperature Range (storage): -20 to 60 °C
• Relative humidity: 20%-80 %
• MTBF: 50,000 hour(s)
Sustainability
• Environmental and energy: EPEAT Silver, RoHS,
EnergyStar 5.0
• Recyclable packaging material: 100 %
Stand
• Height adjustment: 70 mm
• Swivel: -45/45 degree
• Tilt: -5/20 degree
Power
• ECO mode: <30.7W
• Power LED indicator: Operation - White, Standby
de- White (blinking)
mo
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC, Class
B, GOST, SEMKO, TCO 5.0, TUV/GS, TUV Ergo,
UL/cUL
Cabinet
• Color: Black
• Finish: Texture
•
Issue date 2011-06-07
Version: 4.0.2
12 NC: 8670 000 56374
UPC: 6 09585 17636 2
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
