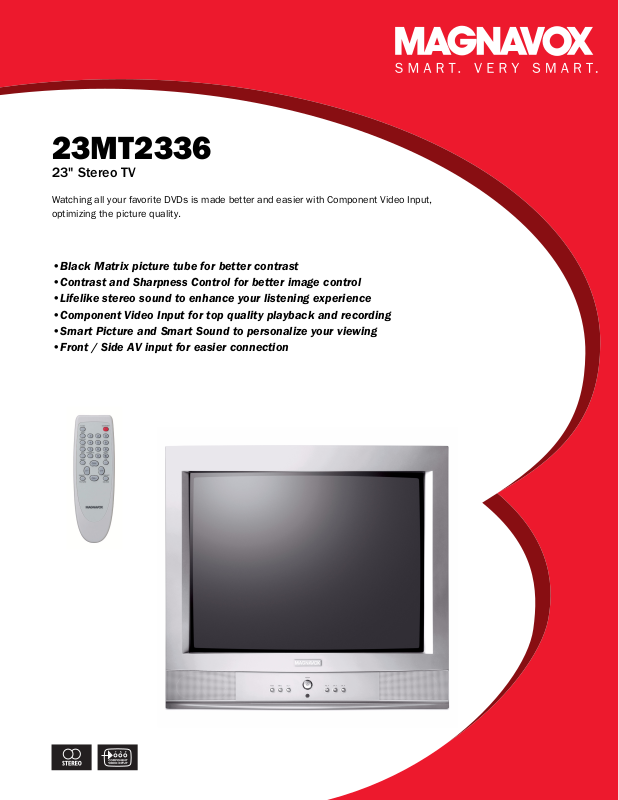

Page 1
23MT2336
23" Stereo TV
Watching all your favorite DVDs is made better and easier with Component Video Input,
optimizing the picture quality.
•Black Matrix picture tube for better contrast
•Contrast and Sharpness Control for better image control
•Lifelike stereo sound to enhance your listening experience
•Component Video Input for top quality playback and recording
•Smart Picture and Smart Sound to personalize your viewing
•Front / Side AV input for easier connection
Page 2
23MT2336/17
23" Stereo TV
Product specifications
Picture/Display
• Aspect ratio: 4:3
• Picture enhancement: Color Temperature
Ad
justment, Comb Filter, Color, Sharpness
Adjustment, Smart Picture, Tint
• Visible screen diagonal (inch): 23 inch
Sound
• Output power (RMS): 2 x 6W
• Sound Enhancement: Auto Volume Leveller,
lance, Smart Sound
Ba
Convenience
• Ease of Installation: Autoinstall
• Remote Control: TV
• Clock: Sleep Timer
• On-Screen Display languages: English, French,
anish
Sp
• User convenience: Closed Captioning (analog),
Vc
hip and parental lock
Tuner/Reception/Transmission
• TV system: NTSC
• Video Playback: NTSC
• Aerial Input: 75 ohm F-type
Connectivity
• AV 1: Component Video in, CVBS in
• AV 2: CVBS in
• Front / Side connections: CVBS in
• Audio Output - Analog: Audio L/R (cinch)
Power
• Mains power: AC 108 - 132 V, 60 Hz
Black Matrix picture tube
A Black Matrix picture tube improves the contrast of
images even when viewing in daylight conditions.
Contrast & Sharpness Control
Contrast and Sharpness Control for better image
control
Stereo sound
Stereo sound is sound reproduced using two
independent audio channels, through a pair of widely
separated speaker systems. This creates a pleasant
and natural impression of sound heard from various
directions as in natural hearing.
Component Video Input(YPbPr)
Component Video is the highest quality
interconnection standard for analog video. It is
sharper than S-video and composite video.
Smart Picture & Smart Sound
Preset modes for Smart Picture and Smart Sound
provide you with direct access via a single key on the
remote control. You can select the optimized picture
and sound settings for the various picture and sound
modes. Do refer to the user manual for the various
picture and sound smart modes.
Front / Side AV input
Front / Side AV input for easier connection
Date of issue 2009-03-06
Version: 1.0.7
12 NC: 8670 000 23796
UPC: 6 09585 11332 9
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V. or their
respective owners.
© 2009 Magnavox.
All Rights reserved.
www.magnavox.com
