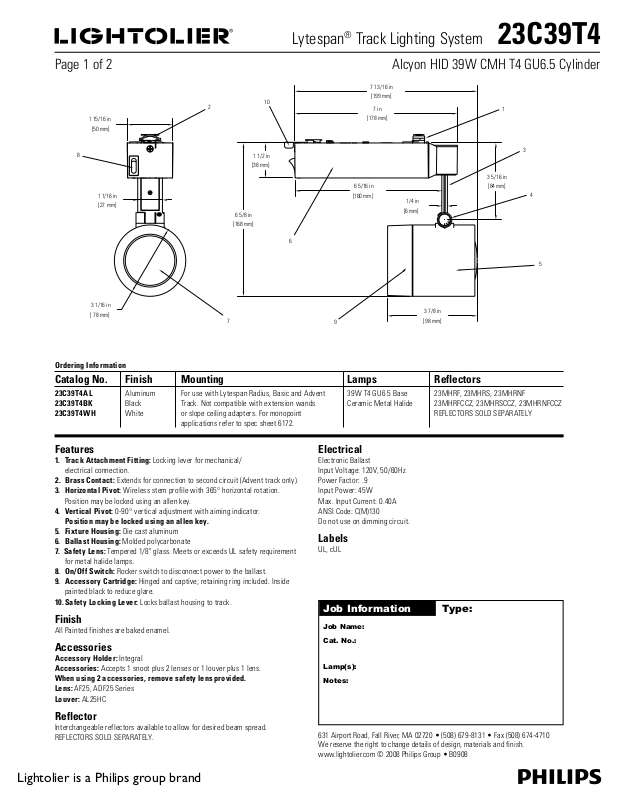

Philips 23C39T4 User Manual

Lytespan

6 5/8 in

[168 mm]

1 1/2 in

[38 mm]

3 5/16 in

[84 mm]

1/4 in

[6 mm]

6 5/16 in

[160 mm]

3 7/8 in

[98 mm]

7 in

[178 mm]

7 13/16 in

[199 mm]

1 1/16 in

[27 mm]

3 1/16 in

[ 78 mm]

1 15/16 in

[50 mm]

Track Lighting System 23C39T4

Page 1 of 2 Alcyon HID 39W CMH T4 GU6.5 Cylinder

Ordering Information

Catalog No. Finish Mounting Lamps Reflectors

23C39T4AL Aluminum For use with Lytespan Radius, Basic and Advent 39W T4 GU6.5 Base 23MHRF, 23MHRS, 23MHRNF 23C39T4BK Black Track. Not compatible with extension wands Ceramic Metal Halide 23MHRFCCZ, 23MHRSCCZ, 23MHRNFCCZ 23C39T4WH White or slope ceiling adapters. For monopoint REFLECTORS SOLD SEPARATELY

applications refer to spec sheet 6172.

Features

1. Track At tachment Fitting: Locking lever for mechanical/

electrical connection.

2. Brass Contact: Extends for connection to second circuit (Advent track only).

3. Horizontal Pivot: Wireless stem profile with 365° horizontal rotation.

Position may be locked using an allen key.

4. Vertical Pivot: 0-90° vertical adjustment with aiming indicator. Position may be locked using an allen key.

5. Fixture Housing: Die cast aluminum

6. Ballast Housing: Molded polycarbonate

7. Safety Lens: Tempered 1/8" glass. Meets or exceeds UL safety requirement

for metal halide lamps.

8. On/Off Switch: Rocker switch to disconnect power to the ballast.

9. Accessory Cartridge: Hinged and captive; retaining ring included. Inside

painted black to reduce glare.

10. Safety Locking Lever: Locks ballast housing to track.

Finish

All Painted finishes are baked enamel.

Accessories

Accessory Holder: Integral Accessories: Accepts 1 snoot plus 2 lenses or 1 louver plus 1 lens. When using 2 accessories, remove safety lens provided. Lens: AF25, ADF25 Series Louver: AL25HC

Reflector

Interchangeable reflectors available to allow for desired beam spread.

REFLECTORS SOLD SEPARATELY.

Lightolier is a Philips group brand

Electrical

Electronic Ballast Input Voltage: 120V, 50/60Hz Power Factor: .9 Input Power: 45W Max. Input Current: 0.40A ANSI Code: C(M)130 Do not use on dimming circuit.

Labels

UL, cUL

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan

Track Lighting System 23C39T4

Page 2 of 2 Alcyon HID 39W CMH T4 GU6.5 Cylinder

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam length D Distance W Beam Width A Aiming Angle C Distance to center beam FC Footcandles

L and W are the outer points where the candle

power drops to 50% of the maximum. FC are the initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp manufacturers for availability and performance.

CBCP = Center Beam Candle Power.

Beam Spread

Lamp

(To 50% CBCP) Life (Hrs.)

23356 9000 39W T4, 23MHRS 10°

Rated

CBCP

D FC L W D C FC L W D C FC L W D C FC L W

10' 2 34 1.7' 1.7' 12' 162 2.1' 2.1' 14' 119 2.4' 2.4' 16' 91 2.8' 2.8"

8' 4.6' 237 1.9' 1.6' 10' 5.8' 152 2.3' 2.0' 12' 6.9' 105 2.8' 2.4' 14' 8.1' 77 3.3' 2.8'

3' 5.2' 324 2.1' 1.0' 4' 6.9' 182 2.9' 1.4' 5' 8.7' 117 3.6' 1.7' 6' 10.4' 81 4. 3' 2.1'

4' 4.0' 516 1.4' 1.0' 5' 5.0' 330 1.8' 1.2' 6' 6.0' 229 2.1' 1.5' 7' 7.0' 169 2.5' 1.7'

Beam Spread

Lamp

(To 50% CBCP) Life (Hrs.)

5011 9000

39W T4, 23MHRNF

25°

Beam Spread

Lamp

(To 50% CBCP) Life (Hrs.)

3883 9000

39W T4, 23MHRF 35°

Rated

CBCP

Rated

CBCP

D FC L W D C FC L W D C FC L W D C FC L W

6' 139 2.7' 2.7 ' 8' 78 3.5' 3.5' 10' 5 0 4.4' 4.4' 12' 3 5 5.3' 5.3'

6' 3. 5' 9 0 3.6' 3.1' 8' 4.6' 51 4.8' 4.1' 10' 5.8' 33 6.0' 5.1' 12' 6.9' 23 7.2' 6.1'

2' 3.5' 157 4.2' 1.8' 3' 5.2' 70 6.2 ' 2.7' 4' 6.9' 39 8.3 ' 3.5' 5' 8.7' 25 10.4' 4.4'

D FC L W D C FC L W D C FC L W D C FC L W

6' 108 3.8' 3.8' 8' 61 5 .0' 5.0' 10' 3 9 6.3' 6.3' 12' 2 7 7.6' 7.6'

6' 3. 5' 70 5. 2' 4.4' 8' 4.6' 39 7.0' 5.8' 10' 5.8' 25 8 .7' 7.3' 12' 6.9' 18 10.4' 8.7'

2' 3.5' 121 7.2' 2.5' 3' 5.2' 54 10.8' 3. 8' 4' 6.9' 30 14.4' 5. 0' 5' 8.7' 19 18.0' 6.3'

Note: For Champagne Bronze (CCZ), multiply FC values by 0.64. CCZ Champagne Bronze reector "warms" the beam to 2700K.

2' 2.0' 4 43 1.9' 1.3' 3' 3.0' 197 2.8' 1.9' 4' 4.0' 111 3.7' 2.5' 5' 5.0' 71 4.7' 3.1'

2' 2.0' 3 43 2.8' 1.8' 3' 3.0' 153 4.2' 2.7' 4' 4.0' 86 5.6 ' 3. 6' 5' 5.0' 55 7.0' 4.5'
