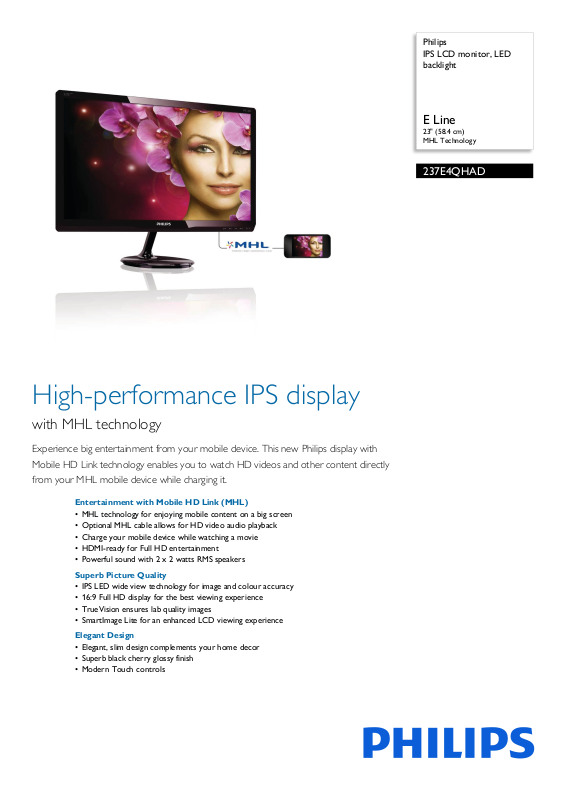

Page 1
Philips
IPS LCD monitor, LED
backlight
E Line
23" (58.4 cm)
MHL Technology
237E4QHAD
High-performance IPS display
with MHL technology
Experience big entertainment from your mobile device. This new Philips display with
Mobile HD Link technology enables you to watch HD videos and other content directly
from your MHL mobile device while charging it.
Entertainment with Mobile HD Link (MHL)
• MHL technology for enjoying mobile content on a big screen
• Optional MHL cable allows for HD video audio playback
• Charge your mobile device while watching a movie
• HDMI-ready for Full HD entertainment
• Powerful sound with 2 x 2 watts RMS speakers
Superb Picture Quality
• IPS LED wide view technology for image and colour accuracy
• 16:9 Full HD display for the best viewing experience
• TrueVision ensures lab quality images
• SmartImage Lite for an enhanced LCD viewing experience
Elegant Design
• Elegant, slim design complements your home decor
• Superb black cherry glossy finish
• Modern Touch controls
Page 2
237E4QHAD/01
IPS LCD monitor, LED backlight
E Line 23" (58.4 cm), MHL Technology
Highlights
MHL technology
Mobile High-Definition Link (MHL) is a mobile
audio/video interface for directly connecting
mobile phones and other portable devices to
high-definition displays. An optional MHL cable
allows you to simply connect your MHLcapable mobile device to this large Philips MHL
display and watch your HD videos come to life
with full digital sound. Now not only can you
enjoy your mobile games, photos, movies or
other apps on its big screen, you can
simultaneously charge your mobile device so
you never run out of power halfway.
IPS technology
you select, SmartImage Lite dynamically
enhances the contrast, colour saturation and
sharpness of images and videos for ultimate
display performance - all in real time with the
press of a single button.
HDMI Ready
An HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input. An HDMI
cable enables high-quality digital video and
audio to be transmitted over a single cable
from a PC or any number of AV sources
(including set-top boxes, DVD players, A/V
receivers and video cameras).
Built-in stereo speakers
Now you can enjoy all your multimedia and
soci
al applications with stereo sound. These
built-in speakers not only sound great, but also
help you to get rid of external wire clutter and
save valuable desktop space.
signal processing is extensively upgraded to
support this much higher signal quality and
resolution. It produces brilliant flicker-free
progressive scan pictures with superb
brightness and colours.
TrueVision
TrueVision is a proprietary Philips technology
that uses an advanced algorithm for testing and
aligning monitor display, which gives you the
ultimate display performance. Philips ensures
that TrueVision monitors leave the factory
fine-tuned with this process giving you
consistent colour and picture quality.
Touch controls
IPS displays use an advanced technology that
gives you extra-wide viewing angles of 178/
178 degrees, making it possible to view the
disp
lay from almost any angle. Unlike standard
TN panels, IPS displays give you remarkably
crisp images with vivid colours, making them
ideal not only for Photos, movies and web
browsing, but also for professional applications
that demand colour accuracy and consistent
brightness at all times.
SmartImage Lite
SmartImage Lite is an exclusive, leading edge
Phili
ps technology that analyses the content
displayed on your screen. Based on a scenario
16:9 Full HD
The Full HD screen has the widescreen
resolution of 1920 x 1080p. This is the highest
resolution of HD sources for the best possible
picture quality. It is fully future-proof as it
supports 1080p signals from all sources,
including the most recent sources such as Bluray and advanced HD game consoles. The
Touch controls are intelligent, touch-sensitive
icons that replace protruding buttons to allow
users to adjust the monitor to their
requirements. Responding to the lightest
touch,Touch control gives the monitor a
modern feel.
Slim design
Elegant, slim design complements your home
decor
Page 3
237E4QHAD/01
IPS LCD monitor, LED backlight
E Line 23" (58.4 cm), MHL Technology
Specifications
Picture/Display
• LCD panel type: IPS LCD
• Backlight type: W-LED system
• Panel Size: 23 inch/58.4 cm
• Effective viewing area: 509.18 (H) x 286.41 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• SmartResponse (typical): 5 ms (Grey to Grey)
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
• Pixel pitch: 0.265 x 0.265 mm
• Viewing angle: 178º (H)/178º (V),
• Picture enhancement: SmartImage Lite
• Display colours: 16.7 M
• Scanning Frequency: 30–83 kHz (H)/56–75 Hz (V)
• MHL: 1080P @ 30 Hz
•sRGB
20,000,000:1
@ C/R > 10
Connectivity
• Signal Input: VGA (Analogue), HDMI (digital,
HDCP), MHL-HDMI (digital, HDCP)
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 2 W x 2
• User convenience: SmartImage lite, Input, Menu,
r On/Off, Volume
Powe
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish,
Turkish
• Other convenience: Kensington lock
• Plug and Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7/Vista/XP
sR
ench, German, Italian,
Power
• On mode: 28.6 W (EnergyStar 5.0 test method)
• Standby mode: 0.5 W
• Off mode: 0.3 W
• Power LED indicator: Operation - White, Standby
mode - White (f
• Power supply: External, 100-240 VAC, 50-60 Hz
lashing)
Dimensions
• Product with stand (mm): 547 x 420 x 193 mm
• Product without stand (mm): 547 x 335 x 37 mm
• Packaging in mm (W x H x D): 600 x 500 x 100 mm
Weight
• Product with stand (kg): 2.82 kg
• Product without stand (kg): 2.52 kg
• Product with packaging (kg): 4.17 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20–80% %
• Altitude: Operation: +12,000 ft (3658 m), Non-
eration: +40,000 ft (12,192 m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 5.0, EPEAT
Silver, RoHS, Lead-free, Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC Class
B, GOST, PSB, SASO, SEMKO, TCO 5.2, TUV/
ISO9241-307, UL/cUL, WEEE
Stand
• Tilt: -5/20 degree
Cabinet
• Colour: Black Cherry
•Finish: Glossy
•
Issue date 2022-04-21
Version: 3.0.1
12 NC: 8670 000 90851
EAN: 87 12581 64717 9
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* Requires optional MHL-certified mobile device and MHL cable (not
included). Please check with your MHL device vendor for
compatibility.
* Standby/Off energy saving of ErP is not applicable for the MHL
charging functionality
* "IPS" word mark / trademark and related patents on technologies
belong to their respective owners.
