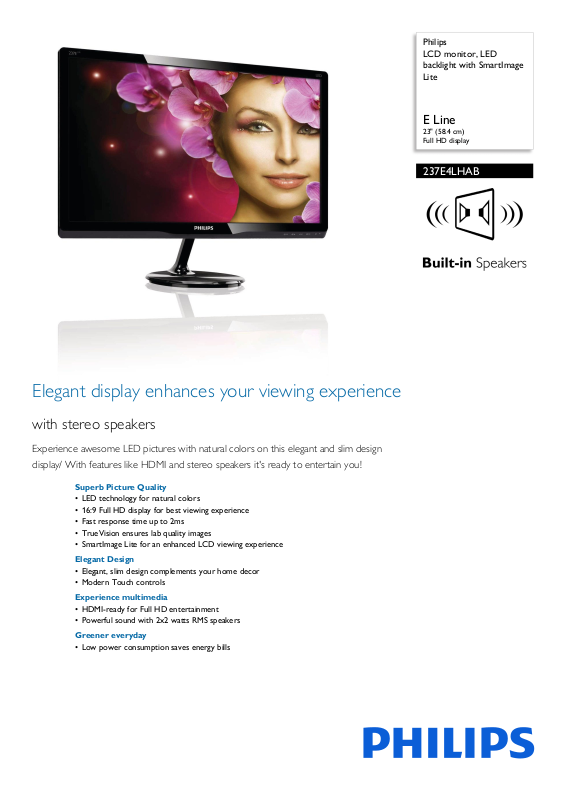

Page 1
Philips
LCD monitor, LED
backlight with SmartImage
Lite
E Line
23" (58.4 cm)
Full HD display
237E4LHAB
Elegant display enhances your viewing experience
with stereo speakers
Experience awesome LED pictures with natural colors on this elegant and slim design
display/ With features like HDMI and stereo speakers it's ready to entertain you!
Superb Picture Quality
• LED technology for natural colors
• 16:9 Full HD display for best viewing experience
• Fast response time up to 2ms
• TrueVision ensures lab quality images
• SmartImage Lite for an enhanced LCD viewing experience
Elegant Design
• Elegant, slim design complements your home decor
• Modern Touch controls
Experience multimedia
• HDMI-ready for Full HD entertainment
• Powerful sound with 2x2 watts RMS speakers
Greener everyday
• Low power consumption saves energy bills
Page 2
237E4LHAB/00
LCD monitor, LED backlight
E Line 23" (58.4 cm), Full HD display
Highlights
LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
SmartImage Lite
SmartImage Lite is an exclusive, leading edge
Phili
ps technology that analyzes the content
displayed on your screen. Based on a scenario
you select, SmartImage Lite dynamically
enhances the contrast, color saturation and
sharpness of images and videos for ultimate
display performance - all in real time with the
press on a single button.
HDMI Ready
built in speakers not only sound great, but also
helps you to get rid of external wire clutter and
save valuable desktop space.
16:9 Full HD
The Full HD screen has the widescreen
resolution of 1920 x 1080p. This is the highest
resolution of HD sources for the best possible
picture quality. It is fully future proof as it
supports 1080p signals from all sources,
including the most recent like Blu-ray and
advanced HD game consoles. The signal
processing is extensively upgraded to support
this much higher signal quality and resolution.
It produces brilliant flicker-free progressive
scan pictures with superb brightness and
colors.
tuned with this process giving you consistent
color and picture quality.
2ms GtG response time
SmartResponse is a exclusive Philips overdrive
technology that when turned on, automatically
adjusts response times to specific application
requirements like gaming and movies which
require faster response times in order to
produce judder, time-lag and ghost image free
images
Touch controls
An HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input. A HDMI
cable enables high-quality digital video and
audio all transmitted over a single cable from a
PC or any number of AV sources (including
set-top boxes, DVD players, A/V receivers and
video cameras).
Built-in stereo speakers
Now you can enjoy all your multimedia and
soci
al applications with stereo sound. These
TrueVision
Touch controls are intelligent, touch sensitive
icons that replace protruding buttons that lets
the user adjust the monitor to their
requirement. Responding to your lightest
touch,Touch control gives the monitor a
modern feel.
TrueVision is a proprietary Philips technology
that uses advanced algorithm for testing and
aligning monitor display which gives you the
ultimate display performance. Philips ensures
TrueVision monitors leave the factory fine-
Page 3
237E4LHAB/00
LCD monitor, LED backlight
E Line 23" (58.4 cm), Full HD display
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 23 inch / 58.4 cm
• Effective viewing area: 509.18 (H) x 286.41 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• SmartResponse: 2 ms (Gray to Gray)
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
• Pixel pitch: 0.265 x 0.265 mm
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Picture enhancement: SmartImage Lite
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
•sRGB
20,000,000:1
kHz (H) / 56 -75 Hz (V)
Connectivity
• Signal Input: VGA (Analog ), HDMI x 2
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 2Wx2
• User convenience: SmartImage lite, Input, Menu,
r On/Off, Volume
Powe
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish,
Turkish
• Other convenience: Kensington lock
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7/Vista/XP
sR
ench, German, Italian,
Stand
• Tilt: -5/20 degree
Power
• On mode: 25.6 W (EnergyStar 5.0 test method)
• Standby mode: 0.5 W
• Off mode: 0.3 W
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: External, 100-240VAC, 50-60Hz
Dimensions
• Product with stand (mm): 547 x 420 x 193 mm
• Product without stand (mm): 547 x 335 x 37 mm
• Packaging in mm (WxHxD): 600 x 500 x 100 mm
Weight
• Product with stand (kg): 2.82 kg
• Product without stand (kg): 2.52 kg
• Product with packaging (kg): 4.17 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 5.0, RoHS,
Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC Class
B, GOST, PSB, SASO, SEMKO, TCO 5.2, TUV/
ISO9241-307, UL/cUL, WEEE
Cabinet
• Color: Black
•Finish: Glossy
•
Issue date 2021-02-21
Version: 3.0.1
12 NC: 8670 000 90815
EAN: 87 12581 64697 4
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
