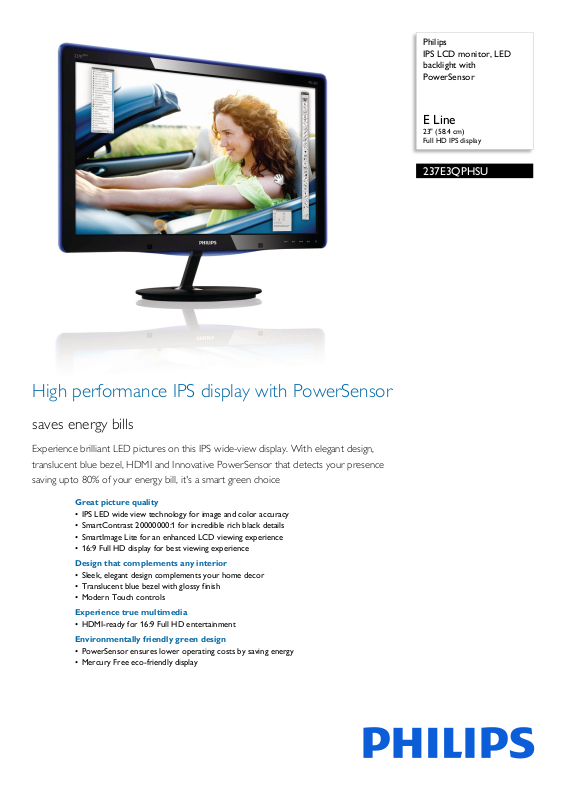

Page 1
Philips
IPS LCD monitor, LED
backlight with
PowerSensor
E Line
23" (58.4 cm)
Full HD IPS display
237E3QPHSU
High performance IPS display with PowerSensor
saves energy bills
Experience brilliant LED pictures on this IPS wide-view display. With elegant design,
translucent blue bezel, HDMI and Innovative PowerSensor that detects your presence
saving upto 80% of your energy bill, it's a smart green choice
Great picture quality
• IPS LED wide view technology for image and color accuracy
• SmartContrast 20000000:1 for incredible rich black details
• SmartImage Lite for an enhanced LCD viewing experience
• 16:9 Full HD display for best viewing experience
Design that complements any interior
• Sleek, elegant design complements your home decor
• Translucent blue bezel with glossy finish
• Modern Touch controls
Experience true multimedia
• HDMI-ready for 16:9 Full HD entertainment
Environmentally friendly green design
• PowerSensor ensures lower operating costs by saving energy
• Mercury Free eco-friendly display
Page 2
237E3QPHSU/75
IPS LCD monitor, LED backlight
E Line 23" (58.4 cm), Full HD IPS display
Highlights
IPS technology
IPS displays use an advanced technology which
gives you extra wide viewing angles of 178/178
degree, making it possible to view the display
from almost any angle - even in 90 degree Pivot
mode! Unlike standard TN panels, IPS displays
gives you remarkably crisp images with vivid
colors, making it ideal not only for Photos,
movies and web browsing, but also for
professional applications which demand color
accuracy and consistent brightness at all times.
PowerSensor
you select, SmartImage Lite dynamically
enhances the contrast, color saturation and
sharpness of images and videos for ultimate
display performance - all in real time with the
press on a single button.
HDMI-ready
A HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input, high quality
digital video and audio signals all transmitted
over a single cable from a PC or any number of
AV sources including set-top boxes, DVD
players and A/V receivers and video cameras.
SmartContrast ratio 20000000:1
Touch controls
Touch controls are intelligent, touch sensitive
icons that replace protruding buttons that lets
the user adjust the monitor to their
requirement. Responding to your lightest
touch,Touch control gives the monitor a
modern feel.
16:9 Full HD
PowerSensor is a built-in 'people sensor' that
transmits and receives harmless infrared
signals to determine if user is present and
automatically reduces monitor brightness
when user steps away from the desk, cutting
energy costs by up to 80 percent and
prolonging monitor life.
SmartImage Lite
SmartImage Lite is an exclusive, leading edge
Phili
ps technology that analyzes the content
displayed on your screen. Based on a scenario
You want the LCD flat display with the highest
contrast and most vibrant images. Philips
advanced video processing combined with
unique extreme dimming and backlight
boosting technology results in vibrant images.
SmartContrast will increase the contrast with
excellent blacklevel and accurate rendition of
dark shades and colors. It gives a bright, lifelike
picture with high contrast and vibrant colors.
The Full HD screen has the widescreen
resolution of 1920 x 1080p. This is the highest
resolution of HD sources for the best possible
picture quality. It is fully future proof as it
supports 1080p signals from all sources,
including the most recent like Blu-ray and
advanced HD game consoles. The signal
processing is extensively upgraded to support
this much higher signal quality and resolution.
It produces brilliant flicker-free progressive
scan pictures with superb brightness and
colors.
Sleek, elegant design
A sleek, elegant design look that complements
h
ome furnishings in any room.
Page 3
237E3QPHSU/75
IPS LCD monitor, LED backlight
E Line 23" (58.4 cm), Full HD IPS display
Specifications
Picture/Display
• LCD panel type: IPS LCD
• Backlight type: W-LED system
• Panel Size: 23 inch/ 58.4 cm
• Effective viewing area: 509.18 x 286.41 mm
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• SmartResponse (typical): 7 ms
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1,000:1
• SmartContrast:
• Pixel pitch: 0.265 x 0.265 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Picture enhancement: SmartImage Lite
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
•sRGB
20,000,000:1
(Grey to Grey)
kHz (H) / 56 -75 Hz (V)
Connectivity
• Signal Input: VGA (Analog ), HDMIx2
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): HDMI audio out
Convenience
• User convenience: Power On/Off, Menu, Input,
SmartImage lite, PowerSensor
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish,
Turkish
• Other convenience: Kensington lock
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7/Vista/XP
sR
ench, German, Italian,
method)
• Standby mode: < 0.5W
• Off mode: < 0.3 W
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: 100-240VAC, 50/60Hz, Built-in
Dimensions
• Product with stand (mm): 568 x 435 x 238 mm
• Product without stand (mm): 568 x 345 x 46 mm
• Packaging in mm (WxHxD): 619 x 498 x 110 mm
Weight
• Product with stand (kg): 3.46 kg
• Product without stand (kg): 2.93 kg
• Product with packaging (kg): 5.07 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EPEAT Silver, RoHS,
EnergyStar 5.0, Lead-free, Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, GOST,
SEMKO, TUV Ergo, TUV/GS, UL/cUL, FCC Class
B, PSB, SASO, TCO certified, WEEE
Stand
• Tilt: -5/20 degree degree
Power
• On mode: 26.6 W (typ.) (EnergyStar 5.0 test
Cabinet
• Color: Black with Blue Tint
•Finish: Glossy
•
Issue date 2022-04-21
Version: 3.0.1
12 NC: 8670 000 80755
EAN: 87 12581 61747 9
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
