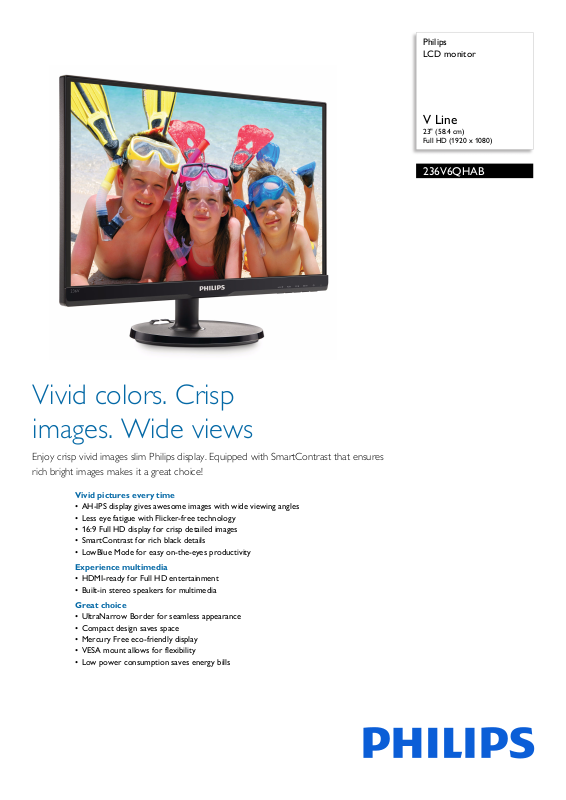

Page 1
Philips
LCD monitor
V Line
23" (58.4 cm)
Full HD (1920 x 1080)
236V6QHAB
Vivid colors. Crisp
images. Wide views
Enjoy crisp vivid images slim Philips display. Equipped with SmartContrast that ensures
rich bright images makes it a great choice!
Vivid pictures every time
• AH-IPS display gives awesome images with wide viewing angles
• Less eye fatigue with Flicker-free technology
• 16:9 Full HD display for crisp detailed images
• SmartContrast for rich black details
• LowBlue Mode for easy on-the-eyes productivity
Experience multimedia
• HDMI-ready for Full HD entertainment
• Built-in stereo speakers for multimedia
Great choice
• UltraNarrow Border for seamless appearance
• Compact design saves space
• Mercury Free eco-friendly display
• VESA mount allows for flexibility
• Low power consumption saves energy bills
Page 2
236V6QHAB/73
LCD monitor
V Line 23" (58.4 cm), Full HD (1920 x 1080)
Highlights
AH-IPS technology
AH-IPS displays use an advanced technology
which gives you extra wide viewing angles of
178/178 degree, making it possible to view the
display from almost any angle. Unlike standard
TN panels, AH-IPS displays gives you
remarkably crisp images with vivid colors,
making it ideal not only for Photos, movies and
web browsing, but also for professional
applications which demand color accuracy and
consistent brightness at all times.
Flicker-free technology
resolution. With Full HD for crisp detail paired
with high brightness, incredible contrast and
realistic colors expect a true to life picture.
SmartContrast
SmartContrast is a Philips technology that
analyzes the contents you are displaying,
automatically adjusting colors and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
for just-right display of everyday office
applications and lower power consumption.
HDMI Ready
An HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input. A HDMI
cable enables high-quality digital video and
audio all transmitted over a single cable from a
PC or any number of AV sources (including
set-top boxes, DVD players, A/V receivers and
video cameras).
Built-in stereo speakers
A pair of high quality stereo speakers built into
a displa
y device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
Due to the way brightness is controlled on
LED-backlit screens, some users experience
flicker on their screen which causes eye
fatigue. Philips Flicker-free Technology applies
a new solution to regulate brightness and
reduce flicker for more comfortable viewing.
16:9 Full HD display
Picture quality matters. Regular displays deliver
quality, but you expect more. This display
features enhanced Full HD 1920 x 1080
LowBlue Mode
Studies have shown that just as ultra-violet rays
can cause eye damage, shortwave length blue
light rays from LED displays can cause eye
damage and affect vision over time. Developed
for wellbeing, Philips LowBlue Mode setting
uses a smart software technology to reduce
harmful shortwave blue light.
UltraNarrow Border
The new Philips displays feature ultra-narrow
borders which allow for minimal distractions
and maximum viewing size. Especially suited
for multi-display or tiling setup like gaming,
graphic design and professional applications,
the ultra-narrow border display gives you the
feeling of using one large display.
Mercury Free
Philips monitors with LED backlighting are free
of
Mercury content, one of the most toxic
natural substances, which affects humans and
animals. This reduces the environmental
impact of the display throughout its life-cycle,
from manufacturing to disposal.
Page 3
236V6QHAB/73
LCD monitor
V Line 23" (58.4 cm), Full HD (1920 x 1080)
Specifications
Picture/Display
• LCD panel type: AH-IPS LCD
• Backlight type: W-LED system
• Panel Size: 23 inch / 58.4 cm
• Effective viewing area: 509.18 (H) x 286.42 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Response time (typical): 5 ms (Gray to Gray)*
• Brightness: 250 cd/m²
• SmartContrast:
• Contrast ratio (typical): 1000:1
• Pixel pitch: 0.265 x 0.265 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
•sRGB
•LowBlue Mode
10,000,000:1
kHz (H) / 56 -76 Hz (V)
Connectivity
• Signal Input: VGA (Analog ), HDMI (digital, HDCP)
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): Headphone out, PC audio-in
Convenience
• Built-in Audio: 2.0 W x 2
• User convenience: Power On/Off, Menu/OK,
Brightness/
• OSD Languages: Brazil Portuguese, Czech, Dutch,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukranian
• Other convenience: Kensington lock, VESA mount
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
sR
Back, Volume/Up, Auto/Down
glish, Finnish, French, German, Greek,
x100mm)
GB, Windows 10 / 8.1 / 8 / 7
Stand
• Tilt: -5/20 degree
Power
• On mode: 15.72 W (typ.) (EnergyStar 7.0 test
method)
• Standby mode: 0.5 W (typ.)
• Off mode: 0.3 W (typ.)
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand (mm): 532 x 409 x 225 mm
• Product without stand (mm): 532 x 331 x 51 mm
• Packaging in mm (WxHxD): 580 x 472 x 130 mm
Weight
• Product with stand (kg): 3.35 kg
• Product without stand (kg): 2.90 kg
• Product with packaging (kg): 4.40 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 50,000 (excluding backlight) hour(s)
Sustainability
• Environmental and energy: EnergyStar 7.0, RoHS,
Lead-free, Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, WEEE,
cETLus, TUV/ISO9241-307, FCC Class B, CB, CU,
EPA, ICES-003, KUCAS, MEPS, PSB, SASO, TCO
Certified
Cabinet
• Color: Black
• Finish: Glossy / Textured
•
Issue date 2019-06-18
Version: 1.0.1
12 NC: 8670 001 40086
EAN: 87 12581 74132 7
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* "AH-IPS" word mark / trademark and related patents on
technologies belong to their respective owners.
* HDMI cables vary depending on region and models.
* Response time value equal to SmartResponse
