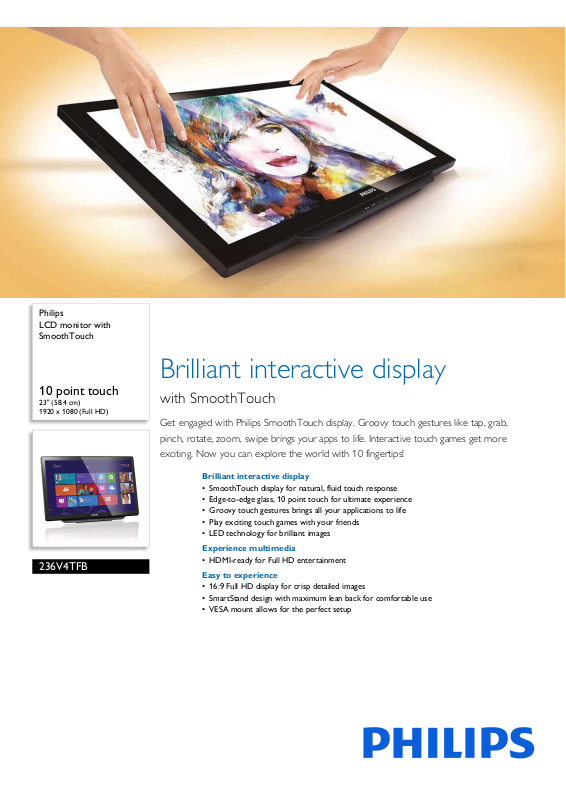

Page 1
Philips
LCD monitor with
SmoothTouch
Brilliant interactive display
10 point touch
23" (58.4 cm)
1920 x 1080 (Full HD)
236V4TFB
with SmoothTouch
Get engaged with Philips SmoothTouch display. Groovy touch gestures like tap, grab,
pinch, rotate, zoom, swipe brings your apps to life. Interactive touch games get more
exciting. Now you can explore the world with 10 fingertips!
Brilliant interactive display
• SmoothTouch display for natural, fluid touch response
• Edge-to-edge glass, 10 point touch for ultimate experience
• Groovy touch gestures brings all your applications to life
• Play exciting touch games with your friends
• LED technology for brilliant images
Experience multimedia
• HDMI-ready for Full HD entertainment
Easy to experience
• 16:9 Full HD display for crisp detailed images
• SmartStand design with maximum lean back for comfortable use
• VESA mount allows for the perfect setup
Page 2
236V4TFB/71
LCD monitor with SmoothTouch
10 point touch 23" (58.4 cm), 1920 x 1080 (Full HD)
Highlights
SmoothTouch
This Philips display uses Projected capacitive 10
point touch technology for fluid response. You
can fully utilize the new capabilities of touch
based applications, and bring your older
applications to life. Touch-type with 10 fingers,
or play exciting interactive games with your
friends. Collaborate with colleagues
interactively at work or school environment
and increase your productivity and efficiency.
LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
HDMI Ready
An HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input. A HDMI
cable enables high-quality digital video and
audio all transmitted over a single cable from a
PC or any number of AV sources (including
set-top boxes, DVD players, A/V receivers and
video cameras).
16:9 Full HD display
The Full HD screen has the widescreen
resolution of 1920 x 1080p. This is the highest
resolution of HD sources for the best possible
picture quality. It is fully future proof as it
supports 1080p signals from all sources,
including the most recent like Blu-ray and
advanced HD game consoles. The signal
processing is extensively upgraded to support
this much higher signal quality and resolution.
It produces brilliant flicker-free progressive
scan pictures with superb brightness and
colors.
SmartStand
This Philips display uses SmartStand with
maximum lean back which enables you to use
it in various ergonomic positions, like never
before. With just under 60 degree lean back
position, you can now interact with the display
naturally to touch and type. Or you can use it
in upright position to sit and do some serious
work. With built-in auto return mechanism,
this SmartStand offers you a high level of
flexibility.
VESA mount
VESA pattern guarantees compatibility
h
undreds of innovative mounting solutions.
Page 3
236V4TFB/71
LCD monitor with SmoothTouch
10 point touch 23" (58.4 cm), 1920 x 1080 (Full HD)
Specifications
Picture/Display
• LCD panel type: LCD with 10 point Touch
• Backlight type: W-LED system
• Panel Size: 23 inch / 58.4 cm
• Effective viewing area: 509.18 (H) x 286.42 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Response time (typical): 14 ms
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
• Pixel pitch: 0.265 x 0.265 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Display colors: 16.7 M
• Scanning Frequency: 30 - 83 kHz (H) / 56 -76 Hz
(V)
•sRGB
10,000,000:1
Touch screen capabilities
• Input method: Finger or capacitive stylus
• Touch method: 10 point sim
• Touch activation: Via direct USB connection with
PC
• Multi-touch: Grab, Rotate, Double-tap, Zoom in/
t
ou
• Single-touch: Flick, Scroll, Tap, Drag
• Glass screen: Tempered
• Surface hardness: >=7H
• Transmission rate: >=85%
ultaneous recognition
Connectivity
• USB: USB 2.0 upstream
• Signal Input: VGA (Analog ), HDMI (digital, HDCP)
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): HDMI audio out
Convenience
• User convenience: Power On/Off, Menu/OK, 4:3
Wide/Up, Auto/Down, Brightness/Back
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukranian
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7, Windows 8
sR
Stand
• Tilt: 12~60 degree
Power
• On mode: 23.29 W (typ.) (EnergyStar 6.0 test
method)
• Standby mode: 0.5 W (typ.)
• Off mode: 0.3 W (typ.)
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: External, 100-240VAC, 50-60Hz
Dimensions
• Product with stand (mm): 549 x 353 x 81 mm
• Product without stand (mm): 549 x 353 x 48 mm
• Packaging in mm (WxHxD): 621 x 435 x 141 mm
Weight
• Product with stand (kg): 4.38 kg
• Product without stand (kg): 4.01 kg
• Product with packaging (kg): 5.99 kg
Operating conditions
• Temperature range (operation): 0 to 40 °C
• Temperature range (storage): -20 to 60 °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 6.0, RoHS,
Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, CU-EAC,
cETLus, TUV/ISO9241-307, CECP, CEL, SASO,
KUCAS, EPA, WEEE
Cabinet
• Front bezel: Black
• Rear cover: Black
• Finish: High Glossy (front bezel) / Textured (rear
ver)
co
•
Issue date 2022-04-21
Version: 2.0.1
12 NC: 8670 001 22048
EAN: 87 12581 72998 1
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* The touch function requires USB cable connection to your PC.
Works only on Touch capable OS and applications like Windows 8,
or 7.
* EPEAT rating is valid only where Philips registers the product. Please
visit https://www.epeat.net/ for registration status in your country.
