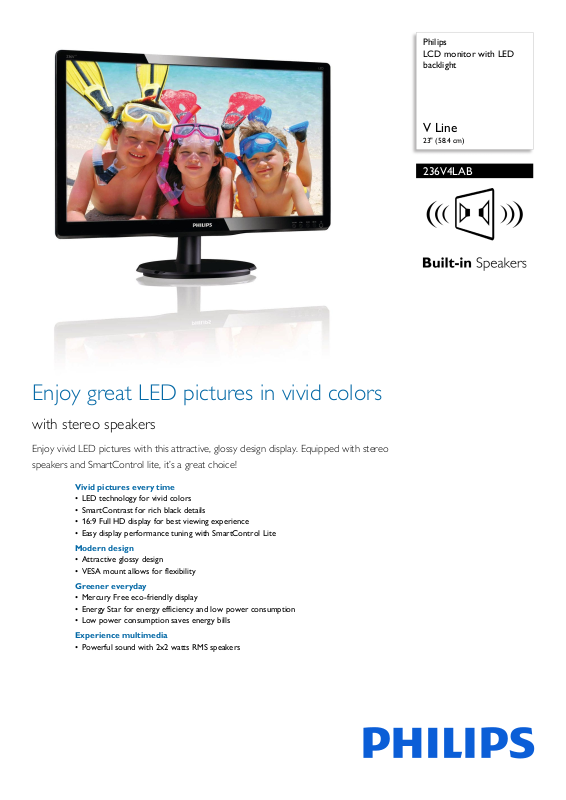

Page 1
Philips
LCD monitor with LED
backlight
V Line
23" (58.4 cm)
236V4LAB
Enjoy great LED pictures in vivid colors
with stereo speakers
Enjoy vivid LED pictures with this attractive, glossy design display. Equipped with stereo
speakers and SmartControl lite, it’s a great choice!
Vivid pictures every time
• LED technology for vivid colors
• SmartContrast for rich black details
• 16:9 Full HD display for best viewing experience
• Easy display performance tuning with SmartControl Lite
Modern design
• Attractive glossy design
• VESA mount allows for flexibility
Greener everyday
• Mercury Free eco-friendly display
• Energy Star for energy efficiency and low power consumption
• Low power consumption saves energy bills
Experience multimedia
• Powerful sound with 2x2 watts RMS speakers
Page 2
236V4LAB/00
LCD monitor with LED backlight
V Line 23" (58.4 cm)
Highlights
LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
Built-in stereo speakers
Now you can enjoy all your multimedia and
soci
al applications with stereo sound. These
built in speakers not only sound great, but also
helps you to get rid of external wire clutter and
save valuable desktop space.
SmartControl Lite
SmartControl Lite is the next generation 3D
ic
on based GUI monitor control software. This
allows user to fine-tune most parameters of
the monitor like Color, Brightness, screen
calibration, Multi-media, ID management, etc
with the mouse.
SmartContrast
SmartContrast is a Philips technology that
analyzes the contents you are displaying,
automatically adjusting colors and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
for just-right display of everyday office
applications and lower power consumption.
16:9 Full HD
The Full HD screen has the widescreen
resolution of 1920 x 1080p. This is the highest
resolution of HD sources for the best possible
picture quality. It is fully future proof as it
supports 1080p signals from all sources,
including the most recent like Blu-ray and
advanced HD game consoles. The signal
processing is extensively upgraded to support
this much higher signal quality and resolution.
It produces brilliant flicker-free progressive
scan pictures with superb brightness and
colors.
Mercury Free
Philips monitors with LED backlighting are free
of
Mercury content, one of the most toxic
natural substances, which affects humans and
animals. This reduces the environmental
impact of the display throughout its life-cycle,
from manufacturing to disposal.
Energy Star 5.0
Energy Star is a US EPA sponsored energy
e
fficiency program also adopted by many other
countries. Energy Star certification ensures
that you are buying a product which meets the
latest power efficiency standards which
operates with maximum power efficiency at all
operational levels. New Philips monitors are
certified for Energy Star 5.0 specifications and
meet or exceed the standard. For example, in
sleep mode Energy Star 5.0 requires less than
1watt power consumption, whereas Philips
monitors consume less than 0.5watts. Further
details can be obtained from
www.energystar.gov
Page 3
236V4LAB/00
LCD monitor with LED backlight
V Line 23" (58.4 cm)
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 23 inch / 58.4 cm
• Effective viewing area: 509.18 (H) x 286.42 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• SmartContrast:
• Contrast ratio (typical): 1000:1
• Pixel pitch: 0.265 x 0.265 mm
• Viewing angle: 170º (H) / 160º (V), @ C/R > 10
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
•sRGB
10,000,000:1
kHz (H) / 56 -75 Hz (V)
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital, HDCP)
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in
Convenience
• Built-in Audio: 2.0W x 2
• User convenience: Auto/Down, Brightness/Back,
/OK, Power On/Off, Volume/Up
Menu
• OSD Languages: English, Fr
Portuguese, Russian, Spanish, Simplified Chinese,
Turkish
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7, Windows XP
sR
ench, German, Italian,
Power
• On mode: 29.9 W (EnergyStar 5.0 test method)
• Standby mode: 0.5 W
• Off mode: 0.5 W
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand (mm): 549 x 417 x 219 mm
• Product without stand (mm): 549 x 339 x 48 mm
• Packaging in mm (WxHxD): 597 x 420 x 131 mm
Weight
• Product with stand (kg): 3.06 kg
• Product without stand (kg): 2.82 kg
• Product with packaging (kg): 4.43 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 5.0, RoHS,
Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC Class
B, GOST, PSB, SASO, SEMKO, TCO Certified,
TUV/ISO9241-307, UL/cUL, WEEE
Stand
• Tilt: -5/20 degree
Cabinet
• Color: Black
• Finish: Glossy (front bezel) /Texture (rear cover)
•
Issue date 2021-02-21
Version: 3.0.1
12 NC: 8670 000 93625
EAN: 87 12581 65597 6
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
