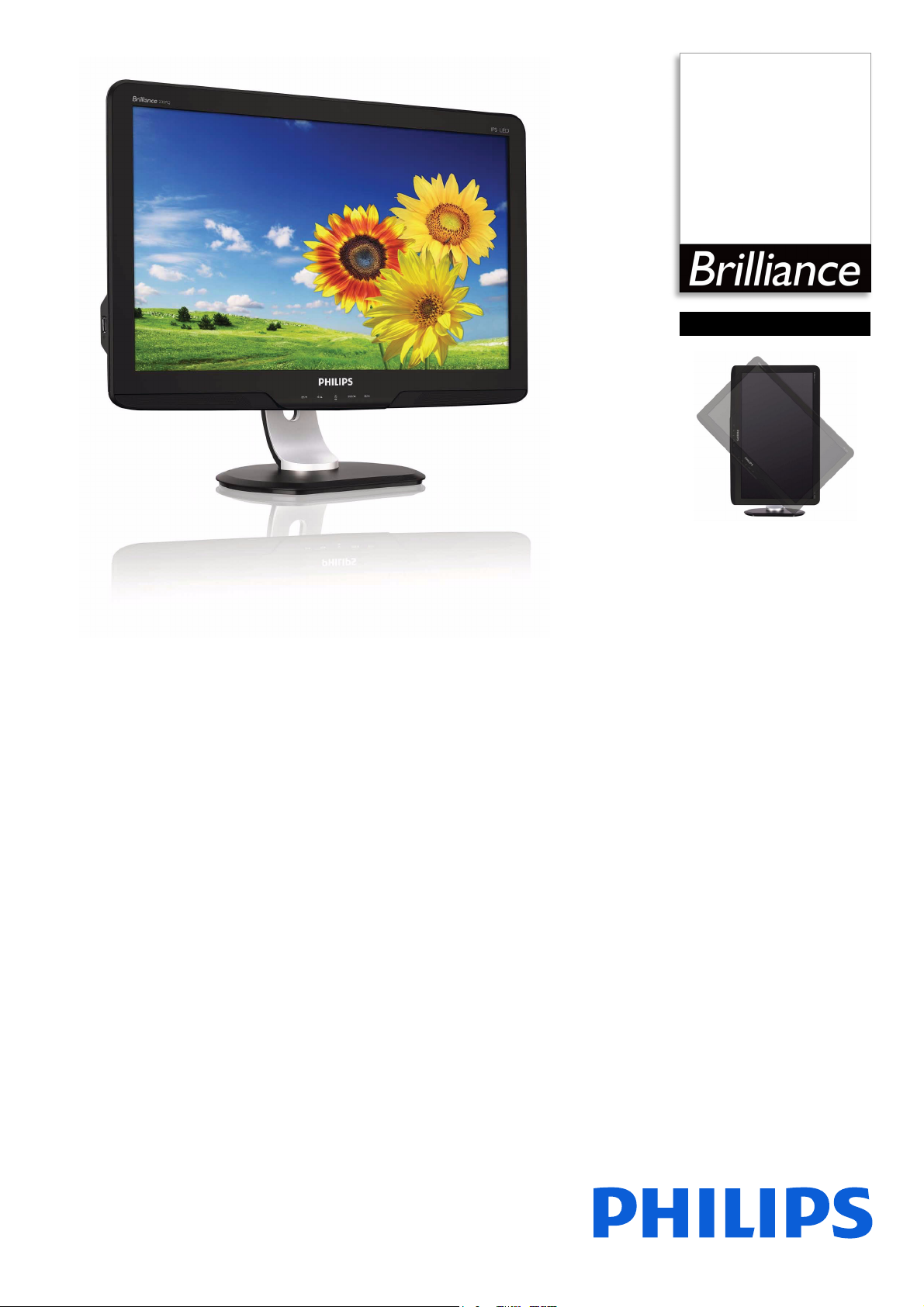

Page 1
Philips Brilliance
IPS LCD monitor, LED
backlight with
PowerSensor
P Line
23" (58.4 cm)
Full HD IPS display
235PQ2EB
Sustainable eco design display
with PowerSensor saves energy bills
The Philips PowerSensor IPS LED display using 65% recycled plastic and PVC, BFR free
housing is ideal for eco-firendly productivity
Sustainable Eco-design
• PowerSensor saves up to 80% energy costs
• 65% post consumer recycled plastics with TCO Edge
• EPEAT Gold ensures lowest impact on environment
• PVC-BFR free housing
Brilliant performance
• IPS LED wide view technology for image and color accuracy
• DisplayPort offers audio and video over a single, long cable
• Built-in stereo speakers for multimedia
Designed for people
• SmartErgoBase enables people-friendly ergonomic adjustments
• Low bezel-to-table height for maximum reading comfort
Easy to experience
• SmartImage presets for easy optimized image settings
• USB port for convenient peripheral connections
Page 2
235PQ2EB/75
IPS LCD monitor, LED backlight
P Line 23" (58.4 cm), Full HD IPS display
Highlights
PowerSensor
PowerSensor is a built-in 'people sensor' that
transmits and receives harmless infrared
signals to determine if user is present and
automatically reduces monitor brightness
when user steps away from the desk, cutting
energy costs by up to 80 percent and
prolonging monitor life
IPS technology
SmartErgoBase
The SmartErgoBase is a monitor base that
delivers ergonomic display comfort and
provides cable management. The base's
people-friendly height, swivel, tilt and rotation
angle adjustments position the monitor for
maximum comfort that can ease the physical
strains of a long workday; cable management
reduces cable clutter and keeps the workspace
neat and professional.
Low bezel-to-table height
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
EPEAT Gold
Philips EPEAT GOLD certified monitors
e
nsure protection for human health and
environment, and are highly energy efficient
ensuring low emissions of climate changing
green house gases. EPEAT program helps
purchasers evaluate, compare and select
Monitors based on 51 environmental criteria
supported by US EPA. GOLD certification
ensures that at least 30% of plastic used is Post
Consumer Resin, which ensures reduction in
use of toxic and hazardous materials. EPEAT
Gold is valid only where Philips registers the
product. Please visit www.epeat.net for
registration status in your country.
IPS displays use an advanced technology which
gives you extra wide viewing angles of 178/178
degree, making it possible to view the display
from almost any angle - even in 90 degree Pivot
mode! Unlike standard TN panels, IPS displays
gives you remarkably crisp images with vivid
colors, making it ideal not only for Photos,
movies and web browsing, but also for
professional applications which demand color
accuracy and consistent brightness at all times.
DisplayPort
DisplayPort is a digital link from PC to Monitor
w
ithout any conversion. With higher
capabilities than DVI standard, it is fully capable
to support up to 15meter cables and 10.8
Gbps/sec data transfer. With this high
performance and zero latency, you get the
fastest imaging and refresh rates - making
DisplayPort the best choice for not only
general office or home use, but also for the
demanding gaming and movies, video editing
and more. It also keeps interoperability in mind
via use of various adapters.
The Philips monitor, thanks to its advanced
SmartErgoBase, can be lowered down almost
to desk level for a comfortable viewing angle.
Low bezel-to-table height is the perfect
solution if you use bifocals, trifocals or
progressive lens glasses for your computing
work. Additionally, it allows for users with
greatly different heights to use the monitor in
their preferred angle and height settings,
helping them reduce fatigue and strain.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
TCO Edge
TCO Edge certification is given to products
w
hich go beyond existing eco-labeling
programs. Over and above standard TCO
requirements, it further mandates that the
product uses minimum 65% of post consumer
recycled plastics, is energy efficient, uses
minimal hazardous materials, has 100%
recyclable packaging, and is designed for easy
recycling amongst other requirements. You
can rest assured that this Philips monitor is a
cutting edge technology product which is best
in class ICT, benefitting you and the planet
while helping you make a responsible green IT
purchase!
PVC-BFR free housing
This Philips monitor housing is free from
b
rominated flame retardant and polyvinyl
chloride (PVC-BFR free)
Page 3
235PQ2EB/75
IPS LCD monitor, LED backlight
P Line 23" (58.4 cm), Full HD IPS display
Specifications
Picture/Display
• LCD panel type: IPS LCD
• Backlight type: W-LED system
• Panel Size: 23 inch / 58.4 cm
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• Response time (typical): 14 ms
• SmartResponse (typical): 7ms (Gray to Gray)
• Brightness: 250 cd/m²
• SmartContrast:
• Contrast ratio (typical): 1,000:1
• Pixel pitch: 0.265 x 0.265 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
•sRGB
20,000,000:1
kHz (H) / 56 -75 Hz (V)
Connectivity
• Signal Input: DisplayPort, DVI-D (digital, HDCP),
VGA (Analog )
• USB: USB 2.0 x 1
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out,
reo Audio
Ste
Convenience
• Built-in Speakers: 1.5W x 2
• User convenience: SmartImage, PowerSensor,
olume, Menu, Power On/Off
V
• Control software: SmartControl Premium
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7/Vista/XP
sR
ench, German, Italian,
Power
• ECO mode: 18.3W (typ.)
• On mode: 27.6W (EnergyStar 5.0 test method)
• Standby mode: 0.1W
• Off mode: 0.1W
• Power LED indicator: Standby mode- White
(blinking),
• Power supply: 100-240VAC, 50/60Hz, Built-in
Operation - White
Dimensions
• Product with stand (mm): 566 x 517 x 250 mm
• Product without stand (mm): 566 x 360 x 57 mm
• Packaging in mm (WxHxD): 672 x 268 x 434 mm
Weight
• Product with stand (kg): 6.40 kg
• Product without stand (kg): 4.20 kg
• Product with packaging (kg): 8.10 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: PowerSensor,
EnergyStar 5.0, EPEAT Gold, TCO edge, RoHS
• Recyclable packaging material: 100 %
• Post consumer recycled plastic: 65%
• Specific Substances: PVC / BFR free housing,
ry free, Lead free
Mercu
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC Class
B, GOST, SASO, SEMKO, TCO 5.2, TUV/GS, TUV
Ergo, UL/cUL, WEEE
Stand
• Height adjustment: 130 mm
• Pivot: Yes (auto pivot)
• Swivel: -65/65 degree
• Tilt: -5/20 degree
Issue date 2017-07-28
Version: 3.0.2
12 NC: 8670 000 84497
EAN: 87 12581 62551 1
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
•
© 2017 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
