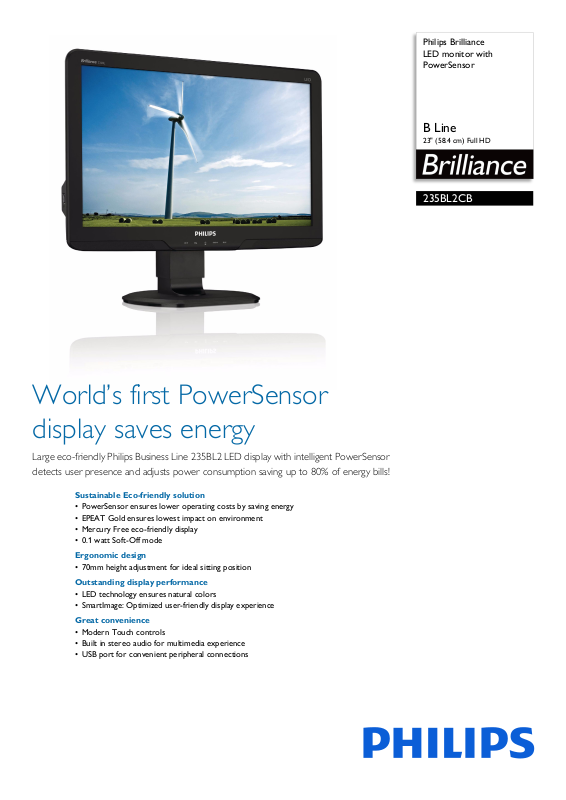

Page 1
Philips Brilliance
LED monitor with
PowerSensor
B Line
23" (58.4 cm) Full HD
235BL2CB
World’s first PowerSensor
display saves energy
Large eco-friendly Philips Business Line 235BL2 LED display with intelligent PowerSensor
detects user presence and adjusts power consumption saving up to 80% of energy bills!
Sustainable Eco-friendly solution
• PowerSensor ensures lower operating costs by saving energy
• EPEAT Gold ensures lowest impact on environment
• Mercury Free eco-friendly display
• 0.1 watt Soft-Off mode
Ergonomic design
• 70mm height adjustment for ideal sitting position
Outstanding display performance
• LED technology ensures natural colors
• SmartImage: Optimized user-friendly display experience
Great convenience
• Modern Touch controls
• Built in stereo audio for multimedia experience
• USB port for convenient peripheral connections
Page 2
235BL2CB/75
LED monitor with PowerSensor
B Line 23" (58.4 cm) Full HD
Highlights
PowerSensor
PowerSensor is a built-in 'people sensor' that
transmits and receives harmless infrared
signals to determine if user is present and
automatically reduces monitor brightness
when user steps away from the desk, cutting
energy costs by up to 80 percent and
prolonging monitor life.
LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
Mercury Free
Philips monitors with LED backlighting are free
of
Mercury content, one of the most toxic
natural substances, which affects humans and
animals. This reduces the environmental
impact of the display throughout its life-cycle,
from manufacturing to disposal.
EPEAT Gold
Philips EPEAT GOLD certified monitors
e
nsure protection for human health and
environment, and are highly energy efficient
ensuring low emissions of climate changing
green house gases. EPEAT program helps
purchasers evaluate, compare and select
Monitors based on 51 environmental criteria
supported by US EPA. GOLD certification
ensures that at least 30% of plastic used is Post
Consumer Resin, which ensures reduction in
use of toxic and hazardous materials. EPEAT
Gold is valid only where Philips registers the
product. Please visit www.epeat.net for
registration status in your country.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Image, Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
USB 2.0 port
USB port allows user to conveniently connect
their plug and play multimedia devices such as
USB memory devices, camera, portable HDD,
Web camera, PDA, Printer and many other
devices which has USB connection available.
The conveniently located USB 2.0 port on the
monitor allows USB 2.0 signals to pass thru to
the computer. Note that many devices like
cameras and HDD may need to be powered
On independently, as they have higher power
requirements than the monitor USB port can
provide
70mm height adjustment
The Compact Ergo Base is a 'people friendly'
Phil
ips monitor base that tilts, swivels and is
height adjustable so each user can position the
monitor for maximum viewing comfort and
efficiency.
Built-in stereo audio
A pair of high quality stereo speakers built into
a displa
y device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
Built-in Audio
Page 3
235BL2CB/75
LED monitor with PowerSensor
B Line 23" (58.4 cm) Full HD
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 23 inch / 58.4 cm
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• SmartContrast:
• Pixel pitch: 0.265 x 0.265 mm
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 75 Hz
(V)
•sRGB
20,000,000:1
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital, HDCP)
• USB: USB 2.0 x 1
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): Stereo Audio, Earphone out (3.5
mm jack)x 1,
PC audio-in
Convenience
• Built-in Audio: 1.5 W x 2
• User convenience: Smart
On/Off, PowerSensor, Menu
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
ndows 7/Vista/XP, sRGB
Wi
Image, Volume, Power
ench, German, Italian,
Power
• ECO mode: 17.74 W
• On mode: 22.47 W (EnergyStar 5.0 test method)
• Standby mode: 0.1 W
• Off mode: 0.1 W
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50/60Hz
Dimensions
• Product with stand (mm): 566 x 499 x 249 mm
• Product without stand (mm): 566 x 360 x 50 mm
• Packaging in mm (WxHxD): 615 x 478 x 171 mm
Weight
• Product with stand (kg): 4.57 kg
• Product without stand (kg): 4.19 kg
• Product with packaging (kg): 6.40 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EPEAT Gold, RoHS,
EnergyStar 5.0
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC, Class
B, GOST, SEMKO, TCO 5.0, TUV/GS, TUV Ergo,
UL/cUL
Stand
• Height adjustment: Up to 70 mm
•Swivel: -65/+65 degree
• Tilt: -5/20 degree
Cabinet
• Color: Black/Black
• Finish: Texture
•
Issue date 2017-07-28
Version: 2.0.3
12 NC: 8670 000 62242
EAN: 87 12581 53811 8
© 2017 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
