Ideal for swimming pools and
underwater fixture applications
using 12 or 120 volts
◗ Ideal for Applications Using
12 or 120 Volts
–Swimming pools
–Waterfall lighting
–Fountain lighting
–Reflection pools
◗ Hard, Shatter-Resistant Glass
Withstands Thermal Shock
and Vibration
◗ Specially Designed Filament Mounts
for Ruggedness and Shock Resistance
◗ 12-Volt Lamps Blend the Desired
Feature of Safety from Electric Shock
with Durability
◗Available in G-30, PAR-56, R-20
and R-40, Depending on Wattage
◗ Single Coil or Coiled Coil Filament
and Medium, Mogul or Multipurpose
Type Bases

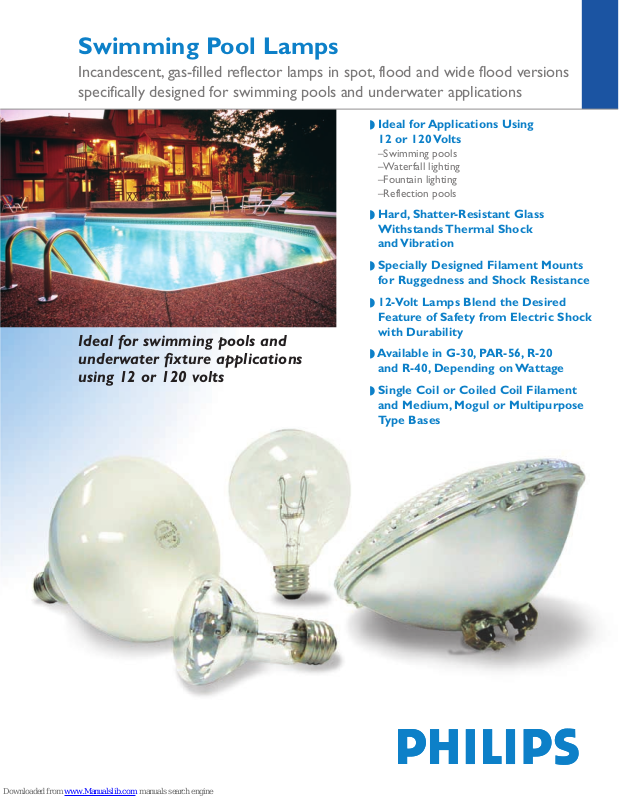

Swimming Pool Lamps
Incandescent, gas-filled reflector lamps in spot, flood and wide flood versions
specifically designed for swimming pools and underwater applications
Page 2
Std. Rated Approx.
Product Ordering Pkg. MOL Average Initial
Number Code Watts Volts Bulb Base Qty. Description Filament (In.) Life (Hrs.) Lumens
22135-8 100R20 100 120–130 R-20
■ Med. 12 Reflector Spot C-9 3
15
⁄16 2000 1000
33703-0 100R20/FL/S 100 12 R-20
■ Med. 60 Reflector Flood C-6 3
15
⁄16 2000 —
33710-5 300R/FL/1 300 12 R-40
■ Med. 24 ★ Reflector Flood, IF C-2V 6
3
⁄8 2000 —
26084-4 300PAR56/WFL 300 12 PAR-56
† M.P. 8 ★ Wide Flood C-6 4
1
⁄2 1000 6000
37442-1 300R/FL/1 300 120–130 R-40
■ Med. 24 Reflector Flood CC-11 6
3
⁄4 2000 2480
23551-5 300R/3FL 300 120 R-40 Mog. 24
★ Reflector Flood CC-11 7
1
⁄4 2000 3600
23557-2 300R/3FL 300 130 R-40 Mog. 24
★ Reflector Flood CC-11 7
1
⁄4 2000 3600
37443-9 400G/FL 400 120–130 G-30 Med. 60 Flood, Clear C-7A 5
1
⁄8 800 6645
31069-8 400R40/FL 400 120 R-40 ■ Med. 24 Reflector Flood C-7A 6 3⁄4 2000 —
37450-4 500R/3FL 500 120–130 R-40 Mog. 24 Reflector Flood, IF CC-11 7 1⁄4 2000 —
33730-3 500R/3FL/2S 500 130 R-40
■ Med. 24 ★ Reflector Flood, IF C-7A 6
7
⁄8 2000 —
Electrical,Technical and Ordering Data (Subject to change without notice)
Swimming Pool Lamps
■ Nickel plated brass base
★ Heat resisting glass bulb
† M.P. = Multipurpose screw terminal
Philips Lighting Company
200 Franklin Square Drive
P.O. Box 6800
Somerset, NJ 08875-6800
1-800-555-0050
A Division of Philips Electronics North America Corporation
Updated 7/04 P-2538-C
