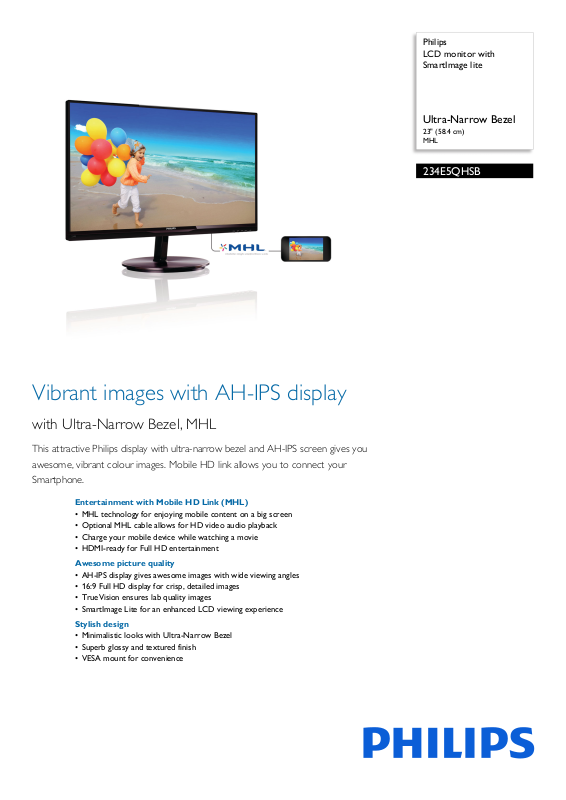

Page 1
Philips
LCD monitor with
SmartImage lite
Ultra-Narrow Bezel
23" (58.4 cm)
MHL
234E5QHSB
Vibrant images with AH-IPS display
with Ultra-Narrow Bezel, MHL
This attractive Philips display with ultra-narrow bezel and AH-IPS screen gives you
awesome, vibrant colour images. Mobile HD link allows you to connect your
Smartphone.
Entertainment with Mobile HD Link (MHL)
• MHL technology for enjoying mobile content on a big screen
• Optional MHL cable allows for HD video audio playback
• Charge your mobile device while watching a movie
• HDMI-ready for Full HD entertainment
Awesome picture quality
• AH-IPS display gives awesome images with wide viewing angles
• 16:9 Full HD display for crisp, detailed images
• TrueVision ensures lab quality images
• SmartImage Lite for an enhanced LCD viewing experience
Stylish design
• Minimalistic looks with Ultra-Narrow Bezel
• Superb glossy and textured finish
• VESA mount for convenience
Page 2
234E5QHSB/01
LCD monitor with SmartImage lite
Ultra-Narrow Bezel 23" (58.4 cm), MHL
Highlights
MHL technology
Mobile High-Definition Link (MHL) is a mobile
audio/video interface for directly connecting
mobile phones and other portable devices to
high-definition displays. An optional MHL cable
allows you to simply connect your MHLcapable mobile device to this large Philips MHL
display and watch your HD videos come to life
with full digital sound. Now not only can you
enjoy your mobile games, photos, movies or
other apps on its big screen, you can
simultaneously charge your mobile device so
you never run out of power halfway.
AH-IPS technology
Ultra-Narrow Bezel
Utilising the latest technology panels, the new
Phili
ps displays are designed with a minimalistic
approach by limiting the outer bezel thickness
to about 2.5 mm. Combined with an in-panel
bl
ack matrix strip of around 9 mm, the overall
be
zel dimensions are reduced significantly,
minimising distractions and maximising viewing
size. Especially suited to multi-display or tiling
setups like gaming, graphics design and
professional applications, the Ultra-narrow
bezel display gives you the feeling of using one
large display.
SmartImage Lite
SmartImage Lite is an exclusive, leading edge
Phili
ps technology that analyses the content
displayed on your screen. Based on a scenario
you select, SmartImage Lite dynamically
enhances the contrast, colour saturation and
sharpness of images and videos for ultimate
display performance - all in real time with the
press of a single button.
HDMI Ready
16:9 Full HD display
Picture quality matters. Regular displays deliver
quality, but you expect more. This display
features enhanced Full HD 1920 x 1080
resolution. With Full HD for crisp detail paired
with high brightness, incredible contrast and
realistic colours, expect a true-to-life picture.
TrueVision
AH-IPS displays use an advanced technology
that gives you extra-wide viewing angles of
178/178 degrees, making it possible to view
th
e display from almost any angle. Unlike
standard TN panels, AH-IPS displays give you
remarkably crisp images with vivid colours,
making them ideal not only for Photos, movies
and web browsing, but also for professional
applications that demand colour accuracy and
consistent brightness at all times.
TrueVision is a proprietary Philips technology
that uses an advanced algorithm for testing and
aligning monitor display, which gives you the
ultimate display performance. Philips ensures
that TrueVision monitors leave the factory
fine-tuned with this process giving you
consistent colour and picture quality.
An HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input. An HDMI
cable enables high-quality digital video and
audio to be transmitted over a single cable
from a PC or any number of AV sources
(including set-top boxes, DVD players, A/V
receivers and video cameras).
Page 3
234E5QHSB/01
LCD monitor with SmartImage lite
Ultra-Narrow Bezel 23" (58.4 cm), MHL
Specifications
Picture/Display
• LCD panel type: AH-IPS LCD
• Backlight type: W-LED system
• Panel Size: 23 inch/58.4 cm
• Effective viewing area: 509.18 (H) x 286.41 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• SmartResponse (typical): 5 ms (Grey to Grey)
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
• Pixel pitch: 0.265 x 0.265 mm
• Viewing angle: 178º (H)/178º (V),
• Picture enhancement: SmartImage Lite
• Display colours: 16.7 M
• Scanning Frequency: 30–83 kHz (H)/56–75 Hz (V)
• MHL: 1080p@30Hz
•sRGB
20,000,000:1
@ C/R > 10
Connectivity
• Signal Input: HDMI (digital, HDCP), MHL-HDMI
(digital, HDCP), VGA (Analogue)
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): HDMI audio out
Convenience
• User convenience: Power On/Off, Menu, 4:3/
Wide, Input, SmartImage Lite
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukrainian
• Other convenience: Kensington lock, VESA mount
(100 x 100 mm)
• Plug and Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7, Windows 8
sR
Stand
• Tilt: -5/20 degree
Power
• On mode: 28.4 W (typ.)
• Standby mode: 0.5 W (typ.)
• Off mode: 0.3 W (typ.)
• Power LED indicator: Operation - White, Standby
mode - White (f
• Power supply: External, 100–240 VAC, 50–60 Hz
lashing)
Dimensions
• Product with stand (mm): 532 x 414 x 213 mm
• Product without stand (mm): 532 x 325 x 45 mm
• Packaging in mm (W x H x D): 577 x 475 x 105 mm
Weight
• Product with stand (kg): 3.46 kg
• Product without stand (kg): 3.11 kg
• Product with packaging (kg): 5.16 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20–80% %
• Altitude: Operation: +12,000 ft (3658 m), Non-
eration: +40,000 ft (12,192 m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: RoHS, Lead-free,
Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, cETLus,
FCC Class B, GOST, SASO, SEMKO, TUV/
ISO9241-307, WEEE
Cabinet
• Colour: Black Cherry/Black
•Finish: Glossy
•
Issue date 2022-04-21
Version: 8.1.1
12 NC: 8670 000 99719
EAN: 87 12581 67561 5
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* Requires optional MHL-certified mobile device and MHL cable (not
included). Please check with your MHL device vendor for
compatibility.
* Standby/Off energy saving of ErP is not applicable for the MHL
charging functionality
* "IPS" word mark / trademark and related patents on technologies
belong to their respective owners.
