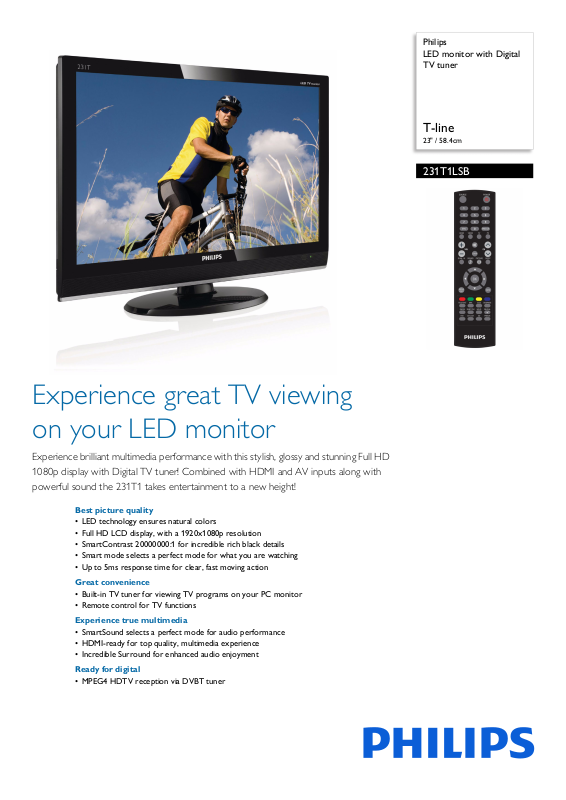

Page 1
Philips
LED monitor with Digital
TV tuner
T-line
23" / 58.4cm
231T1LSB
Experience great TV viewing
on your LED monitor
Experience brilliant multimedia performance with this stylish, glossy and stunning Full HD
1080p display with Digital TV tuner! Combined with HDMI and AV inputs along with
powerful sound the 231T1 takes entertainment to a new height!
Best picture quality
• LED technology ensures natural colors
• Full HD LCD display, with a 1920x1080p resolution
• SmartContrast 20000000:1 for incredible rich black details
• Smart mode selects a perfect mode for what you are watching
• Up to 5ms response time for clear, fast moving action
Great convenience
• Built-in TV tuner for viewing TV programs on your PC monitor
• Remote control for TV functions
Experience true multimedia
• SmartSound selects a perfect mode for audio performance
• HDMI-ready for top quality, multimedia experience
• Incredible Surround for enhanced audio enjoyment
Ready for digital
• MPEG4 HDTV reception via DVBT tuner
Page 2
LED monitor with Digital TV tuner
®
T-line 23" / 58.4cm
Highlights
231T1LSB/00
LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
MPEG4 HDTV
HDTV allows you to watch High Definition TV
in
the best picture and sound quality without
additional set-top box. With the built in DVBT
tuner that can handle state-of-the-art MPEG-4
formats, you can now receive and watch High
Definition TV programs and other rich
multimedia contents in Digital Quality
Full HD LCD display 1920x1080p
The Full HD screen has the widescreen
resolution of 1920 x 1080p. This is the highest
resolution of HD sources for the best possible
picture quality. It is fully future proof as it
supports 1080p signals from all sources,
including the most recent like Blu-ray and
advanced HD game consoles. The signal
processing is extensively upgraded to support
this much higher signal quality and resolution.
It produces brilliant flicker-free progressive
scan pictures with superb brightness and
colors.
HDMI Ready
A HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input, high quality
digital video and audio signals all transmitted
over a single cable from a PC or any number of
AV sources including set-top boxes, DVD
players and A/V receivers and video cameras.
Smart mode
The optimum picture and sound depends on
v
arious aspects like the video source, content
type, surroundings of the room, type of display
device etc. Smart Mode has predefined picture
and sound settings conveniently preset by the
way you use your TV. The ‘Personal’ setting,
allows you to define the picture settings
according to your preference, store it and gain
easy access for future selection. All these
conveniently built into your TV for optimal
settings.
SmartContrast ratio 20000000:1
You want the LCD flat display with the highest
contrast and most vibrant images. Philips
advanced video processing combined with
unique extreme dimming and backlight
boosting technology results in vibrant images.
SmartContrast will increase the contrast with
excellent blacklevel and accurate rendition of
dark shades and colors. It gives a bright, lifelike
picture with high contrast and vibrant colors.
Incredible Surround
Incredible Surround is an audio technology
from Philips that dramatically magnifies the
sound field to immerse you in the audio. Using
state-of-the-art electronic phase shifting,
Incredible Surround mixes sounds from left
and right in such a way that it expands the
virtual distance between the two speakers.
This wider spread greatly enhances the stereo
effect and creates a more natural sound
dimension. Incredible Surround allows you to
experience total surround with greater depth
and width of sound, without the use of
additional speakers.
5ms response time
Response time measures signal reaction speed
i
n milliseconds. Faster response time is better
as it eliminates visible image artifacts that could
dampen your experience when viewing fast
moving images or objects. In this case, this
LCD panel gives you 5ms response time so
that you can watch your LCD TV with a clear,
fast moving action.
Page 3
LED monitor with Digital TV tuner
T-line 23" / 58.4cm
Specifications
231T1LSB/00
Picture/Display
• Aspect ratio: Widescreen, 16:9
• Brightness: 250 cd/m²
• SmartContrast: 20
• Contrast ratio (typical): 1000:1
• Diagonal screen size: 23 inch / 58.42 cm
• Panel resolution: 1920 x 1080
• Picture enhancement: Progressi
TrueVision
• Response time (typical): 5 ms
• Screen enhancement: Anti-Reflection coated
re
en
sc
• Viewing angle: 170º (H) / 160º (V)
,000,000:1
ve sc
an,
Supported Display Resolution
• Computer formats
Resolution Refresh rate
1920 x 1080 60Hz
deo formats
• Vi
Res
olution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 50, 60Hz
Sound
• Output power (RMS): 2 x 5W
• Sound Enhancement: Incredible Surround, Smart
Sound
• Sound System: Mono, Stereo
Convenience
• Ease of Installation: Automatic Tuning System
(ATS), Plug & Play
• Ease of Use: Program List, Side Control
• Remote control: 231T1 Remote control
• On-Screen Display languages: Bulgarian
Czech, Danish, Dutch, English, Finnish, French,
German, Greek, Hungarian, Italian, Norwegian,
Polish, Portuguese, Russian, Serbian, Simplified
Chinese, Slovakian, Slovenian, Spanish, Swedish,
Turkish
• Other convenience: VESA mount (100x100mm)
,
Croatian,
• Screen Format Adjustments: Widescreen, Normal,
om 1, Zo
Zo
Super Zoom
• Smart mode: Movie, Persona
•SmartSound: Music, Spee
• Teletext: 1000 page Smart Text
om 2, Auto Format, Subtitle Zoom,
l
, Vivid, Standard, Eco
ch, Personal
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL I, PAL B/G, PAL
SECAM D/K, SECAM L/L'
• Video Playback: NTSC, SECAM, PAL
•Tuner Display: PLL
• Digital TV: DVB Terrestrial *
• Tuner bands: Hyperband, S-Channel, UHF, VHF
D/K, SECAM B/G,
Connectivity
• Signal Input: VGA (Analog ), HDMI, PC Audio in
• Ext 1: SCART in
• Ext 2: YPbPr in, Audio L/R in
• Ext 3: CVBS out, Audio L/R out
• Other connections: Common Interface, CVBS in,
/
R in, USB Service port, S/PDIF out
Audio L
(coaxial)
Power
• On mode: 33.40 W (Typ.@monitor mode)
• Off mode: 0.18 W
• Ambient temperature: 0 °C to 40 °C
• Mains power: 100-240V, 50/60Hz
Dimensions
• Product with stand (mm): 399 x 560 x 176 mm
• Product without stand (mm): 364 x 560 x 65 mm
• Packaging in mm (WxHxD): 477 x 653 x 160 mm
Weight
• Product with stand (kg): 5.53 kg
• Product without stand (kg): 5.35 kg
• Product with packaging (kg): 7.59 kg
Accessories
• Included accessories: Table top stand, Power cord,
Quick start guide, User Manual, Remote Control,
Batteries for remote control
•
Issue date 2014-03-18
Version: 3.0.1
12 NC: 8670 000 74789
EAN: 87 12581 59592 0
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
