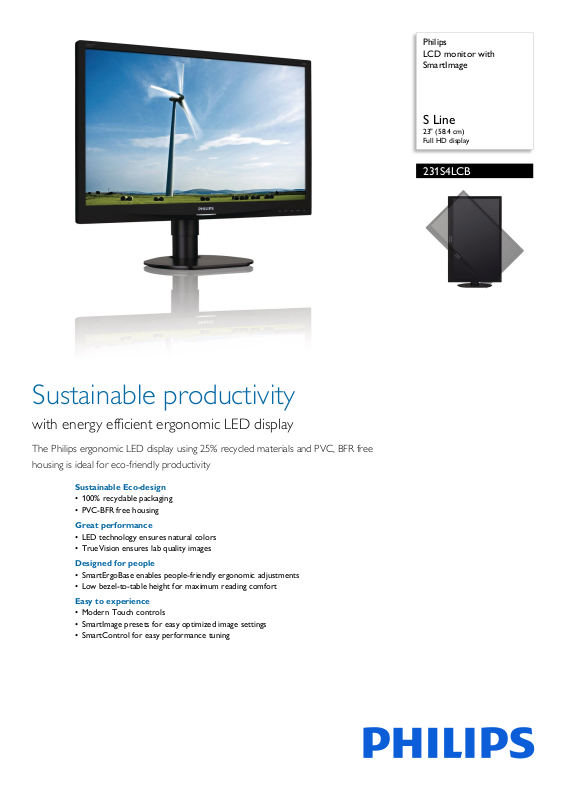

Page 1
Philips
LCD monitor with
SmartImage
S Line
23" (58.4 cm)
Full HD display
231S4LCB
Sustainable productivity
with energy efficient ergonomic LED display
The Philips ergonomic LED display using 25% recycled materials and PVC, BFR free
housing is ideal for eco-friendly productivity
Sustainable Eco-design
• 100% recyclable packaging
• PVC-BFR free housing
Great performance
• LED technology ensures natural colors
• TrueVision ensures lab quality images
Designed for people
• SmartErgoBase enables people-friendly ergonomic adjustments
• Low bezel-to-table height for maximum reading comfort
Easy to experience
• Modern Touch controls
• SmartImage presets for easy optimized image settings
• SmartControl for easy performance tuning
Page 2
231S4LCB/00
LCD monitor
S Line 23" (58.4 cm), Full HD display
Highlights
LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
SmartErgoBase
The SmartErgoBase is a monitor base that
delivers ergonomic display comfort and
provides cable management. The base's
people-friendly height, swivel, tilt and rotation
angle adjustments position the monitor for
maximum comfort that can ease the physical
strains of a long workday; cable management
reduces cable clutter and keeps the workspace
neat and professional.
Low bezel-to-table height
The Philips monitor, thanks to its advanced
SmartErgoBase, can be lowered down almost
to desk level for a comfortable viewing angle.
Low bezel-to-table height is the perfect
solution if you use bifocals, trifocals or
progressive lens glasses for your computing
work. Additionally, it allows for users with
greatly different heights to use the monitor in
their preferred angle and height settings,
helping them reduce fatigue and strain.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
TrueVision
TrueVision is a proprietary Philips technology
that uses advanced algorithm for testing and
aligning monitor display which gives you the
ultimate display performance. Philips ensures
TrueVision monitors leave the factory finetuned with this process giving you consistent
color and picture quality.
SmartControl for easy tuning
PC software for fine tuning display
p
erformance and settings. Philips offers users
two choices for display setting adjustment.
Either navigate the multilevel On Screen
Display menu through buttons on the display
itself or use the Philips SmartControl software
to easily adjust the various display settings in a
familiar way
Touch controls
Touch controls are intelligent, touch sensitive
icons that replace protruding buttons that lets
the user adjust the monitor to their
requirement. Responding to your lightest
touch,Touch control gives the monitor a
modern feel.
Sustainability
Philips is committed to use sustainable, ecofriendly m
body plastic parts, metal chassis parts and
packing materials use 100% recyclable
materials. In selected models, we utilize >=
65% Post-Consumer Recycled plastics,
ensuring reduction in waste. Strict adherence
to RoHS standards ensure substantial
reduction or elimination of toxic substances
like Lead and Mercury. Our display housing is
made up of PVC/BFR free material. For more
information, please visit Philips @ http://
www.asimpleswitch.com/global/ to learn
more.
PVC-BFR free housing
This Philips monitor housing is free from
b
rominated flame retardant and polyvinyl
chloride (PVC-BFR free)
aterials across its monitor range. All
Page 3
231S4LCB/00
LCD monitor
S Line 23" (58.4 cm), Full HD display
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 23 inch / 58.4 cm
• Effective viewing area: 509.18 (H) x 286.41 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1,000:1
• SmartContrast:
• Pixel pitch: 0.265 x 0.265 mm
• Viewing angle: 170º (H) / 160º (V), @ C/R > 10
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
•sRGB
20,000,000:1
kHz (H) / 56 -75 Hz (V)
Connectivity
• Signal Input: DVI-D (digital, HDCP), VGA (Analog )
• Sync Input: Separate Sync, Sync on Green
Convenience
• User convenience: SmartImage, Brightness,
SmartPower, Menu, Power On/Off
• Control software: SmartControl Premium
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 8/7/Vista/XP
sR
ench, German, Italian,
Stand
• Height adjustment: 110 mm
• Pivot: 90 degree
• Swivel: -65/65 degree
• Tilt: -5/20 degree
Power
• ECO mode: 15.3 W (typ.)
• On mode: 21.3 W (EnergyStar 5.0 test method)
• Standby mode: 0.1W
• Off mode: 0.1W
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: 100-240VAC, 50-60Hz, Built-in
Dimensions
• Packaging in mm (WxHxD): 620 x 401 x 167 mm
• Product with stand (mm): 547 x 507 x 227 mm
• Product without stand (mm): 547 x 343 x 60 mm
Weight
• Product with packaging (kg): 6.81 kg
• Product with stand (kg): 4.92 kg
• Product without stand (kg): 3.03 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 5.0, RoHS
• Recyclable packaging material: 100 %
• Recycled material: 25%
• Specific Substances: PVC / BFR free housing,
ry free
Mercu
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC Class
B, GOST, SASO, SEMKO, TUV Ergo, TUV/GS, UL/
cUL, WEEE
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
•
Issue date 2021-02-25
Version: 5.0.1
12 NC: 8670 000 89094
EAN: 87 12581 64101 6
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
