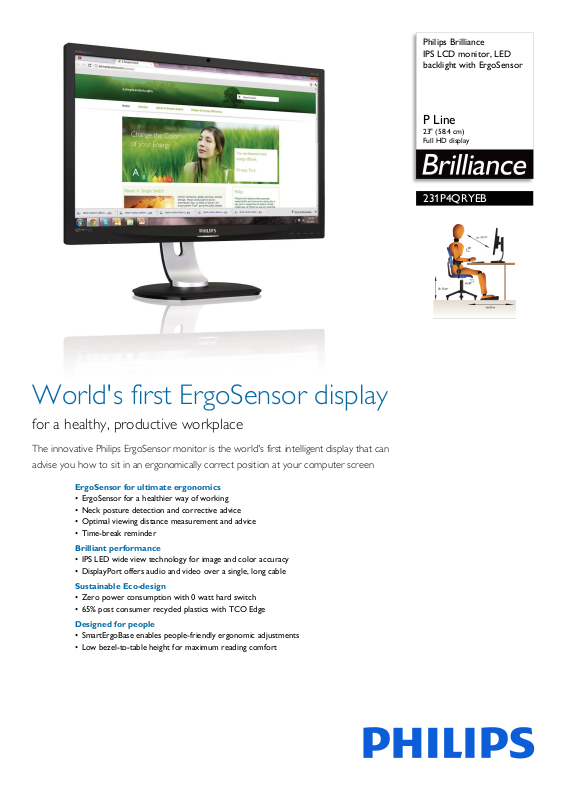

Page 1
Philips Brilliance
IPS LCD monitor, LED
backlight with ErgoSensor
P Line
23" (58.4 cm)
Full HD display
231P4QRYEB
World's first ErgoSensor display
for a healthy, productive workplace
The innovative Philips ErgoSensor monitor is the world's first intelligent display that can
advise you how to sit in an ergonomically correct position at your computer screen
ErgoSensor for ultimate ergonomics
• ErgoSensor for a healthier way of working
• Neck posture detection and corrective advice
• Optimal viewing distance measurement and advice
• Time-break reminder
Brilliant performance
• IPS LED wide view technology for image and color accuracy
• DisplayPort offers audio and video over a single, long cable
Sustainable Eco-design
• Zero power consumption with 0 watt hard switch
• 65% post consumer recycled plastics with TCO Edge
Designed for people
• SmartErgoBase enables people-friendly ergonomic adjustments
• Low bezel-to-table height for maximum reading comfort
Page 2
231P4QRYEB/75
IPS LCD monitor, LED backlight
P Line 23" (58.4 cm), Full HD display
Highlights
ErgoSensor
It is Philips firm belief that work should be
s
uited to people, and not the other way
around. To promote a healthier and
productive workplace, Philips has developed
world's first innovative technology called
"ErgoSensor" which is embedded in the
monitor to sense and measure the user's
behavior. ErgoSensor advises users how to sit
in an ergonomic position at their computer
with a corrective feedback on optimal viewing
distance, ergonomic neck angle, and a time
break advice. It also saves upto 80% energy
consumption if user is not present on the seat
by powering off the monitor.
IPS technology
IPS displays use an advanced technology which
gives you extra wide viewing angles of 178/178
degree, making it possible to view the display
from almost any angle - even in 90 degree Pivot
mode! Unlike standard TN panels, IPS displays
gives you remarkably crisp images with vivid
colors, making it ideal not only for Photos,
movies and web browsing, but also for
professional applications which demand color
accuracy and consistent brightness at all times.
to support up to 15meter cables and 10.8
Gbps/sec data transfer. With this high
performance and zero latency, you get the
fastest imaging and refresh rates - making
DisplayPort the best choice for not only
general office or home use, but also for the
demanding gaming and movies, video editing
and more. It also keeps interoperability in mind
via use of various adapters.
SmartErgoBase
The SmartErgoBase is a monitor base that
delivers ergonomic display comfort and
provides cable management. The base's
people-friendly height, swivel, tilt and rotation
angle adjustments position the monitor for
maximum comfort that can ease the physical
strains of a long workday; cable management
reduces cable clutter and keeps the workspace
neat and professional.
Low bezel-to-table height
to desk level for a comfortable viewing angle.
Low bezel-to-table height is the perfect
solution if you use bifocals, trifocals or
progressive lens glasses for your computing
work. Additionally, it allows for users with
greatly different heights to use the monitor in
their preferred angle and height settings,
helping them reduce fatigue and strain.
TCO Edge
TCO Edge certification is given to products
w
hich go beyond existing eco-labeling
programs. Over and above standard TCO
requirements, it further mandates that the
product uses minimum 65% of post consumer
recycled plastics, is energy efficient, uses
minimal hazardous materials, has 100%
recyclable packaging, and is designed for easy
recycling amongst other requirements. You
can rest assured that this Philips monitor is a
cutting edge technology product which is best
in class ICT, benefitting you and the planet
while helping you make a responsible green IT
purchase!
Zero power consumption
At the flick of the 0 watt hard switch which is
convenient
completely cut-off your monitor from AC
power. This results in zero power
consumption reducing your carbon footprint
even further
ly located at the back, you can
DisplayPort
DisplayPort is a digital link from PC to Monitor
w
ithout any conversion. With higher
capabilities than DVI standard, it is fully capable
The Philips monitor, thanks to its advanced
SmartErgoBase, can be lowered down almost
Page 3
231P4QRYEB/75
IPS LCD monitor, LED backlight
P Line 23" (58.4 cm), Full HD display
Specifications
Picture/Display
• LCD panel type: IPS LCD
• Backlight type: W-LED system
• Panel Size: 23 inch / 58.4 cm
• Effective viewing area: 509.18 (H) x 286.41 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920x 1080 @ 60Hz
• Response time (typical): 14 ms
• SmartResponse (typical): 7 ms (Gray to Gray)
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
• Pixel pitch: 0.265 x 0.265 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 75 Hz
(V)
•sRGB
20
,000,000:1
Connectivity
• Signal Input: DisplayPort, DVI-D (digital, HDCP),
VGA (Analog )
• USB: USB 2.0 x 4
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 1.5Wx2
• User convenience: SmartI
Menu, Power On/Off
• Control software: SmartControl Premium
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish
• Other convenience: Kensington lock, VESA mount
00mm)
(100x1
• Plug & Play Compatibility: DDC/CI, Mac OS X,
sRGB, Windo
ws 7/Vista/XP
mage, Volume, Ergo,
enc
h, German, Italian,
Stand
• Height adjustment: 130 mm
• Pivot: 90 degree, clockwise, auto pivot
• Swivel: -65/65 degree
• Tilt: -5/20 degree
Power
• ECO mode: 18 W (typ.)
• On mode: 29.1 W (EnergyStar 5.0 test method)
• Standby mode: 0.3 W
• Off mode: Zero watts with Zero switch
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: 100-240VAC, 50-60Hz, Built-in
Dimensions
• Product with stand (mm): 547 x 515 x 220 mm
• Product without stand (mm): 547 x 343 x 60 mm
• Packaging in mm (WxHxD): 600 x 400 x 263 mm
Weight
• Product with stand (kg): 5.23 kg
• Product without stand (kg): 3.09 kg
• Product with packaging (kg): 7.70 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
erat
ion: +40,000ft (12,192m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: ErgoSensor, EnergyStar
5.0, EPEAT Gold*, TCO edge, RoHS
• Recyclable packaging material: 100 %
• Post consumer recycled plastic: 65%
• Specific Substances: PVC / BFR free housing,
r
y free, Lead free
Mercu
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC Class
B, GOST, SASO, SEMKO, TCO 5.2, TUV Ergo,
TUV/GS, UL/cUL, WEEE
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
•
Issue date 2022-04-21
Version: 5.0.1
12 NC: 8670 000 89144
EAN: 87 12581 64138 2
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* EPEAT Gold is valid only where Philips registers the product. Please
visit www.epeat.net for registration status in your country.
