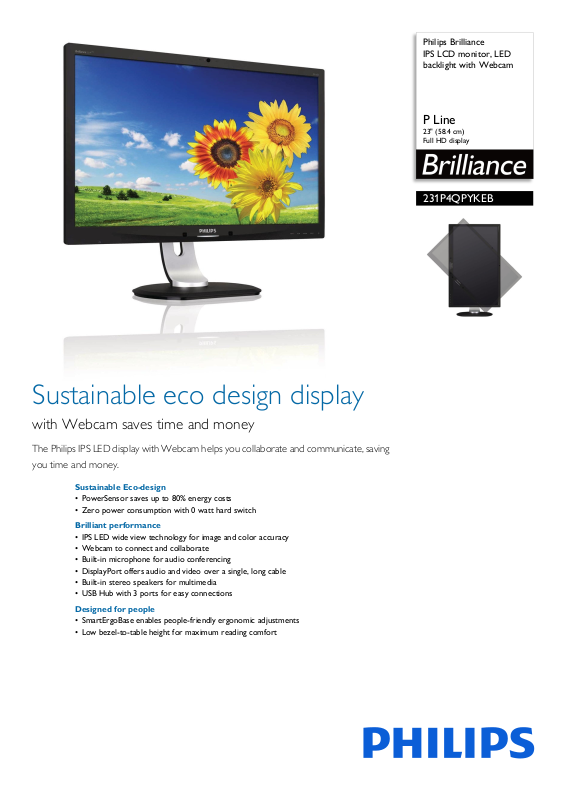

Page 1
Philips Brilliance
IPS LCD monitor, LED
backlight with Webcam
P Line
23" (58.4 cm)
Full HD display
231P4QPYKEB
Sustainable eco design display
with Webcam saves time and money
The Philips IPS LED display with Webcam helps you collaborate and communicate, saving
you time and money.
Sustainable Eco-design
• PowerSensor saves up to 80% energy costs
• Zero power consumption with 0 watt hard switch
Brilliant performance
• IPS LED wide view technology for image and color accuracy
• Webcam to connect and collaborate
• Built-in microphone for audio conferencing
• DisplayPort offers audio and video over a single, long cable
• Built-in stereo speakers for multimedia
• USB Hub with 3 ports for easy connections
Designed for people
• SmartErgoBase enables people-friendly ergonomic adjustments
• Low bezel-to-table height for maximum reading comfort
Page 2
231P4QPYKEB/00
IPS LCD monitor, LED backlight
P Line 23" (58.4 cm), Full HD display
Highlights
PowerSensor
PowerSensor is a built-in 'people sensor' that
transmits and receives harmless infrared
signals to determine if user is present and
automatically reduces monitor brightness
when user steps away from the desk, cutting
energy costs by up to 80 percent and
prolonging monitor life
IPS technology
DisplayPort
DisplayPort is a digital link from PC to Monitor
w
ithout any conversion. With higher
capabilities than DVI standard, it is fully capable
to support up to 15meter cables and 10.8
Gbps/sec data transfer. With this high
performance and zero latency, you get the
fastest imaging and refresh rates - making
DisplayPort the best choice for not only
general office or home use, but also for the
demanding gaming and movies, video editing
and more. It also keeps interoperability in mind
via use of various adapters.
SmartErgoBase
requirements than the monitor USB Hub can
provide.
Built-in stereo speakers
A pair of high quality stereo speakers built into
a display device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
Low bezel-to-table height
IPS displays use an advanced technology which
gives you extra wide viewing angles of 178/178
degree, making it possible to view the display
from almost any angle - even in 90 degree Pivot
mode! Unlike standard TN panels, IPS displays
gives you remarkably crisp images with vivid
colors, making it ideal not only for Photos,
movies and web browsing, but also for
professional applications which demand color
accuracy and consistent brightness at all times.
Webcam
Embedded webcam and microphone enables
you t
o view and communicate with your
colleagues and clients. This simple solution
allows you to collaborate and share, saving
precious time and travel related costs.
The SmartErgoBase is a monitor base that
delivers ergonomic display comfort and
provides cable management. The base's
people-friendly height, swivel, tilt and rotation
angle adjustments position the monitor for
maximum comfort that can ease the physical
strains of a long workday; cable management
reduces cable clutter and keeps the workspace
neat and professional.
3 Ports USB 2.0 HUB
USB Hub allows user to conveniently connect
th
eir plug and play multimedia devices such as
USB memory devices, camera, portable HDD,
Web camera, PDA, Printer and many other
devices which has USB connection available.
The conveniently located USB 2.0 Hub on the
monitor allows USB 2.0 signals to pass thru to
the computer. Note that many devices like
cameras and HDD may need to be powered
On independently, as they have higher power
The Philips monitor, thanks to its advanced
SmartErgoBase, can be lowered down almost
to desk level for a comfortable viewing angle.
Low bezel-to-table height is the perfect
solution if you use bifocals, trifocals or
progressive lens glasses for your computing
work. Additionally, it allows for users with
greatly different heights to use the monitor in
their preferred angle and height settings,
helping them reduce fatigue and strain.
Zero power consumption
At the flick of the 0 watt hard switch which is
convenient
completely cut-off your monitor from AC
power. This results in zero power
consumption reducing your carbon footprint
even further
ly located at the back, you can
Page 3
231P4QPYKEB/00
IPS LCD monitor, LED backlight
P Line 23" (58.4 cm), Full HD display
Specifications
Picture/Display
• LCD panel type: IPS LCD
• Backlight type: W-LED system
• Panel Size: 23 inch / 58.4 cm
• Effective viewing area: 509.18 (H) x 286.41 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• SmartResponse (typical): 7 ms (Gray to Gray)
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast: 20
• Pixel pitch: 0.265 x 0.265 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 75 Hz
(V)
•sRGB
,000,000 :1
Connectivity
• Signal Input: DisplayPort x 1, DVI-D (digital,
HDCP), VGA (Analog )
• USB: USB 2.0 x 3
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Microphone,
Headph
one out
Convenience
• Built-in Speakers: 1.5Wx2
• Built-in webcam: 2.0 megapixel camera with
hone and LED indictor
microp
• User convenience: Smart
PowerSensor, Menu, Power On/Off
• Control software: SmartControl Premium
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7/Vista/XP
sR
Image, Volume,
ench, German, Italian,
Stand
• Height adjustment: 130 mm
• Pivot: 90 degree
• Swivel: -65/65 degree
• Tilt: -5/20 degree
Power
• ECO mode: 18 W (typ.)
• On mode: 29.1 W (EnergyStar 5.0 test method)
• Standby mode: 0.3 W
• Off mode: Zero watts with Zero switch
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: 100-240VAC, 50-60Hz, Built-in
Dimensions
• Product with stand (mm): 547 x 515 x 220 mm
• Product without stand (mm): 547 x 343 x 60 mm
• Packaging in mm (WxHxD): 600 x 400 x 263 mm
Weight
• Product with stand (kg): 5.23 kg
• Product without stand (kg): 3.09 kg
• Product with packaging (kg): 7.70 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: PowerSensor,
EnergyStar 5.0, TCO Certified Edge, RoHS
• Recyclable packaging material: 100 %
• Post consumer recycled plastic: 65%
• Specific Substances: PVC / BFR free housing,
ry free
Mercu
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC Class
B, GOST, SASO, SEMKO, TUV Ergo, TUV/GS, UL/
cUL, WEEE
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
What's in the box?
• Monitor with stand
• Cables: VGA, DVI, DP, Audio, USB, Power
•User Documentation
•
Issue date 2022-04-21
Version: 10.0.1
12 NC: 8670 000 89135
EAN: 87 12581 64132 0
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
