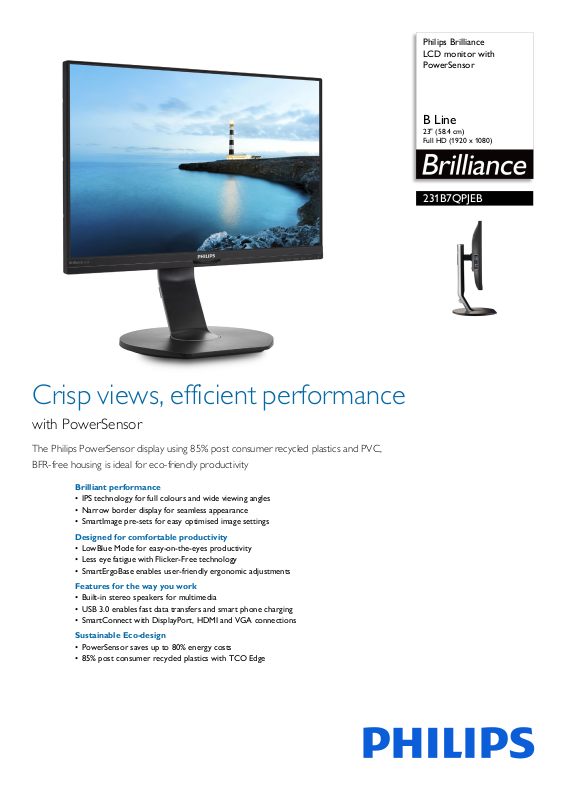

Philips Brilliance
LCD monitor with
PowerSensor
B Line
23" (58.4 cm)
Full HD (1920 x 1080)
231B7QPJEB
Crisp views, efficient performance
with PowerSensor
The Philips PowerSensor display using 85% post consumer recycled plastics and PVC,
BFR-free housing is ideal for eco-friendly productivity
Brilliant performance
• IPS technology for full colours and wide viewing angles
• Narrow border display for seamless appearance
• SmartImage pre-sets for easy optimised image settings
Designed for comfortable productivity
• LowBlue Mode for easy-on-the-eyes productivity
• Less eye fatigue with Flicker-Free technology
• SmartErgoBase enables user-friendly ergonomic adjustments
Features for the way you work
• Built-in stereo speakers for multimedia
• USB 3.0 enables fast data transfers and smart phone charging
• SmartConnect with DisplayPort, HDMI and VGA connections
Sustainable Eco-design
• PowerSensor saves up to 80% energy costs
• 85% post consumer recycled plastics with TCO Edge
Page 2
231B7QPJEB/00
LCD monitor with PowerSensor
B Line 23" (58.4 cm), Full HD (1920 x 1080)
Highlights
IPS technology
IPS displays use advanced technology that gives
you extra-wide viewing angles of 178/178
degrees, making it possible to view the display
from almost any angle — even in 90-degree
Pivot mode! Unlike standard TN panels, IPS
displays gives you remarkably crisp images with
vivid colours, making it ideal not only for
Photos, films and web browsing, but also for
professional applications that demand colour
accuracy and consistent brightness at all times.
Ultra-narrow Border
The new Philips displays feature ultra-narrow
borders which allow for minimal distractions
and maximum viewing size. Especially suited
for multi-display or tiling setups like gaming,
graphic design and professional applications,
the ultra-narrow border display gives you the
feeling of using one large display.
on your screen and optimises your display
performance. This user-friendly interface
allows you to select various modes, like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimises the
contrast, colour saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
at the touch of a single button!
LowBlue Mode
Studies have shown that just as ultra-violet rays
can cause eye damage, shortwave-length blue
light rays from LED displays can cause eye
damage and affect vision over time. Developed
for wellbeing, the Philips LowBlue Mode
setting uses a smart software technology to
reduce harmful shortwave blue light.
Flicker-Free technology
SmartErgoBase
The SmartErgoBase is a monitor base that
delivers ergonomic display comfort and
provides cable management. The user-friendly
height, swivel, tilt and rotation angle
adjustments of the base allow the monitor to
be positioned for maximum comfort to help
ease the physical strains of a long workday. In
addition, cable management reduces cable
clutter and keeps the workspace neat and
professional.
Built-in stereo speakers
A pair of high-quality stereo speakers built into
a
display device. They may be visible front
firing, or invisible down firing, top firing, rear
firing etc. depending on model and design.
SmartConnect
With a plethora of connectivity, these Philips
dis
plays come equipped with multiple
connections like VGA, Display Port and
universal HDMI connector, enabling you to
enjoy high-resolution uncompressed video and
audio content. USB connections ensure that
you can have super-speed data transfers while
having global connectivity. Regardless of what
source you use, you can rest assured that this
Philips display will ensure your investment is
not made obsolete any time soon!
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyses the content displayed
Due to the way brightness is controlled on
LED-backlit screens, some users experience
flicker on their screen which causes eye
fatigue. Philips Flicker-Free technology applies
a new solution to regulate brightness and
reduce flicker for more comfortable viewing.
Page 3
231B7QPJEB/00
LCD monitor with PowerSensor
B Line 23" (58.4 cm), Full HD (1920 x 1080)
Specifications
Picture/Display
• LCD panel type: IPS technology
• Backlight type: W-LED system
• Panel Size: 23 inch/58.4 cm
• Effective viewing area: 509.2 (H) x 286.4 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Response time (typical): 5 ms (Grey to Grey)*
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
• Pixel pitch: 0.265 x 0.265 mm
• Viewing angle: 178º (H)/178º (V),
• Flicker-free
• Picture enhancement: SmartImage
• Display colours: 16.7 M
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 76 Hz
(V)
•sRGB
20,000,000:1
@ C/R > 10
Connectivity
• Signal Input: VGA (Analogue), DisplayPort 1.2,
HDMI 1.4
• USB: USB 3.0 x 2 (1 w/fast charging)*
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 2 W x 2
• User convenience: SmartImage, Input,
rSensor, Menu, Power On/Off, LowBlue
Powe
Mode
• Control software: SmartControl
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukrainian
• Other convenience: Kensington lock, VESA mount
(100 x 100 mm)
• Plug and Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 10 / 8.1 / 8 / 7
sR
Stand
• Height adjustment: 130 mm
• Pivot: 90 degree
•Swivel: -175/+175 degree
• Tilt: -5/20 degree
Power
• ECO mode: 11.4 W (typ.)
• On mode: 12.5 W (typ.) (EnergyStar 7.0 test
hod)
met
• Standby mode: <0.3 W (typ.)
• Off mode: Zero watts with Zero switch
• Power LED indicator: Operation - White, Standby
mode - White (f
• Power supply: Built-in, 100-240 VAC, 50-60 Hz
lashing)
Dimensions
• Product with stand (max height): 523 x 486 x
220 mm
• Product without stand (mm): 523 x 320 x 52 mm
• Packaging in mm (W x H x D): 585 x 482 x 187 mm
Weight
• Product with stand (kg): 5.33 kg
• Product without stand (kg): 3.24 kg
• Product with packaging (kg): 7.45 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%–80% %
• Altitude: Operation: +12,000 ft (3658 m), Non-
eration: +40,000 ft (12,192 m)
op
• MTBF (demonstrated): 70,000 hrs (excluded
klight)
bac
Sustainability
• Environmental and energy: PowerSensor,
EnergyStar 7.0, EPEAT Gold*, TCO edge, RoHS
• Recyclable packaging material: 100 %
• Post-consumer recycled plastic: 85%
• Specific Substances: PVC/BFR free housing,
ry free, Lead free
Mercu
Compliance and standards
• Regulatory Approvals: CE Mark, cETLus, FCC
Class B, SEMKO, TUV Ergo, TUV/GS, WEEE, TCO
edge, CU-EAC, EPA, ICES-003, KUCAS, SASO,
UKRAINIAN
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
What's in the box?
• Monitor with stand
• Cables: D-Sub cable, DP cable, Audio cable, Power
ble
ca
•User Documentation
•
Issue date 2017-11-16
Version: 1.0.2
12 NC: 8670 001 38071
EAN: 87 12581 74025 2
© 2017 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* "IPS" word mark / trademark and related patents on technologies
belong to their respective owners.
* EPEAT Gold is valid only where Philips registers the product. Please
visit www.epeat.net for registration status in your country.
* Fast charging through BC 1.2 standard
* Response time value equal to SmartResponse
