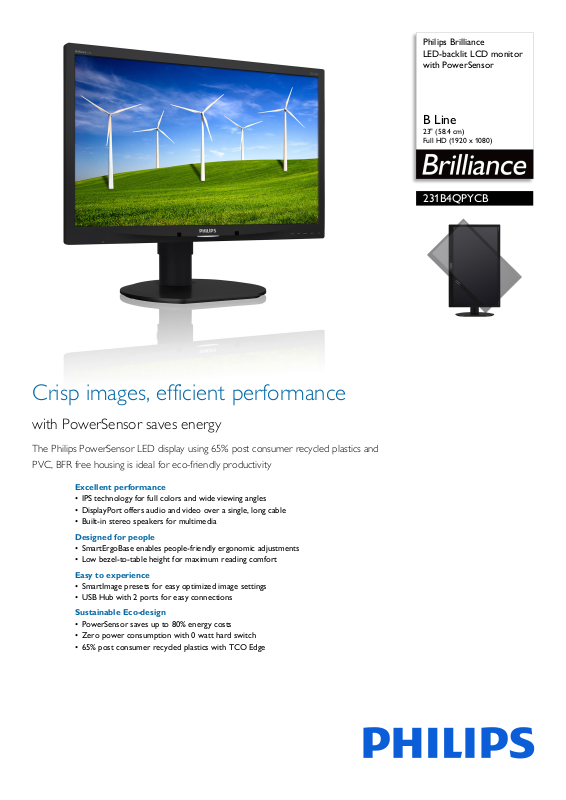

Page 1
Philips Brilliance
LED-backlit LCD monitor
with PowerSensor
B Line
23" (58.4 cm)
Full HD (1920 x 1080)
231B4QPYCB
Crisp images, efficient performance
with PowerSensor saves energy
The Philips PowerSensor LED display using 65% post consumer recycled plastics and
PVC, BFR free housing is ideal for eco-friendly productivity
Excellent performance
• IPS technology for full colors and wide viewing angles
• DisplayPort offers audio and video over a single, long cable
• Built-in stereo speakers for multimedia
Designed for people
• SmartErgoBase enables people-friendly ergonomic adjustments
• Low bezel-to-table height for maximum reading comfort
Easy to experience
• SmartImage presets for easy optimized image settings
• USB Hub with 2 ports for easy connections
Sustainable Eco-design
• PowerSensor saves up to 80% energy costs
• Zero power consumption with 0 watt hard switch
• 65% post consumer recycled plastics with TCO Edge
Page 2
231B4QPYCB/75
LED-backlit LCD monitor
B Line 23" (58.4 cm), Full HD (1920 x 1080)
Highlights
IPS technology
IPS displays use an advanced technology which
gives you extra wide viewing angles of 178/178
degree, making it possible to view the display
from almost any angle - even in 90 degree Pivot
mode! Unlike standard TN panels, IPS displays
gives you remarkably crisp images with vivid
colors, making it ideal not only for Photos,
movies and web browsing, but also for
professional applications which demand color
accuracy and consistent brightness at all times.
DisplayPort
DisplayPort is a digital link from PC to Monitor
w
ithout any conversion. With higher
capabilities than DVI standard, it is fully capable
to support up to 15meter cables and 10.8
Gbps/sec data transfer. With this high
performance and zero latency, you get the
fastest imaging and refresh rates - making
DisplayPort the best choice for not only
general office or home use, but also for the
demanding gaming and movies, video editing
and more. It also keeps interoperability in mind
via use of various adapters.
Built-in stereo speakers
A pair of high quality stereo speakers built into
a display
invisible down firing, top firing, rear firing, etc
depending on model and design.
device. It can be visible front firing, or
SmartErgoBase
The SmartErgoBase is a monitor base that
delivers ergonomic display comfort and
provides cable management. The base's
people-friendly height, swivel, tilt and rotation
angle adjustments position the monitor for
maximum comfort that can ease the physical
strains of a long workday; cable management
reduces cable clutter and keeps the workspace
neat and professional.
Low bezel-to-table height
The Philips monitor, thanks to its advanced
SmartErgoBase, can be lowered down almost
to desk level for a comfortable viewing angle.
Low bezel-to-table height is the perfect
solution if you use bifocals, trifocals or
progressive lens glasses for your computing
work. Additionally, it allows for users with
greatly different heights to use the monitor in
their preferred angle and height settings,
helping them reduce fatigue and strain.
SmartImage
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
2 Ports USB 2.0 HUB
USB Hub allows user to conveniently connect
t
heir plug and play multimedia devices such as
USB memory devices, camera, portable HDD,
Web camera, PDA, Printer and many other
devices which has USB connection available.
The conveniently located USB 2.0 Hub on the
monitor allows USB 2.0 signals to pass thru to
the computer. Note that many devices like
cameras and HDD may need to be powered
On independently, as they have higher power
requirements than the monitor USB Hub can
provide.
PowerSensor
PowerSensor is a built-in 'people sensor' that
transmits and receives harmless infrared
signals to determine if user is present and
automatically reduces monitor brightness
when user steps away from the desk, cutting
energy costs by up to 80 percent and
prolonging monitor life
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
Page 3
231B4QPYCB/75
LED-backlit LCD monitor
B Line 23" (58.4 cm), Full HD (1920 x 1080)
Specifications
Picture/Display
• LCD panel type: IPS LCD
• Backlight type: W-LED system
• Panel Size: 23 inch / 58.4 cm
• Effective viewing area: 509.18 (H) x 286.41 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• Response time (typical): 7 ms (GTG_BW)*
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
• Pixel pitch: 0.265 x 0.265 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 75 Hz
(V)
•sRGB
20,000,000:1
Connectivity
• Signal Input: DisplayPort, DVI-D (digital, HDCP),
VGA (Analog )
• USB: USB 2.0 x 2
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 1.5W x 2
• User convenience: Smart
PowerSensor, Menu, Power On/Off
• Control software: SmartControl Premium
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 8.1 / 8 / 7
sR
Image, Volume,
ench, German, Italian,
Stand
• Height adjustment: 110 mm
• Pivot: 90 degree
• Swivel: -65/65 degree
• Tilt: -5/20 degree
Power
• ECO mode: 13.7 W (typ.)
• On mode: 20.2 W (typ.) (EnergyStar 6.0 test
met
hod)
• Standby mode: <0.3 W (typ.)
• Off mode: Zero watts with AC switch
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: 100-240VAC, 50-60Hz, Built-in
Dimensions
• Product with stand(max height): 547 x 507 x
227 mm
• Product without stand (mm): 547 x 343 x 60 mm
• Packaging in mm (WxHxD): 620 x 401 x 167 mm
Weight
• Product with stand (kg): 5.70 kg
• Product without stand (kg): 3.90 kg
• Product with packaging (kg): 7.82 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 30,000 (backlight) hour(s)
Sustainability
• Environmental and energy: PowerSensor,
EnergyStar 6.0, EPEAT Gold*, TCO edge, RoHS
• Recyclable packaging material: 100 %
• Post consumer recycled plastic: 65%
• Specific Substances: PVC / BFR free housing,
ry free, Lead free
Mercu
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, cETLus,
FCC Class B, GOST, SASO, SEMKO, TCO 6.0,
TUV Ergo, TUV/GS, WEEE
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
•
Issue date 2017-07-28
Version: 3.0.1
12 NC: 8670 001 20835
EAN: 87 12581 72917 2
© 2017 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* "IPS" word mark / trademark and related patents on technologies
belong to their respective owners.
* EPEAT Gold is valid only where Philips registers the product. Please
visit www.epeat.net for registration status in your country.
* Response time value equal to SmartResponse
