Page 1

www.philips.com/welcome

19PFL3505D 22PFL3505D

EN User manual

FR Manuel d’utilisation

ES Manual del usuario

EN: For fur ther assistance, call the customer support service in your country.

• To obtain assistance in the U.S.A., Canada, Puerto Rico, or the U.S. Virgin Islands, contact Philips

Customer Care Center at 1-866-309-0841

• To obtain assistance in Mexico, contact Philips Customer Care Center at 01 800 504 62 00

Enter below the model and serial numbers located on the back and right side of the TV cabinet.

FR: Pour obtenir de l’aide supplémentaire, communiquez avec le centre de service à la clientèle de votre pays.

• Pour obtenir de l’aide aux États-Unis, au Canada, à Puerto Rico ou aux Îles Vierges américaines,

communiquez avec le centre de service à la clientèle Philips au : 1-866-309-0841

• Pour obtenir l’aide au Mexique, entrez en contact avec le centre de soin de client de Philips à

01 800 504 62 00

Entrer ci dessous le modèle et le numéro de série situés dérrière à droite sur le dos du téléviseur.

ES: Para obtener más información, llame al servicio de soporte al cliente de su país.

• Para obtener asistencia en los Estados Unidos, en Canadá, Puerto Rico o en las Islas

Vírgenes de los Estados Unidos, comuníquese con Centro de atención al cliente de Philips al

1-866-309-0841

• Solo para Mexico CENTRO DE ATENCIÓN A CLIENTES LADA. 01 800 504 62 00 Solo

Para México.

Escriba a continuación el modelo y número de serie que estan localizados en lado derecho y parte posterior de el gabinete de el televisor.

MODEL NUMBER SERIAL NUMBER

Page 2

Contents

1 Notice 4

2 Important 5

Product information 5 Screen care 5 Environmental care 5 Regulatory notices 5

3 Your TV 6

Side controls and indicators 6 Remote control 6

4 Get started 8

Supplied accessories 8 Standing mount the TV 8 Tilt stand (Available for 19PFL3505D only) 8 Position the TV 8 Installing the remote control batteries 9 Connecting the antenna or cable 9 Managing cables 10 Plugging in the AC power cord 10 Switching on and set up the TV 11

5 Use your TV 12

Switching your TV on/off or to standby 12 Switching channels 12 Adjusting volume 13 Still mode 13 Watching channels from a set-top box 13 Watching connected devices 13 Watching a Blu-ray Disc 14 Switching audio mode 14

9 Connect devices 25

Connection overview 25 Selecting your connection quality 26 Connecting your devices 27

10 Troubleshooting 29

Downloading an electronic copy 29 Contact us 29

11 Product information 30

12 Warranty 31

13 Index 32

English

6 Use more of your TV 15

Changing picture and sound settings 15 Sleeptimer 18 Child and rating locks 18 Closed caption 20 EasyLink 21 Energy saving mode 21 Set your location to home 21

7 Install channels 22

Selecting your menu language 22 Autoprogram 22 Channel list 23 Add channels 23 Optimizing the signal quality from your antenna 23

8 Upgrade your TV software 24

Checking your current software version 24 Preparing for the software upgrade 24 Upgrading software 24

Page 3

Return your Product Registration Card or register online at

www.philips.com/welcome today to get the very most from your purchase.

Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so don't miss out. Complete and return your Product Registration Card at once, or register online at www.philips.com/welcome to ensure:

*Proof of Purchase *Product Safety

Notification

Returning the enclosed card guarantees that your date of purchase will be on file, so no additional paperwork will be required from you to obtain warranty service.

Congratulations on your purchase, and welcome to the “family!”

Dear PHILIPS product owner :

Thank you for your confidence in PHILIPS.You’ve selected one of the best-built, best-backed products available today.We’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

Most importantly, you can count on our uncompromising commitment to your total satisfaction.

All of this is our way of saying welcome - and thanks for investing in a PHILIPS product.

By registering your product, you'll receive notification - directly from the manufacturer - in the rare case of a product recall or safety defect.

*Additional Benefits

Registering your product guarantees that you'll receive all of the privileges to which you're entitled, including special money-saving offers.

Know these

safetysymbols

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This “bolt of lightning” indicates unin-

sulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls attention

to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

P.S. To get the most from your PHILIPS purchase, be sure to complete and return your Product Registration Card at once, or register online at:

www.philips.com/welcome

Visit our World Wide Web Site at http://www.philips.com/welcome

For Customer Use

Enter below the model and serial numbers located on the back and right side of the TV cabinet. Retain this information for future reference.

Model No.________________________ Serial No. ________________________

Page 4

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with

the manufacturers instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. When the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table speciﬁed by

the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. This product may contain lead or mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.

16. Damage Requiring Service - The appliance should be serviced by qualiﬁed service personnel when:

A. The power supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appliance; or

English

C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits a

marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

17. Tilt/Stability - All televisions must comply with recommended

international global safety standards for tilt and stability properties of its cabinets design.

• Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also,do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

18. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

19. Power Lines - An outdoor antenna should be located away from power lines.

20. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See Figure below.

21. Objects and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

a) Warning: To reduce the risk of ﬁre or electric shock, this apparatus

should not be exposed to rain or moisture and objects ﬁlled with liquids, such as vases should not be placed on this apparatus.

22. Battery Usage CAUTION - To prevent battery leakage that may result in bodily injury, property damage, or damage to the unit:

• Install all batteries correctly, with + and - alignment as marked on the unit.

• Do not mix batteries (old and new or carbon and alkaline, etc.)

• Remove batteries when the unit is not used for a long time.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE (NEC)

GROUND CLAMP

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (

NEC SECTION

GROUNDING CONDUCTORS (

GROUND CLAMPS

ELECTRIC SERVICE EQUIPMENT

Note to the CATV system installer:

the NEC that provides guidelines for proper grounding and, in particular, speciﬁes that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

this reminder is provided to call the CATV system installer’s attention to Article 820-40 of

POWER SERVICE GROUNDING ELECTRODE SYSTEM (

NEC ART

250,

810-20)

NEC SECTION

PART H

810-21)

)

Page 5

1 Notice

the property of Koninklijke Philips Electronics N.V. or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

The material in this manual is believed adequate for the intended use of the system. If the product, or its individual modules or procedures, are used for purposes other than those speciﬁ ed herein, conﬁ rmation of their validity and suitability must be obtained. Philips warrants that the material itself does not infringe any United States patents. No further warranty is expressed or implied.

Philips cannot be held responsible neither for any errors in the content of this document nor for any problems as a result of the content in this document. Errors reported to Philips will be adapted and published on the Philips support website as soon as possible.

Pixel characteristics

This LCD product has a high number of color pixels. Although it has effective pixels of 99.999% or more, black dots or bright points of light (red, green or blue) may appear constantly on the screen. This is a structural proper ty of the display (within common industry standards) and is not a malfunction.

Warranty

No components are user serviceable. Do not open or remove covers to the inside of the product. Repairs may only be done by Philips Service Centers and ofﬁ cial repair shops. Failure to do so shall void any warranty, stated or implied.

Any operation expressly prohibited in this manual, any adjustments, or assembly procedures not recommended or authorized in this manual shall void the warranty.

Modiﬁ cations

The FCC requires the user to be notiﬁ ed that any changes or modiﬁ cations made to this device that are not expressly approved by Philips Consumer Electronics may void the user’s authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Canadian notice

Standard Television Receiving Apparatus, Canada BETS-7 / NTMR-7. This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

All other registered and unregistered trademarks are the proper ty of their respective owners.

ENERGY STAR® is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efﬁ cient products and practices.

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio or television technician for help.

Declaration of Conformity

Trade Name : PHILIPS Responsible Party : P&F USA, Inc. Model : 19PFL3505D, 22PFL3505D Address : PO Box 430 Daleville, IN 47334-0430 U.S.A. Telephone Number : 1-866-309-0841

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

VESA, FDMI and the VESA Mounting Compliant logo are trademarks of the Video Electronics Standards Association.

® Kensington and Micro Saver are registered US trademarks of ACCO World corporation with issued registrations and pending applications in other countries throughout the world.

The American Academy of Pediatrics discourages television viewing for children younger than two years of age.

Page 6

2 Important

Environmental care

Registering your model with Philips makes you eligible for all of the valuable beneﬁ ts listed below, so don’t miss out.

Complete and return your Product Registration Card at once, or register online at www.philips.com/welcome to ensure :

• Proof of Purchase

Returning the enclosed card guarantees that your date of purchase is on ﬁ le, so no additional paperwork is required from you to obtain warranty service.

• Product Safety Notiﬁ cation

By registering your product you receive notiﬁ cation - directly from the manufacturer - in the rare case of a product recall or safety defect.

• Additional Beneﬁ ts of Product Ownership

Registering your product guarantees that you receive all of the privileges to which you’re entitled, including special money-saving offers.

For further assistance

For further assistance, call the customer support service in your country.

• To obtain assistance in the U.S.A., Canada, Puerto Rico, or the U.S. Virgin

Islands, contact Philips Customer Care Center at 1-866-309-0841

Product information

This TV consumes minimal energy in standby mode to minimize environmental impact. The active power consumption is given on the type plate at the back of the TV. The model and serial numbers of your TV can be found on the back and right side of the TV as well as on the packaging.

Screen care

• Avoid stationary images as much as possible. Stationar y images

are images that remain on-screen for extended periods of time. Examples include : on-screen menus, black bars and time displays. If you must use stationary images, reduce screen contrast and brightness to avoid screen damage.

• Unplug the TV before cleaning.

• Clean the TV screen and frame with a soft cloth. Never use

substances such as alcohol, chemicals or household cleaners on the TV screen.

• Risk of damage to the TV screen! Never touch, push, rub or strike

the screen with any object.

• To avoid deformations and color fading, wipe off water drops as

soon as possible.

English

The packaging of this product is intended to be recycled. Contact your local authorities for information about how to recycle the packaging.

End of life directives

Like all LCD products, this set contains a lamp with mercury; please dispose of according to all local, state and federal laws.

Philips pays a lot of attention to produce environment-friendly products in green focal areas. Your new TV contains materials which can be recycled and reused. At the end of its life, specialized companies can dismantle the discarded TV to concentrate the reusable materials and to minimize the amount of materials to be disposed of. Please ensure you dispose of your old TV according to local regulations.

Disposal of used batteries

The batteries supplied do not contain the heavy metals mercury and cadmium. Nevertheless, in many areas batteries may not be disposed of with your household waste. Please ensure you dispose of batteries according to local regulations.

Regulatory notices

Warning

To reduce the risk of ﬁ re or electric shock, this B apparatus should not be exposed to rain or moisture. Objects ﬁ lled with liquids, such as vases, should not be placed on this apparatus.

Caution

To prevent electric shock, match the wide blade of the plug to the wide slot, fully inser ted.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 2.8 inches (7cm) or more around this apparatus.

Page 7

3 Your TV

Congratulations on your purchase, and welcome to Philips! To fully beneﬁ t from the support that Philips offers, register your product at

www.philips.com/welcome

Remote control

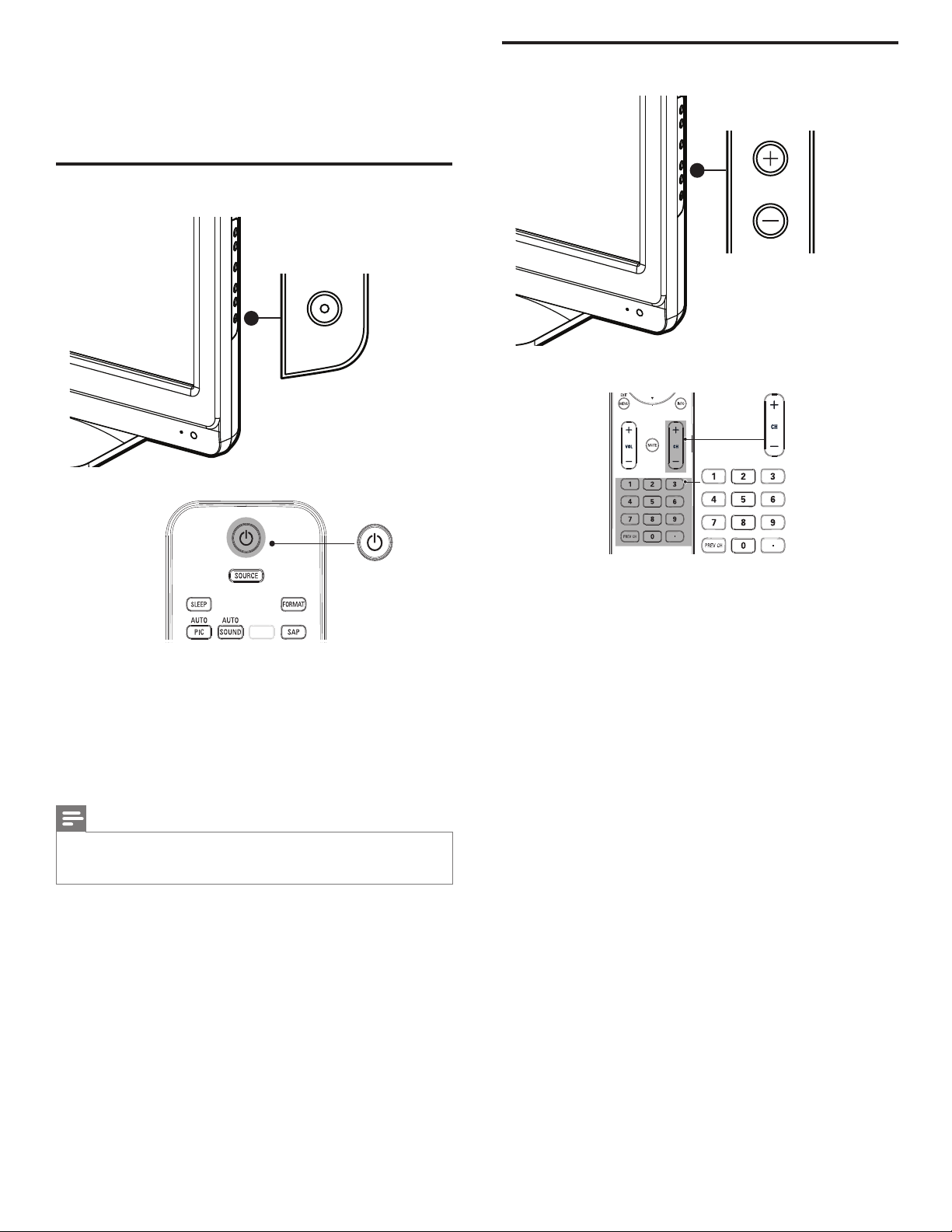

Side controls and indicators

VOLUME

CHANNEL

POWER

a Standby indicator / remote control sensor b . POWER

Switches the TV on or off. The TV is not powered off completely unless it is physically unplugged.

c CHANNEL +/-

Switches to the next or previous channel.

d MENU

Toggles the main menu on or off.

e VOLUME +/-

Increases or decreases volume.

r q

f g

*This button does not function on this unit.

a . (Standby-On)

Switches the TV on or off. The TV is not powered off completely unless it is physically unplugged.

b SOURCE

Selects connected devices.

Page 8

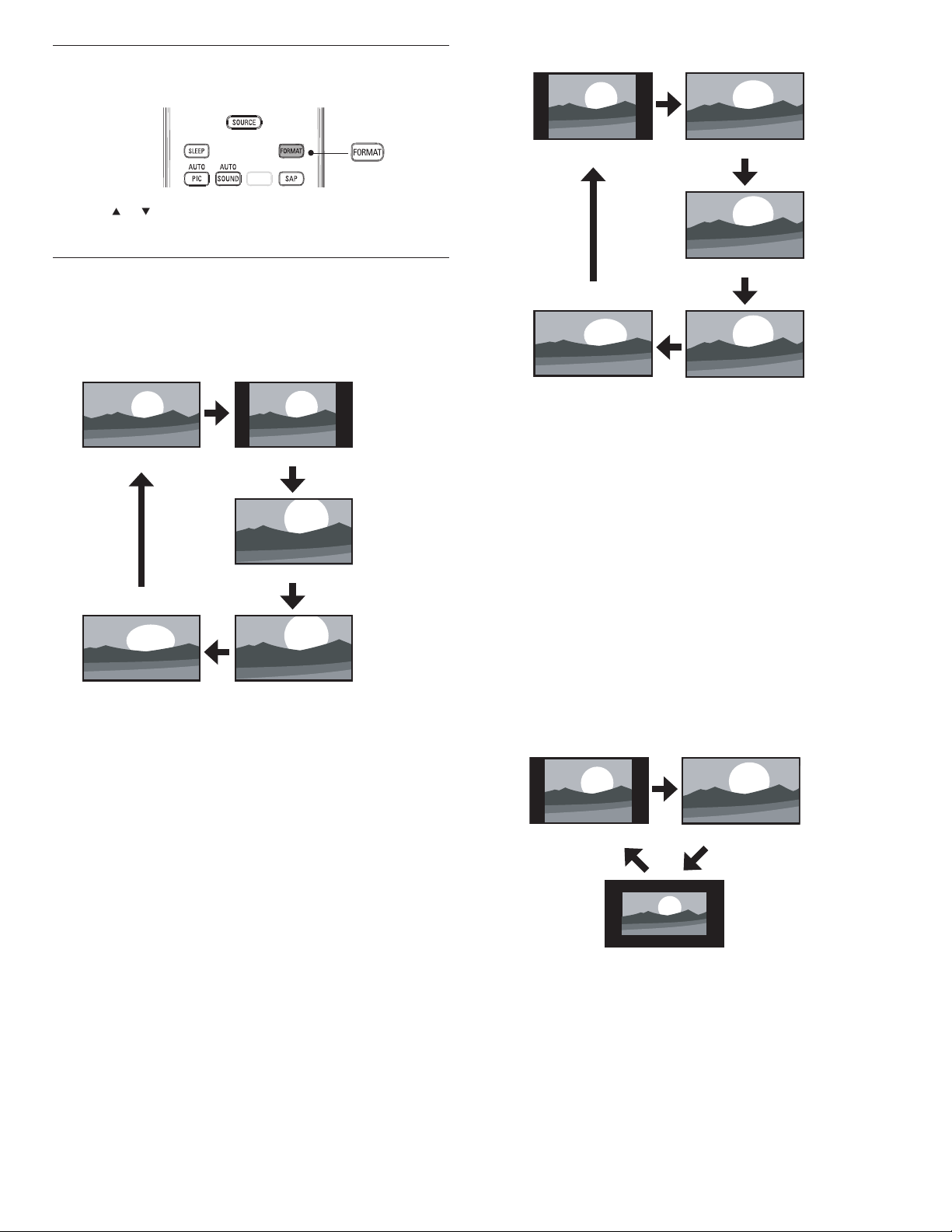

c FORMAT

Selects a picture format (see ‘Changing picture format’ on page 16).

d SAP

Digital Mode (DTV)

• Press to select the audio language.

Analog Mode (TV)

• Press to select the audio mode.

e FREEZE

Press to pause screen image.

f OK

Activates a selection or accesses the menu.

(Navigation buttons)

Navigates through the menus.

h INFO

Displays information about the TV channel or accessory device. The quality and accuracy of the information depends on the broadcaster. You might see a difference in broadcast time if the broadcast is from a different time zone.

i CH +/-

Switches to the next or previous channel.

j MUTE

Mutes or unmutes audio.

k Number buttons

Select a channel, page or setting.

l . (Dot)

Press the dot (.) for digital channels.

m PREV CH

Returns to the previously viewed channel.

n VOL +/-

Increases or decreases volume.

o MENU/EXIT

Turns the menu on or off.

p BACK

Returns to a previous screen.

q AUTO SOUND

Cycles through the preset sound setting (see ‘Changing auto sound mode’ on page 17).

r AUTO PIC

Cycles through the preset picture setting (see ‘Changing auto picture mode’ on page 15).

s SLEEP

Sets a delay after which the TV switches to standby.

English

Page 9

4 Get started

Tilt stand (Available for 19PFL3505D only)

Supplied accessories

• Remote control

• 2 x AAA, 1.5V batteries

• M4 x 12 double sems screw x 4

• User manual

• Quick Start

Standing mount the TV

Applicable to TVs without mounted stands.

x 4

You can adjust the stand to change the angle of the unit (-2° to 10°).

-2°

10°

Position the TV

Warning

• Do not insert the AC power cord into the power socket outlet before all the

connections are made.

• Large screen TVs are heavy. Two people are required to carry and handle a large

screen TV.

• Before you move the TV, disconnect the cables to prevent breakage.

In addition to reading and understanding the safety instructions, consider the following before positioning your TV :

• Ensure that you always have easy access to the AC power cord or plug to disconnect the TV from the power.

• If the TV is mounted on a swivel base, ensure that no strain is placed on the AC power cord when the TV is swiveled. Strain on the AC power cord can loosen connections.

• The ideal viewing distance for watching TV is three times its screen size.

• Position the TV where light does not fall on the screen.

• Connect your devices before you position the TV.

Note

• To wall mount the TV, refer to the addendum.

• This TV includes M4 x 12 double sems screws.

If you are missing them, please purchase the same screws at your local store.

Using a Kensington lock

There is a Kensington security slot on the back of the TV. Prevent theft by looping a Kensington lock between the slot and a permanent object, such as a heavy table.

DIGITAL

COMPONENT

PC-IN

AUDIO OUT (COAXIAL)

AUDIO

HDMI 1-IN

LPb

AUDIO

Page 10

Installing the remote control batteries

1 Slide the battery cover off the back of the remote control. 2 Insert the 2 supplied batteries (AAA, 1.5V). Be sure the + and -

ends of the batteries line up with the markings inside the case.

3 Slide the cover back into position.

Note

• Remove the batteries if not using the remote control for an extended period of time.

Connecting the antenna or cable

If you connect to a DBS (Direct Broadcast Satellite)

There are two main DBS systems : DirecTV and DishNetwork. These systems require a separate, proprietary set-top box to decode signals and send them to the TV. The set-top box contains a digital TV tuner for receiving off-air digital broadcasts.

Contact your local DBS provider for more information about the connections and the TV channels.

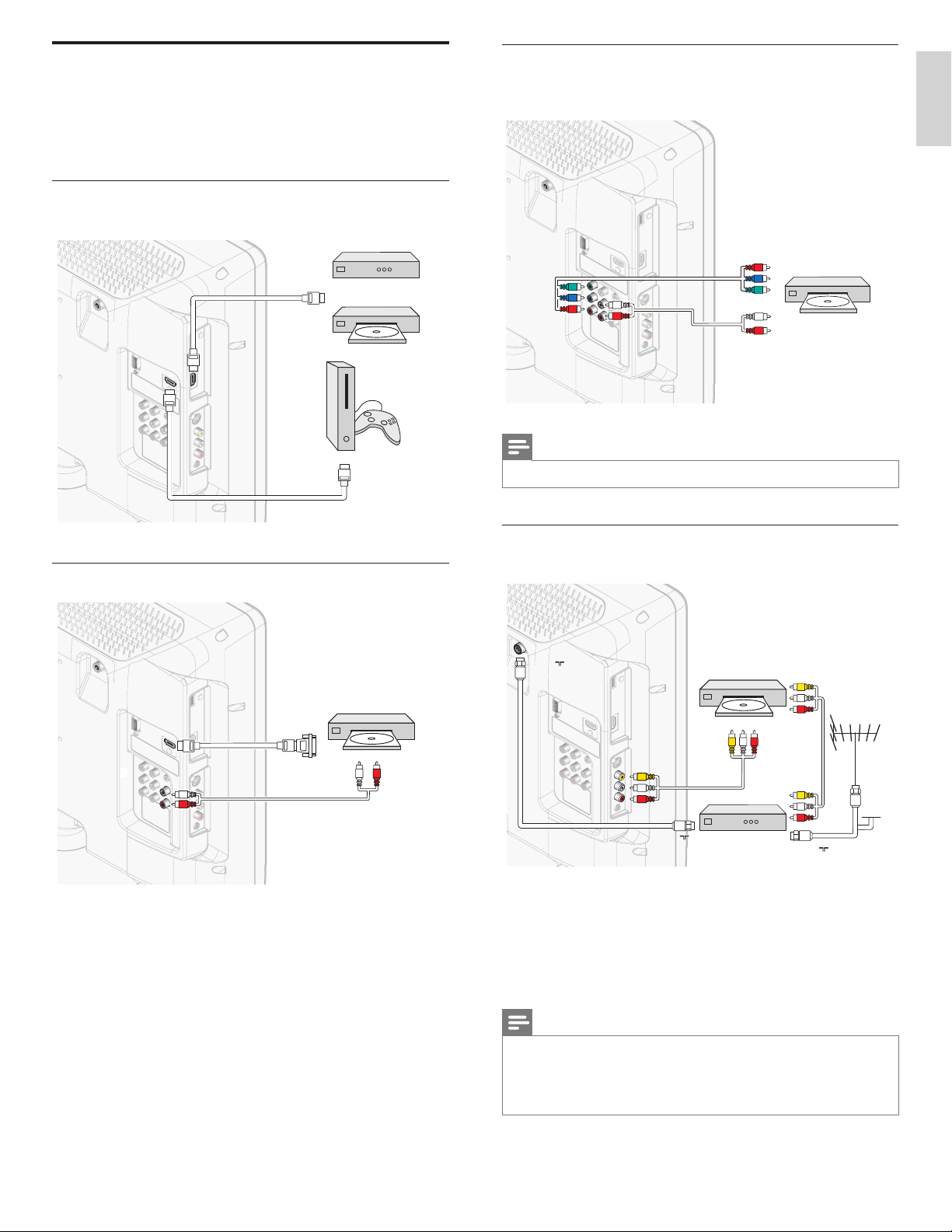

If you connect to a set-top box

A cable box or satellite set-top box can be connected to the TV through the following connections :

• ANT

• A/V (Composite Video and Audio)

• S-Video

• YPbPr (Component Video Input)

• HDMI

For information about how to connect a set-top box, see the Quick Start provided.

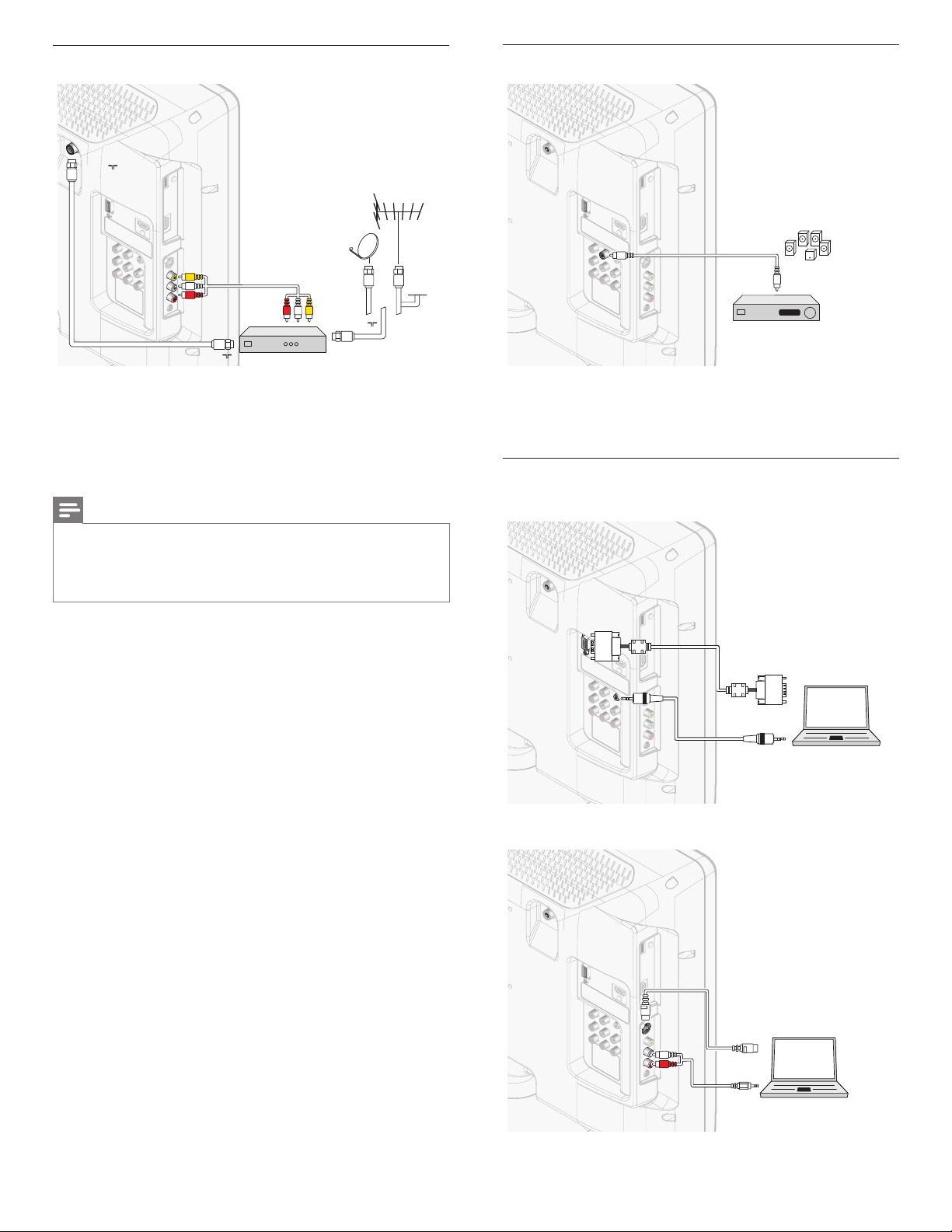

If you connect a set-top box through RF IN/OUT

If the TV is connected to a cable box or satellite set-top box via a coaxial connection, set the TV to channel 3 or 4, or to the channel speciﬁ ed by the service provider.

English

Cable

If you connect to an antenna

Any DTV programs that are broadcast in your area can be received for free through an antenna connection.

Contact your local content provider or your local electronics retailer if you are unsure about what HDTV programs are available in your area.

Broadcasters are transitioning from analog to digital TV. This means that a given broadcaster can have channels available either in analog or in digital, or both analog and digital at the same time.

The TV produces stereo sound only if a stereo signal is broadcast.

If you connect to a cable

When your TV is connected to the cable socket, you might receive free digital and high deﬁ nition programs (depending on your cable provider). The channel number for digital and high deﬁ nition channels includes a dot “.”. For example, 11.1, 46.30, 108.201. Contact your cable provider for more information.

If you connect a set-top box through component video input or HDMI

Page 11

Managing cables

Plugging in the AC power cord

Route your antenna cable and all other cables through the cable holder at the back of the TV. The holder helps keep your cables tidy and easily manageable.

1 Attach the cable holder as illustrated below.

2 Keep the cable through this holder to avoid tangle them.

Warning

• Verify that your power voltage corresponds with the voltage printed at the back of the

TV. Do not insert the AC power cord if the voltage is different.

Connect the AC power cord plug to the power outlet. Ensure that the cord is tightly secured.

ANT. IN

PC IN

HDMI IN

RGB

HDMI 1

DIGITAL

COMPONENT

PC-IN

AUDIO OUT (COAXIAL)

AUDIO

HDMI 1-IN

LPb

AUDIO

Page 12

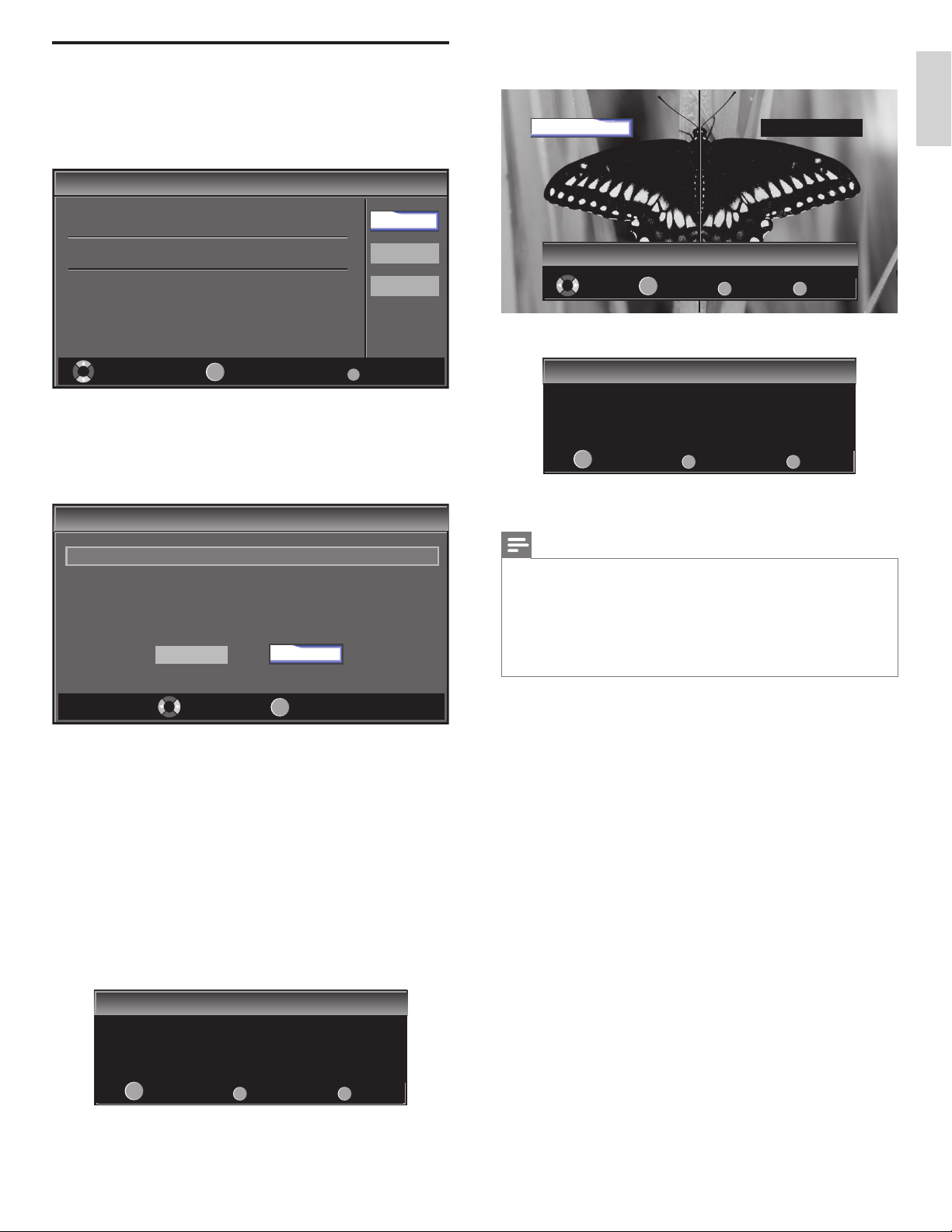

Switching on and set up the TV

Before you switch on the TV, check that the AC power cord is properly connected. Press . POWER at the right side of the TV, or press . on the remote control. The TV normally takes 25-30 seconds to start up and the following screen appears the ﬁ rst time you turn on the TV.

Initial Setup

Press Í or Æ 5 times to select the side of the pictures that is the most pleasing to you. then press OK.

Left side

Right side

English

Select your menu language.

Seleccione el idioma para el menú.

Sélectionnez la langue du menu.

Select Skip

English

Español

Fran çai s

Follow the on-screen instructions to select your language and complete your TV setup. Installation takes approximately 10 minutes.

Press Í or Æ to select the desired mode for energy saving, then press OK.

Initial Setup

Select “Retail” or “Home” for your location.

Retail

Home

1/5 Select the picture setting that you prefer.

Select

BACK

Back

Exit

Press OK to ﬁ nish [Settings assistant].

Settings assistant

You have set up your viewing preferences.

Store

BACK

Back

Exit

Finish the Setup.

Note

• If you are not receiving a signal from your cable service, contact the CATV provider.

• If you press . or MENU during autoprogram, this setting will be canceled.

• The initial autoprogram function can be executed for either [Antenna] or [Cable]

only once. When you change the connection (Antenna / Cable), set autoprogram again. (Refer to page 22.)

• If there is no signal input from the antenna terminal and no operation for several

seconds after you turn on the TV, [Helpful Hints] appears. Follow the instructions listed on the TV screen.

Select

SETUP

Exit

Select [Retail] if you want backlight to be brighter. Select [Home] to reduce the power consumption. You must set [Home]. Otherwise, the settings of picture and sound

quality you adjusted will not be memorized after you turn off the unit.

• Select [Retail], the unit will be set up with predeﬁ ned setting for retail displays. In this setting, the power consumption may possibly exceed the limited requirement of the ENERGY STAR® qualiﬁ cation.

• Select [Home], the unit is set to maximize the energy efﬁ ciency for home setting and it can be adjusted through a choice of picture and sound quality according to your preference.

Press OK to begin [Settings assistant].

Settings assistant

Settings assistant helps you customize

picture settings. You will see a series of test

pictures where the right side and left side

differ. Select the side that is most pleasing to

you with the Left/ Right keys.

BACK

Back

Exit

Page 13

5 Use your TV

This section helps you perform basic TV operations.

Switching channels

Switching your TV on/off or to standby

POWER

To switch on

• Press . POWER at the side of the TV.

• Press . (Standby-On) on the remote control.

To switch to standby

• Press . (Standby-On) on the remote control. To switch off

• Press . POWER at the side of the TV.

CHANNEL

Press CHANNEL +/- on the side of the TV. For digital channels, press a number (1 to 135) followed by a dot “.” and then the corresponding sub channel number (1 to 135). e.g. 108.30.

• Press CH +/- or enter a number on the remote control.

• Press PREV CH to return to the previously viewed channel.

Note

• Energy consumption contributes to air and water pollution. When the AC power

cord is plugged in, your TV consumes energy. Your TV has a very low standby power consumption.

Page 14

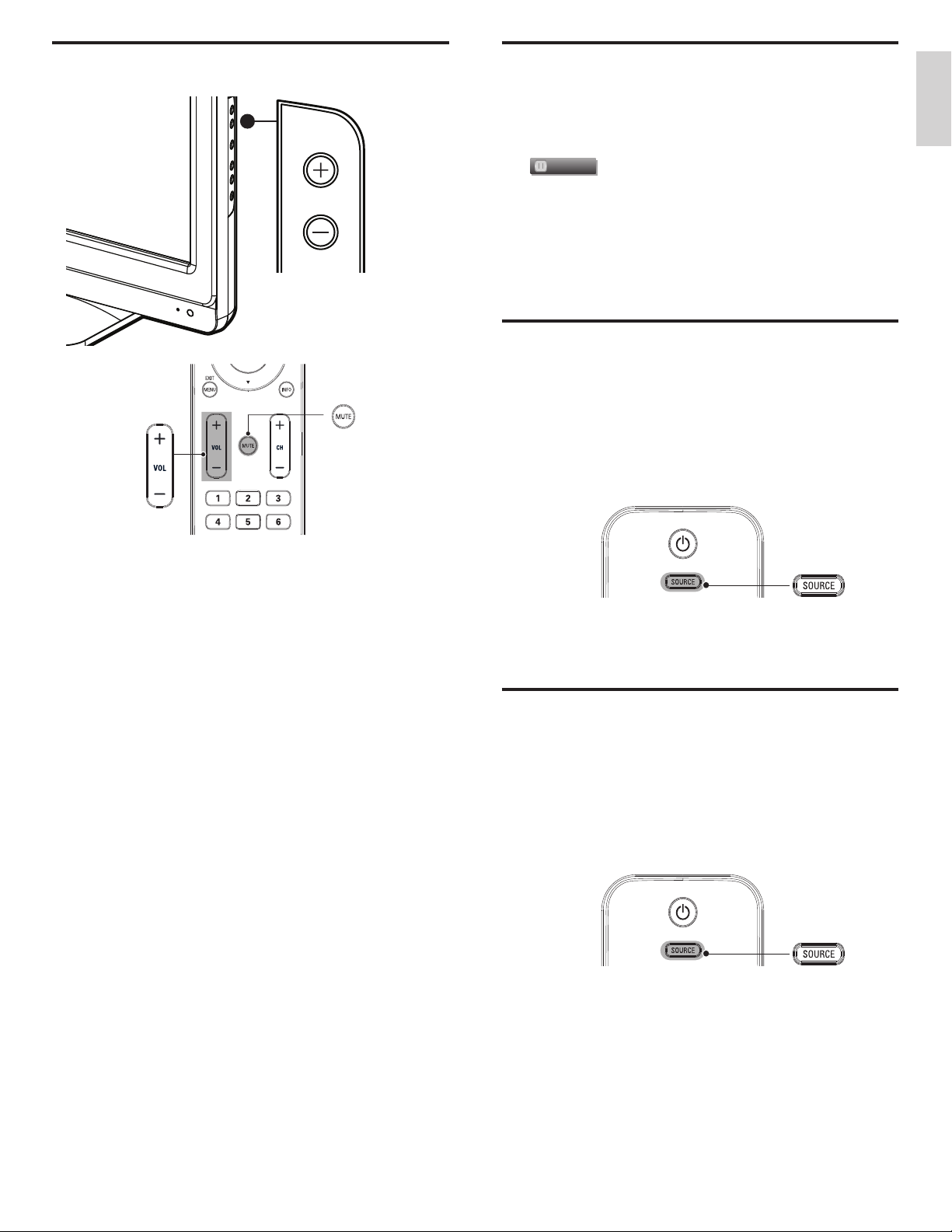

Adjusting volume

Still mode

You can pause the image shown on the TV screen.

English

Press FREEZE to pause the image shown on the TV screen.

FREEZE

VOLUME

To increase or decrease volume

• Press VOL +/- on the remote control or press VOLUME +/- on the side of the TV.

To mute or unmute sound

• Press MUTE on the remote control to mute the sound.

• Press MUTE again to restore the sound.

• The sound output will not be paused.

• If no signal is detected or protected signal is received during still mode, the image remains paused and the sound output will be muted.

• The still function will be released after 5 minutes.

To cancel still mode, press any button except . (Standby-On).

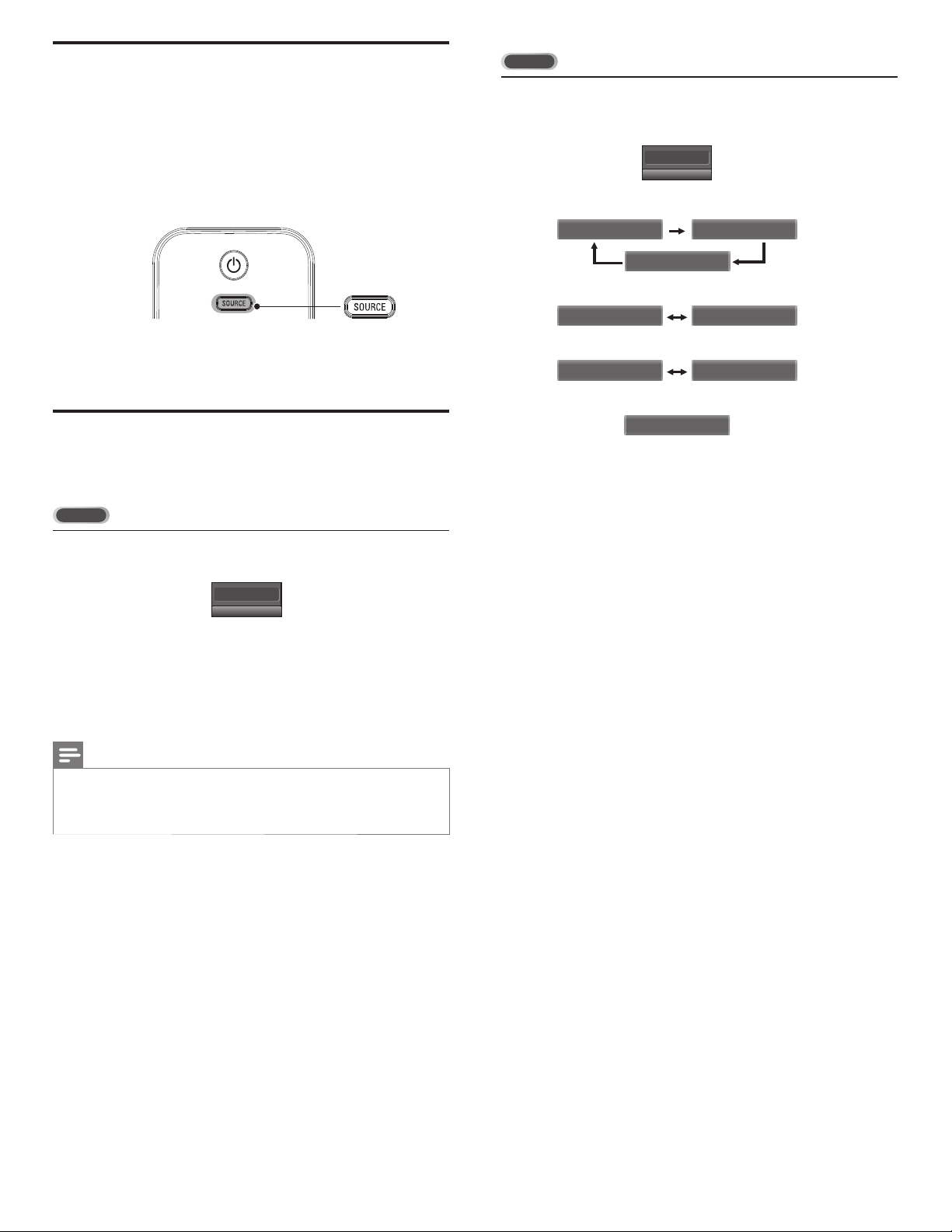

Watching channels from a set-top box

To watch channels from a set-top box

1 Switch on the set-top box.

» The picture from your set-top box might appear automatically

on the TV screen.

2 Use the remote control of your set-top box to select channels.

If the picture does not appear

1 Press SOURCE repeatedly to select the set-top box and wait a

few seconds for the picture to appear.

2 Use the remote control of your set-top box to select channels.

Watching connected devices

To watch connected devices

1 Switch on the connected device.

» The picture from your connected device might appear

automatically on the TV screen.

2 Use the remote control of the device to select channels.

If the picture does not appear

1 Press SOURCE repeatedly to select the connected device and wait

a few seconds for the picture to appear.

2 Use the remote control of the device to select channels.

Page 15

Watching a Blu-ray Disc

To watch a Blu-ray Disc

1 Insert a Blu-ray Disc into your player. 2 Press

If the picture does not appear

►

on the remote control of the Blu-ray Disc player to select

channels.

» The Blu-ray Disc might automatically play on the TV.

1 Press SOURCE repeatedly to select the Blu-ray Disc player and

wait a few seconds for the picture to appear.

2 Use the remote control of the Blu-ray Disc player to play the disc.

Switching audio mode

This section describes how to switch the audio language in the digital mode and how to switch the audio in the analog mode.

DTV

Press SAP to display the currently selected audio mode. While

receiving an MTS broadcast, press repeatedly to cycle through the available audio channel.

SAP / STEREO

When all audio are available

SAP / STEREO SAP / MONO

SAP / STEREO

When stereo and monaural audio are available

MONO / STEREO MONO / STEREO

When SAP and monaural audio are available

SAP / MONO SAP / MONO

When only monaural audio is available

MONO

(cannot be switched)

STEREO : Outputs stereo-audio SAP : Outputs second audio program MONO : Outputs mono-audio

1 Press SAP to display the currently selected language and the

number of available languages.

11.1

English 1/3

2 Press SAP repeatedly to cycle through the available audio

languages.

• Available languages differ depending on the broadcast. [Other] is displayed when the audio language cannot be acquired, or the acquired languages are other than English, Spanish or French.

Note

• SAP does not control external audio devices.

• The information display will automatically disappear in a few seconds.

• The default setting for audio mode can be ﬁ xed, see [Audio Setting] in ‘Changing

sound settings’ on page 17.

Page 16

6 Use more of your TV

Changing picture and sound settings

You must set [Home] in [Location] (refer to page 21). Otherwise, the settings you adjusted will not be memorized after you turn off the unit.

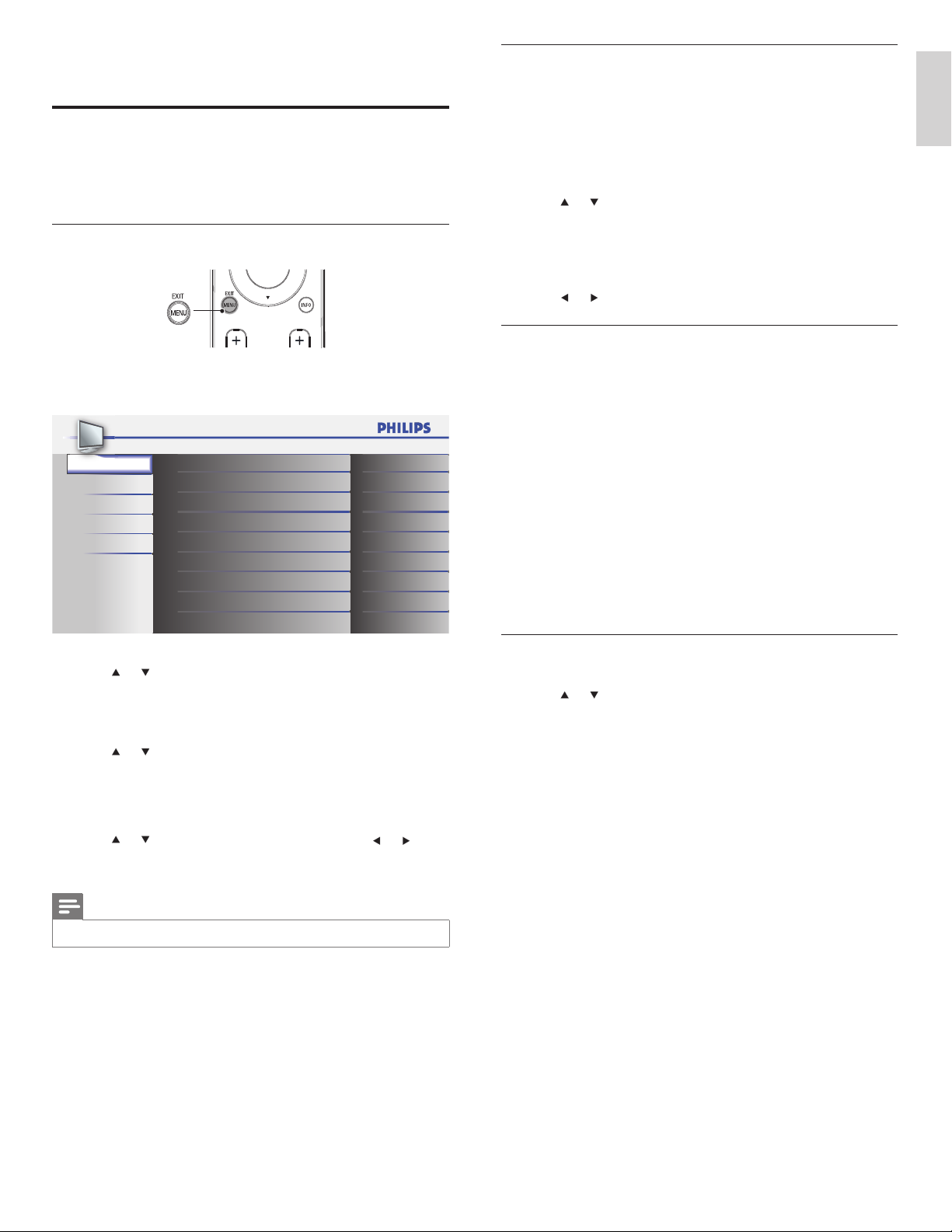

Changing picture settings

1 Press MENU on the remote control. 2 Press OK to enter the [Picture].


Sound

Setup

Features

Language

Settings assistant

Auto Picture

Brightness

Contrast

Color

Tint

Sharpness

Color Temperature

Personal

Normal

PC settings

This function lets you adjust the PC screen position, clock and phase during PC input.

1 Press MENU on the remote control and select [Features] >

[PC Settings].

English

2 Adjust the setting.

[Auto Adjustment]

Press or to select [Adjust], then press OK.

• The horizontal/vertical position, clock and phase of the PC screen are automatically adjusted.

[Horizontal Position], [Vertical Position], [Clock], [Phase]

or to adjust.

Press

Summary of picture settings

The following picture settings can be conﬁ gured. Depending on the format of the picture source, some picture settings are not available.

• [Auto Picture] : Sets all picture settings to the factory default.

• [Brightness] : Adjusts the intensity and details of dark areas.

• [Contrast] : Adjusts the intensity of bright areas, keeping dark areas unchanged.

• [Color] : Adjusts color saturation.

• [Tint] : Adjusts the color balance in an image.

• [Sharpness] : Adjusts the level of sharpness in image details.

• [Color Temperature] : To set the color temperature to [Normal], [Warm] or [Cool].

• [Horizontal Position], [Vertical Position] : Adjusts the horizontal and vertical position of the picture for PC screen.

• [Clock] : Setting to stabilize the PC screen.

• [Phase] : Setting to improve the clarity of the PC screen.

3 Press or to select one of the picture settings, and press OK to

enter the setting.

4 Adjust the picture quality.

[Auto Picture]

or to select the desired setting, then press OK.

Press ([Personal], [Standard], [Sports], [Movie] and [Game])

[Brightness], [Contrast], [Color], [Tint], [Sharpness], [Color Temperature]

or to select the desired setting, then Press or to

Press adjust.

5 Press MENU to exit.

Note

• To cancel picture adjustment, press MENU.

Changing auto picture mode

1 Press AUTO PIC to set your TV to a predeﬁ ned picture setting. 2 Press or to select one of the following settings :

• [Personal] : The customized settings you deﬁ ned by using the

[Picture] menu.

• [Standard] : For normal TV viewing.

• [Sports] : Vivid picture settings for high action.

• [Movie] : Brilliant picture settings for a cinematic experience.

• [Game] : Optimized for PCs, games consoles and playstations.

Page 17

Changing picture format

1 Press FORMAT on the remote control.

2 Press or to select a picture format and press OK to conﬁ rm

your choice.

For 4:3 video signal

[Normal] [16:9]

Summary of picture formats

5 types of display modes can be selected when the broadcasting station is sending 16:9 or 4:3 video signal. And 3 types of display modes can be selected for PC input signal.

For 16:9 video signal

[Normal]

[Wide]

[4:3]

[Movie Expand]

[Zoom]

[Movie Expand]

[Wide]

Normal

Display a 4:3 picture at its original size. Sidebars appear on both edges of the screen.

16:9

Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally to ﬁ ll the screen.

Movie Expand

Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally and vertically. This crops out the top of the picture.

Zoom

Display a 4:3 picture at a 16:9 size; the picture is stretched vertically to ﬁ ll the screen. This crops out the top and bottom of the picture.

Wide

Display the picture with its center at the original size and the edges stretched horizontally.

[Zoom]

Normal

Display a 16:9 picture at its original size.

4:3

Display a 16:9 picture at a 4:3 size; the picture is shortened horizontally. Sidebars appear on both edges of the screen.

Movie Expand

Display a vertically stretched picture.

Zoom

Display a 16:9 picture at its maximum size without changing its horizontal and vertical ratio.

Wide

Display a horizontally stretched picture.

For PC input signal

[Normal] [Full]

[Dot By Dot]

Normal

Display a proportionately stretched picture. Sidebars appear on both edges of the screen.

Full

Display a picture that is stretched out of proportion to ﬁ ll the screen.

Dot By Dot

Display a picture in its original size.

Page 18

Using your TV as a PC monitor

Use a VGA connector to connect a PC to your TV. For sound, add an audio cable with a stereo mini jack.

Caution

• Before you connect your PC, set the PC monitor refresh rate to 60Hz.

Supported screen resolutions

The following screen resolutions are supported in PC mode :

Resolution Refresh rate 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 768 60Hz 1360 x 768 60Hz

Changing sound settings

1 Press MENU on the remote control and select [Sound].

[TV Speakers]

This option will allow you to select the audio output from the unit’s speakers. If you have an ampliﬁ er which is compatible with the CEC function connected to this unit using an HDMI cable, some sound operations such as volume up can be used with this unit’s remote control.

Press

or to select the desired option, then press OK.

On Sound will come from the TV’s speakers. Off No sound will come from the TV’s speakers.

Speakers EasyLink

[Audio Setting]

You can set the output mode as a default for the sound mode (NTSC only). This setting is not interlocked when you change the output mode by pressing SAP. (see ‘Switching audio mode’ on page 14).

Press

or to select the desired option, then press OK.

Stereo Outputs stereo-audio Mono Outputs mono-audio SAP Outputs second audio program

This function allows you to control audio output from EasyLink compliant device with the TV’s remote control.

4 Press MENU to exit.

English


Sound

Setup

Features

Language

Equalizer

Auto Volume Leveling

TV Speakers

Audio Setting

StandardAuto Sound

Off

Speakers EasyLink

Stereo

2 Press Î or ï to highlight a sound setting and press OK to select

the setting.

3 Adjust the following items.

[Auto Sound]

Press Î or ï to select the desired setting, then press OK. ([Personal], [Standard], [Movie], [Music] and [News])

[Equalizer]

Adjust tone quality for each frequency.

Press Í or Æ to select the speciﬁ c frequency, then press Î or ï to adjust the level.

[Auto Volume Leveling]

Auto Volume Leveling keeps a constant loudness differential between the TV commercials and the programs.

Press Î or ï to select the desired option, then press OK.

Off

Select if you want to reduce volume differences between the TV commercials and the programs.

Select if you want to invalidate the Auto Volume Leveling.

Summary of sound settings

The following sound settings can be conﬁ gured. Depending on the sound source, some sound settings are not available.

• [Auto Sound] : Sets all sound settings to the factory default.

• [Equalizer] : Adjusts individual sound frequencies.

• [Auto Volume Leveling] : Reduces sudden changes in volume, for example, during commercials or when switching channels. Select [On] or [Off].

• [TV Speakers] : Select [On] or [Off], or output sound to an EasyLink compliant device. When [Speakers EasyLink] is selected, the TV speakers are disabled and TV sound outputs to the speakers of the compatible EasyLink compliant device. Adjust the volume using the unit’s remote control.

Changing auto sound mode

1 Press AUTO SOUND to set your TV to a predeﬁ ned sound setting. 2 Press or to select one of the following settings :

• [Personal] : The customized settings you deﬁ ned by using the

[Sound] menu.

• [Standard] : For normal TV viewing.

• [Movie] : Realistic sound settings for a cinematic experience.

• [Music] : Emphasize high and low freq. for instrument sound.

• [News] : Clear sound settings for human voice.

Page 19

Sleeptimer

Sleeptimer switches the TV to standby after a pre-deﬁ ned period of time. You can always switch off your TV earlier or reset the sleeptimer during the countdown.

Press SLEEP to set the sleep timer.

Sleep

Off

Locking a channel

This section describes how to lock speciﬁ ed channels. The channels can be selected but the screen is blanked out and the audio is muted.

1 Press MENU on the remote control and select [Features] >

[Child Lock] > [Channel Lock].

2 Enter your PIN (see ‘Setting your PIN’ on page 18).

Sleep timer display appears on the TV screen.

Press SLEEP repeatedly to change the amount of time until shut off.

Sleep

You can set your unit to turn off after a set period of time (from 30 to 120 minutes).

• Each press of SLEEP will increase the time by 30 minutes.

• After setup, the sleep timer display can be called up for

Tip

To Cancel the Sleep Timer

• Press SLEEP repeatedly until “Sleep Off ” is displayed on the TV screen.

120min.

checking by pressing SLEEP.

Child and rating locks

You can prevent your children from watching certain programs or certain channels by locking the TV controls and by using ratings.

Setting your PIN

1 Press MENU on the remote control and select [Features] >

[Child Lock].

2 Enter a 4-digit PIN on the Number buttons, of the remote control.

• If you have not set up your PIN, enter 0000.

Changing your PIN

1 Press MENU on the remote control and select [Features] >

[Child Lock] > [Change PIN].

2 Enter a 4-digit PIN on the Number buttons of the remote control.

• If you have a PIN, enter your current PIN.

• If you do not have a PIN, enter 0000.

• If you have forgotten your PIN, unplug the AC power cord for 10 seconds to restore the PIN to 0000.

3 Enter your PIN again to conﬁ rm. 4 Press MENU to exit.


Sound

Setup

Features

Language

Select

Video

Component

HDMI 1

HDMI 2

View / Block

BACK

Back

3 Press or and then press OK repeatedly to switch between

blocked and not blocked.

• A box with

• An empty box indicates that the channel is not blocked.

indicates that the channel is blocked.

4 Press MENU to exit.

Using the TV ratings lock

Your TV is equipped with a V-chip that allows you to control access to individual programs based on their age rating and content rating. The program content advisory data are sent by the broadcaster or by the program provider. If you receive channels through a set-top box or cable box connected by HDMI, you cannot use the TV ratings lock. Your set-top box or cable box must be connected through RF or AV connectors.

1 Press MENU on the remote control and select [Features] >

[Child Lock] > [US TV ratings lock].

2 Press or or Í or Æ and then press OK repeatedly to switch

between blocked and not blocked. Each rating has a box-graphic in front of it to indicate whether programs carrying that rating are locked :

• A box with are blocked.

• An empty box indicates that no items in the content ratings list are blocked.

• An empty box indicates that some content ratings are deselected. For example, for rating TV-14, you can deselect one or more of the following content ratings : [D] (Dialog), [L] (Language), [S] (Sex), or [V] (Violence).


Sound

Setup

Features

Language

indicates that all items in the content ratings list

FV V S L D

TV-MA

TV-14

TV-PG

TV-G

TV-Y7

TV-Y

Select

View / Block

BACK

Back

• When you block a rating, all ratings in the younger age categories are automatically blocked.

3 Press MENU to exit.

Page 20

Summary of TV ratings

Age rating Content rating

TV-Y : Appropriate for children of all ages

with themes and elements suitable for children aged 2-6.

TV-Y7 : Programs designed for children age 7

and older.

TV-G : Programs suitable for all ages. These

programs contain little or no violence, no strong language and little or no sexual dialog or situations.

TV-PG : Programs contain elements that some

parents may ﬁ nd unsuitable for younger children and which may need parental guidance. The program may contain moderate violence, sexual dialog and/or situations and some strong language.

TV-14 : Programs contain elements that may

not be suitable for children under 14 years of age. These programs include one or more of the following : intense violence, intense sexual situations, suggestive dialog and strong language.

TV-MA : Programs are designed to be viewed

by adults and may be unsuitable for children under the age of 17. These programs may contain graphical violence, explicit sexual activity and/or crude or indecent language.

None

[FV] (Fantasy Violence)

None

[D] (Dialog) [L] (Language) [S] (Sex) [V] (Violence)

[L] (Language) [S] (Sex) [V] (Violence)

Using the movie ratings lock

You can control viewing of movies based on their MPAA (Motion Picture Association of America) rating.

1 Press MENU on the remote control and select [Features] >

[Child Lock].

2 Select one of the menus for movie ratings lock.

• In the USA, select [US Movie ratings lock].

• In Canada, select [Canadian English Rating] or

[Canadian French Rating].

3 Enter your PIN (see ‘Setting your PIN’ on page 18).

» The following screen shows the ratings in

[US Movie ratings lock].


Sound

Setup

Features

Language

Select

NC-17

PG-13

View / Block

BACK

Back

4 Press Î or ï and then press OK repeatedly to switch between

blocked and not blocked.

• A box with

• An empty box indicates that no items in the rating are not blocked.

indicates that all items in the rating are blocked.

5 Press MENU to exit.

Summary of US movie ratings

Rating Description

NR Not rated. G Movies with a mild content, suitable for all ages. PG Movies for which parental guidance is recommended.

They may contain a few racy or violent scenes or maybe some bad language.

PG-13 Movies for which parental guidance may be

recommended if under age 13.

R Restricted. The movies usually contain offensive sex

or bad language and may be unsuitable for children under the age of 17. Parental guidance or permission needed.

NC-17 Even with parental permission, forbidden under age

17. More offensive sex, violence or bad language.

X Movies which generally focus on sex, violence and/or

bad language. Also known as pornography.

Summary of Canadian English rating

Rating Description

E Exempt program. C Programming suitable for children under the age of

8 years. No profanity or sexual content of any level allowed. Minimal comedic violence.

C8+ Suitable for children ages 8 and over. Low intensity

violence and fantasy horror allowed. G Movies with a mild content, suitable for all ages. PG Movies for which parental guidance is recommended.

They may contain a few racy or violent scenes or

maybe some bad language. 14+ Programming intended for children ages 14 and

over. May contain intense scenes of violence, strong

profanity, and depictions of sexual activity within the

context of a story. 18+ Programming intended for viewers ages 18 and over.

May contain strong violence, language, and sexual

activity.

Summary of Canadian French rating

Rating Description

E Exempt program. G Appropriate for all ages with little or no violence and

little to no sexual content. 8ans+ Appropriate for children 8 and up which may

contain little violence, some foul language and/or

little to no sexual content. 13ans+ Appropriate for children 13 and up, with moderate

violence, language, and some sexual situations.

Persons under 13 should be accompanied by an

adult. 16ans+ Appropriate for children 16 and up, with strong

violence, strong language, and strong sexual content. 18ans+ Only to be viewed by adults and contains extreme

violence and graphic sexual content/pornography.

English

Page 21

Closed caption

Closed captioning is an assistive technology that allows persons with hearing disabilities to access television programming. Closed captioning displays the audio portion of programming as text superimposed over the video.

Note

• Closed caption will not be displayed when you are using an HDMI connection.

• The captions do not always use correct spelling and grammar.

Not all TV programs and product commercials include closed caption information. Refer to your area TV program listings for the TV channels and times of closed caption shows. The captioned programs are usually noted in the TV listings with service marks such as [CC].

DTV

Selecting DTV caption services

1 Select a caption service for digital channels :

• Press MENU on the remote control and select [Features] > [Closed Caption] > [Digital Caption Service].

• Press

Off

CS-1 to CS-6

or to select one of the listed caption services, and

press OK to conﬁ rm your choice.

Select if you do not want Digital Caption Service. This is the default.

Select one of these before changing any other item in [Closed Caption] menu. Choose [CS-1] under normal circumstances.

2 Press MENU to exit.

Selecting how captions are displayed

You can choose the size, font, color, background and other characteristics of the caption text.

1 Press MENU on the remote control and select [Features] >

[Closed Caption] > [Caption Style] > [User Setting].

Press

or to select [On], then press OK.

2 Press or to highlight an option for digital captions, and press

OK to select the option.

3 Press or to highlight a setting for the option, and press OK to

conﬁ rm your choice.

4 Press MENU to exit.

Selecting caption services

1 Select a caption service for analog channels :

• Press MENU on the remote control and select [Features] > [Closed Caption] > [Caption Service].

• Press

or to select one of the listed caption services, and

press OK to conﬁ rm your choice.

2 Press MENU to exit.

Note

• Not all caption services are used by a TV channel during the transmission of a closed

caption program.

Summary of caption services

Service Description

CC-1 and T- 1 ; are the primary caption and text services.

CC-3 and T- 3 ; serve as the preferred data channels.

CC-2, CC-4, T- 2

and T- 4 ;

The captioning or text is displayed in the same language as the program’s dialogue (up to 4 lines of script on the TV screen, where it does not obstruct relevant parts of the picture).

The captioning or text is often a secondary language. are rarely available and broadcasters use them only

in special conditions, such as when [CC-1] and [CC-3] or [T-1] and [T-3] are not available.

• There are 3 display modes according to programs :

Paint-on mode :

Displays input characters on the TV screen immediately.

Pop-on mode :

Once characters are stored in memory, they are displayed all at once.

Roll-up mode :

Displays the characters continuously by scrolling (max. 4 lines).

Difﬁ culties viewing closed captions on DTV programming

If you have difﬁ culties viewing closed captions on DTV programming, including HDTV, received from your subscription television provider, you should :

• consult any consumer information and manuals/guides on closed captions for DTV programming provided by your subscription television provider;

• ensure that the captioning function on your set-top box, if applicable, is turned on; and,

• ensure that the captioning function on your DTV is turned on.

If you are still unable to view closed captions on DTV programming, you should contact your subscription television provider for assistance.

Page 22

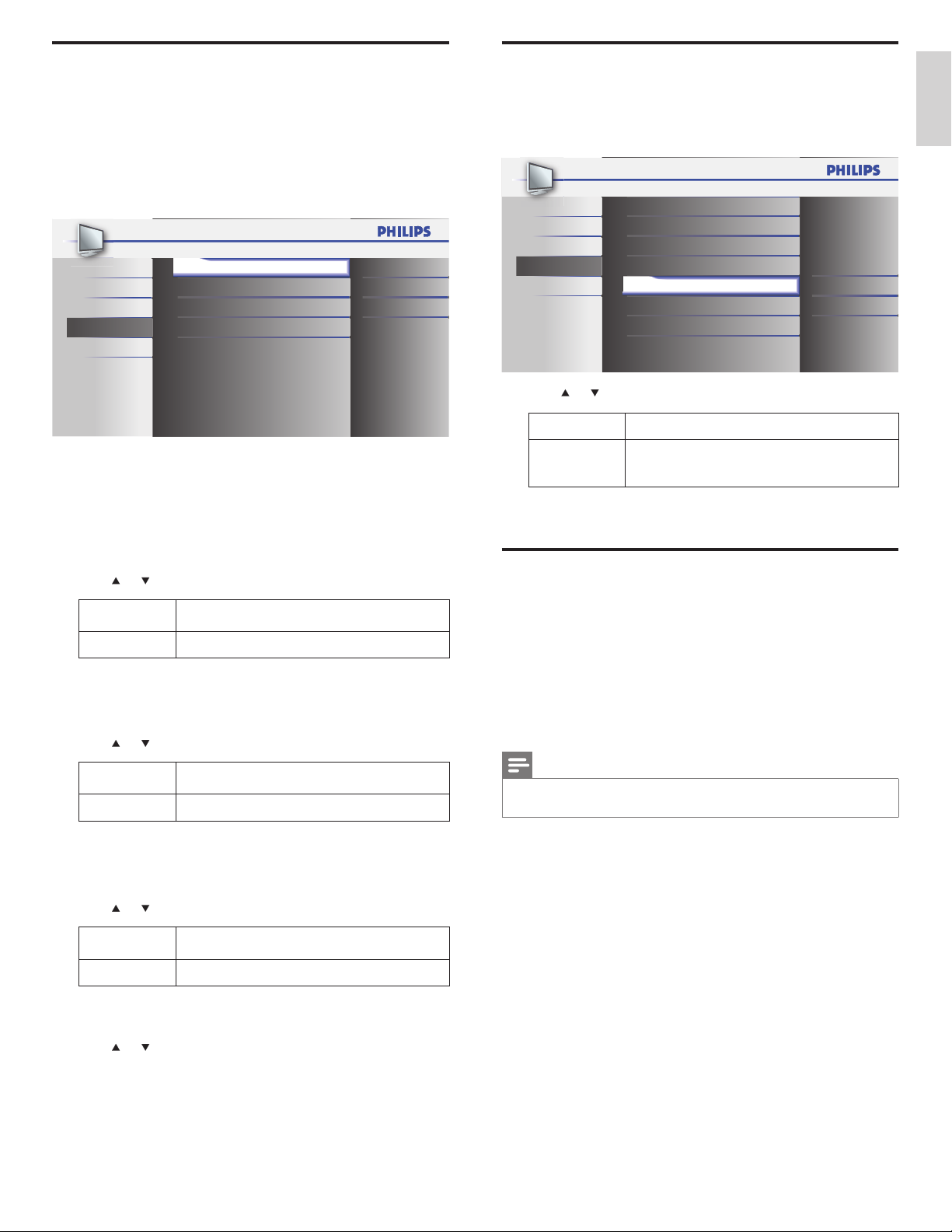

EasyLink

Energy saving mode

EasyLink is known for CEC (Consumer Electronics Control) and this allows you to operate the linked functions between our brand devices with CEC feature and this TV connecting through an HDMI cable. We do not guarantee 100% interoperability with other brands of CEC compliant devices.

1 Press MENU on the remote control and select [Features] >

[EasyLink].


Sound

Setup

Features

Language

Master EasyLink

Auto Device Off

Auto TV On

Device List

2 Press Î or ï to highlight the desired setting and press OK to

select the setting.

3 Adjust the following items.

[Master EasyLink]

Set the EasyLink [On] or [Off]. The following additional settings will be in gray when you set to [Off].

Press

or to select the desired option, then press OK.

Off Disable all EasyLink.

[Auto Device Off]

You can set your device to turn off by interlocking from this unit’s power.

Press

or to select the desired option, then press OK.

Off Your device stays on even if you turn off the unit.

Select if you have connected an external device that is compatible with the CEC function.

Your device turns off automatically when you turn off the unit.

You can set whether the power consumption is saved or not.

1 Press MENU on the remote control and select [Features] >

[Energy Saving Mode].


Sound

Setup

Features

Language

Closed Caption

Child Lock

PC Settings

EasyLink

Energy Saving Mode

Location

Current Software Info

Off

Home

2 Press or to select the desired mode, then press OK.

On Select if you want to reduce the power consumption.

Off

The power consumption may possibly exceed the limited requirement of the ENERGY STAR® qualification.

3 Press MENU to exit.

Set your location to home

You can set the location of your TV to [Home] or [Retail]. Choosing [Home] gives you full ﬂ exibility to change predeﬁ ned settings for picture and sound.

1 Press MENU on the remote control and select [Features] >

[Location].

2 Select [Home] and press OK to conﬁ rm your choice. 3 Press MENU to exit.

Note

• You must set [Home]. Otherwise, the settings of picture and sound quality you

adjusted will not be memorized after you turn off the unit.

English

[Auto TV On]

The unit will turn on detected by the power on signal sending from your device.

Press

or to select the desired option, then press OK.

Off The unit stays off even if you turn on your device.

[Device List]

This function lets you see the product name of connected devices.

or to select the desired HDMI device listed on the TV

Press screen, then press OK.

The unit turns on automatically when you turn on your device.

4 Press MENU to exit.

Page 23

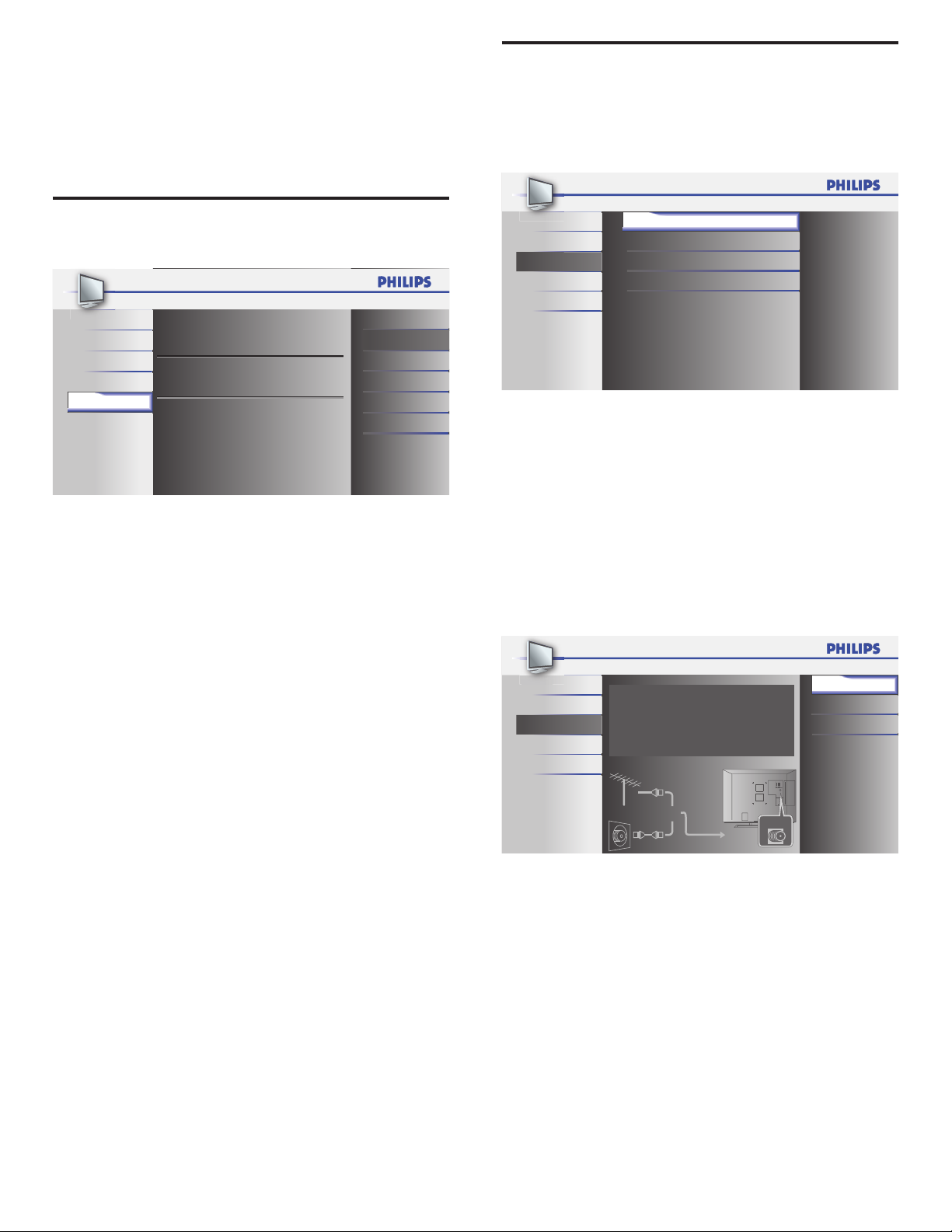

7 Install channels

The ﬁ rst time you set up your TV, you are prompted to select a menu language and to install TV and digital radio channels (if available). This chapter provides instructions on how to reinstall and ﬁ ne-tune channels.

Autoprogram

Before you install channels, ensure that you are registered with your cable TV provider and that your equipment is correctly connected.

1 Press MENU on the remote control and select [Setup] >

[Autoprogram].

Selecting your menu language

1 Press MENU on the remote control and select [Language].


Sound

Setup

Features

Language

Select your menu language.

Seleccione el idioma para el menú.

Sélectionnez la langue du menu.

English

Español

Français

2 Select a language and press OK to conﬁ rm your choice. 3 Press MENU to exit.


Sound

Setup

Features

Language

Autoprogram

Channel List

Add Channels

Antenna

2 Press OK to start the installation.

If you run [Autoprogram] when you have locked channels, a

message appears asking to enter your PIN . Enter your PIN in order to complete the installation.

If you have forgotten your PIN, reset it as described in ‘ Changing

your PIN’ on page 18.

3 Select [Antenna] or [Cable] and press OK.

• When [Antenna] is selected, the TV detects antenna signals. It searches for NTSC and ATSC channels available in your area.

• When [Cable] is selected, the TV detects signals supplied by cable. It searches for NTSC, ATSC, and QAM modulated channels available in your area.


Sound

Setup

Features

Language

*The illustration is described for 22PFL3505D.

• When autoprogramming is complete, the lowest memorized channel will be displayed.

Autoprogram will rescan all channels.

Auto programming may take more than 20

minutes to complete.

Select your signal source.

Antenna

Cable

ANT.IN

Back

Antenna

Cable

4 Follow the on-screen instructions to complete the installation.

Page 24

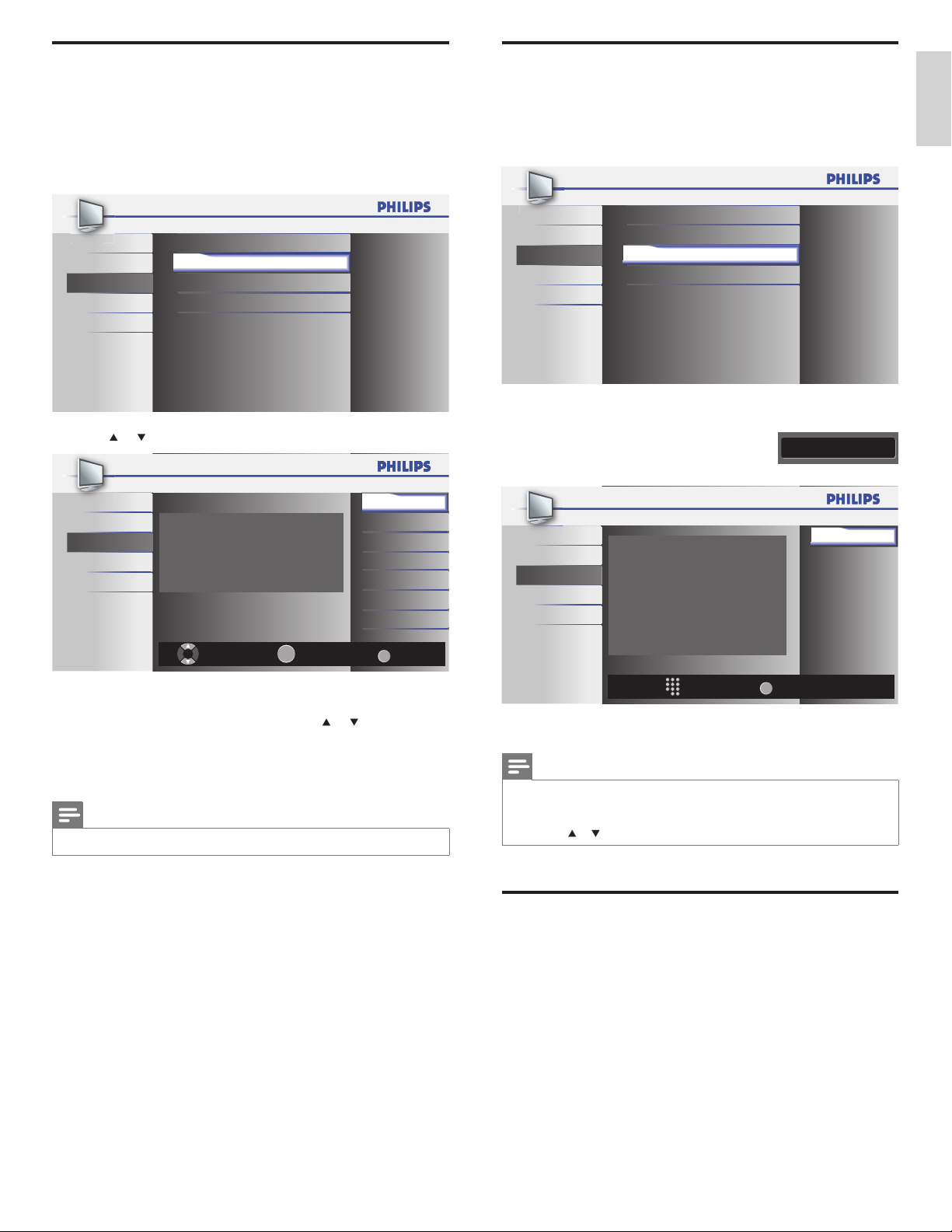

Channel list

Add channels

The channels selected here can be skipped when selecting the channels using CH +/-.

Those channels can still be selected with the Number buttons.

1 Press MENU on the remote control and select [Setup] >

[Channel List].


Sound

Setup

Features

Language

Press or to select the channel you want to remove, then press OK.


Sound

Setup

Features

Language

• The channel display for the removed channel darkens. You will not be able to select the channel again using CH +/-.

• To reactivate a removed channel, press The registered channels are highlighted.

• When you remove a major channel, its minor channels are removed as well.

Note

• The channel with the [DTV] indicated on the display is ATSC. Otherwise the channel is NTSC.

Autoprogram

Channel List

Add Channels

Antenna

Highlight channels for Ch Up/Down key selection.

Ch Select Watch/Skip

DTV 40.1

DTV

and press OK.

BACK

40.2

40.3

Back

This function lets you add the channels that were not added by the autoprogram due to the receptible condition at the initial setup.

1 Press MENU on the remote control and [Setup] >

[Add Channels].


Sound

Setup

Features

Language

Press a number (1 to 135) to enter the number of the channel you want to add, then press OK.


Sound

Setup

Features

Language

Autoprogram

Channel List

Add Channels

Antenna

For analog channels, select a channel to be added using number keys.

For digital channels, you must perform Autoprogram function.

Ch Change

BACK

Add channels

Back

3 Press MENU to exit.

Note

• If setup completes successfully, [Added to the channel list] is displayed.

• If external input is used, it is not possible to register the channel and [Unavailable] will be

displayed on the TV screen.

• By pressing or , you can select the memorized channels only.

English

3 Press MENU to exit.

Optimizing the signal quality from your antenna

You can optimize your signal quality by tuning in ATSC channels with weak signals, and adjusting the antenna.

1 Press MENU on the remote control and select [Setup] >

[Antenna].

2 Press OK to conﬁ rm your choice. 3 Press a number (1 to 135) or press CH+ or CH- to select the

channel for which you want to check the digital signal strength.

4 Press MENU to exit.

Page 25

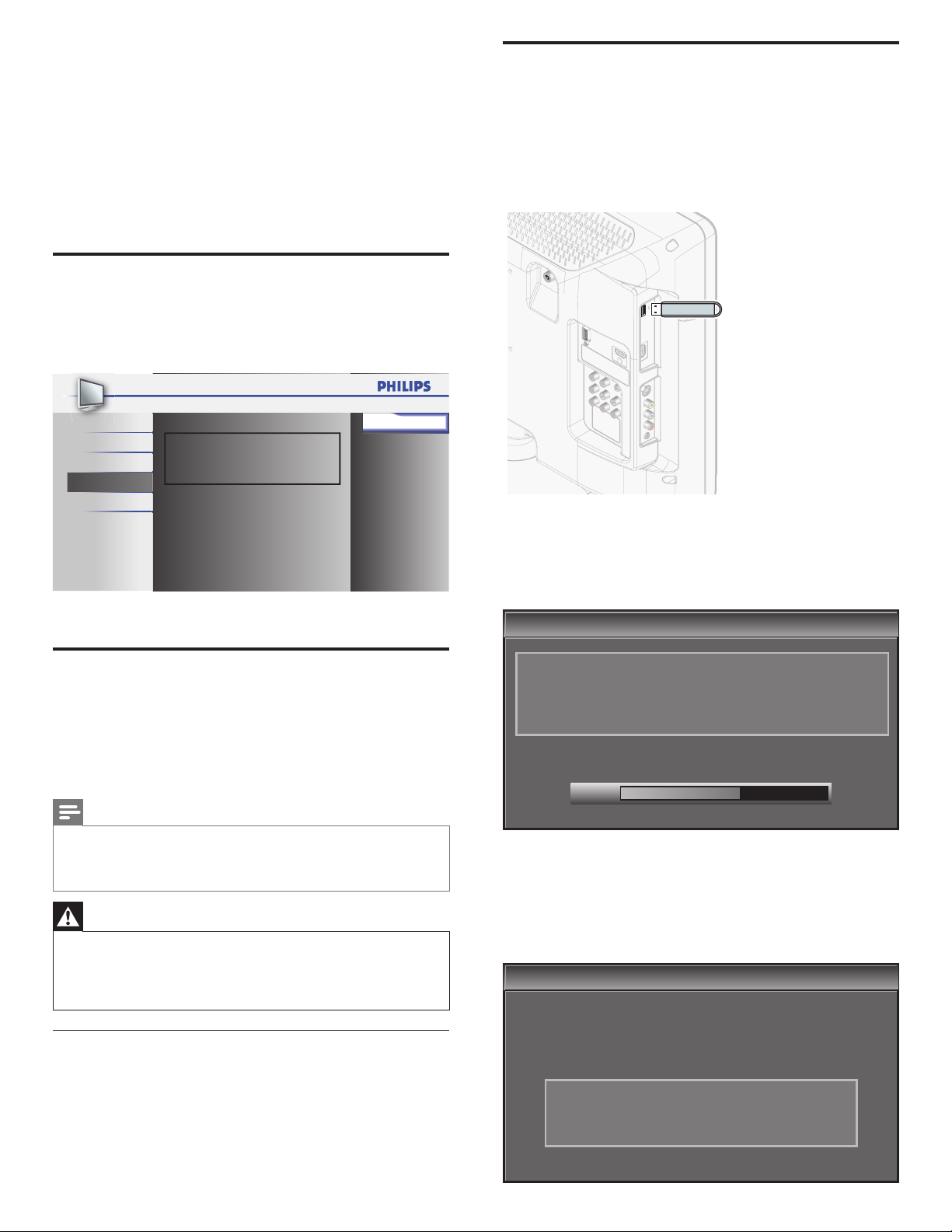

8 Upgrade your TV software

Philips continuously tries to improve its products and we strongly recommend that you upgrade the TV software when upgrades are available.

New software can be downloaded from our website at www.philips.com/welcome using the type number of your TV (e.g. 22PFL3505D) to ﬁ nd information.

Checking your current software version

1 Press MENU on the remote control and select [Features] >

[Current Software Info].

» The version and a description of the current software is

displayed, then press OK.

Upgrading software

1 Prepare the software upgrade (see ‘Preparing for the software

upgrade’ on page 24).

2 If the TV is on, press . POWER at the side of the TV to switch off

the TV.

3 Connect your USB device to the service terminal on the side of

your TV.


Sound

Setup

Features

Language

Release Version: ZPBF1HA_001_0

Back

2 Press MENU to exit.

Preparing for the software upgrade

You require the following equipment :

• A PC with web browsing capability.

• An archive utility that supports the ZIP-format (e.g. WinZip for Windows or StuffIt for Mac OS).

• A USB memory stick.

Note

• Only FAT/DOS-formatted portable memory is supported.

• New software can be obtained from your dealer or can be downloaded from the

www.philips.com/welcome website.

• Use only software upgrades that can be found on the Philips web site.

Warning

• When the software upgrade is running, don’t press any buttons.

• Do not remove the USB device during the software upgrade.

• If there is a power drop during the upgrade, do not remove the USB device from the

TV. The TV continues the upgrade as soon as the power comes back.

• If an error occurs during the upgrade, retry the procedure or contact your dealer.

4 Switch on the TV.

» The TV scans the USB device for the upgraded software and

automatically enters upgrade mode.

5 Read the on-screen instructions and conﬁ rm that you want to

continue with the installation.

Software Upgrade

Software upgrade in progress. Please wait.

Do not remove the USB storage device or turn the TV off

while upgrade is in progress.

Downloading...

60%

6 When the software upgrade is complete, remove the USB device. 7 Press . POWER at the side of the TV to switch off the TV. 8 Switch on the TV.

» The TV starts up with the new software.

• The following messages are displayed without star ting software upgrade when it doesn’t fulﬁ ll the upgrade conditions.

Software Upgrade

Downloading the software

1 On your PC, open a web browser and go to

www.philips.com/welcome

2 Find information and software related to your TV and download

the latest software upgrade ﬁ le to your PC.

3 Decompress the ZIP-ﬁ le. 4 Copy the upgrade ﬁ le to the root directory of the USB device.

The version of this update file is the same or older

than the current version.

Please check the file and try again.

Page 26

9 Connect devices

This section describes how to connect various devices with different connectors and supplements examples provided in the Quick Start.

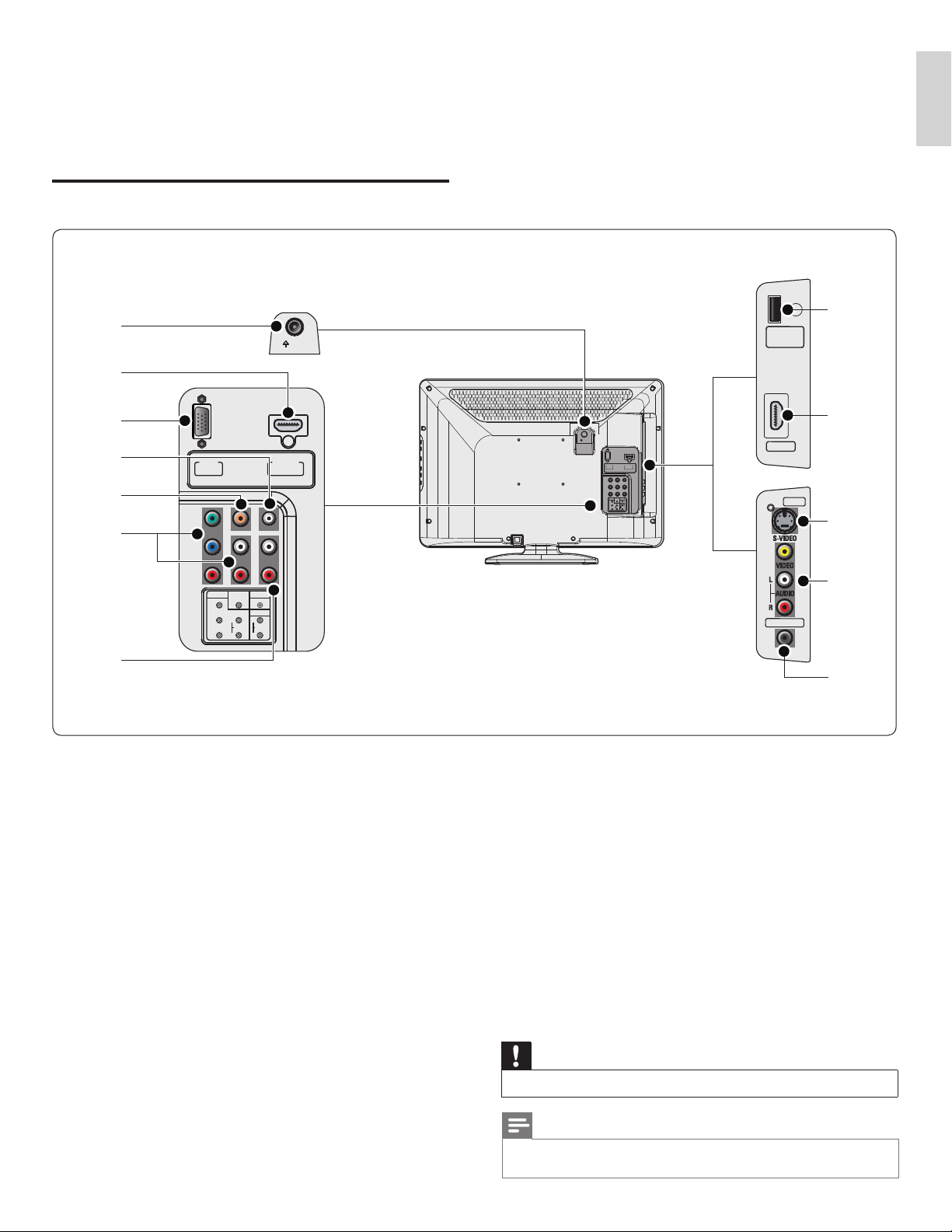

Connection overview

PC IN

RGB

HDMI IN

HDMI 1

ANT. IN

English

SERVICE

TERMINAL

ANT. IN

PC IN

HDMI IN

RGB

HDMI 1

DIGITAL

COMPONENT

PC-IN

AUDIO OUT (COAXIAL)

AUDIO

HDMI 1-IN

LPb

AUDIO

HDMI 2

VIDEO

DIGITAL

COMPONENT

PC-IN

AUDIO OUT

(COAXIAL)

AUDIO

HDMI 1-IN

LPb

AUDIO

a antenna input jack

Signal input from an antenna, cable or satellite.

b HDMI 1 input jack

Digital audio and video input from high deﬁ nition digital devices such as Blu-ray players.

c PC input jack

VGA cable connection for PC.

d audio input jack for PC connection

Mini-plug audio cable connection for PC.

e digital audio output jack

Digital audio output to home theaters and other digital audio systems.

f component video and audio input jack

Video input from analog devices such as DVD, receiver, game console, etc. This connector is used with audio input.

g audio input jack for HDMI 1 h HDMI 2 input jack

Second HDMI in connector.

HEAD PHONE

i S-Video input jack (side)

S-Video (side) input connector to be used with Audio L/R connectors for camcorder, game console, etc. When you use the S-Video (side) for video signals, do not use Composite video (side) for video signals.

j composite video input jack (side)

Video input for analog devices such as DVD, camcorder, game console, etc. To be used with audio input.

k headphone jack

Headphone connection for personal listening.

* service terminal

Use this terminal only when a software upgrade is necessary. USB memory only. Do not connect any device to this terminal such as; digital camera, keyboard, mouse, etc. For more information, please visit at www.philips.com/welcome

Caution

• Disconnect the AC power cord before connecting devices.

Note

• Different types of connectors may be used to connect a device to your TV, depending

on availability and your needs.

Page 27

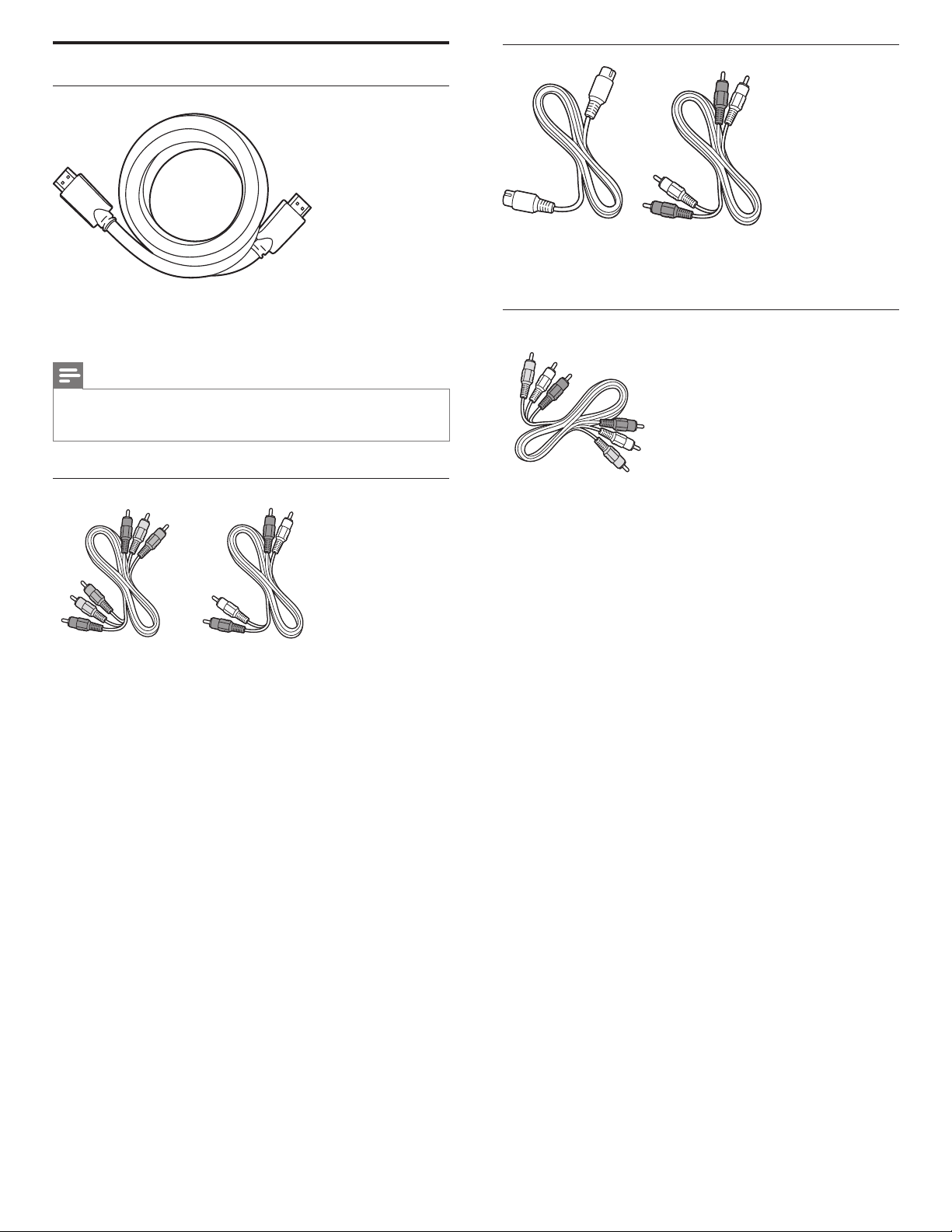

Selecting your connection quality

HDMI - Highest quality

Supports high-deﬁ nition signals and gives highest picture and sound quality. Video and audio signals are combined in one cable. You must use HDMI for full high-deﬁ nition video and to enable Philips EasyLink.

Note

• Philips HDMI supports HDCP (High-bandwidth Digital Contents Protection). HDCP is

a form of Digital Rights Management that protects high deﬁ nition content in DVD or Blu-ray Discs.

Component (Y Pb Pr) - High quality

S-Video - Good quality

S-Video cable and audio L/R cable (red/white) For analog connections. Use an S-Video cable together with an audio L/R cable.

Composite - Basic quality

Composite video/audio cable (yellow/red/white) For analog connections. Composite cables usually combine a yellow video cable with a red/white audio L/R cable. Match the cable colors when you connect to the TV.

Component video cable (red/green/blue) and audio L/R cable (red/ white) Supports high-deﬁ nition signals but gives lower picture quality than HDMI. Component cables combine a red/green/blue video cable with a red/white audio L/R cable. Match the cable colors when you connect to the TV.

Page 28

AUDIO L/R

AUDIO L/R + VIDEO

RF IN

RF OUT

Connecting your devices

HDMI

HDMI 1 IN only

This section describes how to connect a selection of devices with different connectors. Different types of connectors can be used to connect a device to your TV. The following sections describe examples only, other conﬁ gurations are possible.

Connecting a set-top box, Blu-ray Disc player and HD game console via HDMI

Connecting a set-top box, DVD player/recorder via component video output connectors (YPbPr) and analog audio

English

Set-top box

Blu-ray Disc player

HD game console

OUT

HDMI

INININ

OUT

Connecting a DVD player via HDMI-DVI and analog audio

YPbPr

AUDIO L/R

OUT

DVD / Set-top box

OUT

Note

• When you connect cables, match the cable colors to the connectors on the TV.

Connecting a set-top box, DVD player/recorder via composite connectors

RF IN

HDMI 1 IN only

DVI OUT

AUDIO L/R

DVD player

OUT

RF OUT

AUDIO L/R

AUDIO L/R + VIDEO

+ VIDEO

RECORDER

OUT

Set-top box

OUT

CABLE

RF IN

Do not place your recorder too close to the screen because some recorders can be susceptible to signals.

If your recorder has an S-VHS video jack for improved picture quality, connect an S-Video cable with the S-Video input. Connect the audio cables to the audio L and R input jacks.

Note

• When you use an S-Video connector, do not connect any device to the Composite

video jack.

• Only the left loudspeaker reproduces sound for mono equipment. Use a mono to

stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.

• When you connect cables, match the cable colors to the connectors on the TV.

Page 29

VGA

STEREO MINI-PLUG AUDIO

AUDIO IN

Connecting a set-top box via a composite connector

RF IN

Connecting a digital home theater ampliﬁ er

AUDIO L/R + VIDEO

RF OUT

Set-top box

OUT

RF IN

CABLE

If your device has an S-VHS video jack, improve the picture quality as follows :

• Connect an S-Video cable to the S-Video input of VIDEO.

• Connect the audio cables to the audio L and R input jacks of VIDEO.

Note

• When you use an S-Video connector, do not connect any device to the Composite

video jack.

• Only the left loudspeaker reproduces sound for mono equipment. Use a mono to

stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.

• When you connect cables, match the cable colors to the connectors on the TV.

OUT

DIGITAL AUDIO

digital home theater amplifier

For legal reasons, the digital audio signal can be muted for copy-protected PCM audio qualities on accessory devices connected through HDMI.

Connecting a PC

If you connect a PC with a VGA connector at the back.

VGA

OUT

STEREO

STEREO MINI-PLUG AUDIO

MINI-PLUG AUDIO

OUT

If you connect a PC with an S-Video connector at the side.

S-VIDEO

INININ

AUDIO

AUDIO IN

OUT

AUDIO

AUDIO IN

OUT

Page 30

10 Troubleshooting

Problem Possible cause and solution No power or

indicator light.

Error message on the screen with HDMI connection.

No sound is detected from the PC.

TV does not respond to the remote control.

The picture is distorted, stretched out, or has black bars on the side or top.

The picture is mostly red and green, or the picture misses red when connected to an accessory device via component cables.

No picture or sound.

The TV is not connected to the power. Press . POWER at the side of the TV or on the

remote control. Ensure that the AC power cord is connected tightly to the TV power connector and to the power socket outlet. Remove the AC power cord from the power socket outlet, wait 60 seconds and reconnect the AC power cord. Connect the TV to a different power socket outlet.

HDCP authentication fail. Ensure that your HDMI cable is certiﬁ ed. Press SOURCE on the remote control to switch to another source and then switch back to the HDMI source. Reset the accessory device and the TV. Turn on the TV. Select the HDMI channel. Turn on the accessory device. While the TV and the accessory device are powered on, unplug either end of the HDMI cable and then reinsert the cable.

An audio cable is not connected. Connect an audio cable to the PC IN AUDIO port on the TV. Press SOURCE on the remote control, and select the PC source.

Batteries are installed incorrectly, or low battery power. Ensure the indicator light on the TV blinks when you press the remote control buttons. Ensure that you are using the TV remote control. Ensure that the batteries are inserted correctly and do not need to be replaced. Remove the AC power cord from the power socket outlet, wait 60 seconds and reconnect the AC power cord.

Broadcast video format. Press FORMAT on the remote control to select the best picture format. For some accessory devices, the picture format must be set in the accessory device.

Insecure/incorrect connection. Ensure all the connections are made according to the color code. Push the component cables all the way into the YPbPr sockets on the TV.

No picture or sound - ensure you have selected the correct channel. Incomplete channel installation. If the TV receives channels via an AV connection, set the TV to the correct source input. If the TV is connected directly to the wall via a coaxial connection, perform the auto-installation again.

No sound on the TV loudspeaker.

Bad picture quality with a coaxial connection.

Cannot control your TV and connected devices with one remote control.

Volume level is set to zero - increase the volume. Sound is muted - press MUTE on the remote control. Audio cable is not connected - for AV connection, ensure that the Audio L/R cable is connected as described in Connecting your devices (see ‘Connecting your devices’ on page 27) . If you use a component cable, ensure that you have not crossed the red audio cable with the red video cable. Audio output setting for the accessory device is incorrect. For HDMI connections, some accessory devices have an HDMI audio output setting that must be turned on for HDMI to HDMI connections.

Check if [Sound] > [TV Speakers] > [Off] is set to

[On]. No sound will be output when [TV Speakers] is set to [Off].

Standard deﬁ nition channels are not as clear as high deﬁ nition channels - connect the devices via component or HDMI cables.

Conﬁ rm that the connected devices are EasyLink compliant and are connected to your TV via an HDMI cable. Not all brands of devices such as Blu-ray Disc players use the same system as Philips EasyLink. Other brands might not work with Philips EasyLink.

Downloading an electronic copy

To obtain an electronic copy of this manual :

1 Point your browser to www.philips.com/support 2 Choose your country of location. 3 Enter the model number or a keyword in the “Find your product”

ﬁ eld. Alternatively, you can browse the catalogue.

4 Click the description or model. 5 Under Product support, click “User manuals”.

If you cannot resolve your problem, refer to the FAQ for this TV at

www.philips.com/support

If the problem remains unresolved, contact the Customer Support Center in your country.

Warning

• Do not attempt to repair the TV yourself. This may cause severe injury, irreparable

damage to your TV or void your warranty.

Note

• Please have available your TV model and serial number before contacting us. These

numbers are available on the back and side of your TV, as well as on the packaging.

English

Page 31

11 Product information

Note

• Product information is subject to change without prior notice.

Picture enhancement

Type : WXGA (1366 x 768 pixels @60Hz) Br ightness : 19PFL3505D : 250 cd/m2

22PFL3505D : 280 cd/m2 Aspect Ratio : 16:9 Viewing Angles : 19PFL3505D : 160° (V) by 170° (H)

22PFL3505D : 160° (V) by 170° (H) Built-in digital tuner : ATSC/QAM

Sound enhancement

Mono/Stereo : Mono, Stereo Power output

(RMS Watts) : Equalizer : 5 band

6 W

Ease of use

Video modes : For 16:9 video signal / Normal, 4:3, Movie

Expand

Zoom, Wide For 4:3 video signal / Normal, 16:9 Expand For PC input signal / Normal

PC input : via VGA

, Zoom,

Wide

Movie

Full, Dot By Dot

Connections

Component video input with audio L/R :

Composite video input with audio L/R and S-Video :

HDMI : 2

Audio L/R integrated with HDMI 1 :

Digital audio output : 1, supporting Dolby Digital Headphone : 1,

1, suppor ting video signals @60Hz

HDMI supporting video 1080i @60Hz

/8 inches (3.5 mm)

480i/p, 720p, 1080i

signals

: 480i/p, 720p,

Power

Power requirements : 120V~ AC +/- 10%, 60Hz +/- 0.5%

Page 32

12 Warranty

LIMITED WARRANTY

WARRANTY COVERAGE: This warranty obligation is limited to the terms as set forth below.

WHO IS COVERED: This product warranty is issued to the original purchaser or the person receiving the product as a gift against defects in materials and workmanship as based on the date of original purchase (“Warranty Period”) from an Authorized Dealer. The original sales receipt showing the product name and the purchase date from an authorized retailer is considered such proof.

WHAT IS COVERED: This warranty covers new products if a defect in material or workmanship occurs and a valid claim is received within the Warranty Period. At its option, the company will either (1) repair the product at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new, or serviceable used parts and is at least functionally equivalent or most comparable to the original product in current inventory, or (3) refund the original purchase price of the product. Replacement products or parts provided under this warranty are covered against defects in materials and workmanship from the date of the replacement or repair for ninety (90) days or for the remaining portion of the original product’s warranty, whichever provides longer coverage for you. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes company property. When a refund is given, your product becomes company property. Note: Any product sold and identified as refurbished or renewed carries a ninety (90) day limited warranty.

Replacement product can only be sent if all warranty requirements are met. Failure to follow all requirements can result in delay.

WHAT IS NOT COVERED - EXCLUSIONS AND LIMITATIONS: This Limited Warranty applies only to new company manufactured products that can be identified by the trademark, trade name, or logo affixed to it. This Limited Warranty does not apply to any hardware product or any software, even if packaged or sold with the product, as manufacturers, suppliers, or publishers may provide a separate warranty for their own products packaged with the bundled product.

English

ONE (1) YEAR

or a part that has been modified without written company permission, or (d) if any serial number has been removed or defaced, or (e) product, accessories or consumables sold “AS IS” without warranty of any kind by including refurbished product sold “AS IS” by some retailers.

This Limited Warranty does not cover:

• Shipping charges to return defective product.

• Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna/signal source systems outside of the product.

• Product repair and/or part replacement because of improper installation or maintenance, connections to improper voltage supply, power line surge, lightning damage, retained images or screen markings resulting from viewing fixed stationary content for extended periods, product cosmetic appearance items due to normal wear and tear, unauthorized repair or other cause not within the control of the company.

• Damage or claims for products not being available for use, or for lost data or lost software.

• Damage from mishandled shipments or transit accidents when returning product.

• A product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• A product used for commercial or institutional purposes (including but not limited to rental purposes).

• Product lost in shipment and no signature verification receipt can be provided.

• Failure to operate per Owner’s Manual.

TO OBTAIN ASSISTANCE… Contact the Customer Care Center at:

1-866-309-0841

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CONSUMER, WITH THE ISSUING COMPANY NOT LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

The company is not liable for any damage to or loss of any programs, data, or other information stored on any media contained within the product, or other additional product or part not covered by this warranty. Recovery or reinstallation of programs, data or other information is not covered under this Limited Warranty.

This warranty does not apply (a) to damage caused by accident, abuse, misuse, neglect, misapplication, or non-supplied product, (b) to damage caused by service performed by anyone other than company approved Authorized Service Location, (c) to a product

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

P&F USA, Inc. PO Box 430 Daleville, IN 47334-0430

Some states do not allow the exclusions or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

061708

31EN

Page 33

13 Index

Antenna, connect 9 Audio 17 Audio Setting 17 Auto device off 21 Auto picture mode 15 Auto sound mode 17 Auto TV on 21 Auto volume leveling 17

PC 15 Picture format 16, 17 Picture settings 15 Product information 30

Ratings 18, 19 Remote control

insert batteries 9 overview 6, 7

Retail store mode 11, 21

Cables

component 26 composite 26 connection quality 26 HDMI 26 Manage cables 10 S-Video 26 YPbPr 26

Channels

install 22 list 23 lock 18

Child lock

Channel lock 18 PIN 18 ratings lock 18, 19

Closed caption 20 Connection 9, 25, 27 Customer support service 5

Device List 21

EasyLink 21 Energy saving mode 21 Environmental care 5 Equalizer 17

Settings assistant 11 Side controls 6 Signal quality 23 Sleeptimer 18 Software

upgrade 24 version 24

Sound settings 17 Speakers EasyLink 17 Standby 6, 12 Stand mount the TV 8 Subtitles 20

Tilt stand 8 Troubleshooting 29 TV

as PC monitor 16, 17, 29 connections 9, 25, 27 controls 6, 7 menu 15 position 8 remote control 6, 7, 9 screen care 5 software 24 switch channels 12 switch on 11, 12 TV Speakers 17

Home mode 11, 21

Initial setup 11

Location (Retail or Home mode) 11, 21

Master EasyLink 21

Volume

adjust 13 Auto Volume Leveling 17 mute 13

Warranty 31

YPbPr 26

Page 34

English

33EN

Page 35

34 EN

Page 36

P&F USA, Inc.

PO Box 430 Daleville, IN 47334-0430

P&F Mexicana, S.A. de C.V.

Av. La Palma No. 6, Col. San Fernando La Herradura,

Huixquilucan Edo. de México C.P. 52787

TELEVISOR A COLOR DE CRISTAL LIQUIDO (LCD)

MODELO LCD IMAGEN VISIBLE ENERGIA

19PFL3505D/ F7 19”(48,26cm) 47,00cm 120V ~ 60Hz 50W

22PFL3505D/ F7 22”(55,88cm) 54,86cm 120V ~ 60Hz 65W

Comercializado por : P&F MEXICANA, S.A. DE C.V.

IMPORTADOR : SOJITZ MEXICANA, S.A. DE C.V.

Av. Paseo de las Palmas No. 239-302 Col. Lomas de Chapultepec, C.P. 11000 México, D.F. Tel. 52 (55) 5202 - 7222

EXPORTADOR : FUNAI ELECTRIC CO. L.T.D.

PAIS DE ORIGEN :

GARANTIA INCLUIDA EN EL INSTRUCTIVO DE USO

Printed in China

CHINA

LEA CUIDADOSAMENTE ESTE INSTRUCTIVO

ANTES DE USAR SU APARATO.

A0172UH/A01N2UH

1EMN25619 ★★★★★
