Philips 22PFL3409, 22PFL3409-93 User Manual

Download

Page 1

www.philips.com/welcome

22PFL3409/93

EN User manual

=+&1 Ⴌ߀൱Ҭ

Page 2

Contents

1 Notice 2

2 Important 3

3 Your product 5

Product overview 5

4 Use your product 7

Switch your TV on/off or to standby 7 Switch channels 7 Watch connected devices 8 Adjust TV volume 8

5 Use more of your product 9

Access TV menus 9 Change picture and sound settings 9 Create and use lists of favourite channels

11 Use timers 12 Use TV lock 13 Use the TV clock 14 Change TV preferences 14 Start a TV demo 14 Reset the TV to factory settings 14

Tuner/Reception/Transmission 21 Remote control 21 Power 21 Supported TV mounts 21

9 Troubleshooting 22

General TV issues 22 TV channel issues 22 Picture issues 22 Sound issues 23 HDMI connection issues 23 Computer connection issues 23 Contact us 23

10 Index 24

English

6 Install channels 15

Automatically install channels 15 Manually install channels 15 Rename channels 17 Rearrange channels 17

7 Connect devices 18

Back connector 18 Side Connector 18 Connect a computer 18 Use Philips EasyLink 19 Use a Kensington lock 20

8 Product information 21

Supported display resolutions 21

Page 3

1 Notice

2009 © Koninklijke Philips Electronics N.V. All rights reserved. Speciﬁcations are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. The material in this manual is believed adequate for the intended use of the system. If the product, or its individual modules or procedures, are used for purposes other than those speciﬁed herein, conﬁrmation of their validity and suitability must be obtained. Philips warrants that the material itself does not infringe any United States patents. No fur ther warranty is expressed or implied. Philips cannot be held responsible either for any errors in the content of this document or for any problems as a result of the content in this document. Errors reported to Philips will be corrected and published on the Philips support website as soon as possible.

Pixel characteristics

This LCD product has a high number of colour pixels. Although it has effective pixels of

99.999% or more, black dots or bright points of light (red, green or blue) may appear constantly on the screen. This is a structural property of the display (within common industry standards) and is not a malfunction.

Warranty

No components are user serviceable. Do not open or remove covers to the inside of the product. Repairs may only be done by Philips Service Centres and ofﬁcial repair shops. Failure to do so shall void any warranty, stated or implied. Any operation expressly prohibited in this manual, any adjustments, or assembly procedures not recommended or authorised in this manual, shall void the warranty.

Compliance with EMF

Koninklijke Philips Electronics N.V. manufactures and sells many products targeted at consumers which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals. One of Philips’ leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products. Philips is committed to develop, produce and market products that cause no adverse health effects. Philips conﬁrms that if its products are handled properly for their intended use, they are safe to use according to scientiﬁc evidence available today. Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardisation for early integration in its products.

All other registered and unregistered trademarks are the property of their respective owners. ® Kensington and Micro Saver are registered US trademarks of ACCO World Corporation with issued registrations and pending applications in other countries throughout the world.

Page 4

2 Important

Read and understand all instructions before you use your TV. If damage is caused by failure to follow instructions, the warranty does not apply.

Safety

Risk of electric shock or ﬁre!•

Never expose the TV to rain or • water. Never place liquid containers, such as vases, near the TV. If liquids are spilt on or into the TV, disconnect the TV from the power outlet immediately. Contact Philips Consumer Care to have the TV checked before use. Never place the TV, remote control • or batteries near naked ﬂames or other heat sources, including direct sunlight. To prevent the spread of ﬁre, keep candles or other ﬂames away from the TV, remote control and batteries at all times.

Never insert objects into the • ventilation slots or other openings on the TV. When the TV is swivelled ensure • that no strain is exerted on the power cord. Strain on the power cord can loosen connections and cause arcing.

Risk of short circuit or ﬁre!•

Never expose the remote control or • batteries to rain, water or excessive heat.

Avoid force coming onto power • plugs. Loose power plugs can cause arcing or ﬁre.

Risk of injury or damage to the TV!•

Two people are required to lift and • carry a TV that weighs more than 25 kg. When stand mounting the TV, use • only the supplied stand. Secure the stand to the TV tightly. Place the TV on a ﬂat, level surface that can support the combined weight of the TV and the stand. When wall mounting the TV, use • only a wall mount that can support the weight of the TV. Secure the wall mount to a wall that can support the combined weight of the TV and wall mount. Koninklijke Philips Electronics N.V. bears no responsibility for improper wall mounting that result in

accident, injury or damage. Risk of injury to children!Follow these • precautions to prevent the TV from toppling over and causing injury to children:

Never place the TV on a surface •

covered by a cloth or other material

that can be pulled away.

Ensure that no part of the TV hangs •

over the edge of the surface.

Never place the TV on tall furniture •

(such as a bookcase) without

anchoring both the furniture and TV

to the wall or a suitable support.

Educate children about the dangers •

of climbing on furniture to reach the

TV. Risk of overheating! Never install the • TV in a conﬁned space. Always leave a space of at least 10 cm around the TV for ventilation. Ensure curtains or other objects never cover the ventilation slots on the TV. Risk of damage to the TV! Before you • connect the TV to the power outlet, ensure that the power voltage matches

English

Page 5

the value printed on the back of the TV. Never connect the TV to the power outlet if the voltage is different. Risk of injury, ﬁre or power cord damage! • Never place the TV or any objects on the power cord. To easily disconnect the TV power cord • from the power outlet, ensure that you have full access to the power cord at all times. When you disconnect the power cord, • always pull the plug, never the cable. Disconnect the TV from the power outlet • and aerial before lightning storms. During lightning storms, never touch any part of the TV, power cord or aerial cable. Risk of hearing damage! Avoid using • earphones or headphones at high volumes or for prolonged periods of time. If the TV is transported in temperatures • below 5°C, unpack the TV and wait until the TV temperature matches room temperature before connecting the TV to the power outlet.

Screen care

Avoid stationary images as much as • possible. Stationary images are images that remain on-screen for extended periods of time. Examples include: on-screen menus, black bars and time displays. If you must use stationary images, reduce screen contrast and brightness to avoid screen damage. Unplug the TV before cleaning.• Clean the TV and frame with a soft, • damp cloth. Never use substances such as alcohol, chemicals or household cleaners on the TV. Risk of damage to the TV screen! Never • touch, push, rub or strike the screen with any object. To avoid deformations and colour fading, • wipe off water drops as soon as possible.

Recycling

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheeled bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC:

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potentially negative consequences for the environment and human health. Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on the separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences for the environment and human health.

Page 6

3 Your product

Remote control

Congratulations on your purchase, and welcome to Philips! To fully beneﬁt from the support that Philips offers; register your product at www.philips.com/welcome.

Product overview

This section gives you an overview of commonly used controls and functions.

Side controls and indicators

21 20

19 18

English

1 2

3 4

5 6

a POWER: Switches the product on

or off. The product is not powered off completely unless it is physically unplugged.

b P/CH +/-: Switches to the next or

previous channel.

c d VOLUME +/-: Increases or decreases

SOURCE: Selects connected devices.

volume.

Page 7

(Standby-On)

Switches the TV to standby if it is on.• Switches on the TV if it is in standby.•

Toggles the main menu on or off.

( ) (Not used)

Toggles teletext on or off.

( )

Selects connected devices.

Sets a delay after which the TV switches to standby.

( )

Accesses options relating to the current activity or selection.

Conﬁrms an entry or selection and displays the channel grid, when watching TV.

(Navigation buttons)

Navigates through the menus.

( )

Displays programme information, if available.

Increases or decreases volume.

( / )

Returns to a previous screen.•

Returns to the previously viewed •

channel.

( )

Switches between channel grid and programme list.

Switches Stereo and Nicam Stereo to Mono. Selects ﬁrst language (Dual I) or second language (Dual II) in bilingual programmes.

Toggles the demonstration menu on or off.

( )

Selects a picture format.

( )

Enables Incredible Surround for stereo sources. Enables spatial mode for mono sources.

( )

Mutes or restores audio output.

Switches to the next or previous channel. When the TV menu is on, this functions as Page Up/Down.

l 0-9 (Numeric buttons )

Selects a channel or setting.

( )

Launches the picture menu.

( )

Launches the sound menu.

Page 8

4 Use your

product

This section helps you perform basic operations (see ‘Use more of your product’ on page 9).

Switch your TV on/off or to standby

Note

If you cannot locate your remote control and • want to switch on the TV from standby, press

or SOURCE at the side of the TV.

Switch channels

English

To switch on

If the standby indicator is off, press • POWER at the side of the TV. If the standby indicator is red, press • (Standby-On) on the remote control.

To switch to standby

Press • control.

To switch off

Press •

Tip

Though your TV consumes very little power • when in standby, energy continues to be consumed. When not in use for an extended period of time, disconnect the TV power cable from the power outlet.

(Standby-On) on the remote

The standby indicator switches to red. »

POWER at the side of the TV.

The standby indicator switches off. »

Press • on the remote control or P/CH +/- on the side of the TV. Press • Enter a channel number using the •

Numeric buttons.

Note

When you use a favourite list, you can only • select those channels in the list (see ‘Select a favourite list’ on page 11).

to use the channel grid.

Page 9

Watch connected devices

Note

For easy access, add new devices to the home • menu before selecting them.

Use the source button

1 Press ( ).

The source list appears. »

2 Press or to select the connected

device.

3 Press to conﬁrm selection.

Adjust TV volume

To increase or decrease volume

Press • Press • VOLUME +/- on the side of the TV.

To mute or unmute sound

Press • Press •

( ) to mute audio. ( ) again to restore audio.

Page 10

5 Use more of

Change picture and sound settings

your product

Access TV menus

Menus help you to install channels, change picture and sound settings and access other features.

1 Press .

The menu screen appears. »


Sound

Features

Installation

Smart picture

Contrast

Brightness

Colour

Hue

Sharpness

Noise reduction

Colour temperature

2 Press the to select and navigate

through one of the following menus.

• [Picture]Adjusts the picture setting for optimal viewing.

• [Sound]Adjusts the sound setting.

• [Features]Accesses different features like timer, TV lock and demo.

• [Installation]Selects channel installation menu, adjusts preferences and resets the TV to factory settings.

3 Press to conﬁrm your choice.

Change picture and sound settings to suit your preferences. You can apply pre-deﬁned settings or change settings manually.

Use smart picture

Use smart picture to apply pre-deﬁned picture settings.

1 Press ( ).

The » [Smart picture] menu appears.

2 Press to select one of the following

smart picture settings.

• [Personal]Lists customised personal picture settings.

• [Vivid]Maximises picture settings.

• [Standard]Adjusts picture settings to suit most environments and types of video.

• [MOVIE]Applies picture settings ideally suited for movie viewing.

• [Game]Applies picture settings maximised for fast-moving games.

• [Energy saving]Applies low-energy picture settings.

3 Press to conﬁrm your choice.

The selected smart picture setting is » applied.

Manually adjust picture settings

1 Press .

English

Tip

When the menu is on, • functions as Page Up/Down. Press

• at any time to exit the menu.

Press

• ( / ) to move back one

screen.

2 Press to select [Picture].

The » [Picture] menu appears.

3 Press to select one of the

following picture settings.

• [Smart picture]Accesses pre-deﬁned smart picture settings.

• [Contrast]Adjusts the intensity of bright areas, keeping dark areas unchanged.

• [Brightness]Adjusts the intensity and details of dark areas.

Page 11

• [Colour]Adjusts colour saturation.

• [Hue]Compensates colour variations in NTSC encoded transmissions.

• [Sharpness]Adjusts the level of sharpness in image details.

• [Noise reduction]Filters and reduces noise in an image.

• [Colour temperature]Adjusts colour temperature.

• [Dig.CrystalClear]Digitally adjusts picture quality to optimal contrast, colour and sharpness.

• [Dynamic contrast]Automatically

enhances contrast in an image. A [Medium] setting is recommended.

• [Dynamic backlight]Adjusts the

brightness of the TV backlight to match lighting conditions.

• [MPEG artifact re.]Smoothes out

transitions on digital pictures. You can switch this feature on or off.

• [Colour enhancement]Makes

colours more vivid and improves the resolution of details in bright colours. You can switch this feature on or off.

• [PC mode]Adjusts the picture when a PC is connected to the TV via HDMI or DVI.

• [Picture format]Changes the picture format.

• [Horizontal shift]Adjusts the picture horizontally for PC-VGA or CVI input.

• [Vertical shift]Adjusts the picture vertically for PC-VGA or CVI input.

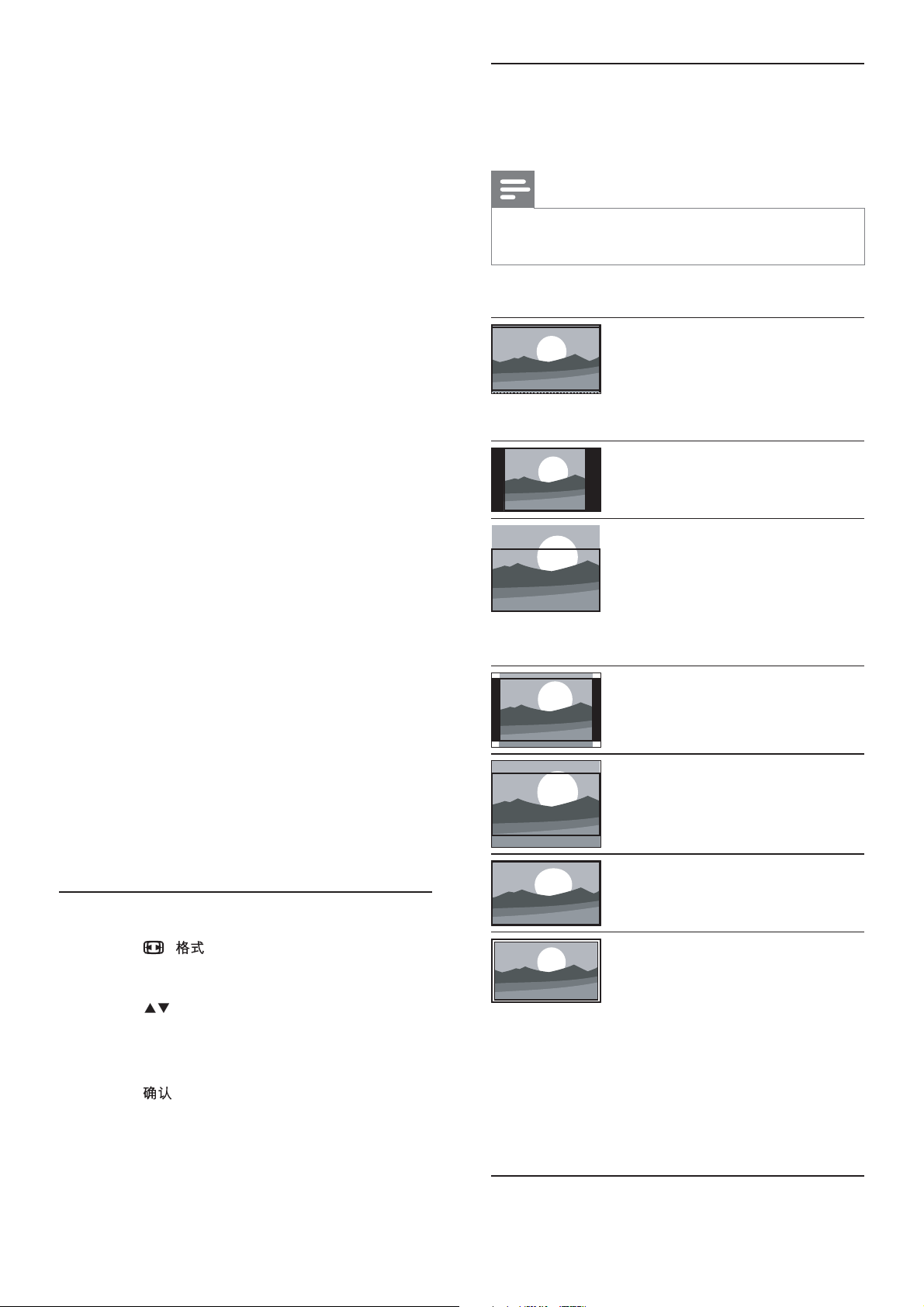

Change picture format

Summary of picture formats

The following picture settings can be conﬁgured.

Note

Depending on the format of the picture • source, some picture settings are not available.

[Super zoom](Not for HD and PC mode.) Removes the black bars on the side of 4:3 broadcasts. There is minimal distortion.

[4:3]Shows the classic 4:3 format.

[Subtitle zoom]Displays 4:3 pictures over the full area of the screen, with sub-titles visible. Part of the top of the picture is clipped off.

[Movie exp.14:9](Not for HD and PC mode.) Scales 4:3 format to 14:9.

[Movie exp.16:9](Not for HD and PC mode.) Scales 4:3 format to 16:9.

[Wide screen]Stretches the classic 4:3 format to 16:9.

1 Press ( ).

A picture format bar appears. »

2 Press to select a picture format.

The selected picture format is » activated.

3 Press to conﬁrm your choice.

[Unscaled]For HD and PC

mode only, and in selected models only. Allows maximum sharpness. Some distortion may be present due to the broadcaster’s systems. Set your PC resolution to wide screen mode for best results.

Page 12

Use smart sound

Use smart sound to apply pre-deﬁned sound settings.

1 Press ( ).

The » [Smart sound] menu appears.

2 Press to select one of the following

smart sound settings.

• [Standard]Adjusts sound settings to

suit most environments and types of audio.

• [News]Applies sound settings ideally

suited for spoken audio, such as the news.

• [Movie]Applies sound settings ideally

suited for movies.

• [Personal]Applies the settings that

were customised in the sound menu.

3 Press to conﬁrm your choice.

The selected smart sound setting is » applied.

When enabled, this produces a more consistent audio volume.

• [Delta volume]Levels out volume differences between channels or connected devices. Switch to the connected device before you change the delta volume.

Create and use lists of favourite channels

You can create lists of your preferred TV channels and radio stations so that you can ﬁnd those channels easily.

Tip

You can create and store up to four favourite • lists on your TV.

English

Adjust sound settings

1 Press . 2 Press to select [Sound].

The » [Sound] menu appears.

3 Press to select and adjust:

• [Smart sound]Accesses pre-deﬁned smart sound settings.

• [Bass]Adjusts the bass level.

• [Treble]Adjusts the treble level.

• [Volume]Adjusts the volume.

• [Balance]Adjusts the balance of the right and left speakers to best suit your listening position.

• [Dual I-II]Selects between audio languages if dual sound is broadcast.

• [Mono/Stereo]Selects between mono or stereo if stereo is broadcast.

• [Surround]Enables spatial sound.

• [Auto volume]Automatically reduces sudden volume changes, for example, when switching channels.

Select a favourite list

1 When watching TV, press to display

the channel grid.

2 Press ( ).

The channel options menu appears. »

3 Press to select [Show favourite ch.].

The favourite lists appear. »

4 Press to select a favourite list. 5 Press .

Only channels in the favourite list » appear in the channel grid.

View all channels

You can exit a favourite list, and view all installed channels.

1 When watching TV, press to display

the channel grid.

2 Press ( ).

The channel options menu appears. »

3 Select [Show favourite ch.] > [All] .

Page 13

4 Press .

All channels display in the channel grid. »

Note

4 Press to select a favourite list and

press

to enter the list.

5 Press to choose the channel that

you wish to remove from the list.

All favourite channels are marked by an • asterisk in the channel grid.

Add a channel to a favourite list

Tip

View all channels before adding a channel to a • favourite list.

1 When watching TV, switch to the channel

you want to add to a favourite list (see ‘Switch channels’ on page 7).

2 Press ( ).

The channel options menu appears. »

3 Press to select [Mark as favourite]. 4 Press .

The favourite lists appear. »

5 Press to select a favourite list to add

the channel to.

6 Press .

The channel is added to the favourite » list.

6 Press ( ). 7 Press to select [Unmark as fav.]. 8 Press .

The channel is removed from the » favourite list.

Use timers

You can set timers to switch the TV on or switch to standby at a speciﬁed time.

Automatically switch the TV to standby (sleeptimer)

Sleeptimer switches the TV to standby after a pre-deﬁned period of time.

Tip

You can always switch off your TV earlier or • reset the sleeptimer during the countdown.

1 Press . 2 Select [Features] > [Sleeptimer] .

The » [Sleeptimer] menu appears.

Remove a channel from a favourite list

Note

Select the favourite list to edit, before • removing a channel.

1 When watching TV, press to display

the channel grid.

2 Press ( ).

The channel options menu appears. »

3 Press to enter [Show favourite ch.].

3 Press to set the sleep time.

The sleep timer can be up to 180 » minutes in steps of ﬁve minutes. If set to zero minutes, the sleep timer is switched off.

4 Press to activate the sleeptimer.

The TV switches to standby after the » pre-deﬁned period of time.

Automatically switch the TV on (on timer)

You can switch the TV to a speciﬁed channel at a speciﬁed time, from standby.

Page 14

1 Press . 2 Select [Features] > [On timer] . 3 Press to enter the [On timer] menu. 4 Press to select [Activate] and set a

frequency - [Once], [Daily] or [Off].

5 Press to conﬁrm. 6 Press to select [Time] and set the

starting time.

7 Press [Done] to conﬁrm. 8 Press to select [Programme no.]

and set the channel.

6 If you want to change the code, select

[Features] > [Change code].

7 Enter your current code using the

Numeric buttons.

If the code is validated, you will be » prompted to enter your new code.

8 Enter the new code using the Numeric

buttons.

You will be prompted to re-enter the » new code for conﬁrmation.

Tip

English

9 Press to conﬁrm. 10 Press to exit.

Tip

Select • [Off] to switch off [On timer]. When

• [On timer] is switched off, only

[Activate] option is available. Set the TV clock before you activate

• [On

timer]feature.

Use TV lock

You can prevent your children from watching certain programs or certain channels by locking the TV controls.

Set or change the TV lock code

1 Press .

If you forget your code, enter ‘8888’ to • override any existing codes.

Lock or unlock the TV

Locking the TV prevents your child from accessing all channels and connected devices.

1 Press . 2 Press to select [Features] > [TV

lock].

3 Press to enter [TV lock].

A screen prompting you to enter code » appears.

4 Enter your code. 5 Press to select [Lock] or [Unlock]. 6 Press .

All channels and connected devices are » locked or unlocked.

2 Press to select [Features] > [Set

code].

3 Press to enter the code setup. 4 Enter your code with the Numeric

buttons.

5 Re-enter the same code in the new

dialogue box for conﬁrmation.

If the code is set successfully, the » dialogue box will disappear. However, if the code cannot be set, you will be prompted to re-enter the code.

7 Press to exit.

Note

Restar t the TV for the change to take effect. •

Lock or unlock one or more channels

1 When watching TV, press to display

the channel grid.

2 Press to select a channel to lock or

unlock.

Page 15

3 Press ( ). 4 Press to select [Lock channel] or

[Unlock channel].

5 For each selection, press to lock or

unlock the channel.

Note

• [E-sticker]For shop mode only. Sets the location of the e-sticker.

4 Press to select your preference. 5 Press . 6 Press to exit.

Restar t the TV for the change to take effect. •

Use the TV clock

You can display a clock on the TV screen.

Set the TV clock

1 Press . 2 Select [Features] > [Clock] .

The » [Clock] menu appears.

3 Press or Numeric buttons to

enter time.

4 Press [Done] to conﬁrm. 5 Press to exit.

Note

Start a TV demo

Press .

2 Select [Features] > [Demo] .

The » [Demo] menu appears.

3 Press the to select a demo.

• [Dig.CrystalClear]Digitally adjusts picture quality to optimal contrast, colour and sharpness.

• [Active Control]Automatically adjusts the picture setting for optimal picture quality continuously under any signal conditions.

4 Press to start the demo. 5 Press to exit.

Reset the TV to factory settings

The clock is disabled automatically after three • seconds.

Change TV preferences

Press .

2 Select [Installation] > [Preferences] . 3 Press to enter [Preferences].

• [Location]Optimises TV settings for your location - home or shop.

• [Volume bar]Displays the volume bar when adjusting the volume.

• [EasyLink]Enables one-touch play and one-touch standby between EasyLink-compliant devices.

You can restore the default picture and sound settings of your TV. Channel installation settings remain the same.

1 Press . 2 Select [Installation] > [Factory settings] . 3 Press to enter the [Factory settings]

menu.

» [Reset] is highlighted.

4 Press to reset to factory settings. 5 Press to exit.

Page 16

6 Install channels

The ﬁrst time you set up your TV, you are prompted to select a menu language and to install TV and digital radio channels (if available). This chapter provides instructions on how to reinstall and ﬁne-tune channels.

Automatically install channels


Sound

Features

Installation

Menu language

Channel install.

Preferences

Factory settings

Current software

Channel assistant

Analog: Manual

3 Select [Start] and press to re-install

channels.

English

This section describes how to search and store channels automatically.

Step 1 Select your menu language

Note

Skip this step if your language settings are • correct.

1 Press . 2 Select [Installation] > [Menu language] . 3 Press to enter [Menu language]. 4 Press to select a language setting.


Sound

Features

Menu language

Channel install.

Preferences

Factory settings

Current software

English

Start automatic installation. This takes a few minutes.

Start?

As the system searches for channels, » you have the option to [Stop] the process.

4 If you want to stop searching, select

[Stop] and press

A dialogue box appears asking » you if you really want to [Stop] or

[Continue] with the process.

5 Press to select [Stop] or [Continue]. 6 Press to conﬁrm your choice. 7 When done, press to exit.

Manually install channels

This section describes how to search and store analogue TV channels manually.

Installation

5 Press to conﬁrm. 6 Press to exit.

Step 2 Install Channels

1 Press . 2 Select [Installation] > [Channel install.]

> [Channel assistant].

1 Press . 2 Select [Installation] > [Channel install.]

> [Analogue: Manual]

The » [Analogue: Manual] menu appears.

Page 17


Sound

Features

Menu language

Channel install.

Preferences

Factory settings

Current software

Channel assistant

Analog: Manual

2 Select [Installation] > [Channel install.]

> [Analogue: Manual].

The » [Analogue: Manual] menu appears.

3 Press to select and enter [Search]. 4 Press or use Numeric buttons to

manually enter the three digit frequency.

Installation

3 Press to select the item you want to

adjust.

• [Colour system]

• [Sound system]

• [Search]

• [Fine-tune]

• [Store cur. chan.]

• [Store new channel]

• [Skip channel]

Step 1 Select your system

Note

Skip this step if your system settings are • correct.

5 Press to begin search. 6 Press when the new channel is found. 7 Press to select [Store new

channel] to store the new channel under

a new channel number.

8 Press to select [Yes] and press to

store new channel.

9 Press to exit.

Fine-tune analogue channels

1 Press . 2 Select [Installation] > [Channel install.]

> [Analogue: Manual].

The » [Analogue: Manual] menu appears.

3 Press to select and enter [Fine-

tune].

1 Press . 2 Select [Installation] > [Channel install.]

> [Analogue: Manual]

The » [Analogue: Manual] menu appears.

3 Press to select and enter [Colour

system].

4 Press to conﬁrm. 5 Press to select and enter [Sound

system].

6 Press to conﬁrm. 7 Press to exit.

Step 2 Search and store new TV channels

1 Press .

4 Press to adjust frequency. 5 Press when done. 6 Press to select and enter [Store

cur. chan.] to store the channel number.

7 Press to select [Yes] and press to

store current channel.

8 Press to exit.

Skip channels

1 Press . 2 Select [Installation] > [Channel install.]

> [Analogue: Manual].

The » [Analogue: Manual] menu appears.

3 Press to select and enter [Skip

channel].

Page 18

4 Press to select [Yes] and press to

skip current channel.

The selected channel is skipped when » you press control or view the channel grid.

on your remote

5 Press to exit.

Note

Rearrange channels

After you install channels, you can rearrange the order in which they appear.

1 When watching TV, press to display

the channel grid .

2 Press ( ).

The channel options menu appears. »

English

You can restore a skipped channel to your • channel listing (see ‘Step 2 Search and store new TV channels’ on page 16).

Rename channels

Channels can be renamed so that a name of your choice appears whenever the channel is selected.

1 When watching TV, press to display

the channel grid .

2 Select the channel you want to rename. 3 Press ( ).

The channel options menu appears. »

4 Press to select and enter [Rename

chan.].

A text input box appears. »

3 Press to select and enter

[Reorder].

4 Select the channel you want to reorder. 5 Press to start reordering. 6 Press to select the new position

for the channel.

7 Press to conﬁrm the new position. 8 Press ( ).

» [Done reordering] appears.

9 Press to ﬁnish reordering. 10 Press ( / ) to exit.

5 Press to select characters. 6 Press to conﬁrm each of the

characters.

Tip

Rename channels - the length of the name is • limited to six characters. Use

• [Aa] to change upper-case letter to lower-

case letter and vice versa.

Page 19

7 Connect devices

This section describes how to connect various devices with different connectors and supplements examples provided in the Quick Start.

Note

f CVI 1/CVI 2 (Y Pb Pr and AUDIO L/R)

Analogue audio and video input from analogue or digital devices such as DVD players or game consoles.

g HDMI 1

Digital audio and video input from highdeﬁnition digital devices such as Blu-ray players.

Different types of connectors may be used to • connect a device to your TV, depending on availability and your needs.

Back connector

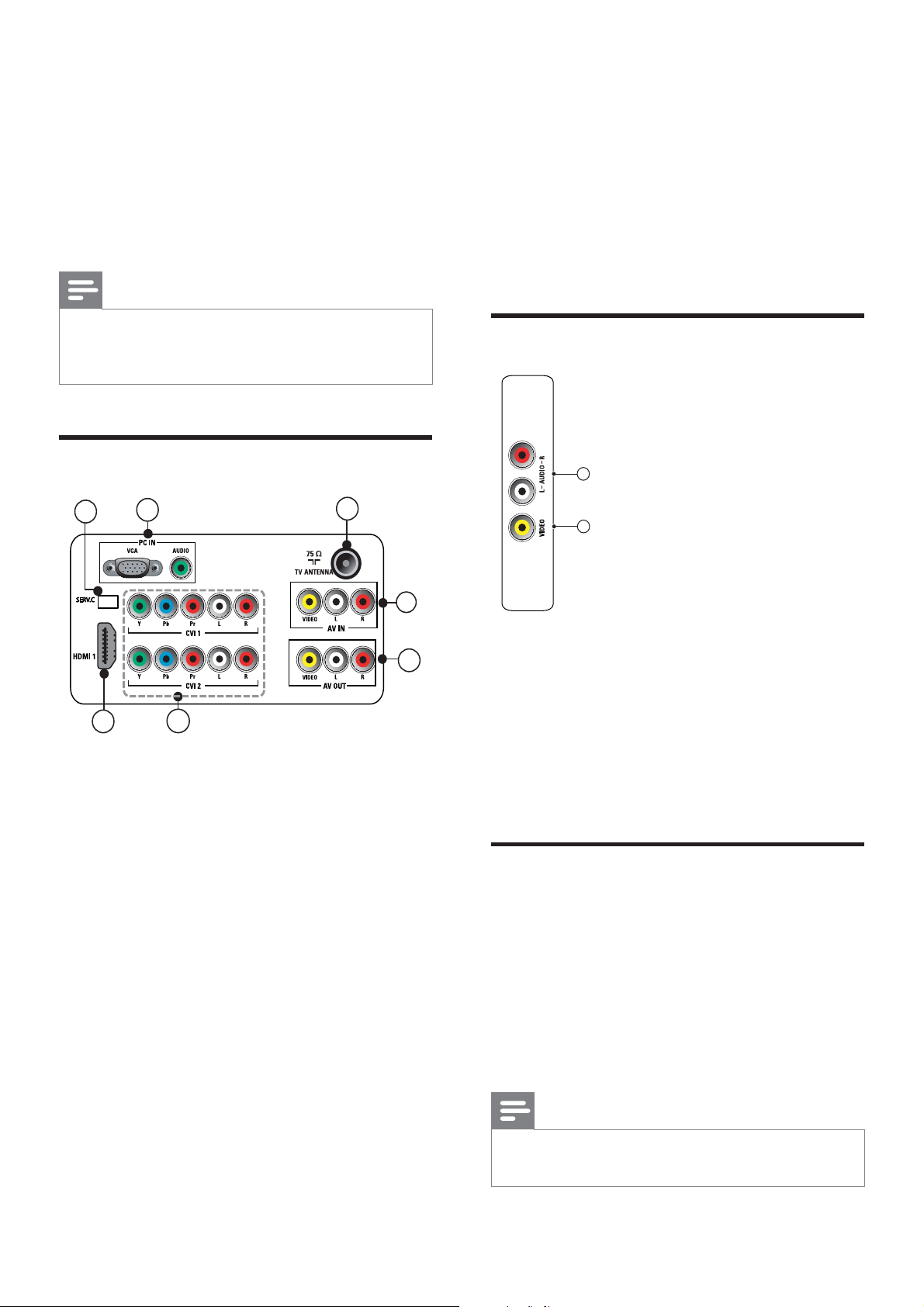

SERV.C

a SERV. C

For software update.

Side Connector

a AUDIO L/R

Audio input from analogue devices connected to VIDEO.

b VIDEO

Composite video input from analogue devices such as VCRs.

b PC IN (VGA and AUDIO IN)

Audio and video input from a computer.

c TV ANTENNA

Signal input from an antenna, cable or satellite.

d AV IN

Analogue audio and video input from analogue or digital devices such as DVD players, satellite receivers and VCRs.

e AV OUT

Audio and video output to analogue devices such as another TV or a recording device.

Connect a computer

Before you connect a computer to the TV

Set the screen refresh rate on your • computer to 60Hz. Select a supported screen resolution on • your computer.

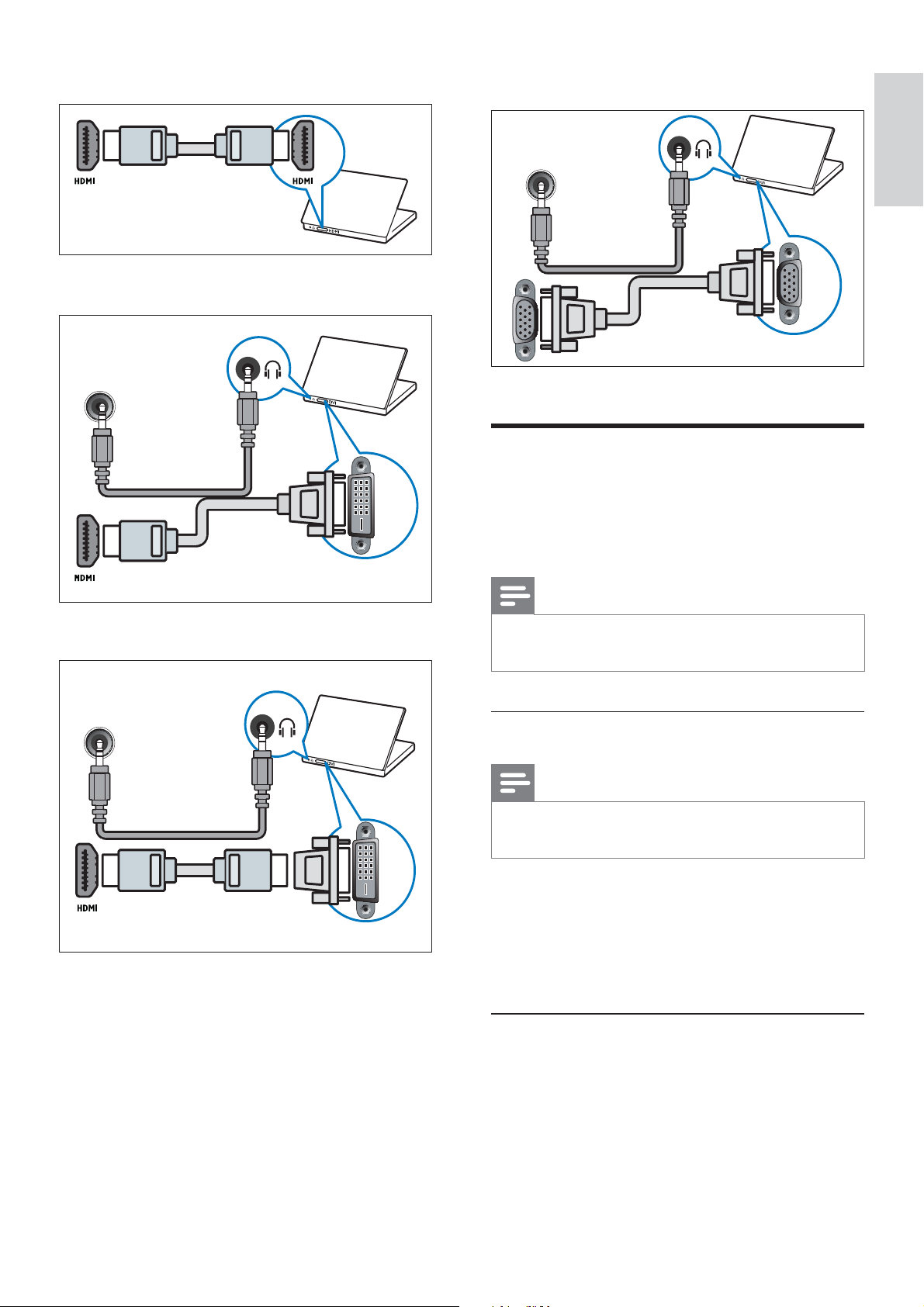

Connect a computer with one of the following connectors:

Note

Connections via DVI or VGA require an • additional audio cable.

Page 20

• HDMI cable

• VGA cable

• DVI-HDMI cable

PC AUDIO IN/ PC IN(AUDIO)

DVI

PC AUDIO IN/ PC IN(AUDIO)

VGA

Use Philips EasyLink

Your TV supports Philips EasyLink, which enables one-touch play and one-touch standby between EasyLink-compliant devices.

Note

English

• HDMI cable and HDMI-DVI adaptor

PC AUDIO IN/ PC IN(AUDIO)

Compliant devices must be connected to your • TV via HDMI.

Enable or disable EasyLink

Note

Do not enable Philips EasyLink if you do not • intend to use it.

DVI

1 Press MENU. 2 Select [Installation] > [Preferences] >

[EasyLink].

3 Select [On] or [Off ].

Use one-touch play

1 After enabling EasyLink, press play on

your device.

The TV automatically switches to the » correct source.

Page 21

Use one-touch standby

1 Press and hold Standby on the TV’s or

device’s remote control for at least three seconds.

The TV and all connected HDMI » devices switch to standby.

Use a Kensington lock

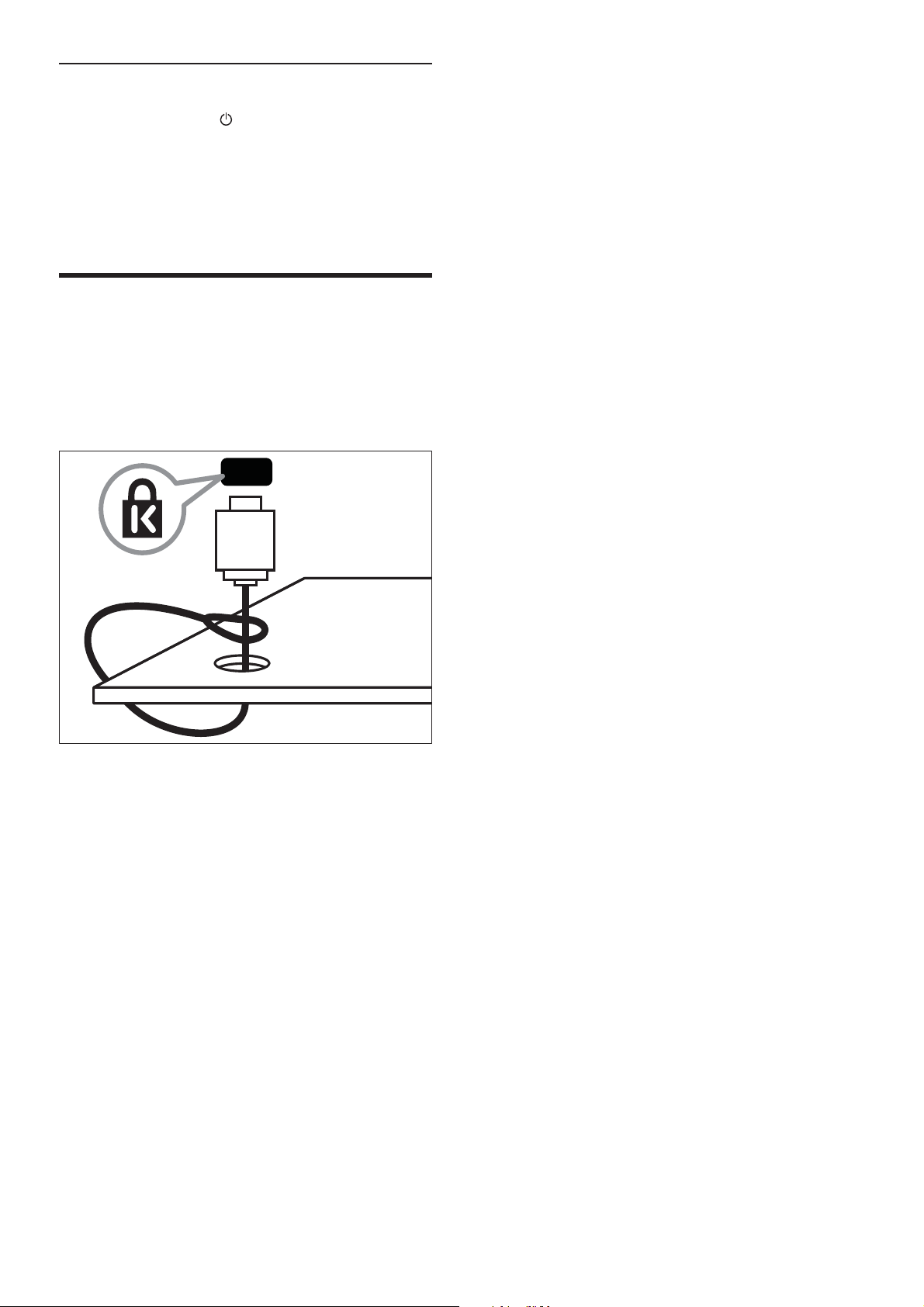

There is a Kensington security slot at the back of the TV. Prevent theft by looping a Kensington lock between the slot and a permanent object, such as a heavy table.

Page 22

8 Product

Remote control

information

Product information is subject to change without notice. For detailed product information, go to www.philips.com/support.

Supported display resolutions

Computer formats for connections using HDMI and VGA

Resolution - refresh rate:•

640 x 480 - 60Hz• 800 x 600 - 60Hz• 1024 x 768 - 60Hz• 1280 x 720 - 60 Hz• 1280 x 768 - 60Hz• 1280 X 1024 - 60Hz• 1360 x 768 - 60Hz•

Video formats

Resolution - refresh rate:•

480i - 60Hz• 480p - 60Hz• 576i - 50Hz• 576p - 50Hz• 720p - 50Hz, 60Hz• 1080i - 50Hz, 60Hz• 1080p - 24Hz, 25Hz, 30Hz, 50Hz, • 60Hz

Type: PF01C09B• Batteries: 2 x AAA (LR03 type)•

Power

Mains power: 220-240V, 50-60Hz• Standby power: < 0.3 W• Ambient temperature: 5 to 40 degrees • Celsius

Supported TV mounts

To mount the TV, purchase a Philips TV mount or a VESA-compatible TV mount. To prevent damage to cables and connectors, be sure to leave a clearance of at least 5.5 cm from the back of the TV.

Warning

Follow all instructions provided with the TV • mount. Koninklijke Philips Electronics N.V. bears no responsibility for improper TV mounting that results in accident, injury or damage.

TV screen size (inches)

19 100 x 100 4 x M4

Required pitch (mm)

Required mounting bolts

English

Note

Some formats may not be supported due to • compatibility issues between devices.

Tuner/Reception/ Transmission

Antenna input: 75ohm coaxial (IEC75)• TV system: PAL B/G, PAL D/K, PAL I• Video playback: NTSC, SECAM, PAL•

22 100 x 100 4 x M4 26 100 x 200 6 x M4

Page 23

9 Troubleshooting

This section describes commonly encountered issues and accompanying solutions.

TV channel issues

Previously installed channels do not appear in the channel list:

Check that the correct channel list is • selected.

General TV issues

The TV does not switch on:

Disconnect the power cable from the • power outlet. Wait for one minute then reconnect it. Check that the power cable is securely • connected.

The remote control is not working properly:

Check that the remote control batteries • are correctly inserted according to the +/- orientation. Replace the remote control batteries if • they are ﬂat or weak. Clean the remote control and TV sensor • lens.

The standby light on the TV blinks red:

Disconnect the power cable from the • power outlet. Wait until the TV cools down before reconnecting the power cable. If the blinking reoccurs, contact Philips Consumer Care.

You forgot the code to unlock the TV lock feature

Enter ‘8888’. •

The TV menu is in the wrong language

Change the TV menu to your preferred • language.

When turning the TV on/off/to standby, you hear a creaking sound from the TV chassis:

No action is required. The creaking sound • is normal expansion and contraction of the TV as it cools down and warms up. This does not impact performance.

Picture issues

The TV is on, but there is no picture:

Check that the antenna is properly • connected to the TV. Check that the correct device is selected • as the TV source.

There is sound but no picture:

Check that the picture settings are • correctly set.

There is poor TV reception from an antenna connection:

Check that the antenna is properly • connected to the TV. Loudspeakers, unearthed audio devices, • neon lights, high buildings and other large objects can inﬂuence reception quality. If possible, try to improve the reception quality by changing the antenna direction or moving devices away from the TV. If reception on only one channel is poor, • ﬁne tune this channel.

There is poor picture quality from connected devices:

Check that the devices are connected • properly. Check that the picture settings are • correctly set.

The TV did not save your picture settings:

Check that the TV location is set to the • home setting. This mode offers you the ﬂexibility to change and save settings.

The picture does not ﬁt the screen; it is too big or too small:

Try using a different picture format. •

Page 24

The picture position is incorrect:

Picture signals from some devices may • not ﬁt the screen correctly. Check the signal output of the device.

Sound issues

Computer connection issues

The computer display on the TV is not stable:

Check that a supported resolution and • refresh rate is selected on the computer. Set the TV picture format to unscaled. •

English

There is a picture but sound quality is poor:

Note

If no audio signal is detected, the TV • automatically switches the audio output off — this does not indicate malfunction.

Check that all cables are properly • connected. Check that the volume is not set to 0. • Check that the sound is not muted. •

There is a picture but the sound quality is poor:

Check that the sound settings are • correctly set.

There is a picture but sound comes from one speaker only:

Verify that sound balance is set to the • centre.

If you cannot resolve your problem, refer to the FAQs for this product at www.philips. com/support. If the problem remains unresolved, contact Philips Consumer Care in your country as listed in the Addendum.

Warning

Do not attempt to repair the product yourself. • This may cause severe injury, irreparable damage to your product or void your warranty.

Note

Make a note of your TV model and serial • number before you contact Philips. These numbers are printed on the back of the TV and on the packaging.

HDMI connection issues

There are problems with HDMI devices:

Note that HDCP support can delay the • time taken for a TV to display content from a HDMI device. If the TV does not recognize the HDMI • device and no picture is displayed, try switching the source from one device to another and back again. If there are intermittent sound • disruptions, check that output settings from the HDMI device are correct. If a HDMI-to-DVI adaptor or HDMI to • DVI cable is used, check that an additional audio cable is connected to AUDIO L/R or AUDIO IN (mini-jack only).

Page 25

10 Index

Analogue channel

ﬁne-tune 16

Batteries 4 Bracket 21

Channel list

favourite 11 troubleshooting 22 update 12

Channels

favourite list 11 install

automatic 15

manual 15 rearrange 17 rename 17 tune 16

Computer format

technical speciﬁcations 21

Connections

HDMI

troubleshooting 23 mains cord 18 technical speciﬁcations 21 troubleshooting 23

enable 19 one-touch play 19 one-touch standby 20

Environmental care 4

Factory settings 14 Favourite list

select 11 set up 11

HDMI cable

troubleshooting 23

Home mode 14

Installation

automatic 15 manual 15

Location 14

main menu 9

One-touch play 19 One-touch standby 20

Demo 14 Devices

watch 8

Display

resolution 21

EasyLink

disable 19

Picture format

picture format change 10 troubleshooting 22

Picture settings 9

Reception 22, 16 Remote control

technical speciﬁcations 21

Page 26

Smart settings 9, 11 Sound settings 11

Technical speciﬁcations 21 Timer

on timer 12

Troubleshooting 22 Tune channels 16 TV

adjust volume 8 menu 9 standby 7 switch channels 7 switch off 7 switch on 7 troubleshooting 22 tuner technical speciﬁcations 21 wall mount 21

TV lock

lock channels 13 lock connected devices 13

English

Video format

video format technical speciﬁcations 21

Volume

adjust 8

Page 27

Document order number: Q41G2202813 4A

Q41G2202813 4A
