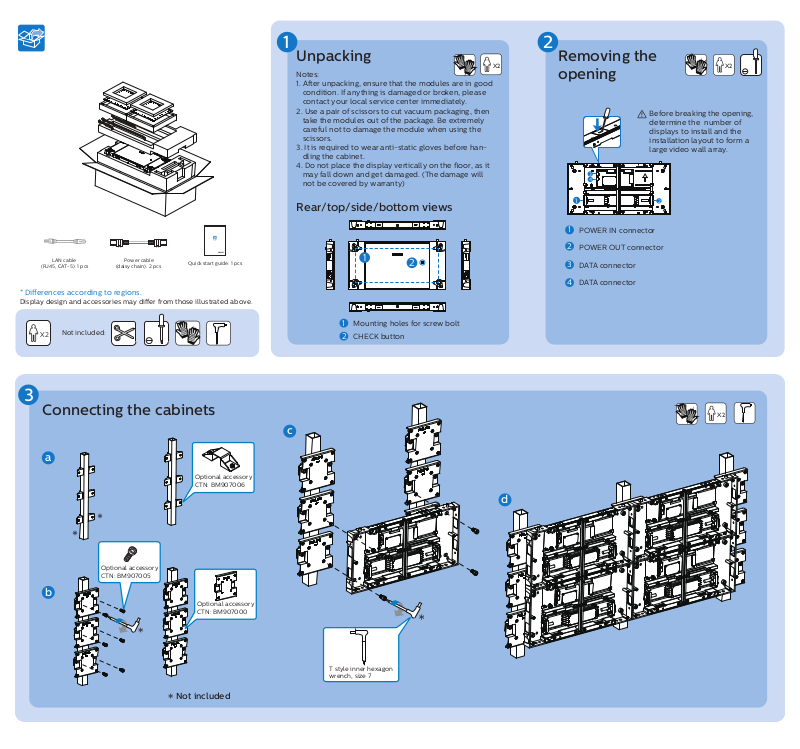

Unpacking
Notes:
1. After unpacking, ensure that the modules are in good
condition. If anything is damaged or broken, please
contact your local service center immediately.
2. Use a pair of scissors to cut vacuum packaging, then
take the modules out of the package. Be extremely
careful not to damage the module when using the
scissors.
3. It is required to wear anti-static gloves before handling the cabinet.
4. Do not place the display vertically on the oor, as it
may fall down and get damaged. (The damage will
not be covered by warranty)
Rear/top/side/bottom views
X2
Removing the
opening
Before breaking the opening,
determine the number of
displays to install and the
installation layout to form a
large video wall array.
3
4
1
1
POWER IN connector
X2
2
LAN cable
(RJ45, CAT-5): 1 pcs
* Dierences according to regions.
Display design and accessories may dier from those illustrated above.
X2
Not included:
Power cable
(daisy chain): 2 pcs
Quick start guide: 1 pcs
3
Connecting the cabinets
1
1
Mounting holes for screw bolt
2
CHECK button
2
2
POWER OUT connector
3
DATA connector
DATA connector
4
X2
a
b
*
*
Optional accessory
CTN: BM907005
Optional accessory
CTN: BM907006
Optional accessory
CTN: BM907000
c
d
*
*
T style inner hexagon
wrench, size 7
Not included
*
4
Connecting the data and power cables
*
**
X1
LAN cable
Power cable
(daisy chain)
Professional
Display Solutions
L line
22BDL7224L
5
optional accessories
*
*
LED display controller
Power plug types vary by country/region.
**
*
Plug the power plug into the electric outlet only when the cables are properly wired.
Note: More cable wiring scheme and mounting scheme can be found in the User’s Manual.
Quick
Start
Please check out the website below for more product information.
https://www.philips.co.uk/p-m-pr/signage-solutions/latest#filters=L_LINE_SERIES_SU
Installing the LED modules
X1
5-1
5-2
1 2
5-3
