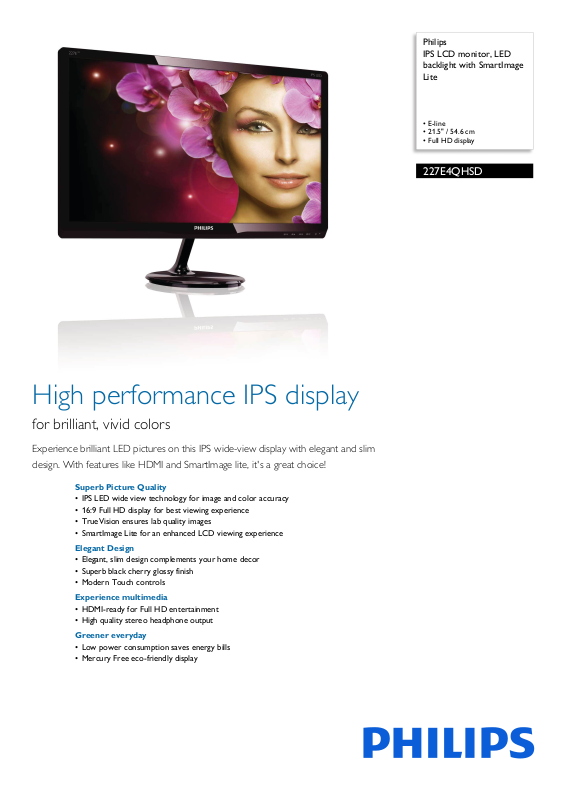

Page 1
Philips
IPS LCD monitor, LED
backlight with SmartImage
Lite
• E-line
• 21.5" / 54.6 cm
• Full HD display
227E4QHSD
High performance IPS display
for brilliant, vivid colors
Experience brilliant LED pictures on this IPS wide-view display with elegant and slim
design. With features like HDMI and SmartImage lite, it's a great choice!
Superb Picture Quality
• IPS LED wide view technology for image and color accuracy
• 16:9 Full HD display for best viewing experience
• TrueVision ensures lab quality images
• SmartImage Lite for an enhanced LCD viewing experience
Elegant Design
• Elegant, slim design complements your home decor
• Superb black cherry glossy finish
• Modern Touch controls
Experience multimedia
• HDMI-ready for Full HD entertainment
• High quality stereo headphone output
Greener everyday
• Low power consumption saves energy bills
• Mercury Free eco-friendly display
Page 2
IPS LCD monitor, LED backlight with SmartImage Lite
E-line 21.5" / 54.6 cm, Full HD display
Highlights
227E4QHSD/70
IPS technology
IPS displays uses an advanced technology which
gives you extra wide viewing angles of 178/178
degree, making it possible to view the display
from almost any angle - even in 90 degree Pivot
mode! Unlike standard TN panels, IPS displays
gives you remarkably crisp images with vivid
colors, making it ideal not only for Photos,
movies and web browsing, but also for
professional applications which demand color
accuracy and consistent brightness at all times.
SmartImage Lite
SmartImage Lite is an exclusive, leading edge
Phili
ps technology that analyzes the content
displayed on your screen. Based on a scenario
you select, SmartImage Lite dynamically
enhances the contrast, color saturation and
sharpness of images and videos for ultimate
display performance - all in real time with the
press on a single button.
HDMI Ready
A HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input, high quality
digital video and audio signals all transmitted
over a single cable from a PC or any number of
AV sources including set-top boxes, DVD
players and A/V receivers and video cameras.
16:9 Full HD
The Full HD screen has the widescreen
resolution of 1920 x 1080p. This is the highest
resolution of HD sources for the best possible
picture quality. It is fully future proof as it
supports 1080p signals from all sources,
including the most recent like Blu-ray and
advanced HD game consoles. The signal
processing is extensively upgraded to support
this much higher signal quality and resolution.
It produces brilliant flicker-free progressive
scan pictures with superb brightness and
colors.
TrueVision
TrueVision is a proprietary Philips technology
that uses advanced algorithm for testing and
aligning monitor display which gives you the
ultimate display performance that is 4 times
more stringent than Windows sRGB
requirements. Only Philips ensures each and
every monitor that leaves the factory is fine
tuned with this process so you can get
consistent color and picture quality.
Touch controls
Touch controls are intelligent, touch sensitive
i
cons that replace protruding buttons that lets
the user adjust the monitor to their
requirement. Responding to your lightest
touch,Touch control gives the monitor a
modern feel
Mercury Free
Philips monitors with LED backlighting are free
of
Mercury content, one of the most toxic
natural substances which affects humans and
animals. This allows for a eco-friendly display
through out its life-cycle from manufacturing
to disposal.
®
Page 3
IPS LCD monitor, LED backlight with SmartImage Lite
E-line 21.5" / 54.6 cm, Full HD display
Specifications
227E4QHSD/70
Picture/Display
• LCD panel type: IPS LCD
• Backlight type: W-LED system
• Panel Size: 21.5 inch / 54.6 cm
• Effective viewing area: 475.2 (H) x 267.3 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• SmartResponse (typical): 7 ms
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
• Pixel pitch: 0.248 x 0.248 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Picture enhancement: SmartImage Lite
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
•sRGB
20,000,000:1
(Grey to Grey)
kHz (H) / 56 -75 Hz (V)
Connectivity
• Signal Input: VGA (Analog ), HDMI
• Sync Input: Separate Sync, Sync on Green
• Audio In/Out: HDMI audio out
Convenience
• User convenience: SmartImage lite, Input, 4:3 /
Wide, Menu, Power On/Off
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish,
Turkish
• Other convenience: Kensington lock
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7/Vista/XP
sR
ench, German, Italian,
Stand
• Tilt: -5/20 degree
Power
• On mode: 26.3 W (EnergyStar 5.0 test method)
• Standby mode: 0.5 W
• Off mode: 0.3 W
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: External, 100-240VAC, 50-60Hz
Dimensions
• Product with stand (mm): 510 x 398 x 179 mm
• Product without stand (mm): 510 x 314 x 37 mm
• Packaging in mm (WxHxD): 562 x 475 x 98 mm
Weight
• Product with stand (kg): 2.20 kg
• Product without stand (kg): 1.83 kg
• Product with packaging (kg): 3.74 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 5.0, EPEAT
Silver, RoHS, Lead-free, Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC Class
B, GOST, PSB, SASO, SEMKO, TCO 5.2, TUV/
ISO9241-307, UL/cUL, WEEE
Cabinet
• Color: Black Cherry
•Finish: Glossy
•
Issue date 2013-06-07
Version: 3.0.1
12 NC: 8670 000 90872
EAN: 87 12581 64732 2
© 2013 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
