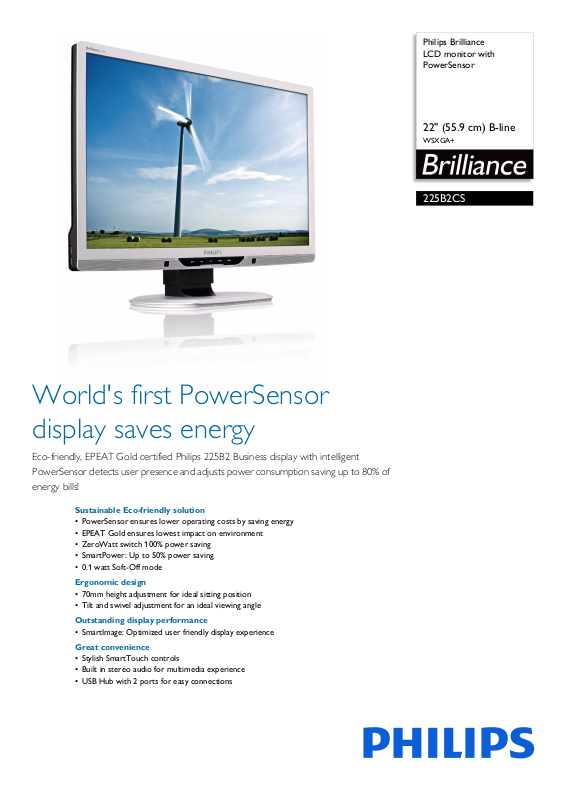

Philips 225B2CS-00 User Manual

Philips Brilliance
LCD monitor with
PowerSensor

22'' (55.9 cm) B-line

WSXGA+

225B2CS

World's first PowerSensor
display saves energy

Eco-friendly, EPEAT Gold certified Philips 225B2 Business display with intelligent
PowerSensor detects user presence and adjusts power consumption saving up to 80% of
energy bills!

Sustainable Eco-friendly solution

• PowerSensor ensures lower operating costs by saving energy

• EPEAT Gold ensures lowest impact on environment

• ZeroWatt switch 100% power saving

• SmartPower: Up to 50% power saving

• 0.1 watt Soft-Off mode

Ergonomic design

• 70mm height adjustment for ideal sitting position

• Tilt and swivel adjustment for an ideal viewing angle

Outstanding display performance

• SmartImage: Optimized user friendly display experience

Great convenience

• Stylish SmartTouch controls

• Built in stereo audio for multimedia experience

• USB Hub with 2 ports for easy connections

LCD monitor with PowerSensor

Built-in Audio

22'' (55.9 cm) B-line WSXGA+

Highlights

225B2CS/00

PowerSensor

PowerSensor is a built-in 'people sensor' that
transmits and receives harmless infrared
signals to determine if user is present and
automatically reduces monitor brightness
when user steps away from the desk, cutting
energy costs by up to 80 percent and
prolonging monitor life.

EPEAT Gold

Philips EPEAT GOLD certified monitors
e

nsure protection for human health and
environment, and are highly energy efficient
ensuring low emissions of climate changing
green house gases. EPEAT program helps
purchasers evaluate, compare and select
Monitors based on 51 environmental criteria
supported by US EPA. GOLD certification
ensures that at least 30% of plastic used is Post
Consumer Resin, which ensures reduction in
use of toxic and hazardous materials. EPEAT
Gold is valid only where Philips registers the
product. Please visit www.epeat.net for
registration status in your country.

SmartImage

SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Image, Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!

SmartPower

SmartPower is an artificial intelligent
te

chnology which dynamically analyzes the
content of the screen image to achieve power
saving. The backlight intensity can be
controlled automatically and pre-set by the
system to reduce the power consumption by
up to 50%, which saves substantially on energy
costs

Zero Switch

In line with Philips' commitment to "Sense and
S

implicity" we enable you to make a
responsible choice to switch OFF your
monitor at any given time. At the touch of a

single ON/OFF button which is conveniently
located at the back of the monitor, the
monitors' energy consumption is reduced to
Zero. In the OFF mode, the monitor is
completely cut off from AC power and thereby
reducing your carbon footprint even further.

2 Ports USB 2.0 HUB

USB Hub allows user to conveniently connect
t

heir plug and play multimedia devices such as
USB memory devices, camera, portable HDD,
Web camera, PDA, Printer and many other
devices which has USB connection available.
The conveniently located USB 2.0 Hub on the
monitor allows USB 2.0 signals to pass thru to
the computer. Note that many devices like
cameras and HDD may need to be powered
On independently, as they have higher power
requirements than the monitor USB Hub can
provide.

SmartTouch controls

SmartTouch controls are intelligent, touch
sensi

tive icons that replace protruding buttons.
Responding to your lightest touch,
SmartTouch controls, for example, power up
your monitor or brighten and sharpen your
display with SmartImage Lite. When activated,
SmartTouch icons glow to indicate that your
commands have been implemented.

70mm height adjustment

The Super Ergo Base is a 'people friendly'
Phil

ips monitor base that not only tilts and
swivels, but is also height adjustable and pivots
to 90 degree, so that each user can adjust the
monitor to their personal preference for
maximum viewing comfort and efficiency.
