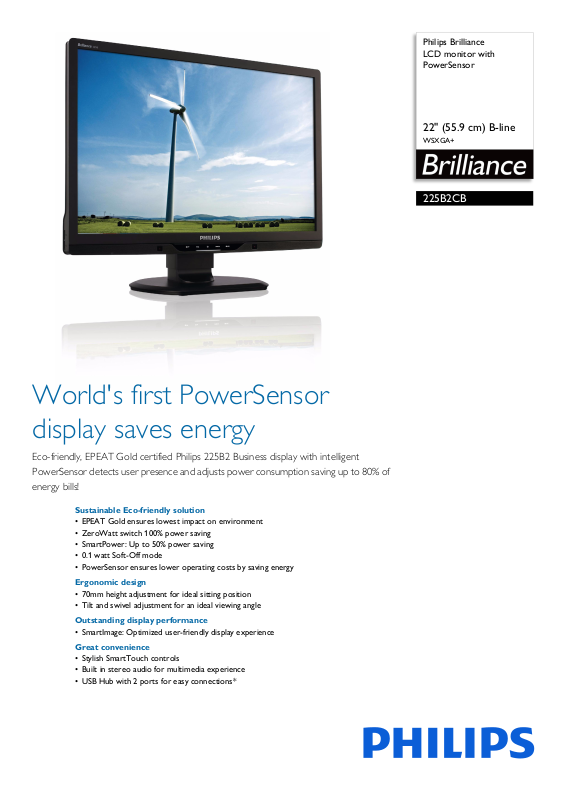

Philips Brilliance
LCD monitor with
PowerSensor
22'' (55.9 cm) B-line
WSXGA+
225B2CB
World's first PowerSensor
display saves energy
Eco-friendly, EPEAT Gold certified Philips 225B2 Business display with intelligent
PowerSensor detects user presence and adjusts power consumption saving up to 80% of
energy bills!
Sustainable Eco-friendly solution
• EPEAT Gold ensures lowest impact on environment
• ZeroWatt switch 100% power saving
• SmartPower: Up to 50% power saving
• 0.1 watt Soft-Off mode
• PowerSensor ensures lower operating costs by saving energy
Ergonomic design
• 70mm height adjustment for ideal sitting position
• Tilt and swivel adjustment for an ideal viewing angle
Outstanding display performance
• SmartImage: Optimized user-friendly display experience
Great convenience
• Stylish SmartTouch controls
• Built in stereo audio for multimedia experience
• USB Hub with 2 ports for easy connections*
225B2CB/69
LCD monitor with PowerSensor
Built-in Audio
22'' (55.9 cm) B-line WSXGA+
Highlights
PowerSensor
PowerSensor is a built-in 'people sensor' that
transmits and receives harmless infrared
signals to determine if user is present and
automatically reduces monitor brightness
when user steps away from the desk, cutting
energy costs by up to 80 percent and
prolonging monitor life.
EPEAT Gold
Philips EPEAT GOLD certified monitors
e
nsure protection for human health and
environment, and are highly energy efficient
ensuring low emissions of climate changing
green house gases. EPEAT program helps
purchasers evaluate, compare and select
Monitors based on 51 environmental criteria
supported by US EPA. GOLD certification
ensures that at least 30% of plastic used is Post
Consumer Resin, which ensures reduction in
use of toxic and hazardous materials. EPEAT
Gold is valid only where Philips registers the
product. Please visit www.epeat.net for
registration status in your country.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Image, Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
SmartPower
SmartPower is an artificial intelligent
te
chnology which dynamically analyzes the
content of the screen image to achieve power
saving. The backlight intensity can be
controlled automatically and pre-set by the
system to reduce the power consumption by
up to 50%, which saves substantially on energy
costs
Zero Switch
In line with Philips' commitment to "Sense and
S
implicity" we enable you to make a
responsible choice to switch OFF your
monitor at any given time. At the touch of a
single ON/OFF button which is conveniently
located at the back of the monitor, the
monitors' energy consumption is reduced to
Zero. In the OFF mode, the monitor is
completely cut off from AC power and thereby
reducing your carbon footprint even further.
2 Ports USB 2.0 HUB
USB Hub allows user to conveniently connect
t
heir plug and play multimedia devices such as
USB memory devices, camera, portable HDD,
Web camera, PDA, Printer and many other
devices which has USB connection available.
The conveniently located USB 2.0 Hub on the
monitor allows USB 2.0 signals to pass thru to
the computer. Note that many devices like
cameras and HDD may need to be powered
On independently, as they have higher power
requirements than the monitor USB Hub can
provide.
SmartTouch controls
SmartTouch controls are intelligent, touch
sensitive icons that replace protruding buttons.
Responding to your lightest touch,
SmartTouch controls, for example, power up
your monitor or brighten and sharpen your
display with SmartImage Lite. When activated,
SmartTouch icons glow to indicate that your
commands have been implemented.
70mm height adjustment
The Compact Ergo Base is a 'people friendly'
Phil
ips monitor base that tilts, swivels and is
height adjustable so each user can position the
monitor for maximum viewing comfort and
efficiency.
225B2CB/69
LCD monitor with PowerSensor
22'' (55.9 cm) B-line WSXGA+
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Panel Size: 22 inch / 55.9 cm
• Aspect ratio: 16:10
• Optimum resolution: 1680 x 1050 @ 60Hz
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• SmartContrast: 500,000:1
• Pixel pitch: 0.282 x 0.282 mm
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Picture enhancement: SmartImage
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
•sRGB
kHz (H) / 56 -75 Hz (V)
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital, HDCP)
• USB: USB 2.0 x 2
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): Stereo Audio
Convenience
• Built-in Audio: 1.5Wx2
• User convenience: Smart
PowerSensor, Menu, Power On/Off
• OSD Languages: English, F
Italian, Russian, Simplified Chinese, Portuguese
• Other convenience: VESA mount (100x100mm),
nsington lock
Ke
• Plug & Play Compatibility: DDC/CI, Windows 7/
sta/XP/2000/98, Mac OS X, sRGB
Vi
Image, Volume,
rench, German, Spanish,
Stand
• Height adjustment: 70 mm
• Swivel: -65/65 degree
• Tilt: -5/20 degree
Power
• Smart Power Mode: 12W (Min.)
• On mode: 22.5W (EnergyStar 5.0 test method)
• Standby mode: < 0.1 W
• Off mode: 0 W (with Zero Power Switch)
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50/60Hz
Dimensions
• Product with stand (mm): 484 x 505 x 249 mm
• Product without stand (mm): 351 x 505 x 59 mm
• Packaging in mm (WxHxD): 468 x 565 x 175 mm
Weight
• Product with stand (kg): 5.17 kg
• Product without stand (kg): 4.15 kg
• Product with packaging (kg): 6.92 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 50,000 hour(s)
Sustainability
• Environmental and energy: EPEAT Gold, RoHS,
EnergyStar 5.0
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC, Class
B, GOST, SEMKO, TCO 5.0, TUV/GS, TUV Ergo,
UL/cUL
Cabinet
• Color: Black/Black
• Finish: Texture
•
Issue date 2017-07-07
Version: 2.0.2
12 NC: 8670 000 61669
EAN: 87 12581 53526 1
© 2017 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
