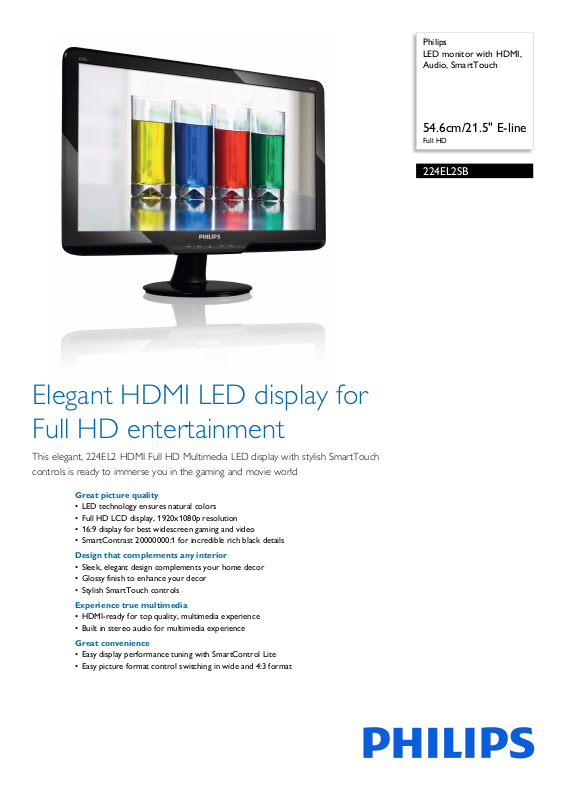

Philips
LED monitor with HDMI,
Audio, SmartTouch
54.6cm/21.5" E-line
Full HD
224EL2SB
Elegant HDMI LED display for
Full HD entertainment
This elegant, 224EL2 HDMI Full HD Multimedia LED display with stylish SmartTouch
controls is ready to immerse you in the gaming and movie world
Great picture quality
• LED technology ensures natural colors
• Full HD LCD display, 1920x1080p resolution
• 16:9 display for best widescreen gaming and video
• SmartContrast 20000000:1 for incredible rich black details
Design that complements any interior
• Sleek, elegant design complements your home decor
• Glossy finish to enhance your decor
• Stylish SmartTouch controls
Experience true multimedia
• HDMI-ready for top quality, multimedia experience
• Built in stereo audio for multimedia experience
Great convenience
• Easy display performance tuning with SmartControl Lite
• Easy picture format control switching in wide and 4:3 format
224EL2SB/75
LED monitor with HDMI, Audio, SmartTouch
®
4:3 wide
54.6cm/21.5" E-line Full HD
Highlights
Sleek, elegant design
A sleek, elegant design look that complements
home furnishings in any room.
LED technology
White LED's are solid state devices which light
up to full, consistent brightness faster saving
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
Full HD 1920x1080p LCD display
Enjoy crisp and crystal clear picture quality to
give your audience a truly memorable visual
experience. Your viewers will be treated to
unsurpassed video, with an amazing color
gamut and the sharpest pictures around.
SmartContrast ratio 20000000:1
HDMI Ready
An HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input. A HDMI
cable enables high-quality digital video and
audio all transmitted over a single cable from a
PC or any number of AV sources (including
set-top boxes, DVD players, A/V receivers and
video cameras).
SmartTouch controls
widescreen aspect ratio is standard for
universal to high-definition television and
European digital television. A native 16:9
aspect ratio means outstanding game and video
display without bars at top and bottom of the
picture and without the quality loss than comes
from scaling, altering an image to fit on a
different screen size.
Easy picture format control
Philips easy picture format control on OSD is
to switch from the 4:3 aspect ratio to the
widescreen mode and back again to match the
display's aspect ratio with your content for
working with wide documents without
scrolling or viewing widescreen media in the
widescreen mode and distortion-free, native
mode display of 4:3 ratio content.
You want the LCD flat display with the highest
contrast and most vibrant images. Philips
advanced video processing combined with
unique extreme dimming and backlight
boosting technology results in vibrant images.
SmartContrast will increase the contrast with
excellent blacklevel and accurate rendition of
dark shades and colors. It gives a bright, lifelike
picture with high contrast and vibrant colors.
SmartTouch controls are intelligent, touch
sensitive icons that replace protruding buttons.
Responding to your lightest touch,
SmartTouch controls, for example, power up
your monitor or brighten and sharpen your
display with SmartImage Lite. When activated,
SmartTouch icons glow to indicate that your
commands have been implemented.
16:9 widescreen aspect ratio
An aspect ratio is an expression of a video
image's width compared to its height. The 16:9
Built-in stereo audio
A pair of high quality stereo speakers built into
a display device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
SmartControl Lite
SmartControl Lite is the next generation 3D
icon based GUI monitor control software. This
allows user to fine-tune most parameters of
the monitor like Color, Brightness, screen
calibration, Multi-media, ID management, etc
with the mouse.
Built-in Audio
224EL2SB/75
LED monitor with HDMI, Audio, SmartTouch
54.6cm/21.5" E-line Full HD
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 21.5 inch / 54.6 cm
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• SmartContrast: 20,000,000:1
• Pixel pitch: 0.248 x 0.248 mm
• Viewing angle: 176º (H) / 170º (V), @ C/R > 5
• Picture enhancement: SmartImage Lite
• Display colors: 16.7 M
• Scanning Frequency: 30 -83 kHz (H) / 56 -75 Hz (V)
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D (digital,
HDCP), HDMI
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): Stereo Audio, PC audio-in,
Earphone out (3.5 mm jack)x 1
Convenience
• Built-in Audio: 1.5Wx2
•User convenience: SmartImage lite, Input, Volume,
Menu, Power On/Off
• OSD Languages: English, French, German, Italian,
Russian, Simplified Chinese, Spanish, Portuguese,
Turkish
• Other convenience: VESA mount (100x100mm),
Kensington lock
• Plug & Play Compatibility: DDC/CI, Mac OS X,
Windows 7 / Vista, sRGB
Stand
• Tilt: -5/+20 degree
Power
• On mode: 17 W (EnergyStar 5.0 test method)
• Standby mode: <0.5W
• Off mode: < 0.5 W
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50/60Hz
Dimensions
• Product with stand (mm): 505 x 484 x 249 mm
• Product without stand (mm): 505 x 351 x 59 mm
• Packaging in mm (WxHxD): 565 x 465 x 155 mm
Weight
• Product with stand (kg): 4.15 kg
• Product without stand (kg): 3.65 kg
• Product with packaging (kg): 6.00 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: RoHS, EPEAT Silver,
EnergyStar 5.0
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC, Class
B, GOST, UL/cUL
Cabinet
• Color: Black/Black
•Finish: Glossy
•
Issue date 2017-07-28
Version: 1.1.2
12 NC: 8670 000 67086
EAN: 87 12581 56046 1
© 2017 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
