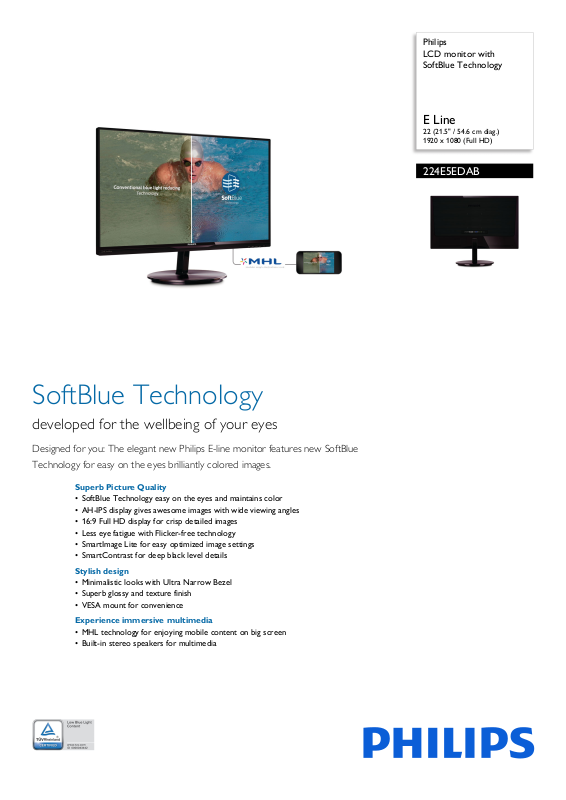

Philips
LCD monitor with
SoftBlue Technology
E Line
22 (21.5" / 54.6 cm diag.)
1920 x 1080 (Full HD)
224E5EDAB
SoftBlue Technology
developed for the wellbeing of your eyes
Designed for you: The elegant new Philips E-line monitor features new SoftBlue
Technology for easy on the eyes brilliantly colored images.
Superb Picture Quality
• SoftBlue Technology easy on the eyes and maintains color
• AH-IPS display gives awesome images with wide viewing angles
• 16:9 Full HD display for crisp detailed images
• Less eye fatigue with Flicker-free technology
• SmartImage Lite for easy optimized image settings
• SmartContrast for deep black level details
Stylish design
• Minimalistic looks with Ultra Narrow Bezel
• Superb glossy and texture finish
• VESA mount for convenience
Experience immersive multimedia
• MHL technology for enjoying mobile content on big screen
• Built-in stereo speakers for multimedia
224E5EDAB/69
LCD monitor with SoftBlue Technology
E Line 22 (21.5" / 54.6 cm diag.), 1920 x 1080 (Full HD)
Highlights
SoftBlue Technology
SoftBlue LED technology uses a smart
technology to reduce harmful shortwave blue
light without affecting the color or image of the
display. SoftBlue LED technology is certified by
international testing organizations TUV
Rheinland to reduce harmful blue light.
AH-IPS technology
AH-IPS displays use an advanced technology
which gives you extra wide viewing angles of
178/178 degree, making it possible to view the
display from almost any angle. Unlike standard
TN panels, AH-IPS displays gives you
remarkably crisp images with vivid colors,
making it ideal not only for Photos, movies and
web browsing, but also for professional
applications which demand color accuracy and
consistent brightness at all times.
resolution. With Full HD for crisp detail paired
with high brightness, incredible contrast and
realistic colors expect a true to life picture.
Flicker-free technology
Due to the way brightness is controlled on
LED-backlit screens, some users experience
flicker on their screen which causes eye
fatigue. Philips Flicker-free Technology applies
a new solution to regulate brightness and
reduce flicker for more comfortable viewing.
SmartImage Lite
SmartImage Lite is an exclusive, leading edge
Phili
ps technology that analyzes the content
displayed on your screen. Based on a scenario
you select, SmartImage Lite dynamically
enhances the contrast, color saturation and
sharpness of images and videos for ultimate
display performance - all in real time with the
press on a single button.
SmartContrast
Ultra Narrow Bezel
Utilizing latest technology panels, the new
Phil
ips displays are designed with minimalistic
approach by limiting the outer bezel thickness
to about 2.5mm. Combined with in-panel black
matrix strip of around 9mm, the overall bezel
dimensions are reduced significantly allowing
for minimal distractions and maximum viewing
size. Especially suited for multi-display or tiling
setup like gaming, graphics design and
professional applications, the Ultra narrow
bezel display gives you the feeling of using one
large display.
MHL technology
Mobile High Definition Link (MHL) is a mobile
audio/video interface for directly connecting
mobile phones and other portable devices to
high-definition displays. An optional MHL cable
allows you to simply connect your MHL
capable mobile device to this large Philips MHL
display, and watch your HD videos come to life
with full digital sound. Now not only you can
enjoy your mobile games, photos, movies, or
other apps on its big screen, you can
simultaneously charge your mobile device so
you never run out of power half way.
16:9 Full HD display
Picture quality matters. Regular displays deliver
quality, but you expect more. This display
features enhanced Full HD 1920 x 1080
SmartContrast is a Philips technology that
analyzes the contents you are displaying,
automatically adjusting colors and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
for just-right display of everyday office
applications and lower power consumption.
TUV Certified Low Blue Light
Philips displays with SoftBlue LED
tech
nology are certified by TUV
Rheinland Low Blue Light testing standard
(2PfG) to reduce harmful blue light.
224E5EDAB/69
LCD monitor with SoftBlue Technology
E Line 22 (21.5" / 54.6 cm diag.), 1920 x 1080 (Full HD)
Specifications
Picture/Display
• LCD panel type: AH-IPS LCD
• Backlight type: W-LED system
• Panel Size: 21.5 inch / 54.6 cm
• Effective viewing area: 476.1 (H) x 267.8 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60Hz
• Response time (typical): 14 (GtG) ms
• SmartResponse (typical): 5 ms (GtG)
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
20,000,000:1
• Pixel pitch: 0.248 x 0.248 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Picture enhancement: SmartImage Lite
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
kHz (H) / 56 -76 Hz (V)
• MHL: 1080p@30Hz
•sRGB
•SoftBlue
• Flicker-free
Connectivity
• Signal Input: MHL-HDMI (digital, HDCP), VGA
(Analog ), DVI-D (digital, HDCP)
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 5 W x 2
•User convenience: Power On
Input, SmartImage lite
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukranian
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 8.1 / 8 / 7
sR
/Off, Menu, Volume,
Stand
• Tilt: -5/20 degree
Power
• On mode: 16.97 W (typ.) (EnergyStar 6.0 test
method)
• Standby mode: 0.5 W (typ.)
• Off mode: 0.3 W (typ.)
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: External, 100-240VAC, 50-60Hz
Dimensions
• Product with stand (mm): 500 x 394 x 213 mm
• Product without stand (mm): 500 x 306 x 47 mm
• Packaging in mm (WxHxD): 562 x 466 x 106 mm
Weight
• Product with stand (kg): 3.14 kg
• Product without stand (kg): 2.82 kg
• Product with packaging (kg): 5.01 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 50,000 (Excluding backlight) hour(s)
Sustainability
• Environmental and energy: RoHS, Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: CE Mark, FCC Class B, CU,
EAC, SASO, KUCAS, cETLus, SEMKO, TUV/
ISO9241-307, EPA, WEEE, PSB, CECP, VCCI,
KCC, KC, TUV Cert. - blue light cut-off
Cabinet
• Color: Black Cherry / Black
• Finish: Glossy / textured
•
Issue date 2021-02-20
Version: 7.0.1
12 NC: 8670 001 31654
EAN: 87 12581 73629 3
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* This Philips display is MHL certified. However, in case your MHL
device does not connect or work correctly, check with your MHL
device FAQ or vendor directly for direction. The policy of your
device manufacturer may require you to purchase their brand
specific MHL cable or adapter in order to work
* Requires optional MHL certified mobile device and MHL cable. (not
included) Please check with your MHL device vendor for
compatibility.
* Standby/Off energy saving of ErP is not applicable for the MHL
charging functionality
* For complete list of MHL-enabled products refer to
www.mhlconsortiun.org
* "IPS" word mark / trademark and related patents on technologies
belong to their respective owners.
* Smart response time is the optimum value from either GtG or GtG
(BW) tests.
* HDMI cables vary depending on region and models.
