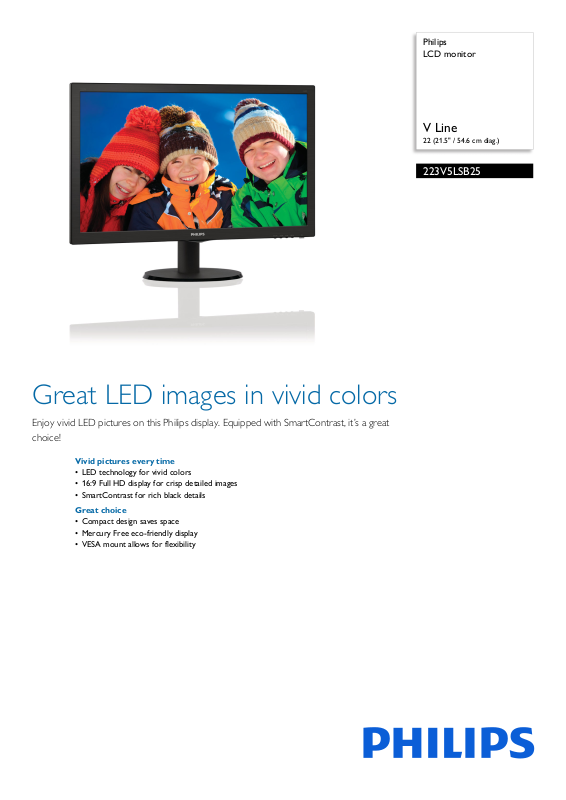

Page 1
Philips
LCD monitor
V Line
22 (21.5" / 54.6 cm diag.)
223V5LSB25
Great LED images in vivid colors
Enjoy vivid LED pictures on this Philips display. Equipped with SmartContrast, it’s a great
choice!
Vivid pictures every time
• LED technology for vivid colors
• 16:9 Full HD display for crisp detailed images
• SmartContrast for rich black details
Great choice
• Compact design saves space
• Mercury Free eco-friendly display
• VESA mount allows for flexibility
Page 2
223V5LSB25/94
LCD monitor
V Line 22 (21.5" / 54.6 cm diag.)
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 21.5 inch / 54.6 cm
• Effective viewing area: 476.64 (H) x 268.11 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Response time (typical): 5 ms
• Brightness: 200 cd/m²
• SmartContrast:
• Contrast ratio (typical): 600:1
• Pixel pitch: 0.248x 0.248 mm
• Viewing angle: 90º (H) / 65º (V), @ C/R > 10
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
•sRGB
Connectivity
• Signal Input: VGA (Analog )
• Sync Input: Separate Sync
Convenience
• User convenience: Power On/Off, Menu/OK,
Brightness/Back, 4:3 Wide/Up, Auto/Down
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukranian
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 10 / 8.1 / 8 / 7
sR
Stand
• Tilt: -5/20 degree
10,000,000:1
kHz (H) / 56 -76 Hz (V)
Power
• On mode: 17.07 W (typ.)
• Standby mode: 0.5 W
• Off mode: 0.5 W
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand (mm): 508 x 377 x 213 mm
• Product without stand (mm): 508 x 320 x 50 mm
• Packaging in mm (WxHxD): 560 x 422 x 113 mm
Weight
• Product with stand (kg): 3.15 kg
• Product without stand (kg): 2.85 kg
• Product with packaging (kg): 4.20 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: RoHS, Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: CE Mark, FCC Class B,
EAC, SEMKO, BSMI, cETLus, TUV/ISO9241-307,
INMETRO, WEEE
Cabinet
• Color: Black
• Finish: Hairline (front bezel) / Texture (rear cover)
•
Highlights
LED technology
White LED's are solid state devices which light up to
full, consistent brightness faster saving startup time.
LED's are free from mercury content which allows
for eco-friendly recycling and disposal process. LED's
allow for better dimming control of LCD backlight,
resulting in super high contrast ratio. It also gives
superior color reproduction thanks to consistent
brightness across the screen.
16:9 Full HD display
Picture quality matters. Regular displays deliver
quality, but you expect more. This display features
enhanced Full HD 1920 x 1080 resolution. With Full
HD for crisp detail paired with high brightness,
incredible contrast and realistic colors expect a true
to life picture.
SmartContrast
Issue date 2021-02-21
Version: 4.0.1
12 NC: 8670 001 43905
EAN: 87 12581 74534 9
SmartContrast is a Philips technology that analyzes
the contents you are displaying, automatically
adjusting colors and controlling backlight intensity to
dynamically enhance contrast for the best digital
images and videos or when playing games where
dark hues are displayed. When Economy mode is
selected, contrast is adjusted and backlighting finetuned for just-right display of everyday office
applications and lower power consumption.
Mercury Free
Philips monitors with LED backlighting are free of
Mercury content, one of the most toxic natural
substances, which affects humans and animals. This
reduces the environmental impact of the display
throughout its life-cycle, from manufacturing to
disposal.
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
