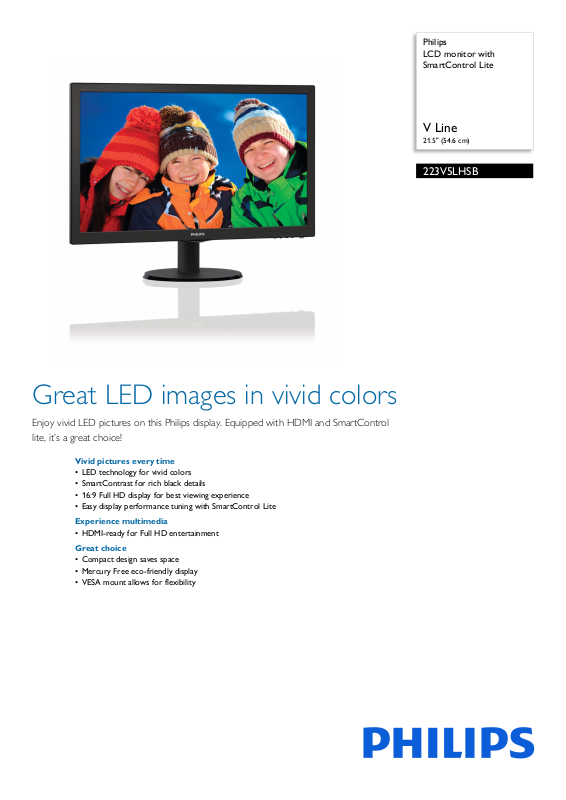

Philips
LCD monitor with
SmartControl Lite
V Line
21.5" (54.6 cm)
223V5LHSB
Great LED images in vivid colors
Enjoy vivid LED pictures on this Philips display. Equipped with HDMI and SmartControl
lite, it’s a great choice!
Vivid pictures every time
• LED technology for vivid colors
• SmartContrast for rich black details
• 16:9 Full HD display for best viewing experience
• Easy display performance tuning with SmartControl Lite
Experience multimedia
• HDMI-ready for Full HD entertainment
Great choice
• Compact design saves space
• Mercury Free eco-friendly display
• VESA mount allows for flexibility
223V5LHSB/94
LCD monitor with SmartControl Lite
V Line 21.5" (54.6 cm)
Highlights
LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
SmartControl Lite
SmartControl Lite is the next generation 3D
ic
on based GUI monitor control software. This
allows user to fine-tune most parameters of
the monitor like Color, Brightness, screen
calibration, Multi-media, ID management, etc
with the mouse.
SmartContrast
SmartContrast is a Philips technology that
analyzes the contents you are displaying,
automatically adjusting colors and controlling
backlight intensity to dynamically enhance
contrast for the best digital images and videos
or when playing games where dark hues are
displayed. When Economy mode is selected,
contrast is adjusted and backlighting fine-tuned
for just-right display of everyday office
applications and lower power consumption.
16:9 Full HD
The Full HD screen has the widescreen
resolution of 1920 x 1080p. This is the highest
resolution of HD sources for the best possible
picture quality. It is fully future proof as it
supports 1080p signals from all sources,
including the most recent like Blu-ray and
advanced HD game consoles. The signal
processing is extensively upgraded to support
this much higher signal quality and resolution.
It produces brilliant flicker-free progressive
scan pictures with superb brightness and
colors.
HDMI Ready
An HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input. A HDMI
cable enables high-quality digital video and
audio all transmitted over a single cable from a
PC or any number of AV sources (including
set-top boxes, DVD players, A/V receivers and
video cameras).
Mercury Free
Philips monitors with LED backlighting are free
of
Mercury content, one of the most toxic
natural substances, which affects humans and
animals. This reduces the environmental
impact of the display throughout its life-cycle,
from manufacturing to disposal.
223V5LHSB/94
LCD monitor with SmartControl Lite
V Line 21.5" (54.6 cm)
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 21.5 inch / 54.6 cm
• Effective viewing area: 476.64 (H) x 268.11 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• SmartContrast:
• Contrast ratio (typical): 1000:1
• Pixel pitch: 0.248x 0.248 mm
• Viewing angle: 170º (H) / 160º (V), @ C/R > 10
• Display colors: 16.7 M
• Scanning Frequency: 30 -83
•sRGB
10,000,000:1
kHz (H) / 56 -76 Hz (V)
Connectivity
• Signal Input: HDMI (digital, HDCP), VGA (Analog )
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): HDMI audio out
Convenience
• User convenience: Auto/Down, 4:3 Wide/Up,
Brightness/Back, Menu/OK, Power On/Off
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Hungarian,
En
Italian, Japanese, Korean, Polish, Portuguese,
Russian, Simplified Chinese, Spanish, Swedish,
Turkish, Ukranian
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7, Windows 8
sR
method)
• Standby mode: 0.5 W
• Off mode: 0.5 W
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand (mm): 503 x 376 x 213 mm
• Product without stand (mm): 503 x 316 x 50 mm
• Packaging in mm (WxHxD): 555 x 422 x 113 mm
Weight
• Product with stand (kg): 2.61 kg
• Product without stand (kg): 2.35 kg
• Product with packaging (kg): 3.83 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 7.0, RoHS,
Lead-free, Mercury Free
• Recyclable packaging material: 100 %
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC Class
B, GOST, PSB, SASO, SEMKO, TUV/ISO9241-307,
cETLus, WEEE
Stand
• Tilt: -5/20 degree
Power
• On mode: 15.3 W (typ.) (EnergyStar 7.0 test
Cabinet
• Color: Black
• Finish: Hairline (front bezel) / Texture (rear cover)
•
Issue date 2019-05-15
Version: 4.0.1
12 NC: 8670 001 03534
EAN: 87 12581 69013 7
© 2019 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
