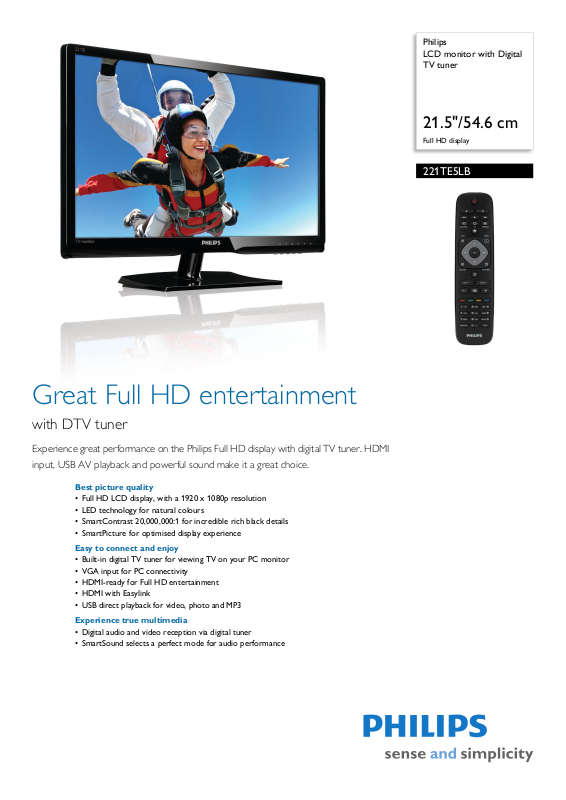

Page 1
Philips
LCD monitor with Digital
TV tuner
21.5"/54.6 cm
Full HD display
221TE5LB
Great Full HD entertainment
with DTV tuner
Experience great performance on the Philips Full HD display with digital TV tuner. HDMI
input, USB AV playback and powerful sound make it a great choice.
Best picture quality
• Full HD LCD display, with a 1920 x 1080p resolution
• LED technology for natural colours
• SmartContrast 20,000,000:1 for incredible rich black details
•SmartPicture for optimised display experience
Easy to connect and enjoy
• Built-in digital TV tuner for viewing TV on your PC monitor
• VGA input for PC connectivity
• HDMI-ready for Full HD entertainment
• HDMI with Easylink
• USB direct playback for video, photo and MP3
Experience true multimedia
• Digital audio and video reception via digital tuner
• SmartSound selects a perfect mode for audio performance
Page 2
LCD monitor with Digital TV tuner
21.5"/54.6 cm Full HD display
Highlights
221TE5LB/00
LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content, which allows for eco-friendly
recycling and disposal process. LED's allow for
better dimming control of the LCD backlight,
resulting in a super high contrast ratio. It also
gives superior colour reproduction thanks to
consistent brightness across the screen.
Digital TV tuner
A digital television tuner built into a monitor to
receive
and display high quality TV signals from
various sources.
Full HD LCD display 1920 x 1080p
The Full HD screen has the widescreen
resolution of 1920 x 1080p. This is the highest
resolution of HD sources for the best possible
picture quality. It is fully future-proof as it
supports 1080p signals from all sources,
including the most recent sources such as Bluray and advanced HD game consoles. The
signal processing is extensively upgraded to
support this much higher signal quality and
resolution. It produces brilliant flicker-free
progressive scan pictures with superb
brightness and colours.
USB multimedia
The USB connector allows access to jpeg
ph
otos, MP3 music and video files of most
USB-sticks (USB memory-class device). Plug
the USB into the slot at the side of the MTV
and access the multimedia content using the
easy on-screen content browser. You can now
view your videos, photos and music.
SmartContrast ratio 20,000,000:1
You want the LCD flat display with the highest
contrast and most vibrant images. Philips
advanced video processing combined with
unique extreme dimming and backlightboosting technology results in vibrant images.
SmartContrast will increase the contrast with
excellent black level and accurate rendition of
dark shades and colours. It gives a bright,
lifelike picture with high contrast and vibrant
colours.
SmartPicture
SmartPicture is an exclusive leading edge
Philips technology that analyses the content
displayed on your screen and gives you
optimised display performance. This user
friendly interface allows you to select various
modes like Office, Image, Entertainment,
Economy etc., to fit the application in use.
Based on the selection, SmartPicture
dynamically optimises the contrast, colour
saturation and sharpness of images and videos
for ultimate display performance. The
Economy mode option offers you major power
savings. All in real time with the press of a
single button!
SmartSound
SmartSound allows you to select various
m
odes like Movie, Games, Music etc., thereby
automatically activating predefined frequencies
to enhance the sound related to the function
HDMI Ready
An HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input, high quality
digital video and audio signals all transmitted
over a single cable from a PC or any number of
AV sources including set-top boxes, DVD
players and A/V receivers and video cameras.
HDMI with Easylink
HDMI is a single cable to carry both picture
an
d audio signals from your devices to your
MTV, saving you from cable clutter. It carries
uncompressed signals, ensuring that you have
the highest quality from source to screen.
Together with Philips Easylink, you need only
one remote control to perform most
operations on your MTV. Enjoy high quality
picture and sound without clutter or fuss.
Digital audio and video
Digital audio and video reception via digital
t
uner
Page 3
LCD monitor with Digital TV tuner
21.5"/54.6 cm Full HD display
Specifications
221TE5LB/00
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Diagonal screen size: 21.5 inch / 54.6 cm
• Aspect ratio: 16:9, Widescreen
• Panel resolution: 1920 x 1080
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• SmartContrast:
• Viewing angle: 170º (H)/160º (V), @
• Contrast ratio (typical): 1000:1
• Picture enhancement:
• Screen enhancement: Anti-Reflection coated
en
scre
,000,000:1
20
Progressive scan
C/R > 10
Supported Display Resolution
• Computer formats
olution Refresh rate
Res
Optimum 1920
x 1080
• Video formats
olution Refresh rate
Res
480i 60 Hz
480p 60 Hz
576i 50 Hz
576p 50 Hz
720p 50, 60 Hz
1080i 50, 60 Hz
1080p 24, 50, 60 Hz
60
Hz
Sound
• Output power (RMS): 6W (3W+3W)
• Sound Enhancement: Smart Sound, Surround
• Sound System: Mono, Stereo, Nicam Stereo
Convenience
• Ease of Installation: Plug and Play, Automatic
Tuning System (ATS)
• Ease of Use: On-Screen Display, Programme List,
• Remote control type: Philips Remote control
• On-Screen Display languages: Bulgarian
• Other convenience: VESA mount (75 x 75 mm)
ntrol
Side Co
,
Czech, Danish, Dutch, English, Estonian, Finnish,
French, German, Greek, Hungarian, Italian,
Kazakh, Latvian, Lithuanian, Norwegian,
Portuguese, Polish, Romanian, Russian, Serbian,
Slovak, Slovenian, Spanish, Swedish, Turkish,
Ukraine
Croatian,
• Screen Format Adjustments: 4:3, Autofill,
zo
om, Super Zoom, Subtitle Zoom, Movie
Auto
expand 14:9, Movie expand 16:9, Widescreen
• SmartPicture: Cinema, Custom, Energy saving,
a
me, Natural, Personal, Photo, Standard, Vivid
G
• SmartSound: Cinema, Drama, Game, News,
al, Sports, Standard
Person
• Teletext: 1000-page Smart Text
Stand
• Tilt: 0/+15 degree
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL I, PAL B/G, PAL
SECAM D/K, SECAM L/L'
• Video Playback: NTSC, PAL, SECAM
•Tuner Display: PLL
• CI/CI+: yes (Burn CI+ key in set)
• Digital TV: DVB-C, DVB-T
• MPEG-2, MPEG-4 support
•MHEG-5
• Tuner bands: Hyperband, S-Channel, UHF, VHF
D/K, SECAM B/G,
Connectivity
• Ext @ side: CI+, USB x 1 (JPG/MP3/Video),
Headphones
• Ext @ rear: D-sub x 1, HDMI (1.4a) x 2, PC audio
1, Scart x 1, SPDIF out x 1 (RCA), Tuner x 1
in x
Power
• On mode: 30 W (typ.)/45 W (max)
• Off mode: 0.3 W (typ.)
• Standby mode: 0.3 W (typ.)
• Ambient temperature: 5°C to 40°C
• Mains power: 100-240 V, 50-60 Hz
Dimensions
• Packaging in mm (W x H x D): 565 x 434 x 116 mm
• Product with stand (mm): 511 x 368 x 174 mm
• Product without stand (mm): 511 x 317 x 47 mm
Weight
• Product with packaging (kg): 4.85 kg
• Product with stand (kg): 3.58 kg
• Product without stand (kg): 3.35 kg
Accessories
• Included accessories: Power cord, Remote
Control (with battery), Quick start guide, User
Manual, VGA cable
•
Issue date 2013-04-28
Version: 1.0.1
12 NC: 8670 000 98043
EAN: 87 12581 66898 3
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
