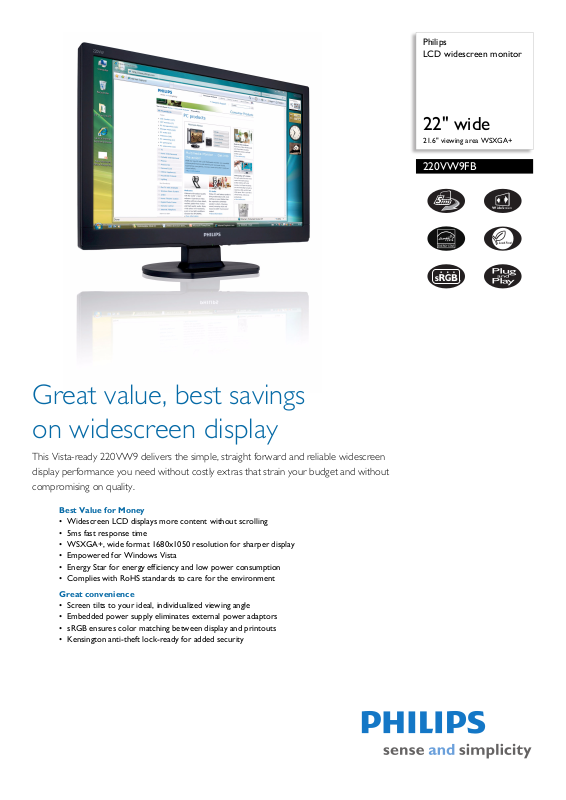

Page 1
Philips
LCD widescreen monitor
22" wide
21.6" viewing area WSXGA+
220VW9FB
WideScreen
Great value, best savings
on widescreen display
This Vista-ready 220VW9 delivers the simple, straight forward and reliable widescreen
display performance you need without costly extras that strain your budget and without
compromising on quality.
Best Value for Money
• Widescreen LCD displays more content without scrolling
• 5ms fast response time
• WSXGA+, wide format 1680x1050 resolution for sharper display
• Empowered for Windows Vista
• Energy Star for energy efficiency and low power consumption
• Complies with RoHS standards to care for the environment
Great convenience
• Screen tilts to your ideal, individualized viewing angle
• Embedded power supply eliminates external power adaptors
• sRGB ensures color matching between display and printouts
• Kensington anti-theft lock-ready for added security
Page 2
LCD widescreen monitor
220VW9FB/00
22" wide 21.6" viewing area WSXGA+
Specifications Product highlights
Picture/Display
• LCD panel type: 1680 x 1050 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 21.6" / 54.9 cm
• Effective viewing area: 464.9 x 290.6 mm
• Pixel pitch: 0.277 x 0.277 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• Display colors: 16.7 M
• Viewing angle: 160º (H) / 160º (V), @ C/R > 10
• Response time (typical): 5 ms
• Maximum Resolution: 1680 x 1050 @ 60Hz
• Recommended Resolution: 1680 x 1050 @ 60Hz
• Video Dot Rate: 165 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 -75 Hz
• Aspect ratio: 16:10
•sRGB
Connectivity
• Signal Input: Analog (VGA)
• Video Sync Input Signal: Composite Sync, Separate
Sync, Sync on Green
• Video input impedance: 75 ohm
• Sync input impedance: 2.2k ohm
• Video input signal levels: 0.7 Vpp
Convenience
• Convenience Enhancements: On-screen Display
• Monitor Controls: Auto (Back), Contrast
Control, Input (Down), Brightness (Up), Menu,
Power On/Off
• OSD Languages: English, French, German, Italian,
Portuguese, Russian, Simplified Chinese, Spanish,
Turkish
• Other convenience: Kensington lock compatible
• Plug & Play Compatibility: DDC/CI, sRGB,
Windows 98, Windows 2000, Windows XP,
Windows Vista
• Regulatory Approvals: CE Mark, Energy Star, FCC
Class B, UL/cUL
• Tilt: -5° to 20°
• VESA Mount: 100 x 100 mm
Dimensions
• Box dimensions (W x H x D):
570
x 140 x 453 mm
• Box dimensions in inch (W x H x D):
22.4
x 5.5 x 17.8 inch
• Set dimensions (W x H x D): 506 x 347 x 62 mm
• Set dimensions in inch (W x H x D):
20
x 13.7 x 2.4 inch
• Set dimensions with stand (W x H x D):
506
x 403 x 205 mm
• Set dimensions with stand in inch (W x H x D):
20
x 15.9 x 8.1 inch
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 0°C to 40°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 4.53 kg
• Product weight (+stand) (lb): 10.0 lb
• Weight incl. Packaging: 6.29 kg
• Weight incl. Packaging (lb): 13.9
Power
• Complies with: Energy Star
• Consumption: < 49 W
• Off Mode: < 1 W
• Power LED indicator: Stand by/sleep - Amber,
Operation - green
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
WideScreen Design
This wide screen design employs a wider aspect ratio to
enable it to display more information.
5ms on/off response time
On-Off response time is the period required for a liquid
crystal cell to go from active (black) to inactive (white)
and back to active (black) again. It is measured in
milliseconds. Faster is better: Lower response time means
faster transitions and, therefore, results in fewer visible
image artifacts in the display of transition of texts and
graphics. On-Off response time is a more important
measure in the display of business content like
documents, graphs and photos.
WSXGA+, wide format 1680x1050
Wide format, super extended graphics array is a display
specification that is capable of displaying 1680 x 1050
resolution or approximately 1.7 million pixels.
Windows Vista ready
Philips Vista-ready monitors are empowered for vibrant,
exciting display of this new, visually sophisticated and
demanding Windows operating system, designed to
enhance your entertainment experience, make you more
productive and help you control your computing
experience at home and in the office, making viewing,
finding and organizing information for work or play quick,
efficient and easy.
Energy Star
Energy Star-labeled home electrical products are
designed to use less energy - saving you money while
reducing environmental pollution. In fact, Energy Starcompliant products consume less than 1 watt of power
while in standby mode. As an Energy Star partner, Philips
develops products that meet the Energy Star guidelines
for energy efficiency. This is achieved by having low
standby power consumption through innovatively
designed standby circuitry and stringent selection of
components made with high efficiency materials.
Compliant with RoHS standards
Philips designs and produces display products in
compliance with strict Restriction of Hazardous
Substances (RoHS) standards that restrict lead and other
toxic substances that can harm the environment.
Adjustable tilt
Adjustable tilt is backward and forward movement of a
screen on its base to achieve custom positioning for an
ideal viewing angle and more comfort for people who
spend long hours working on the computer.
Embedded power supply
An embedded power supply is a power adaptor built into
the body of a display device that replaces a bulky external
power adaptor.
sRGB ready
sRGB is an industry standard that ensures the best
possible match between the colors displayed on your
screen and those in your printouts.
Kensington lock compatible
Small apertures built into the display's frame for use with
a locking device that secures a display to a fixed object
for added protection against theft.
Issue date 2008-11-15
Version: 3.0.5
12 NC: 8670 000 39595
EAN: 87 12581 42147 2
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
