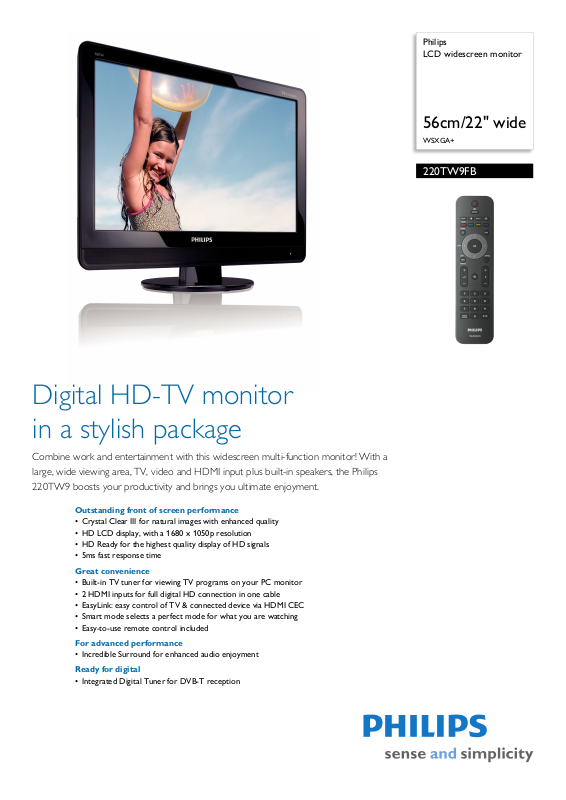

Page 1
Philips
LCD widescreen monitor
56cm/22" wide
WSXGA+
220TW9FB
Digital HD-TV monitor
in a stylish package
Combine work and entertainment with this widescreen multi-function monitor! With a
large, wide viewing area, TV, video and HDMI input plus built-in speakers, the Philips
220TW9 boosts your productivity and brings you ultimate enjoyment.
Outstanding front of screen performance
• Crystal Clear III for natural images with enhanced quality
• HD LCD display, with a 1680 x 1050p resolution
• HD Ready for the highest quality display of HD signals
• 5ms fast response time
Great convenience
• Built-in TV tuner for viewing TV programs on your PC monitor
• 2 HDMI inputs for full digital HD connection in one cable
• EasyLink: easy control of TV & connected device via HDMI CEC
• Smart mode selects a perfect mode for what you are watching
• Easy-to-use remote control included
For advanced performance
• Incredible Surround for enhanced audio enjoyment
Ready for digital
• Integrated Digital Tuner for DVB-T reception
Page 2
LCD widescreen monitor
56cm/22" wide WSXGA+
Highlights
220TW9FB/05
Crystal Clear III
Crystal Clear III combines a whole range of
e
nhancements to provide a better picture.
They include a 2D Comb filter, Dynamic
contrast, Blue stretch and Green enhancement
so that you always get the most natural looking
colors.
Built-in TV tuner
A television tuner built into a monitor to
disp
lay television signals as well as computer
data.
HD Ready
Enjoy the exceptional picture quality of High
Definiti
on pictures and be fully prepared for
HD sources like HDTV settop box or Blu-ray
disc. HD Ready is a protected label that offers
picture quality beyond that of progressive scan.
It conforms to strict standards laid out by
EICTA to offer a HD screen that displays the
benefits of resolution and picture quality of a
High Definition signal. It has a universal
connection for both analog YPbPr and
uncompressed Digital connection of DVI or
HDMI, supporting HDCP. It can display 720p,
and 1080i signals at 50 and 60Hz.
5ms on/off response time
On-Off response time is the period required
for a liqui
to inactive (white) and back to active (black)
again. It is measured in milliseconds. Faster is
d crystal cell to go from active (black)
better: Lower response time means faster
transitions and, therefore, results in fewer
visible image artifacts in the display of
transition of texts and graphics. On-Off
response time is a more important measure in
the display of business content like documents,
graphs and photos.
2 HDMI inputs
HDMI makes an uncompressed digital RGB
conne
ction from the source to the screen for
the ultimate picture quality. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources and
includes digital audio. HDMI uses HDCP copy
protection. With one HDMI inputs on the back
and one HDMI on the side of the TV you can
connect multiple HD sources, for instance an
HD settop box, a Blu-ray player, and game
console or digital Camcorder. Your TV is fully
prepared for the HD future.
EasyLink
EasyLink uses the HDMI CEC industry
s
tandard protocol to share functionality
between connected devices and the TV. With
EasyLink only one remote control is needed to
operate main functionalities on your TV and
connected devices. EasyLink uses the standard
HDMI cable to transfer system commands. It
works between all electronic devices equipped
with HDMI CEC.
Smart mode
The optimum picture and sound depends on
v
arious aspects like the video source, content
type, surroundings of the room, type of display
device etc. Smart Mode has predefined picture
and sound settings conveniently preset by the
way you use your TV. The ‘Personal’ setting,
allows you to define the picture settings
according to your preference, store it and gain
easy access for future selection. All these
conveniently built into your TV for optimal
settings.
Incredible Surround
Incredible Surround is an audio technology
from
Philips that dramatically magnifies the
sound field to immerse you in the audio. Using
state-of-the-art electronic phase shifting,
Incredible Surround mixes sounds from left
and right in such a way that it expands the
virtual distance between the two speakers.
This wider spread greatly enhances the stereo
effect and creates a more natural sound
dimension. Incredible Surround allows you to
experience total surround with greater depth
and width of sound, without the use of
additional speakers.
Integrated Digital DVB-T tuner
The integrated Digital DVB-T tuner lets you
receive digital
additional set top box. Enjoy quality TV clutter
free.
terrestrial TV without an
Page 3
LCD widescreen monitor
56cm/22" wide WSXGA+
Specifications
220TW9FB/05
Accessories
• Included accessories: Batteries for remote control,
Power cord, Quick start guide, Remote Control,
Table top stand, User Manual, Warranty certificate
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2: Audio L/R in, CVBS in, S-video in
• Ext 3: Audio L/R in, YPbPr
• HDMI 1: HDMI v1.3
• HDMI 2: HDMI v1.3
• EasyLink (HDMI-CEC): One touch play, System
an
dby
st
• Other connections: Common Interface,
Headphone
out (coaxial)
out, PC Audio in, PC-In VGA, S/PDIF
Convenience
• Clock: Sleep Timer, Start timer, Stop timer
• Connection Enhancement: Easy link
• Ease of Installation: Auto Program Naming,
• Ease of Use: Auto Volume Leveller (AVL), On
• Electronic Program Guide: 8 day Electronic
• Picture in Picture: Text dual screen
• Remote Control: TV
• Remote control type: RCPF05E08B
• Screen Format Adjustments: 4:3, Movie expand
• Smart mode: Movie, Personal, Power saver,
•
ic Channel Install(ACI), Automatic Tuning
Automat
System (ATS), Fine Tuning, PLL Digital Tuning, Plug
& Play
c
reen Display, Program List, Side Control
S
Program G
14
Zoom, Widescreen
Standard, Vi
Teletext: 100 page Smart Text
uide, Now + Next EPG
:9
, Movie expand 16:9, Subtitle Zoom, Super
vid
Dimensions
• Box dimensions (W x H x D):
580 x 510 x 137 mm
• Product weight: 5.5 kg
• Product weight (+stand): 6 kg
• Set dimensions (W x H x D): 534 x 397 x 71 mm
• Set dimensions with stand (W x H x D):
4
x 442 x 181 mm
53
• VESA wall mount compatible: 100 x 100 mm
• Weight incl. Packaging: 7.77 kg
Picture/Display
• Aspect ratio: Widescreen
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• Diagonal screen size: 22 inch / 56 cm
• Display screen type: LCD WSXGA Active Matrix
T
TF
•
Panel resolution: 1680 x 1050p
• Picture enhancement: 2D Combfilter, 3/2 - 2/2
i
on pull down, Crystal Clear III, Progressive
mot
scan, Smart Picture, White stretch
• Response time (typical): 5 ms
• Screen enhancement: Anti-Reflection coated
reen
sc
•
Viewing angle: 170º (H) / 160º (V)
Power
• Ambient temperature: 5 °C to 35 °C
• Mains power: 100-240V, 50/60Hz
• Power consumption: 55 W
• Standby power consumption: <0.3 W
Sound
• Output power (RMS): 2 x 5W
• Sound Enhancement: Auto Volume Leveller,
• Sound System: Mono, Stereo
le Surround, Smart Sound
Incredib
Supported Display Resolution
• Computer formats
Re
solution Refresh rate
1024 x 768 60Hz
1280 x 1024 60Hz
1440 x 900 50Hz, 75Hz
1680 x 1050 50
640 x 480
800 x 600 60Hz
deo formats
• Vi
Re
solution Refresh rate
1080i 50, 60Hz
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
Hz, 60Hz
60
Hz
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• Digital TV: DVB Terrestrial *
Tuner bands: Hyperband, S-Channel, UHF, VHF
•
•Tuner Display: PLL
• TV system: PAL B/G, PAL D/K, PAL I, SECAM B/G
SECAM D/K, SECAM L/L'
• Video Playback: NTSC, PAL, SECAM
•
,
Issue date 2012-01-20
Version: 1.0.4
12 NC: 8670 000 42453
EAN: 87 12581 44518 8
EXT 2
S-VIDEO R - AUDIO - L VIDEO IN
HDMI side
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
