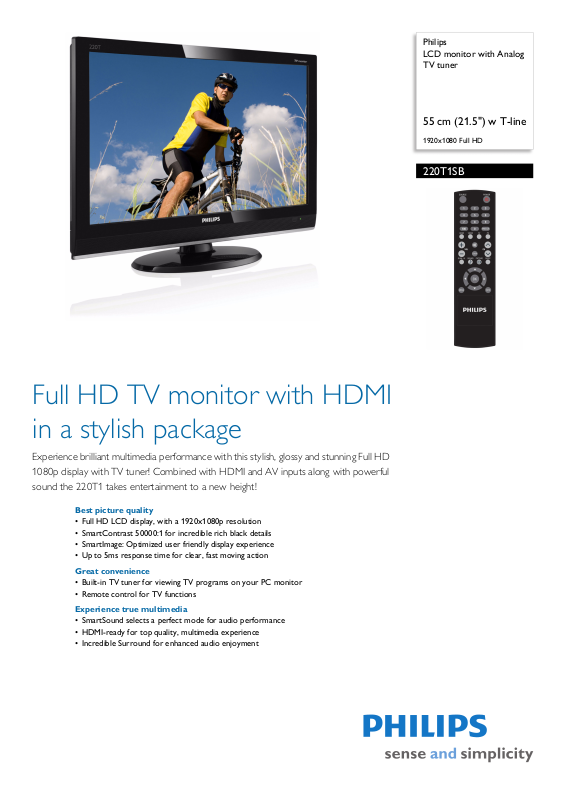

Philips
LCD monitor with Analog
TV tuner
55 cm (21.5") w T-line
1920x1080 Full HD
220T1SB
Full HD TV monitor with HDMI
in a stylish package
Experience brilliant multimedia performance with this stylish, glossy and stunning Full HD
1080p display with TV tuner! Combined with HDMI and AV inputs along with powerful
sound the 220T1 takes entertainment to a new height!
Best picture quality
• Full HD LCD display, with a 1920x1080p resolution
• SmartContrast 50000:1 for incredible rich black details
• SmartImage: Optimized user friendly display experience
• Up to 5ms response time for clear, fast moving action
Great convenience
• Built-in TV tuner for viewing TV programs on your PC monitor
• Remote control for TV functions
Experience true multimedia
• SmartSound selects a perfect mode for audio performance
• HDMI-ready for top quality, multimedia experience
• Incredible Surround for enhanced audio enjoyment
LCD monitor with Analog TV tuner
55 cm (21.5") w T-line 1920x1080 Full HD
Highlights
220T1SB/97
Full HD LCD display 1920x1080p
The Full HD screen has the widescreen
resolution of 1920 x 1080p. This is the highest
resolution of HD sources for the best possible
picture quality. It is fully future proof as it
supports 1080p signals from all sources,
including the most recent like Blu-ray and
advanced HD game consoles. The signal
processing is extensively upgraded to support
this much higher signal quality and resolution.
It produces brilliant flicker-free progressive
scan pictures with superb brightness and
colors.
HDMI Ready
A HDMI-ready device has all the required
hardware to accept High-Definition
Multimedia Interface (HDMI) input, high quality
digital video and audio signals all transmitted
over a single cable from a PC or any number of
AV sources including set-top boxes, DVD
players and A/V receivers and video cameras.
SmartContrast ratio 50000:1
You want the LCD flat display with the highest
contrast and most vibrant images. Philips
advanced video processing combined with
unique extreme dimming and backlight
boosting technology results in vibrant images.
SmartContrast will increase the contrast with
excellent blacklevel and accurate rendition of
dark shades and colors. It gives a bright, lifelike
picture with high contrast and vibrant colors
Incredible Surround
Incredible Surround is an audio technology
from Philips that dramatically magnifies the
sound field to immerse you in the audio. Using
state-of-the-art electronic phase shifting,
Incredible Surround mixes sounds from left
and right in such a way that it expands the
virtual distance between the two speakers.
This wider spread greatly enhances the stereo
effect and creates a more natural sound
dimension. Incredible Surround allows you to
experience total surround with greater depth
and width of sound, without the use of
additional speakers.
5ms response time
Response time measures signal reaction speed
i
n milliseconds. Faster response time is better
as it eliminates visible image artifacts that could
dampen your experience when viewing fast
moving images or objects. In this case, this
LCD panel gives you 5ms response time so
that you can watch your LCD TV with a clear,
fast moving action.
YPbPr L R
AUDIO IN
S-VIDEO VIDEO IN L - AUDIO - R
VGA
LCD monitor with Analog TV tuner
55 cm (21.5") w T-line 1920x1080 Full HD
Specifications
220T1SB/97
Picture/Display
• Aspect ratio: Widescreen, 16:9
• Brightness: 250 cd/m²
• SmartContrast: 50000:1
• Contrast ratio (typical): 1000:1
• Diagonal screen size: 21.5 inch / 54.61 cm
• Panel resolution: 1920 x 1080
• Picture enhancement: Progressi
TrueVision
• Response time (typical): 5 ms
• Screen enhancement: Anti-Reflection coated
re
en
sc
• Viewing angle: 170º (H) / 160º (V)
ve sc
an,
Supported Display Resolution
• Computer formats
Resolution Refresh rate
1920 x 1080 60Hz
deo formats
• Vi
Res
olution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 50, 60Hz
Sound
• Output power (RMS): 2 x 3W
• Sound Enhancement: Incredible Surround, Smart
Sound
• Sound System: Mono, Stereo
Convenience
• Ease of Installation: Automatic Tuning System
(ATS), Plug & Play
• Ease of Use: On Screen Display, Program List, Side
rol
Cont
• Remote control: 220T1 Remote control
• On-Screen Display languages
:
English, Simplified
Chinese
• Other convenience: VESA mount (100x100mm)
• Screen Format Adjustments: Widescreen, Normal,
Zoom 1, Zoom 2
• Smart mode: Movie, Standard, Personal, Vivid, Eco
•SmartSound: Music, Spe
e
ch, Personal
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL I, PAL B/G, PAL D/K
Video Playback: NTSC, PAL
•
•Tuner Display: PLL
Connectivity
• Signal Input: VGA (Analog ), HDMI, PC Audio in
• Ext 1: CVBS in, Audio L/R in
• Ext 2: YPbPr in, Audio L/R in
• Ext 3: CVBS out, Audio L/R out
• Other connections: S-Video in, CVBS in, Audio L/
in,
Headphone out
R
Power
• On mode: 29W (Typ.@monitor mode)
• Off mode: 0.5 W
• Ambient temperature: 0 °C to 40 °C
• Mains power: 100-240V, 50/60Hz
Dimensions
• Product with stand (mm): 382 x 528 x 176 mm
• Product without stand (mm): 347 x 528 x 65 mm
• Packaging in mm (WxHxD): 451 x 620 x 160 mm
Weight
• Product with stand (kg): 4.6 kg
• Product without stand (kg): 4.5 kg
• Product with packaging (kg): 6.5 kg
Accessories
• Included accessories: Table top stand, Power cord,
Quick start guide, User Manual, Remote Control,
Batteries for remote control
•
Issue date 2012-09-25
Version: 4.0.3
12 NC: 8670 000 55012
EAN: 87 12581 49404 9
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
