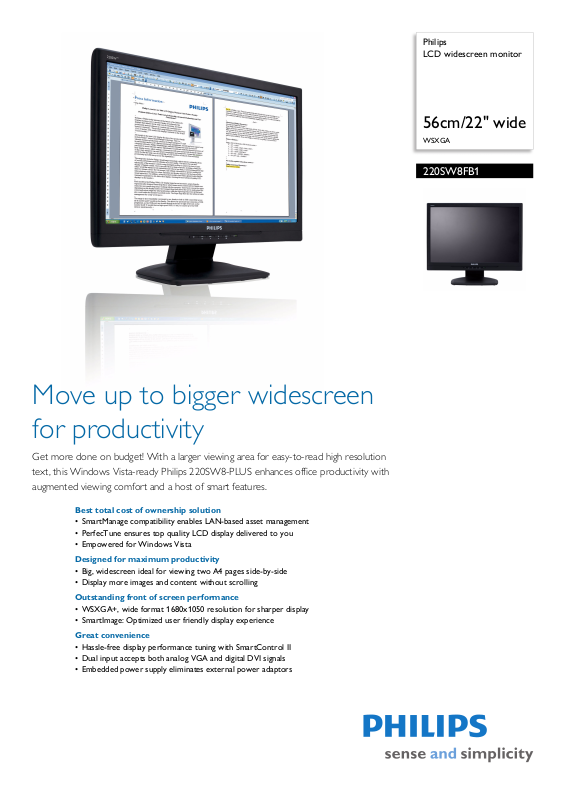

Page 1
Philips
LCD widescreen monitor
56cm/22" wide
WSXGA
220SW8FB1
Move up to bigger widescreen
for productivity
Get more done on budget! With a larger viewing area for easy-to-read high resolution
text, this Windows Vista-ready Philips 220SW8-PLUS enhances office productivity with
augmented viewing comfort and a host of smart features.
Best total cost of ownership solution
• SmartManage compatibility enables LAN-based asset management
• PerfecTune ensures top quality LCD display delivered to you
• Empowered for Windows Vista
Designed for maximum productivity
• Big, widescreen ideal for viewing two A4 pages side-by-side
• Display more images and content without scrolling
Outstanding front of screen performance
• WSXGA+, wide format 1680x1050 resolution for sharper display
• SmartImage: Optimized user friendly display experience
Great convenience
• Hassle-free display performance tuning with SmartControl II
• Dual input accepts both analog VGA and digital DVI signals
• Embedded power supply eliminates external power adaptors
Page 2
LCD widescreen monitor
56cm/22" wide WSXGA
Highlights
220SW8FB1/93
SmartManage enabled
SmartManage is a system for monitoring,
managing and
as well as delivering remote support to users
who experience difficulties - all accomplished
over a LAN.
PerfecTune
PerfectTune is industry-leading, proprietary
Phili
ps testing and algorithm technology for
monitor adjustment and fine tuning, an
extensive process that ensures ultimate display
performance in compliance with a standard
four-times more stringent than Microsoft's
Vista requirements from each and every
monitor that leaves the factory - not just a few
review samples. Only Philips goes to these
lengths to deliver this exacting level of color
accuracy and display quality in every new
monitor.
Windows Vista ready
Philips Vista-ready monitors are empowered
for vi
brant, exciting display of this new, visually
sophisticated and demanding Windows
operating system, designed to enhance your
checking status of display devices
entertainment experience, make you more
productive and help you control your
computing experience at home and in the
office, making viewing, finding and organizing
information for work or play quick, efficient
and easy.
Large viewing area
Viewing area is the visible portion of a monitor
s
creen available for displaying data.
WSXGA+, wide format 1680x1050
Wide format, super extended graphics array is
a
display specification that is capable of
displaying 1680 x 1050 resolution or
approximately 1.7 million pixels.
SmartImage
SmartImage is an exclusive leading edge Philips
te
chnology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Image, Entertainment, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
SmartControl II
SmartControl II is monitor-based software
w
ith an easy-to-use on-screen graphic
interface that guides you through fine-tuning
resolution, color calibration and other display
settings including brightness, contrast, clock &
phase, position, RGB, white point and - on
models with onboard speakers - volume
adjustments.
Dual input
Dual input provides connectors to
accommoda
digital DVI signals.
Embedded power supply
An embedded power supply is a power
adapto
that replaces a bulky external power adaptor.
te input of both analog VGA and
r built into the body of a display device
Page 3
LCD widescreen monitor
56cm/22" wide WSXGA
Specifications
220SW8FB1/93
Picture/Display
• LCD panel type: 1680 x 1050 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 22" / 55.9 cm
• Effective viewing area: 474 x 296 mm
• Pixel pitch: 0.282 x 0.282 mm
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast ratio (dynamic): 3400:1
• Display colors: 16.7 M
• Viewing angle: 160º (H) / 160º (V), @ C/R > 10
• Response time (typical): 5 ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1680 x 1050 @ 60Hz
• Optimum resolution: 1680 x 1050 @ 60Hz
• Video Dot Rate: 205 MHz
• Horizontal Scanning Frequency: 30 - 83 kHz
• Vertical Scanning Frequency: 56 -75 Hz
• Aspect ratio: 16:10
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-D
• Sync Input: Composite Sync,
on Green
• Video input impedance: 75 ohm
• Sync input impedance: 2.2k ohm
• Video input signal levels: 0.7 Vpp
Separate Sync, Sync
Convenience
• User convenience: On-screen Display
• Monitor Controls: Auto, Brightness (Left),
ntrast (Right), Menu, Power On/Off
Co
• OSD Languages: English, Fr
Russian, Spanish
• Other convenience: Kensingto
• Plug & Play Compatibility: DDC/CI, sRGB,
ws 98/ME/2000/XP/Vista
Windo
ench, German, Italian,
n lock compatible
• Regulatory approvals: CE Mark, Energy Star, FCC
ass B, SEMKO, TCO '03, TÜV/GS, TÜV Ergo,
Cl
UL/cUL
• Tilt: -5° to 20°
• VESA Mount: 100 x 100 mm
Accessories
• Included accessories: AC Power Cord, VGA cable
• User Manual
Dimensions
•Box dimensions (W x H x D):
590 x 522 x 150 mm
• Box dimensions in inch (W x H x D):
.2 x 20.6 x 5.9 inch
23
•Set dimensions (W x H x D): 519 x 435 x 69 mm
• Set dimensions in inch (W x
20.4 x 17.1 x 2.7 inch
• Set dimensions with stand (W x H x D):
9 x 438 x 188 mm
51
•Set dimensions with st
20.4 x 17.2 x 7.4 inch
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 0°C to 40°C
• Temperature range (storage): -20°C to 60°C
• Product weight (+stand): 4.68 kg
• Product weight (+stand) (lb): 10.3 lb
• Weight incl. Packaging: 6.69 kg
• Weight incl. Packaging (lb): 14.7
H x D):
and in inch (W x H x D):
Power
• Complies with: Energy Star
• Consumption (On mode): < 45 W (Typical)
•Consumption (Off Mo
• Power LED indicator: Stand by/sleep - Amber,
eration - green
Op
• Power supply: Built-in, 100-240VAC, 50/60Hz
•
de): < 1 W
Issue date 2012-01-20
Version: 1.0.2
12 NC: 8670 000 39849
EAN: 87 12581 42414 5
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
