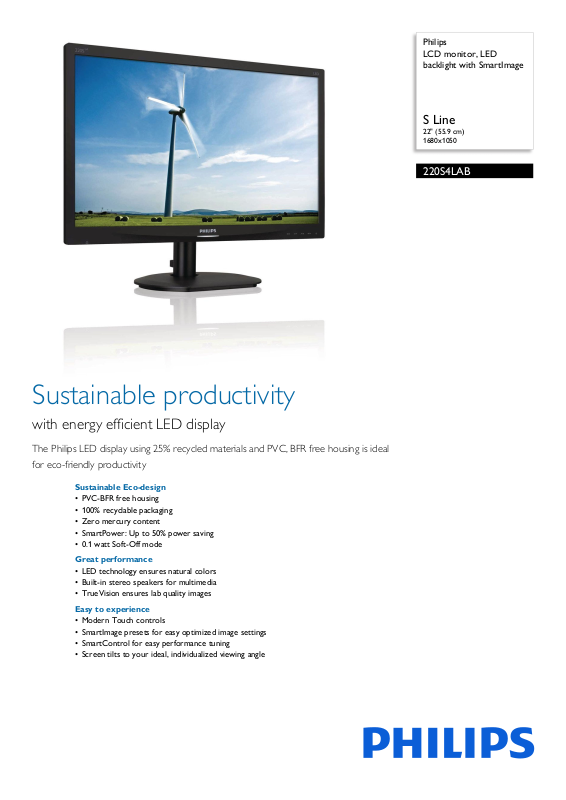

Page 1
Philips
LCD monitor, LED
backlight with SmartImage
S Line
22" (55.9 cm)
1680x1050
220S4LAB
Sustainable productivity
with energy efficient LED display
The Philips LED display using 25% recycled materials and PVC, BFR free housing is ideal
for eco-friendly productivity
Sustainable Eco-design
• PVC-BFR free housing
• 100% recyclable packaging
• Zero mercury content
• SmartPower: Up to 50% power saving
• 0.1 watt Soft-Off mode
Great performance
• LED technology ensures natural colors
• Built-in stereo speakers for multimedia
• TrueVision ensures lab quality images
Easy to experience
• Modern Touch controls
• SmartImage presets for easy optimized image settings
• SmartControl for easy performance tuning
• Screen tilts to your ideal, individualized viewing angle
Page 2
220S4LAB/00
LCD monitor, LED backlight
S Line 22" (55.9 cm), 1680x1050
Highlights
LED technology
White LED's are solid state devices which light
up
to full, consistent brightness faster saving
startup time. LED's are free from mercury
content which allows for eco-friendly recycling
and disposal process. LED's allow for better
dimming control of LCD backlight, resulting in
super high contrast ratio. It also gives superior
color reproduction thanks to consistent
brightness across the screen.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
Built-in stereo speakers
A pair of high quality stereo speakers built into
a display device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
TrueVision
TrueVision is a proprietary Philips technology
that uses advanced algorithm for testing and
aligning monitor display which gives you the
ultimate display performance. Philips ensures
TrueVision monitors leave the factory finetuned with this process giving you consistent
color and picture quality.
PVC-BFR free housing
This Philips monitor housing is free from
brominate
chloride (PVC-BFR free)
Zero mercury content
Philips monitors with LED backlighting are free
of
Mercury content, one of the most toxic
natural substances, which affects humans and
d flame retardant and polyvinyl
animals. This reduces the environmental
impact of the display throughout its life-cycle,
from manufacturing to disposal.
SmartPower
SmartPower is an artificial intelligent
t
echnology which dynamically analyzes the
content of the screen image to achieve power
saving. The backlight intensity can be
controlled automatically and pre-set by the
system to reduce the power consumption by
up to 50%, which saves substantially on energy
costs
SmartControl for easy tuning
PC software for fine tuning display
p
erformance and settings. Philips offers users
two choices for display setting adjustment.
Either navigate the multilevel On Screen
Display menu through buttons on the display
itself or use the Philips SmartControl software
to easily adjust the various display settings in a
familiar way
Touch controls
Touch controls are intelligent, touch sensitive
icons that replace protruding buttons that lets
the user adjust the monitor to their
requirement. Responding to your lightest
touch,Touch control gives the monitor a
modern feel.
Page 3
220S4LAB/00
LCD monitor, LED backlight
S Line 22" (55.9 cm), 1680x1050
Specifications
Picture/Display
• LCD panel type: TFT-LCD
• Backlight type: W-LED system
• Panel Size: 22 inch / 55.9 cm
• Effective viewing area: 473.76 (H) x 296.1 (V)
• Aspect ratio: 16:10
• Optimum resolution: 1680 x 1050 @ 60Hz
• Response time (typical): 5 ms
• Brightness: 250 cd/m²
• Contrast ratio (typical): 1000:1
• SmartContrast:
• Pixel pitch: 0.282 x 0.282 mm
• Viewing angle: 170º (H) / 160º (V), @ C/R > 10
• Picture enhancement: SmartImage
• Display colors: 16.7M
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 75 Hz
(V)
•sRGB
20,000,000:1
Connectivity
• Signal Input: DVI-D (digital, HDCP), VGA (Analog )
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 1.5W x 2
• User convenience: Smart
SmartPower, Menu, Power On/Off
• Control software: SmartControl Premium
• OSD Languages: English, Fr
Portuguese, Russian, Simplified Chinese, Spanish
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 7/Vista/XP
sR
Image, Volume,
ench, German, Italian,
Stand
• Tilt: -5/20 degree
Power
• ECO mode: 12.6W (typ.)
• On mode: 15.09 W (typ.) (EnergyStar 7.0 test
hod)
met
• Standby mode: 0.1W
• Off mode: 0.1W
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand (mm): 504 x 434 x 207 mm
• Product without stand (mm): 504 x 349 x 59 mm
• Packaging in mm (WxHxD): 565 x 478 x 138 mm
Weight
• Product with stand (kg): 4.45 kg
• Product without stand (kg): 3.38 kg
• Product with packaging (kg): 6.27 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 30,000 hour(s)
Sustainability
• Environmental and energy: EnergyStar 7.0, TCO
Certified, WEEE, RoHS
• Recyclable packaging material: 100 %
• Recycled material: 25%
• Specific Substances: PVC / BFR free housing,
ry free
Mercu
Compliance and standards
• Regulatory Approvals: BSMI, CE Mark, FCC Class
B, GOST, SASO, SEMKO, TUV Ergo, TUV/GS, UL/
cUL
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
•
Issue date 2022-04-21
Version: 5.0.1
12 NC: 8670 000 89203
EAN: 87 12581 64151 1
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
