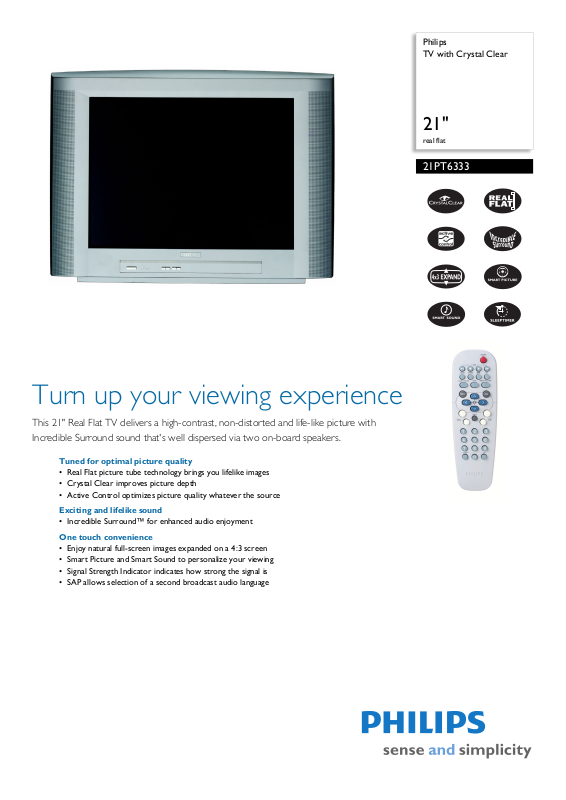

Philips 21PT6333 User Manual

Philips
TV with Crystal Clear

21"

real flat

21PT6333

Turn up your viewing experience

This 21" Real Flat TV delivers a high-contrast, non-distorted and life-like picture with
Incredible Surround sound that's well dispersed via two on-board speakers.

Tuned for optimal picture quality

• Real Flat picture tube technology brings you lifelike images

• Crystal Clear improves picture depth

• Active Control optimizes picture quality whatever the source

Exciting and lifelike sound

• Incredible Surround™ for enhanced audio enjoyment

One touch convenience

• Enjoy natural full-screen images expanded on a 4:3 screen

• Smart Picture and Smart Sound to personalize your viewing

• Signal Strength Indicator indicates how strong the signal is

• SAP allows selection of a second broadcast audio language

TV with Crystal Clear

21PT6333/85

21" real flat

Specifications Product highlights

Picture/Display

• Aspect ratio: 4:3

• Diagonal screen size: 21 inch / 53 cm

• Visible diagonal screen size: 51 cm

• Display screen type: Real Flat picture tube

• Picture enhancement: Active Control, Crystal
Clear, Color Temperature Adjustment

• Picture processing: 50 Hz, 60Hz Analog

Sound

• Sound Enhancement: Auto Volume Leveller, Ultra
Bass

• Sound System: Incredible Surround, SAP, Stereo

• Output power (RMS): 2 x 3W

Loudspeakers

• Built-in speakers: 2

Convenience

• Ease of Use: Auto Volume Leveller (AVL), Smart
Picture Control, Smart Sound Control

• Remote control type: RCLB014

• Teletext: Closed Captioning

• Screen Format Adjustments: 4:3, 4:3 expand

• Clock: Sleep Timer, On/Off event timer

• Signal strength indication

Tuner/Reception/Transmission

• TV system: NTSC

• Aerial Input: 75 ohm F-type

• Tuner Display: PLL

• Video Playback: NTSC

Connectivity

• AV 1: AV In

Power

• Mains power: AC 90-140V, 50/60Hz

• Standby power consumption: < 3W

Dimensions

• Box dimensions (W x H x D):
636

x 528 x 546 mm

• Set dimensions (W x H x D):
595

x 455 x 494 mm

• Set weight: 22 kg

• Weight incl. Packaging: 25 kg

• Set color: Silver Shadow

•

Real Flat picture tube

The flatter tube provides a wider viewing angle while
minimizing reflections for the best picture possible.

Crystal Clear

Combining picture enhancements like Contrast plus and
color improvement, Crystal Clear improves picture depth.

Active Control

Active Control ensure that noise and sharpness
improvements are continuously made at a rate of 60
times per second. By continually adjusting picture setting
over 3,000 times per minute, Active Control Plus ensures
that the viewing experience is optimized.

Incredible Surround™

Incredible Surround is an audio technology from Philips
that dramatically magnifies the sound field to immerse
you in the audio. Using state-of-the-art electronic phase
shifting, Incredible Surround mixes sounds from left and
right in such a way that it expands the virtual distance
between the two speakers. This wider spread greatly
enhances the stereo effect and creates a more natural
sound dimension. Incredible Surround allows you to
experience total surround with greater depth and width
of sound, without the use of additional speakers.

4x3 Expand

4x3 Expand enables widescreen movies to be viewed on
a 4:3 aspect ratio TV screen by removing the black bars
at the top and bottom of the image. You are able to
watch full-screen movies without compromizing on
picture quality and resolution.

Smart Picture and Smart Sound

Philips preset modes for Smart Picture and Smart Sound
provide you with direct access via a single key on the
remote control. You can select optimized picture and
sound settings for the various picture and sound modes.

Signal Strength Indicator

The signal strength indicator displays signal strength
when you change the channel, and continuously tracks
and updates the incoming signal strength.

SAP

Secondary Audio Program (SAP) allows you to choose
another language in program where two languages are
available.

Issue date 2008-11-08

Version: 9.0.10

12 NC: 8670 000 18825
UPC: 6 09585 10707 6

© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com
